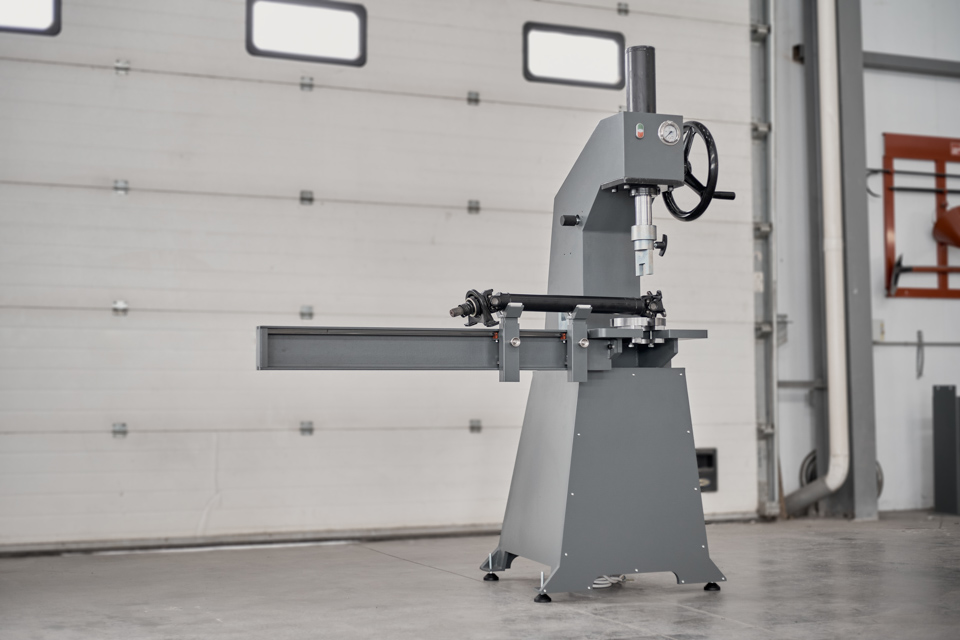

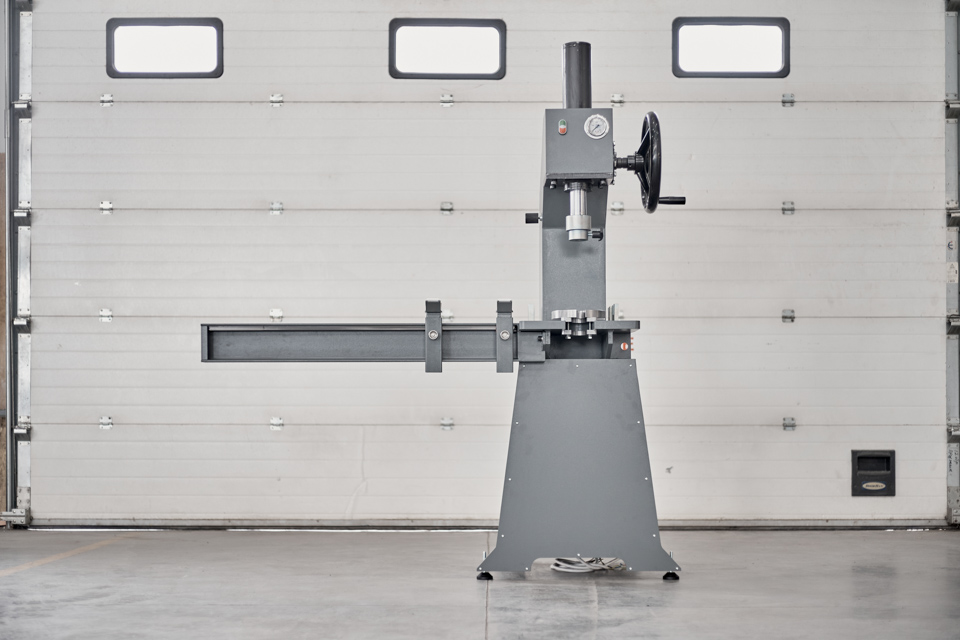

GPR-10 Manual hydraulic press

Advantages

  • Reliable robust design, no deformation of the frame or pressing parts upon application of working load

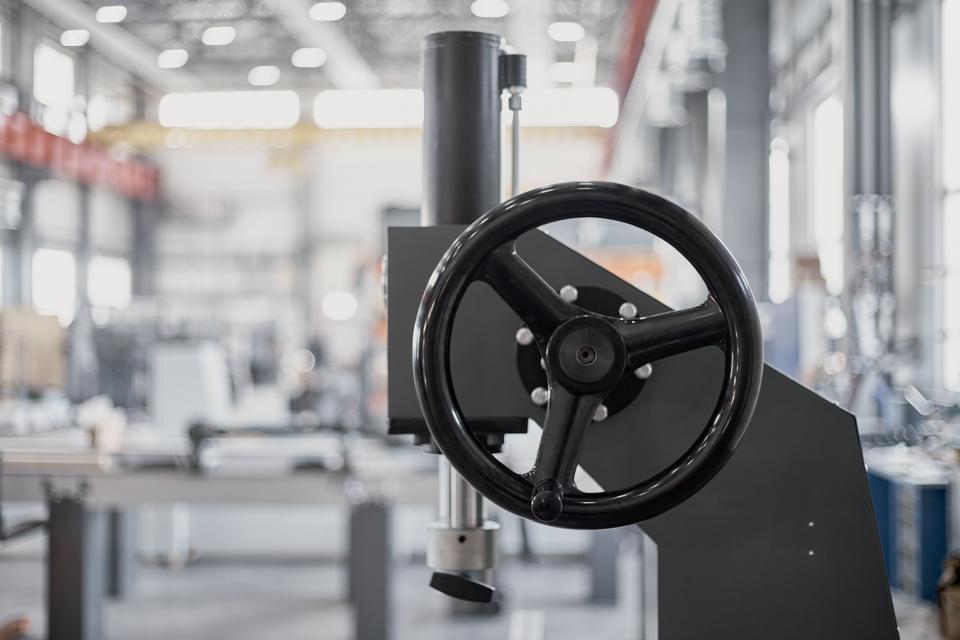

  • Movement of the hydraulic cylinder pressing rack is precisely controlled proportionally to the speed and direction of rotation of the hand wheel
  • Sensitive hand wheel feedback, reflecting the condition of the part under pressure
  • Increased safety: the pressure is removed from a part under press immediately when the hand wheel is released

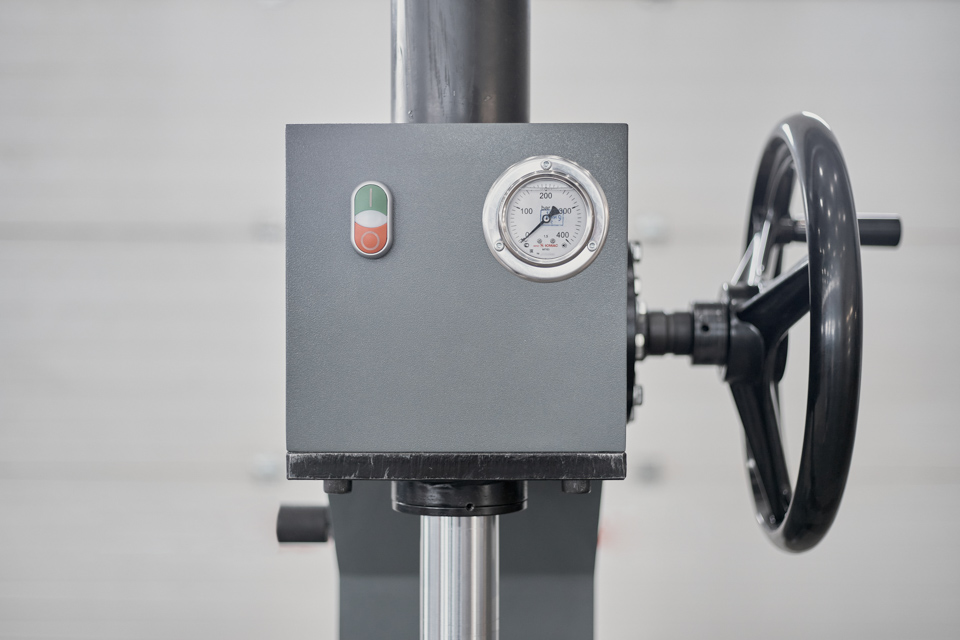

  • Gauge for visual control of the pressing pressure
  • A wide range of operations thanks to a variety of corresponding tooling (alignment, bearings installation, pressing out, punching, cutting, bending, straightening, broaching and etc.)
  • Operation with no power supply
  • 12 months warranty for the machine and all its components

Specifications

Code GPR-10
Type Hydraulic single column press
Power supply 3 phases, 380 V 50 Hz, or 1 phase, 220 V, 50 Hz, protective grounding is mandatory
Pressure 0 – 160 bar
Dimensions (L x W x H) 630 х 880 х 1900 mm
Maximum height between the work table and the hydraulic cylinder mount 505 mm
Warranty period 12 months
Maximum compression force 10 t
Applicability Press for alignment, bearings installation, pressing out, punching, cutting, bending, straightening and broaching
Maximal stroke of the press rack 350 mm

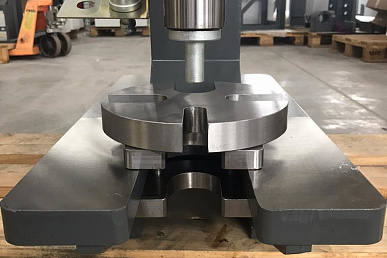

Size of the press work table 430 х 320 mm
Power 2,2 kW
Press mass 450 kg

Options and accessories

GPR-10
GPR-10
7706 1 EUR
Code
GPR-10
Type
Hydraulic single column press
Power supply
3 phases, 380 V 50 Hz, or 1 phase, 220 V, 50 Hz, protective grounding is mandatory
Pressure
0 – 160 bar
Dimensions (L x W x H)
630 х 880 х 1900 mm
Maximum height between the work table and the hydraulic cylinder mount
505 mm
Warranty period
12 months
Maximum compression force
10 t
Applicability
Press for alignment, bearings installation, pressing out, punching, cutting, bending, straightening and broaching
Maximal stroke of the press rack
350 mm
Size of the press work table
430 х 320 mm
Power
2,2 kW
Press mass
450 kg
Reliable robust design, no deformation of the frame or pressing parts upon application of working load Movement of the hydraulic cylinder pressing rack is precisely controlled proportionally to the speed and direction of rotation of the hand wheel Sensitive hand wheel feedback, reflecting the condition of the part under pressure Increased safety: the pressure is removed from a part under press immediately when the hand wheel is released Gauge for visual control of the pressing pressure A wide range of operations thanks to a variety of corresponding tooling (alignment, bearings installation, pressing out, punching, cutting, bending, straightening, broaching and etc.) Operation with no power supply 12 months warranty for the machine and all its components
