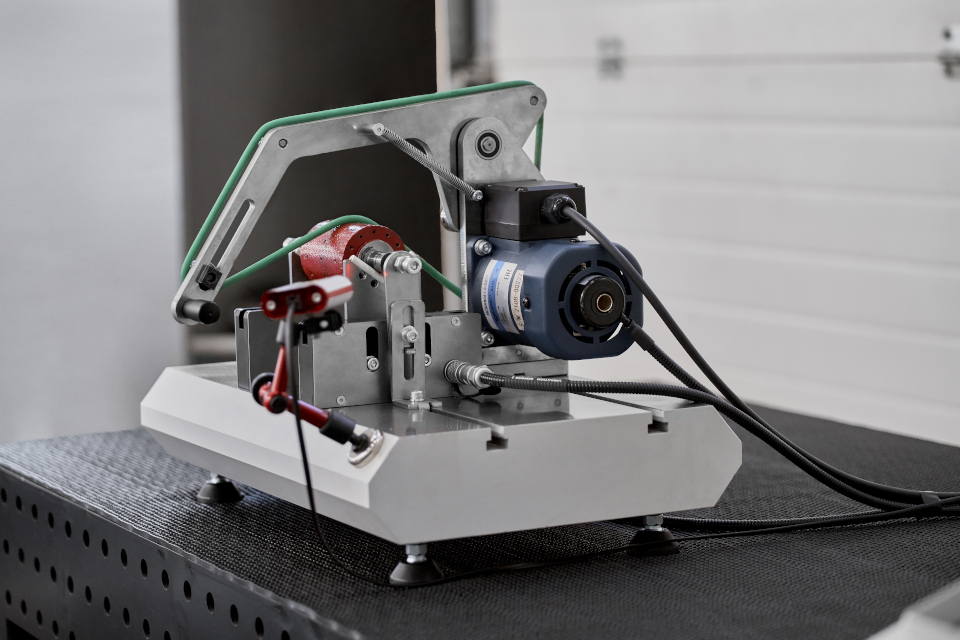

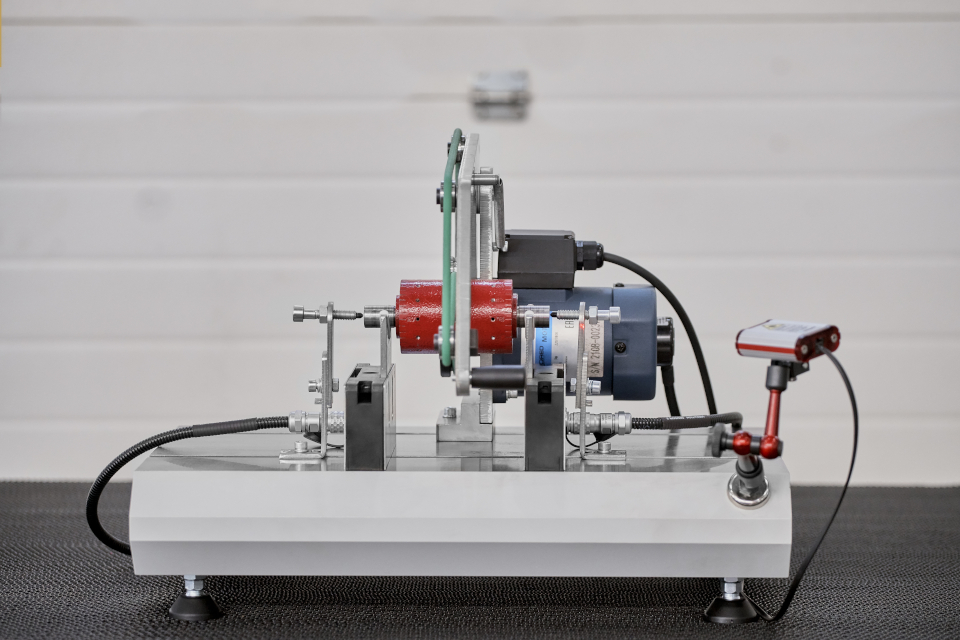

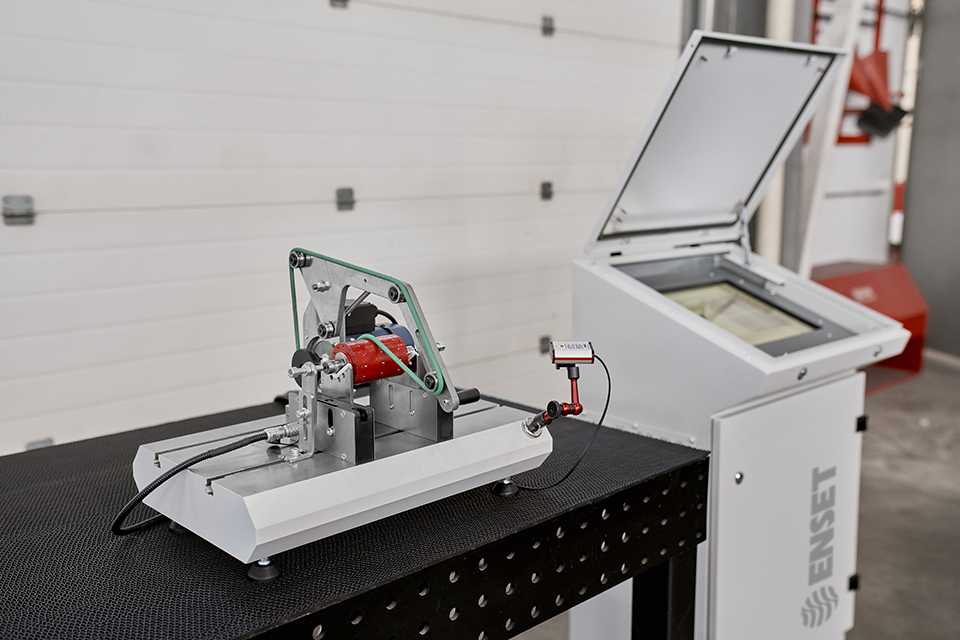

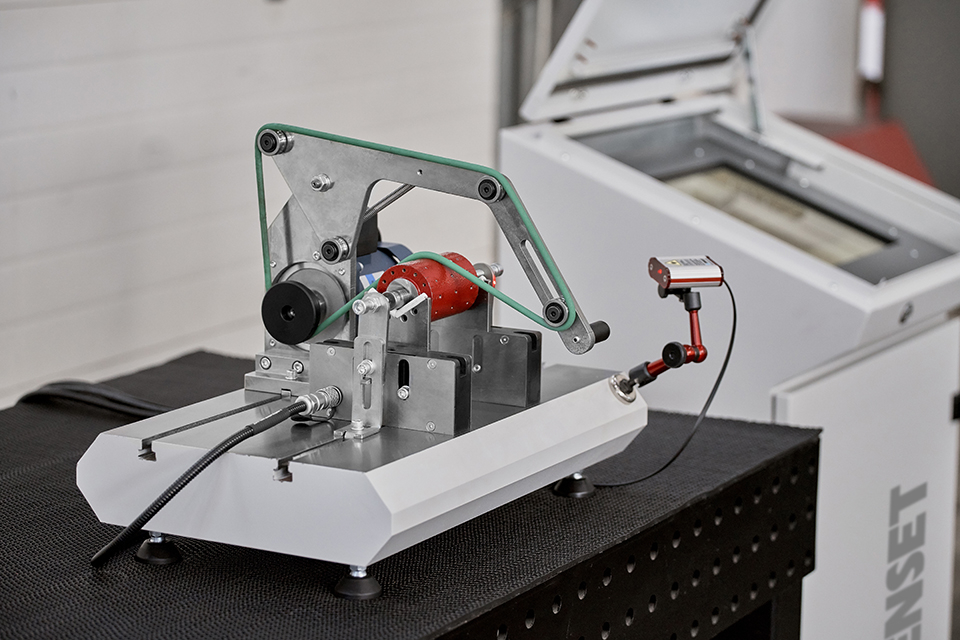

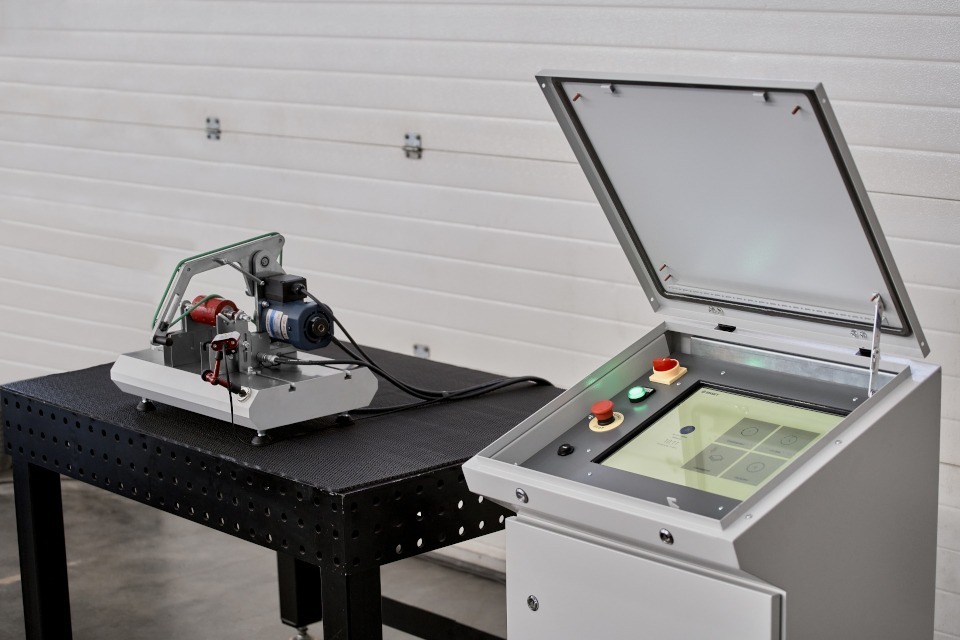

DBR PICASSO Machine for balancing 10 g – 16 kg rotors

Advantages

  • The machine is designed for dynamic balancing, analysis and measurement of rotor oscillation intensity in hard bearing mode
  • Vibrolab balancing measuring system is included in the State Register of Measuring Instruments. It is used in desktop version
  • Weight of the product to be balanced is from 0.01 kg

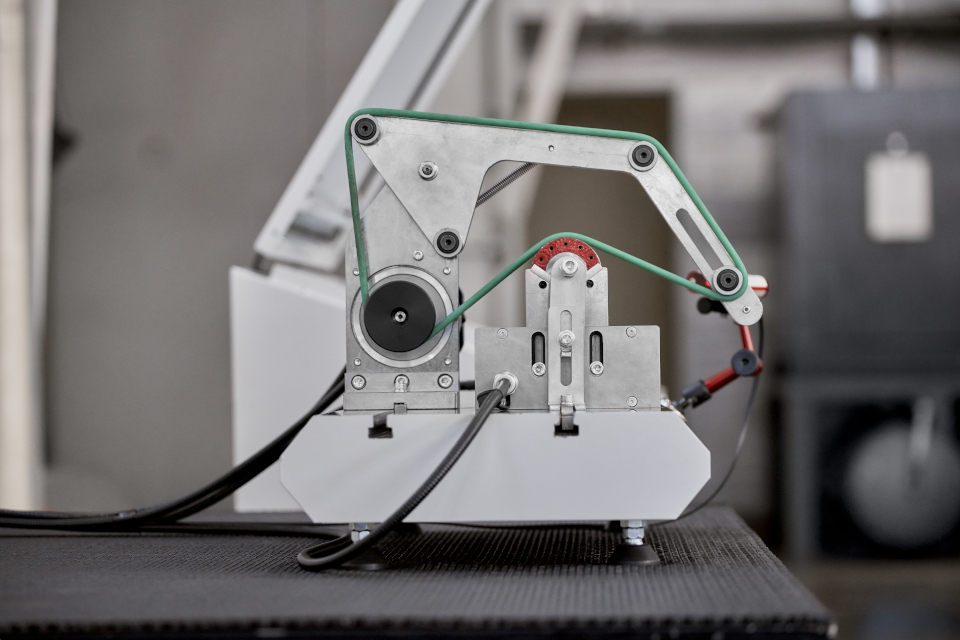

  • Rotor rotation is carried out by means of belt transmission, which eliminates the need for additional equipment
  • Electrical and mechanical components of European origin only
  • Supplied with set of axial supports
  • Warranty on the machine and all its components – 12 months
  • Balancing of turbines, armatures of high-speed electric motors (e.g. drive spindles), gyroscopes and other rotors weighing up to 16 kg

Specifications

Code DBR_Picasso
Type Horizontal, hard-bearing modular balancing machine
Rotor type drive Belt
Number of supports and measurement planes 2 pcs., adjustable in height
Rotor weight 0,01 - 16,0 kg
Product diameter max. 250 mm (220 mm - under belt drive)
Distance between middles of the rotor supports 10 - 410 mm
Minimum achievable residual unbalance 0,1 g mm/kg
Power supply 1 phase, 220 V, 50 Hz, 6 A, protective grounding is mandatory
Rotor drive Variable frequency asynchronous motor, 180 – 10000 rpm
Vibration sensors Piezoelectric force sensors built in the supports
Phase sensor type for belt drive Laser keyphasor (included)
Protection against dust and water IP55
User interface Color touch-screen, impact-, oil- and dirt-resistant
Machine basement Not required
Machine dimensions (L x W x H) 480 х 390 х 370 mm
Machine weight with the electrical cabinet, no more 160 kg
Roller top pressure Option
Rotor supports diameter 2 - 70 mm (2 - 48 mm with roller top pressure option)
Set Axial stops included

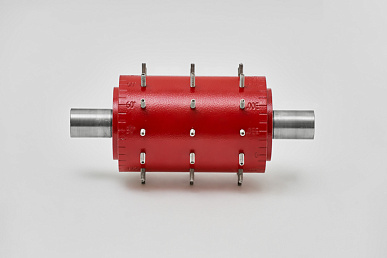

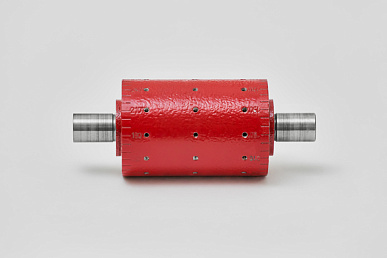

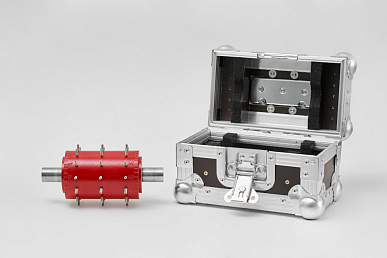

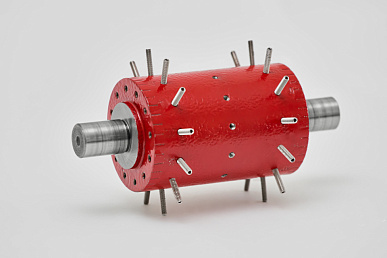

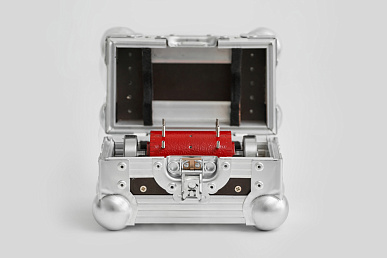

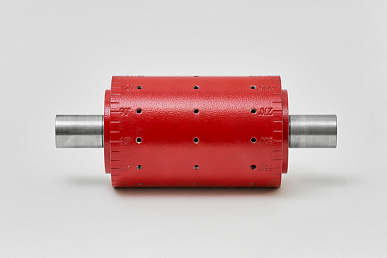

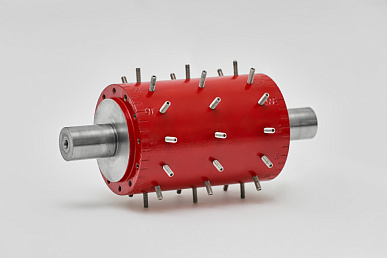

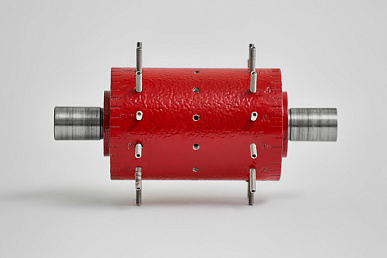

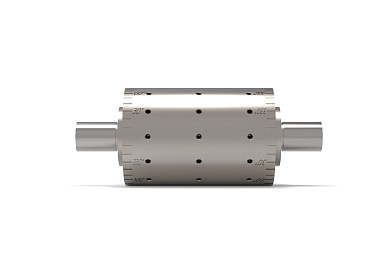

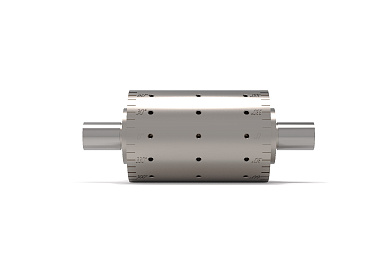

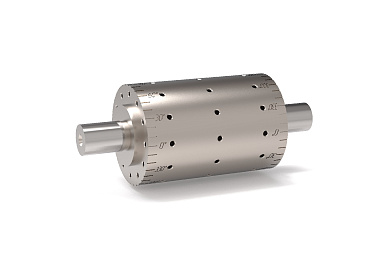

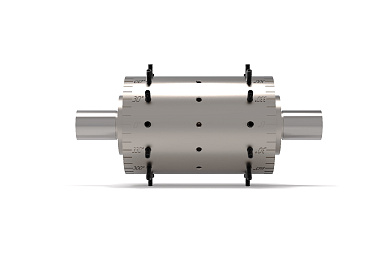

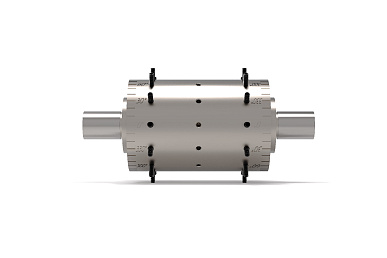

Options and accessories
