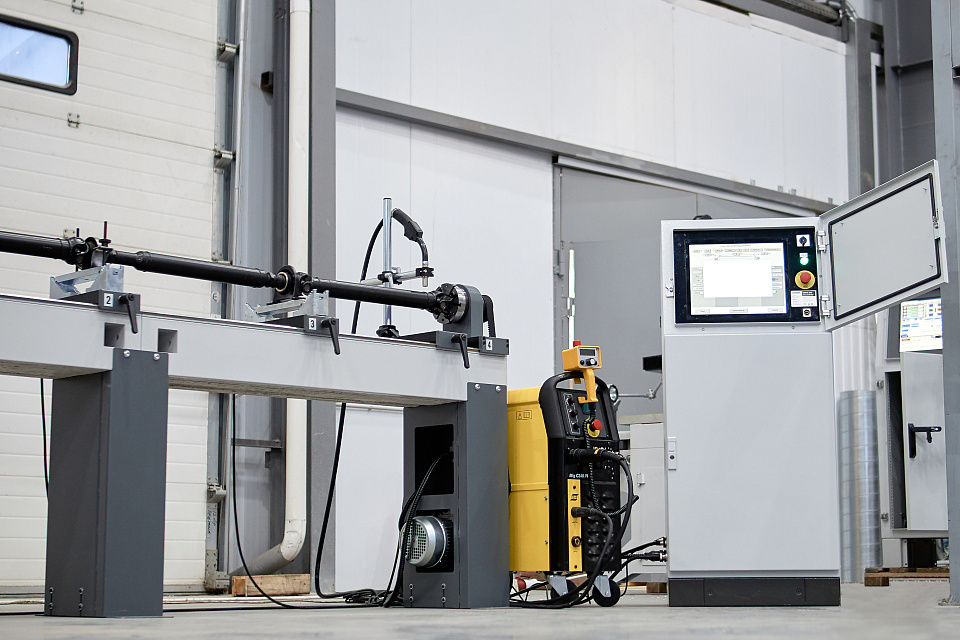

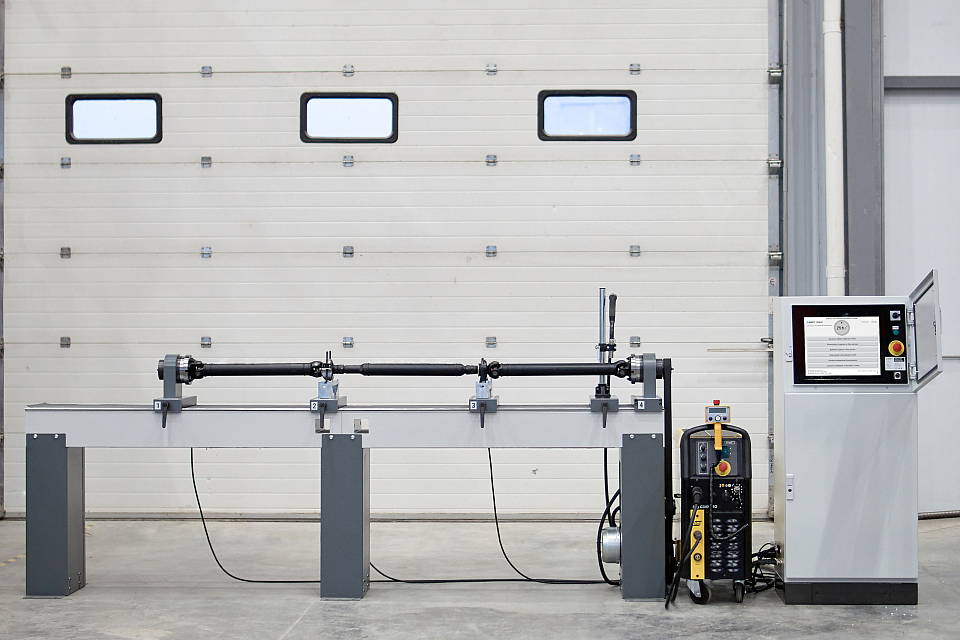

UNIKAR machine for assembling, welding and balancing of cardan shafts 3000

Advantages

  • The VIBROLAB balancing measuring system is included in the state register of measuring instruments
  • Welding and balancing of the driveshaft in a singe mounting
  • Convenient impact-resistant welding control pendant, protected from dust and water according to class IP54
  • Sealed electric cabinet, protected from dust and water according to class IP55
  • The rigid construction of the frame and supports allows you to carry out any operations with the cardan shaft, without fear for the integrity of the stand
  • Easy support movement by hand with the roller guides

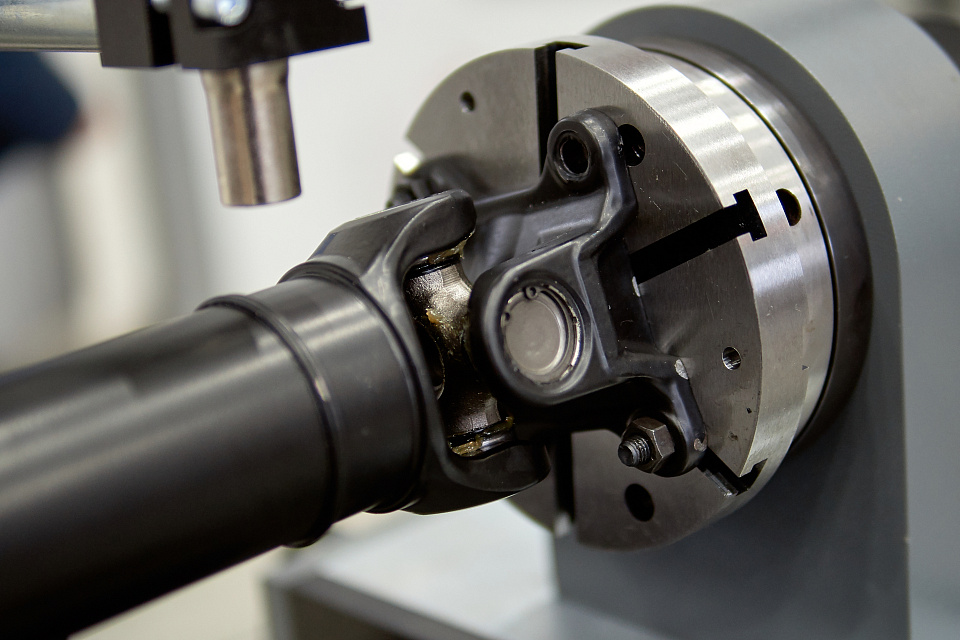

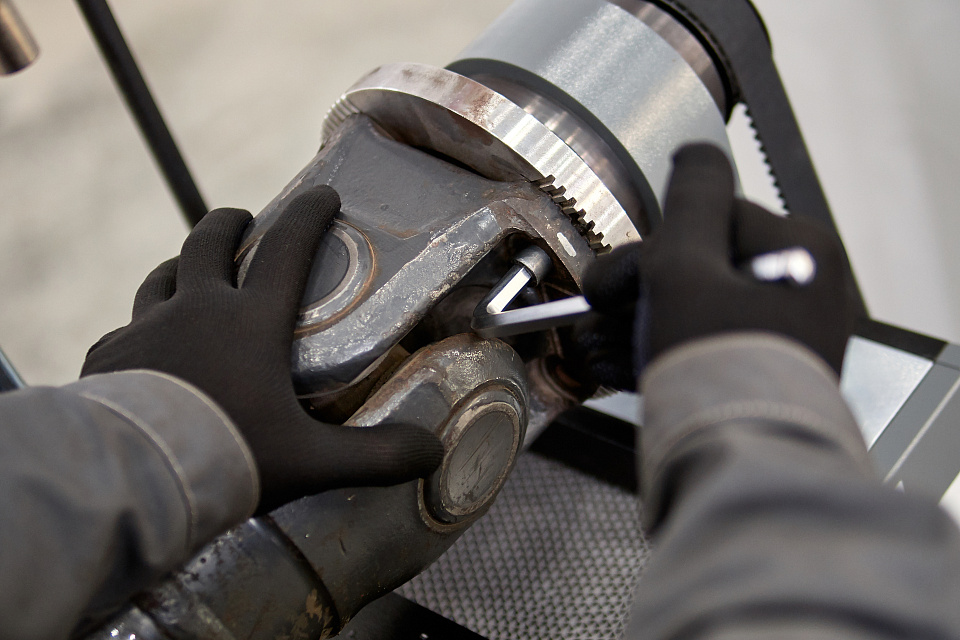

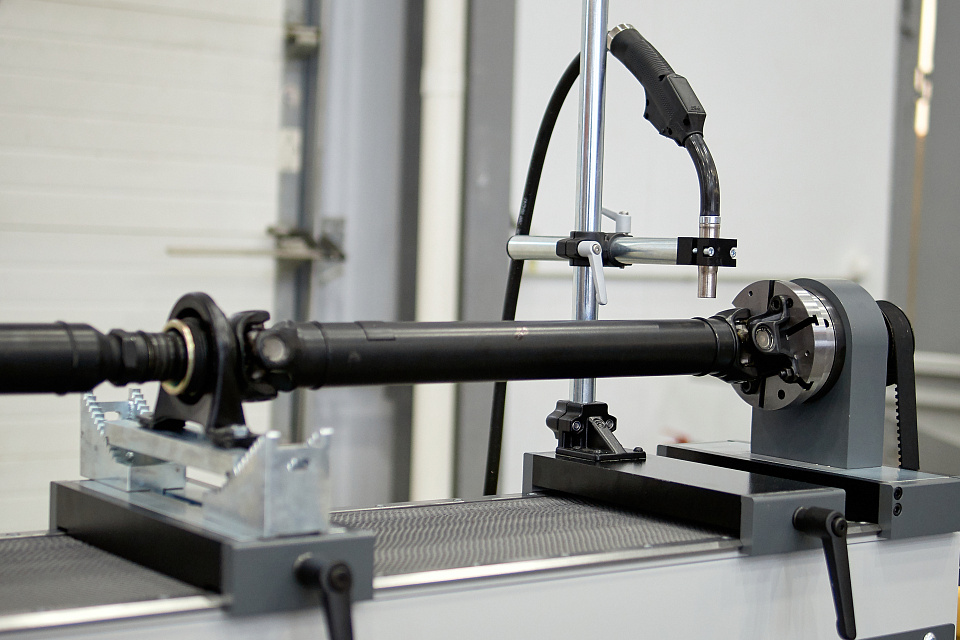

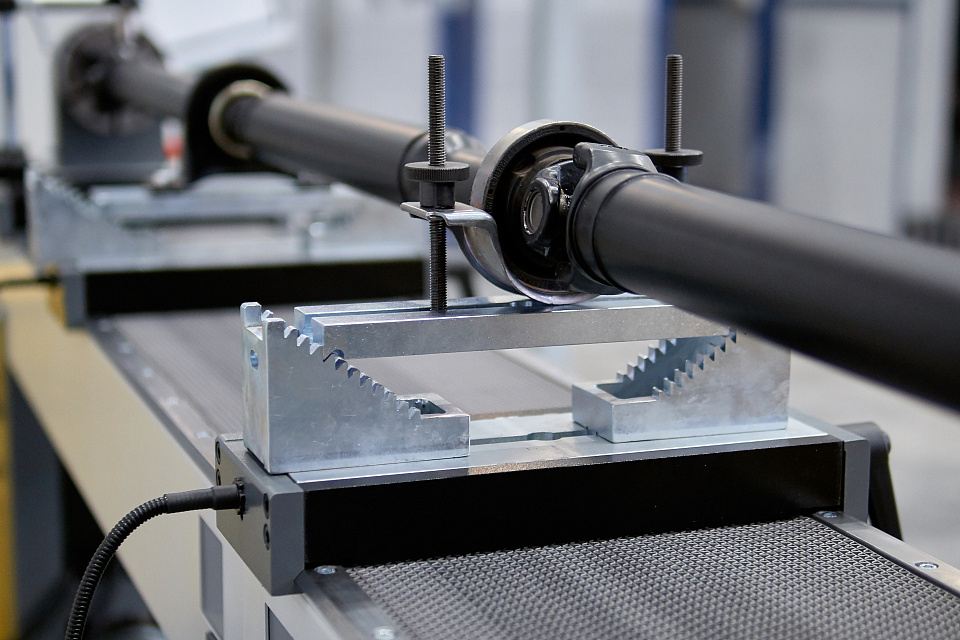

  • An original system for adjusting the intermediate supports height
  • Modular take-apart design with the possibility of further elongation
  • Electrical and mechanical components of European origin only
  • No basement required for installing the machine
  • Certified for electromagnetic compatibility and electrical safety
  • 12 months warranty for the machine and all its components


Documentation

UNIKAR passport
PDF, 441 KB, january 2019
UNIKAR usermanual
PDF, 4 MB, january 2019

Specifications

Code UNIKAR
Type CNC welding rotator/positioner combined with horizontal, hard-bearing balancing machine
Rotor type drive Axial
Number of supports and measurement planes 4 pcs. – 2 spindle type, 2 intermediate, adjustable height
Product diameter max. 350 mm (above the machine bed)
Balancing quality grade G1 according to ISO 1940-1
Power supply 3 phases, 380 V 50 Hz, 16 A, protective grounding is mandatory
Electric drive of the welding rotator Variable frequency asynchronous motor, 0.36 kW
Balancing electric drive Variable frequency asynchronous motor, 400 – 2000 rpm, 2.2 kW
Rotor turn to correction position Manual or automatic (option)
Vibration sensors Piezoelectric force sensors built in the supports
Protection against dust and water IP55
User interface Color touch-screen, impact-, oil- and dirt-resistant, and pendant with LCD
Machine basement Not required
Electric cabinet dimensions (L x W x H) 600 х 500 х 1400 mm
Warranty period 12 months
Machine dimensions (L x W x H) 3050 х 475 х 1400 mm
Machine weight together with electrical cabinet and welding unite 1055 kg
Product lenght 50 – 2650 mm
Product weight 0,15 – 300 kg
Welding modes Continuous circle welding, tack welding
Model 3000
Cardan shaft pipe wall thickness 0,5 – 12 mm
Protective gas Ar+CO2 Mixture
Welding process control Automatic adjustment of voltage, wire feed and part rotation speed
Welding unit dimensions 840 х 425 х 830 mm

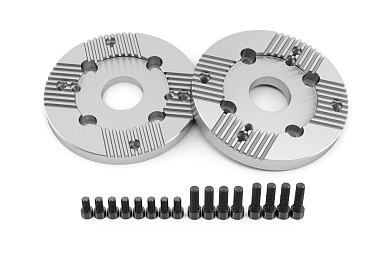

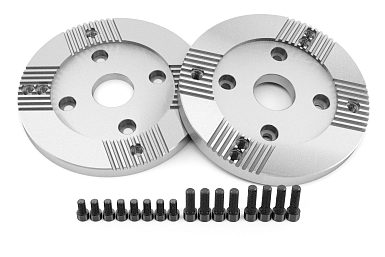

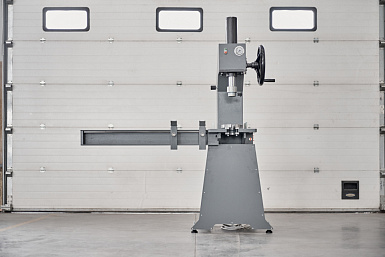

Options and accessories

UNIKAR-3000
UNIKAR
17082 3 RUB
17082 RUB
18294 RUB
18800 RUB
Code
UNIKAR
Type
CNC welding rotator/positioner combined with horizontal, hard-bearing balancing machine
Rotor type drive
Axial
Number of supports and measurement planes
4 pcs. – 2 spindle type, 2 intermediate, adjustable height
Product diameter max.
350 mm (above the machine bed)
Balancing quality grade
G1 according to ISO 1940-1
Power supply
3 phases, 380 V 50 Hz, 16 A, protective grounding is mandatory
Electric drive of the welding rotator
Variable frequency asynchronous motor, 0.36 kW
Balancing electric drive
Variable frequency asynchronous motor, 400 – 2000 rpm, 2.2 kW
Rotor turn to correction position
Manual or automatic (option)
Vibration sensors
Piezoelectric force sensors built in the supports
Protection against dust and water
IP55
User interface
Color touch-screen, impact-, oil- and dirt-resistant, and pendant with LCD
Machine basement
Not required
Electric cabinet dimensions (L x W x H)
600 х 500 х 1400 mm
Warranty period
12 months
Machine dimensions (L x W x H)
3050 х 475 х 1400 mm
Machine weight together with electrical cabinet and welding unite
1055 kg
Product lenght
50 – 2650 mm
Product weight
0,15 – 300 kg
Welding modes
Continuous circle welding, tack welding
Model
3000
Cardan shaft pipe wall thickness
0,5 – 12 mm
Protective gas
Ar+CO2 Mixture
Welding process control
Automatic adjustment of voltage, wire feed and part rotation speed
Welding unit dimensions
840 х 425 х 830 mm
