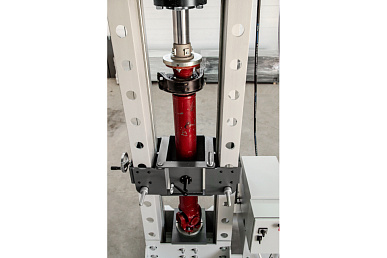

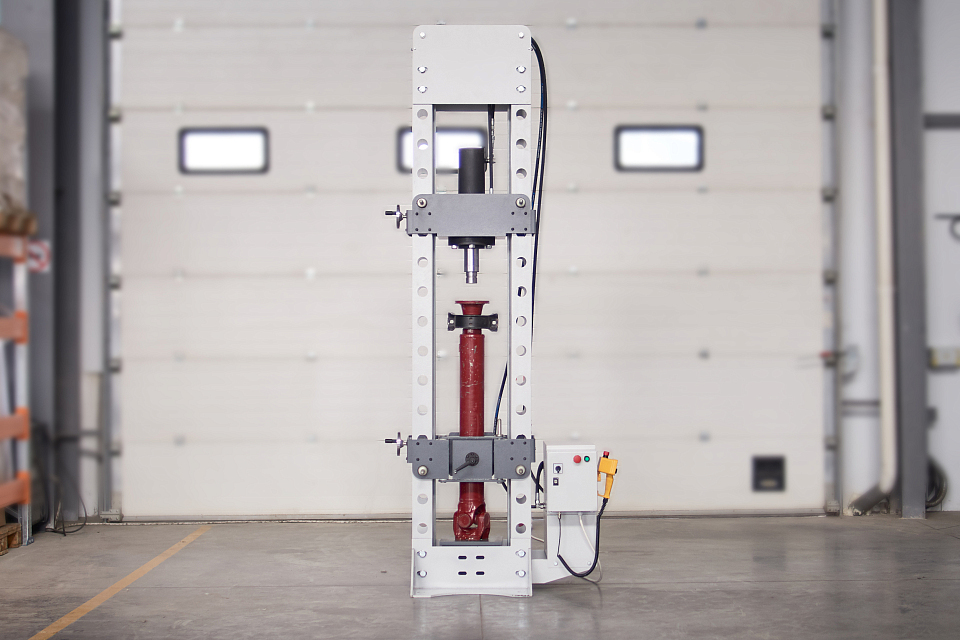

GOLIATH Press for assembly of cardan shafts and replacement of intermediate bearings

Advantages

  • Electronic proportional control with force feedback

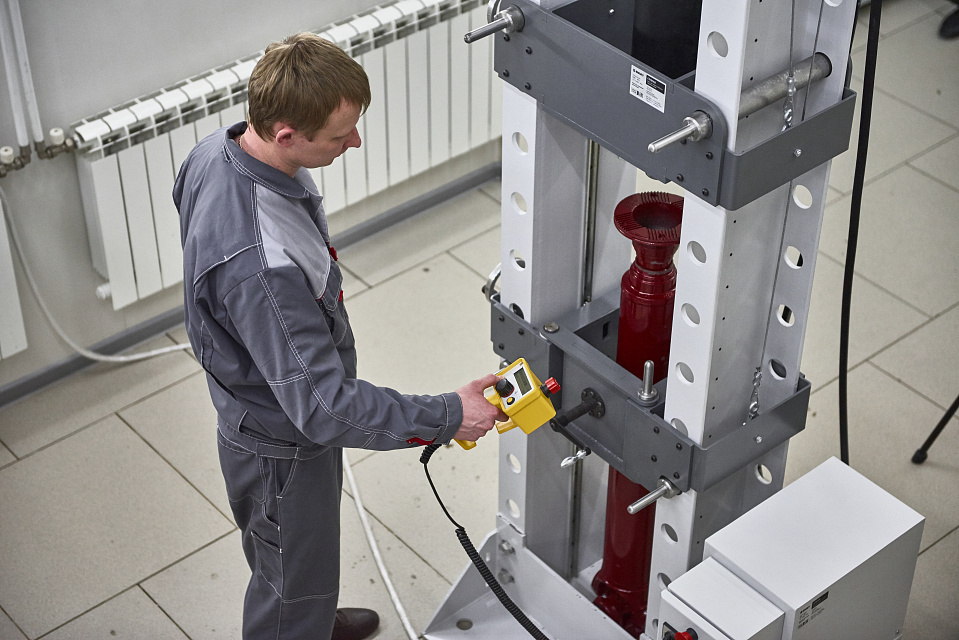

  • Convenient impact-resistant welding control pendant, protected from dust and water according to class IP54

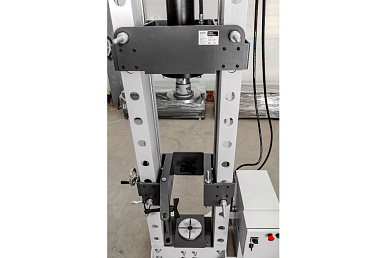

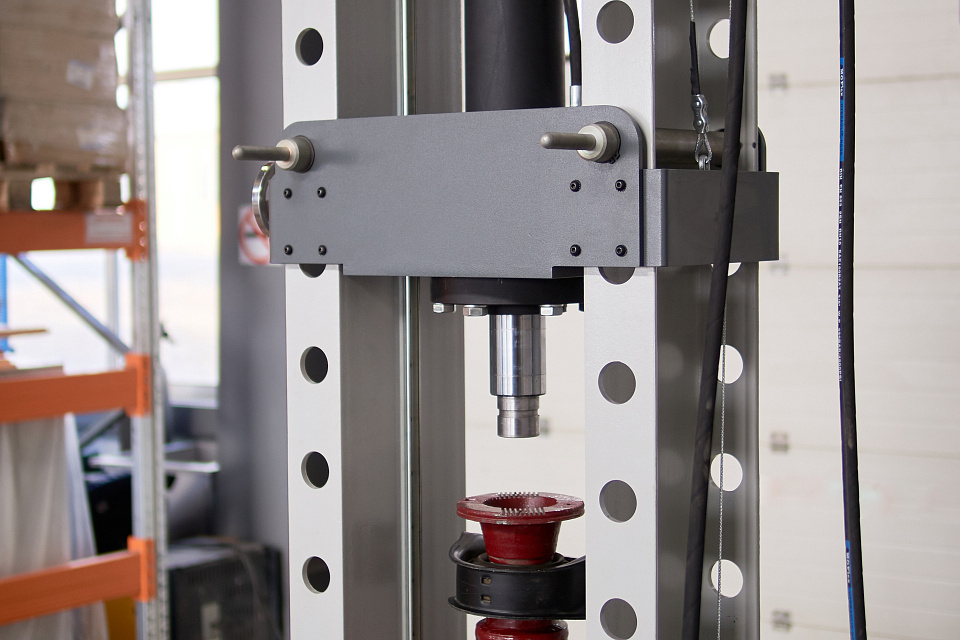

  • The positions of the hydraulic cylinder and the crossbar are adjusted in height by means of winches

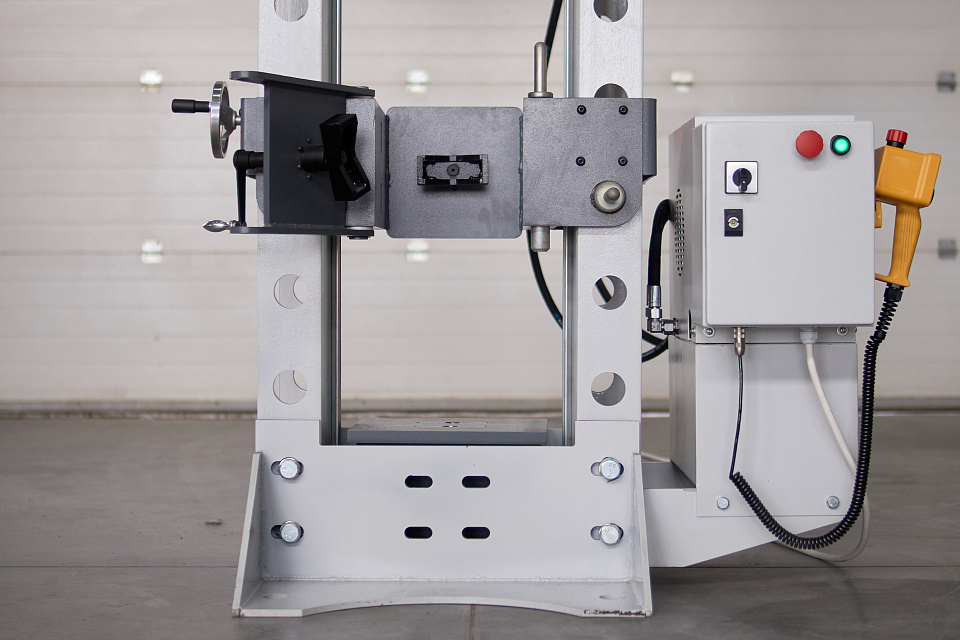

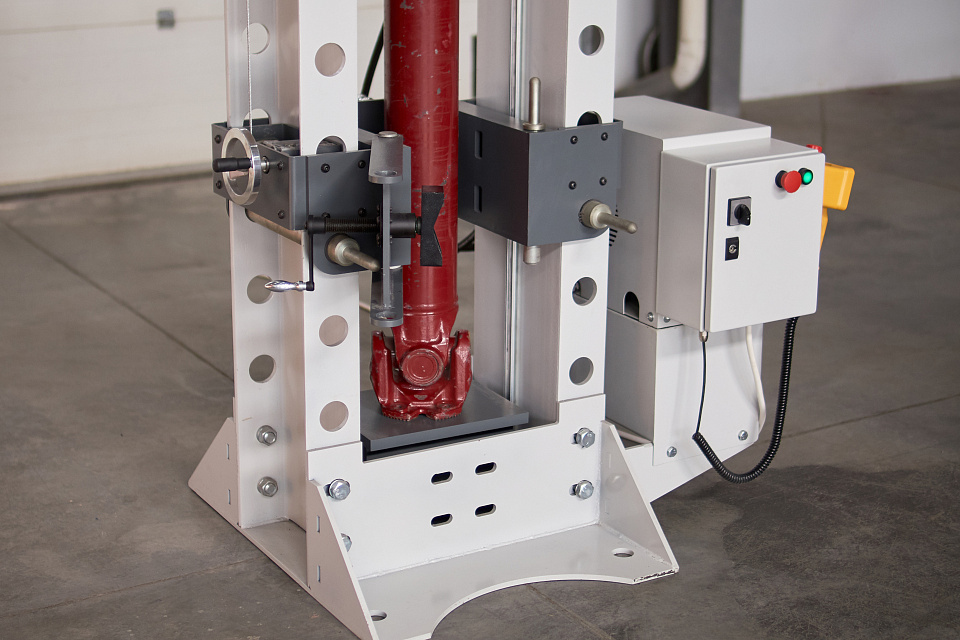

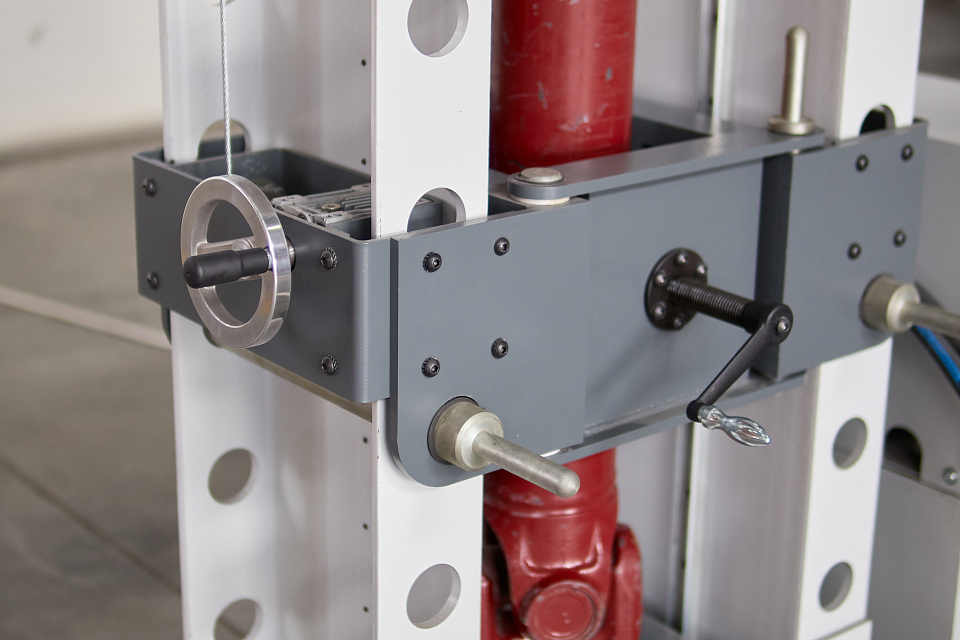

  • An original system for clamping the driveshaft tube for reliable retaining
  • All hydraulic components are of Italian manufacture
  • 12 months warranty for the press and all its components


Documentation

GOLIATH passport
PDF, 328 KB, march 2019

Specifications

Code GOLIATH
Type Vertical hydraulic press with proportional electronic control
Product diameter max. 180 mm
Product length max. 1970 mm
Power supply 3 phases, 380 V 50 Hz, 16 A, protective grounding is mandatory
Rotor drive Asynchronous motor, 1480 rpm, 2.2 kW
Protection against dust and water IP54
User interface Wired remote control with display
Dimensions (L x W x H) 1070 х 800 х 2860 mm
Warranty period 12 months
Maximum force of the working cylinder 30 t
Maximum stroke of the working cylinder 300 mm
Movement of the upper and lower crossbars Manual, with gear winches
Cardan shaft pipe clamp Double-sided, helical
Volume of the hydraulic tank 18 l
Press mass together with hydroelectric station 670 kg

Options and accessories

GOLIATH
GOLIATH
10882 1 EUR
Code
GOLIATH
Type
Vertical hydraulic press with proportional electronic control
Product diameter max.
180 mm
Product length max.
1970 mm
Power supply
3 phases, 380 V 50 Hz, 16 A, protective grounding is mandatory
Rotor drive
Asynchronous motor, 1480 rpm, 2.2 kW
Protection against dust and water
IP54
User interface
Wired remote control with display
Dimensions (L x W x H)
1070 х 800 х 2860 mm
Warranty period
12 months
Maximum force of the working cylinder
30 t
Maximum stroke of the working cylinder
300 mm
Movement of the upper and lower crossbars
Manual, with gear winches
Cardan shaft pipe clamp
Double-sided, helical
Volume of the hydraulic tank
18 l
Press mass together with hydroelectric station
670 kg
Electronic proportional control with force feedback Convenient impact-resistant welding control pendant, protected from dust and water according to class IP54 The positions of the hydraulic cylinder and the crossbar are adjusted in height by means of winches An original system for clamping the driveshaft tube for reliable retaining All hydraulic components are of Italian manufacture 12 months warranty for the press and all its components
