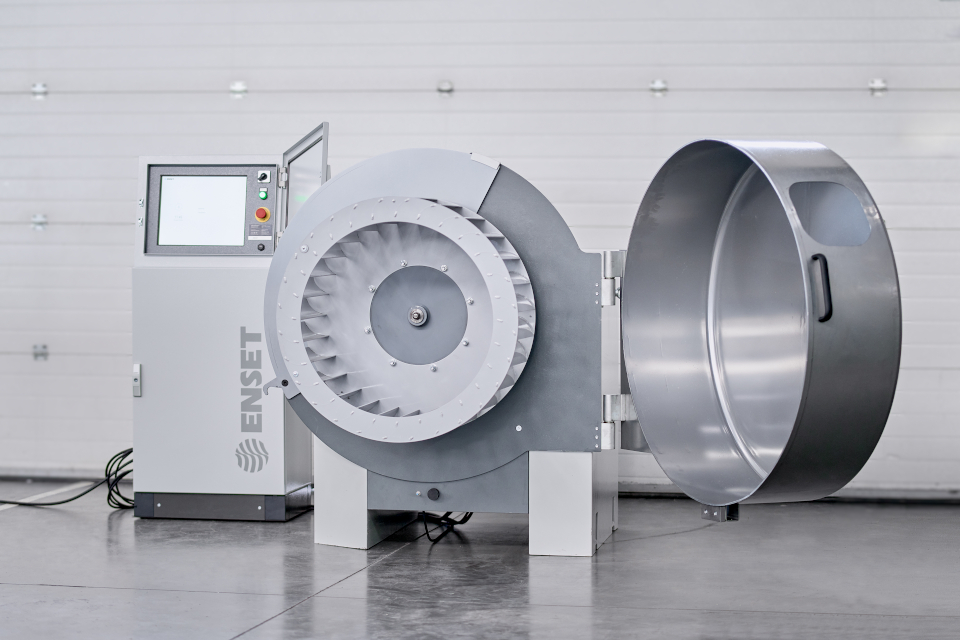

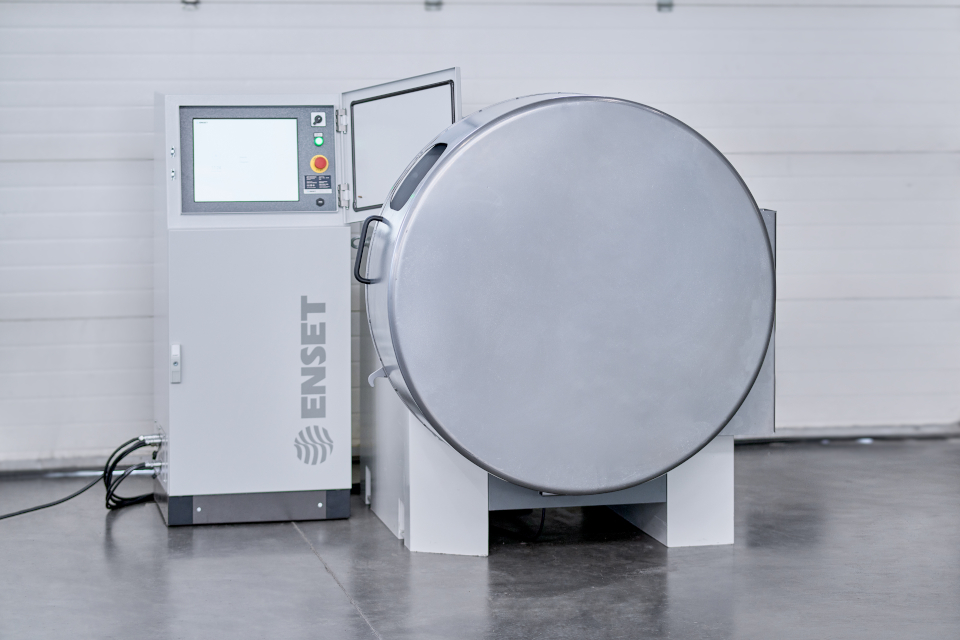

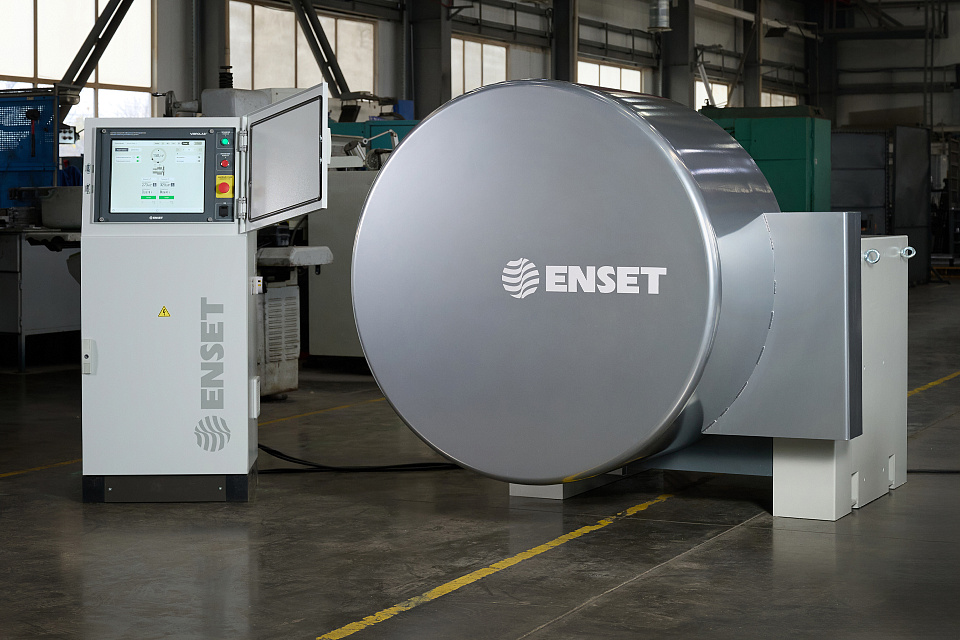

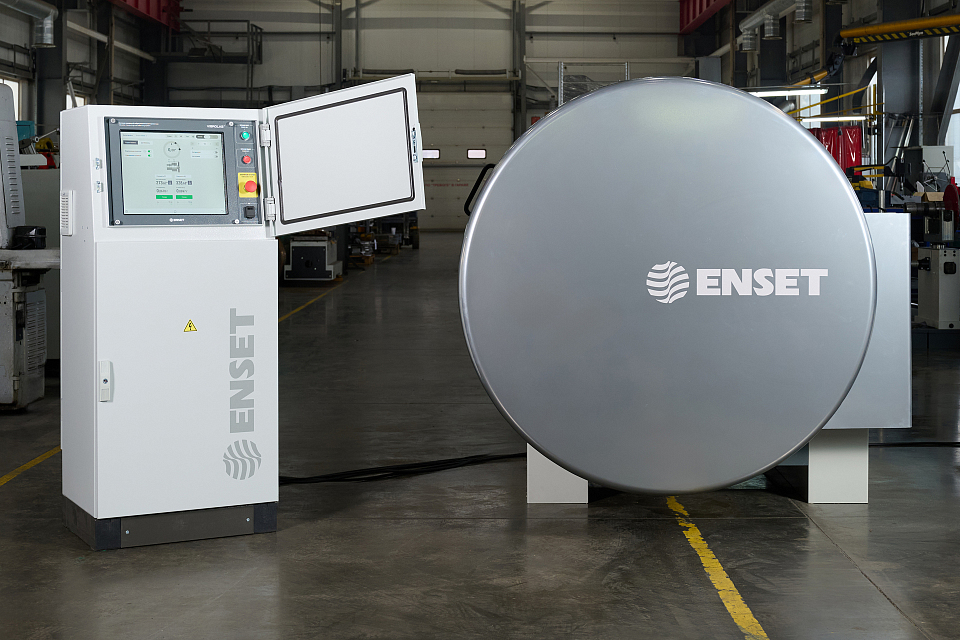

CONSOLE-300
18118
1
EUR

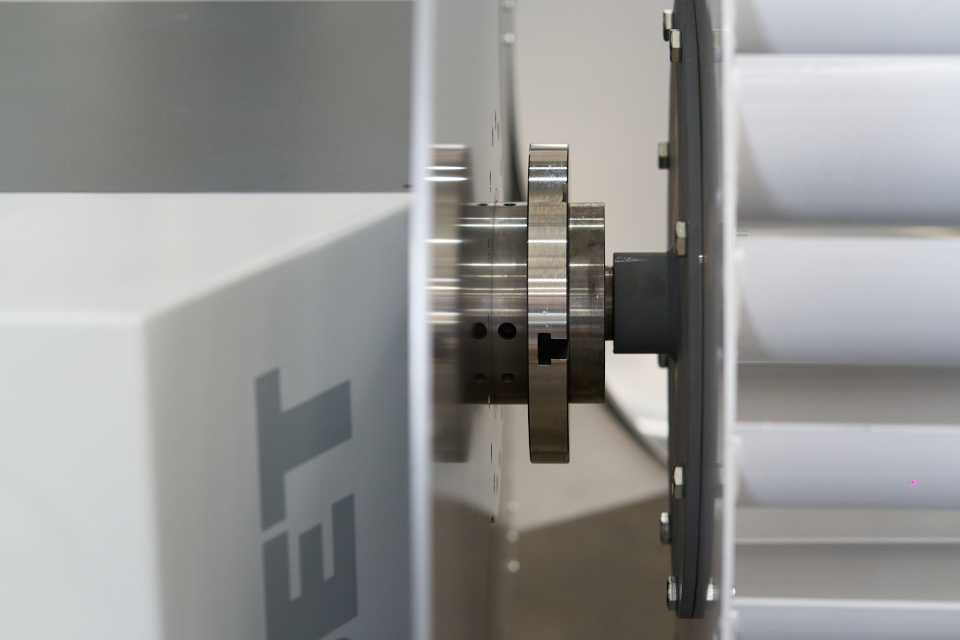

Rotor type drive
Axial, drive spindle
Rotor weight
0.5 – 300 kg

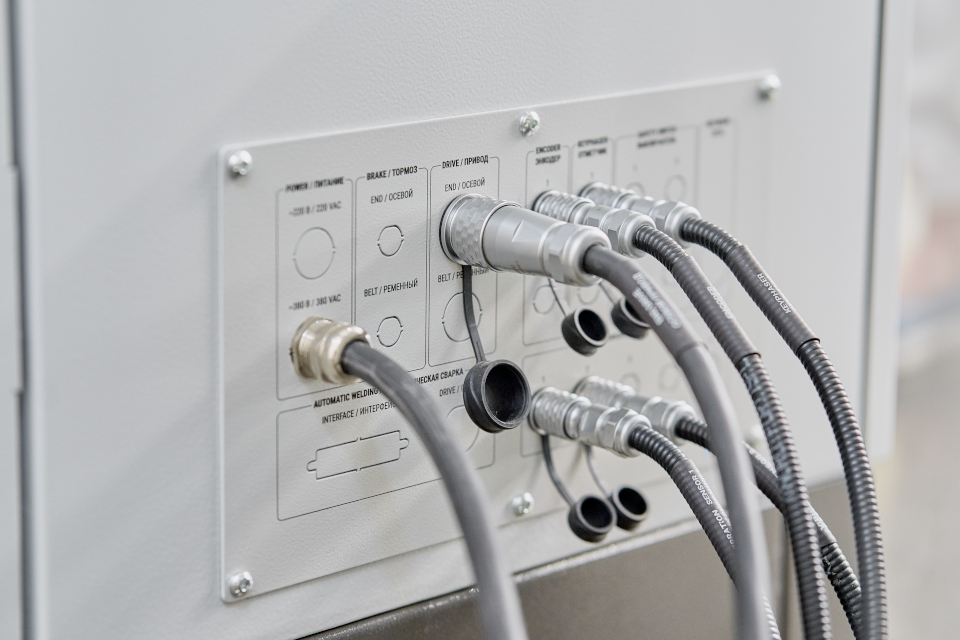

Power supply
3 phases, 380 V, 50 Hz, 10 A, protective grounding is mandatory
Accuracy of measuring the angular position of the product
± 0,01º
Vibration sensors
Piezoelectric force sensors
Dimensions (L x W x H)
1060 x 1010 x 960 mm
Electric cabinet dimensions (L x W x H)
600 х 500 х 1400 mm
Accuracy of measuring the rotation frequency of the product
± (1+0,0025·n)
Warranty period
60 months
Anchoring to the base or foundation
Anchoring to a concrete floor at least 100 mm thick
Angular position sensor of the product
Incremental encoder
Climatic performance according to GOST 15150
Operation: UHL 4.2 (temperature from + 10 to + 35 ºC, relative air humidity up to 80%). Storage and transportation: 1L (temperature from + 5 to + 40 ºC, relative air humidity up to 80%)
Control system
Vibration balancing measuring system VIBROLAB, with color touch display
Equipment weight (net)
1400 kg
Keeping the product from turning
Option

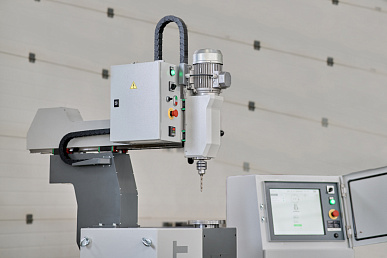

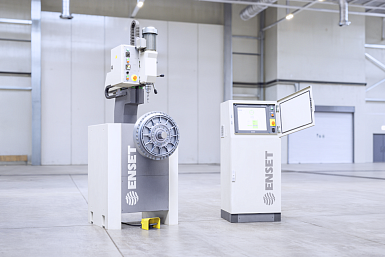

Drilling diameter (parameter for drilling module option)
3 – 12 mm
Maximum product diameter
1600 mm
Minimum achievable residual specific imbalance emar
0.1 gmm/kg
Number of vibration measurement channels
2
Protecting electronics from dust and moisture
IP54
Rotation frequency of the product during balancing n
100 – 2000 rpm
Engine type and its characteristics
Variable frequency asynchronous, 3000 rpm, 5.5 kW
Structural features of the frame
Frame made of structural steel with cast vibration-absorbing filling
Turning the product at an angle
Manual (Automatic)
Type of speed and phase sensor
Inductive sensor
URR Unbalance reduction ratio
95 %
Частота вращения изделия при балансировке n
100 – 2000 об/мин

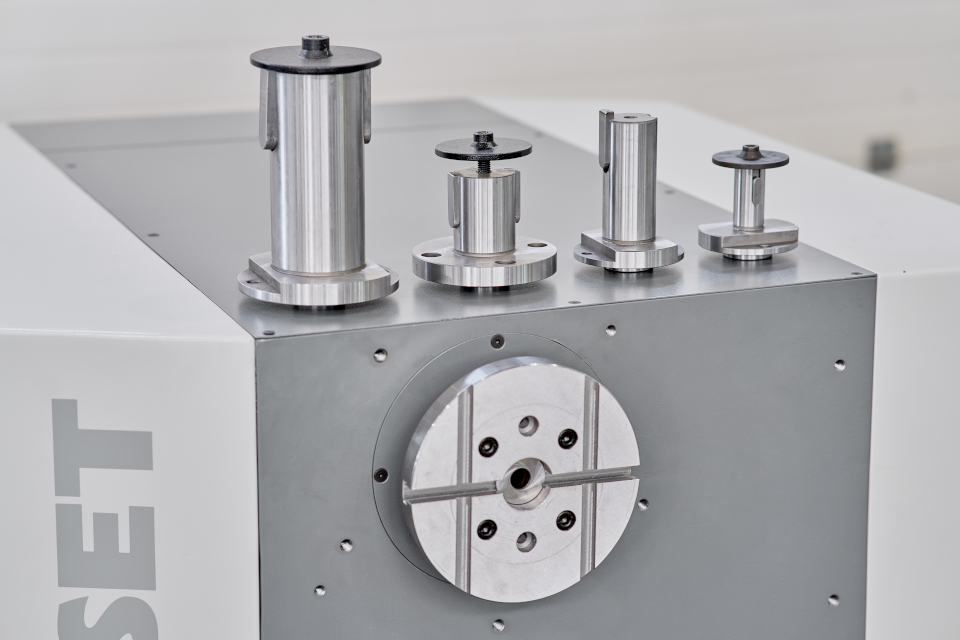

Number and type of supports
Spindle drive support
Spindle stroke (parameter for drilling module option)
80 mm

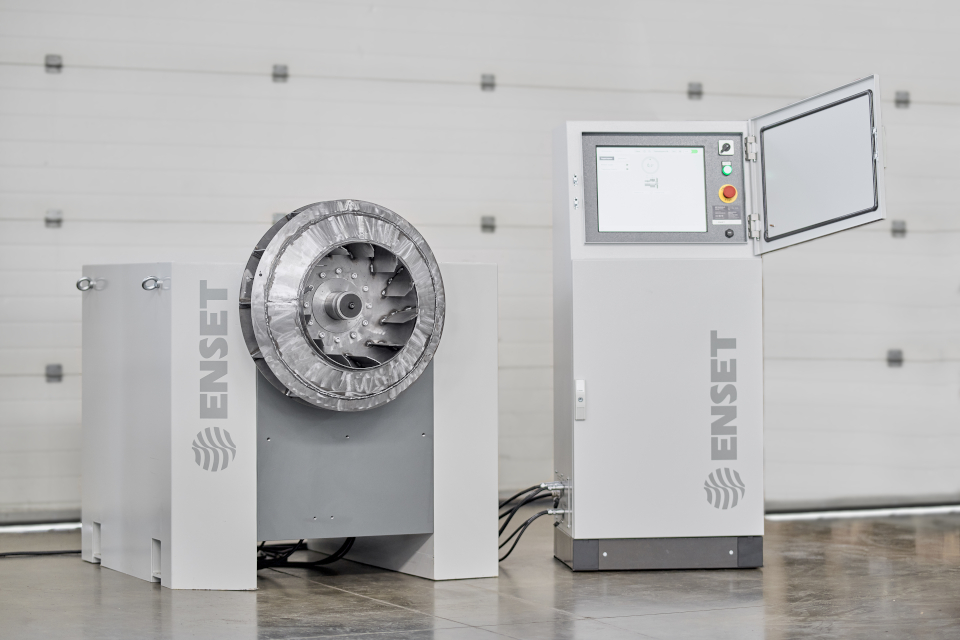

Purpose
Universal, for cantilever rotors
Type of equipment
Cantilever pre-resonance balancing machine

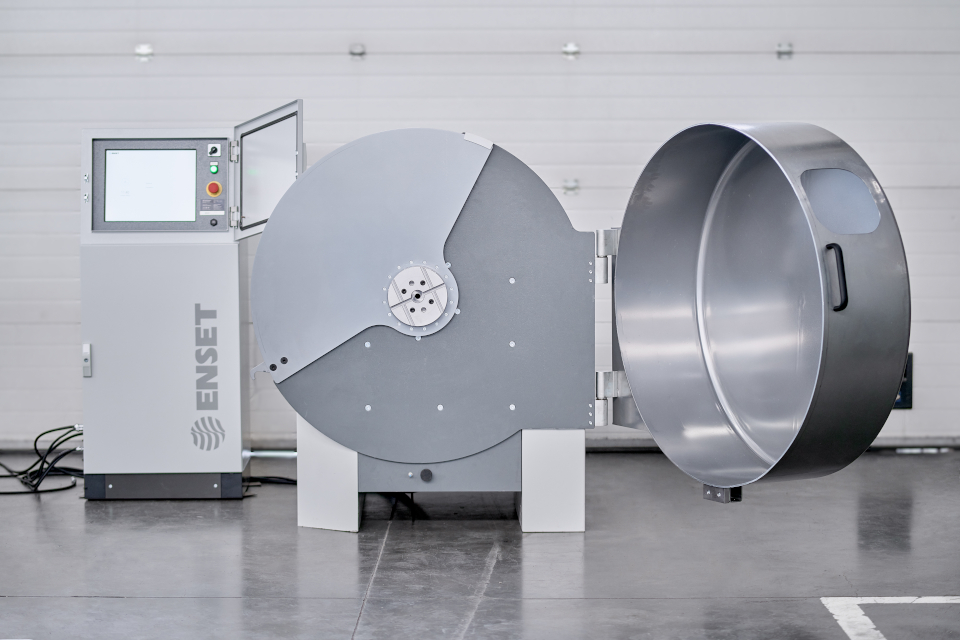

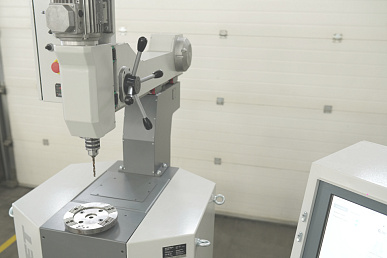

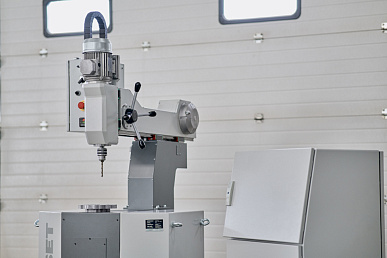

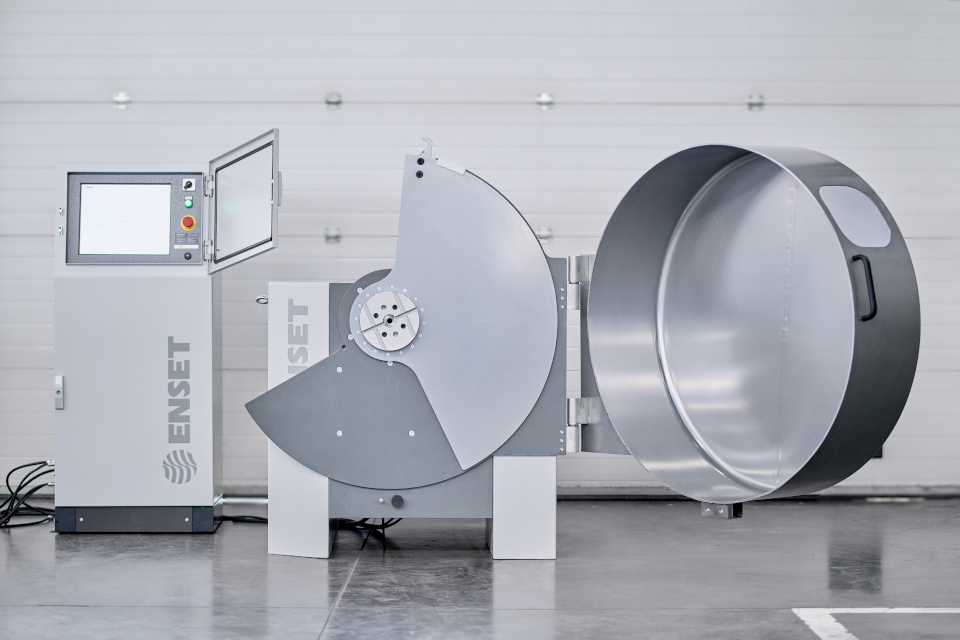

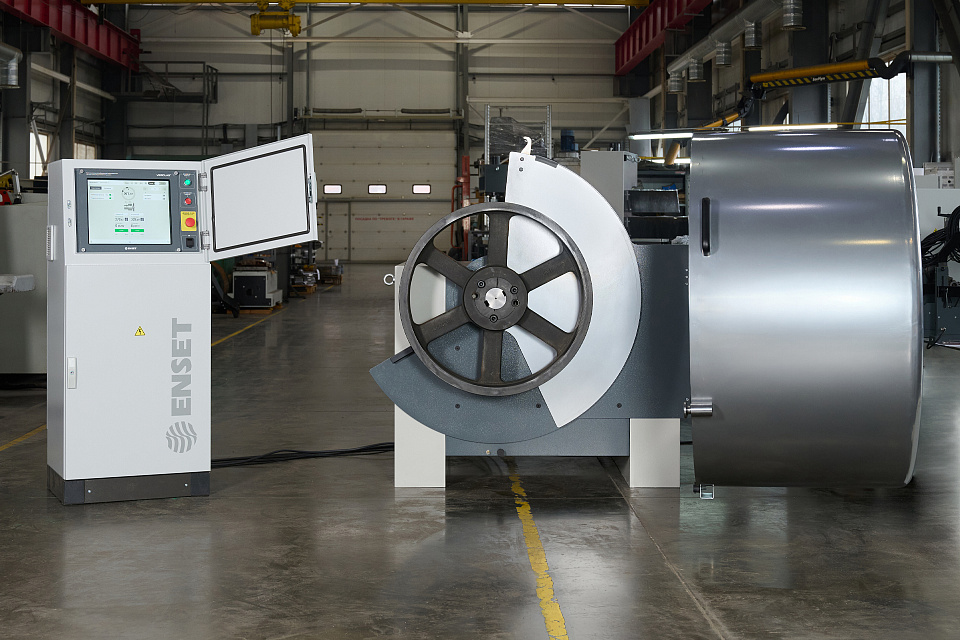

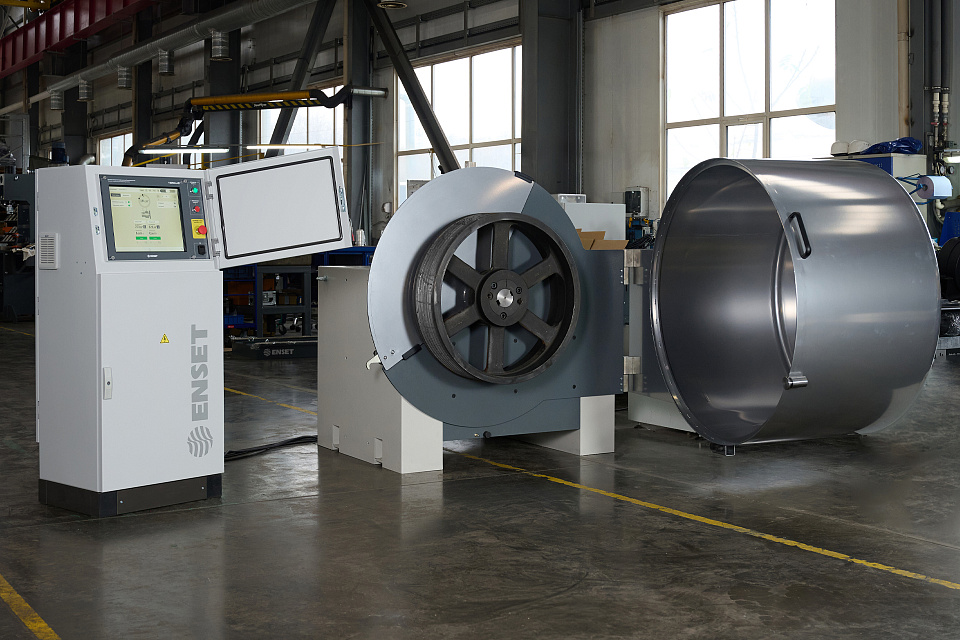

Balancing measurement system VIBROLAB is listed in the State Register of Measuring Instruments № 84333-22 and can be supplied with primary verification The machine is designed specifically for cantilever balancing, features no intermediate supports or process shafts in its design, which would increase time of re-adjusting the machine for a new type of product The compact size of the machine allow to place it even in the most limited space The software features a special mode of impellers unbalance correction on constructive angles, in which the machine itself shows on which blades load should be added (or removed) - the operator does not need to perform complex calculations Rigid reliable design allows for correction of imbalances directly on the machine, including welding, drilling or milling of loads Optionally, the machine can be equipped by the manufacturer with a drilling module. The machine can be equipped with a drilling module or other devices for unbalance correction by the customer by installing the unbalance correction module next to the machine or by mounting it directly on the machine bed The balancing machine CONSOL-300 is ideal for balancing shaft gears, screws, clutch discs, pump impellers, turbine wheels, fan impellers, pump impellers, flywheels, couplings, centrifugal pump impellers, fan impellers, agricultural machinery rotors, brake discs, gears, pulleys, rotary saws (impact saws), toothed wheels.
