Home/Equipment/ Drilling portal-150

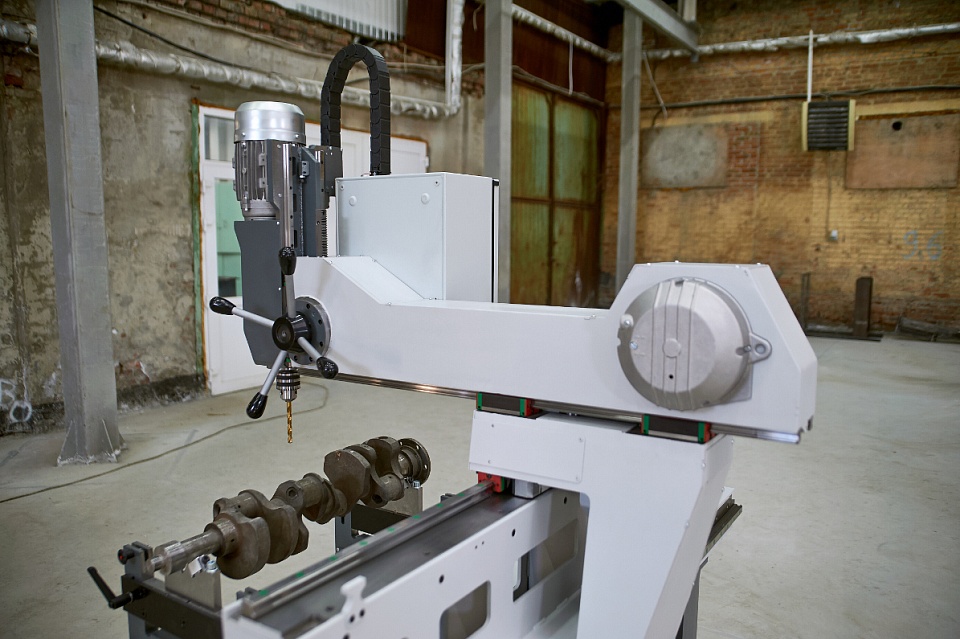

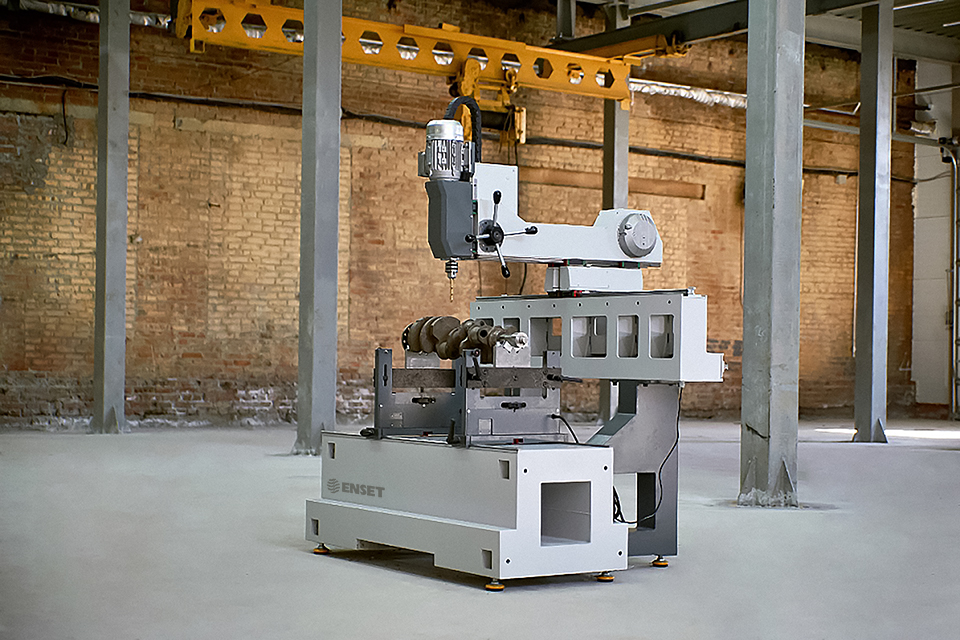

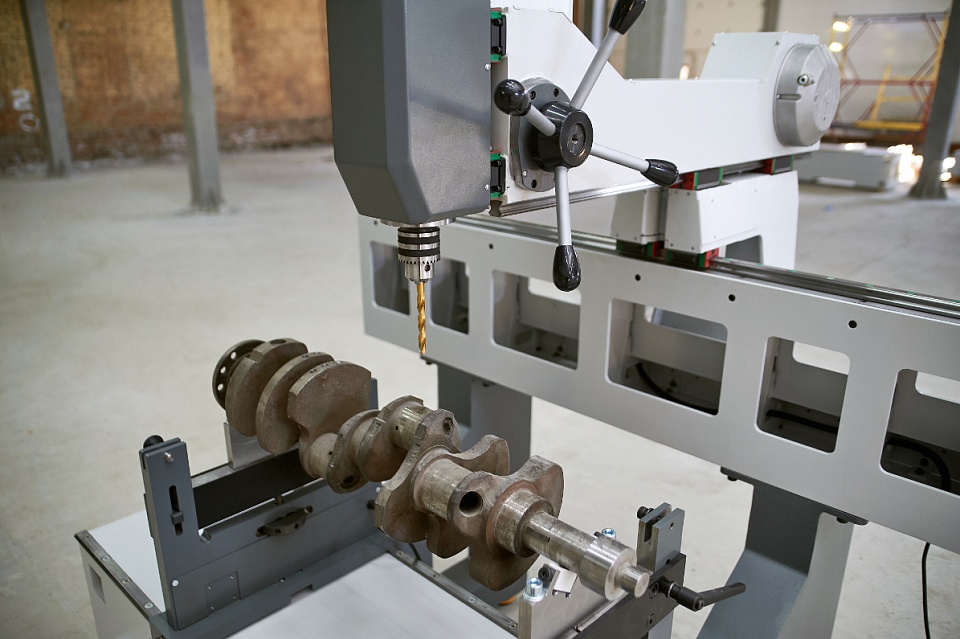

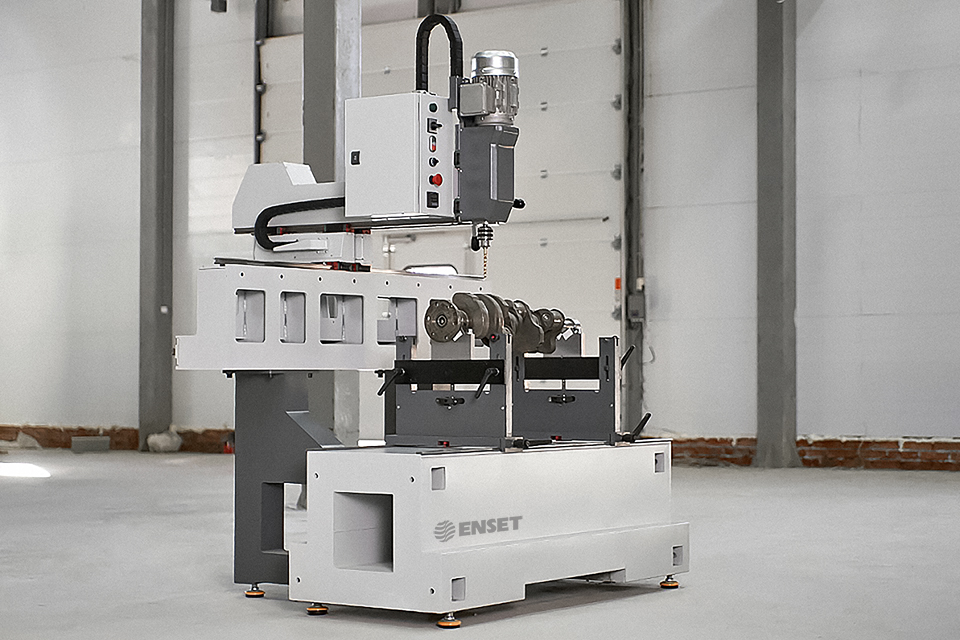

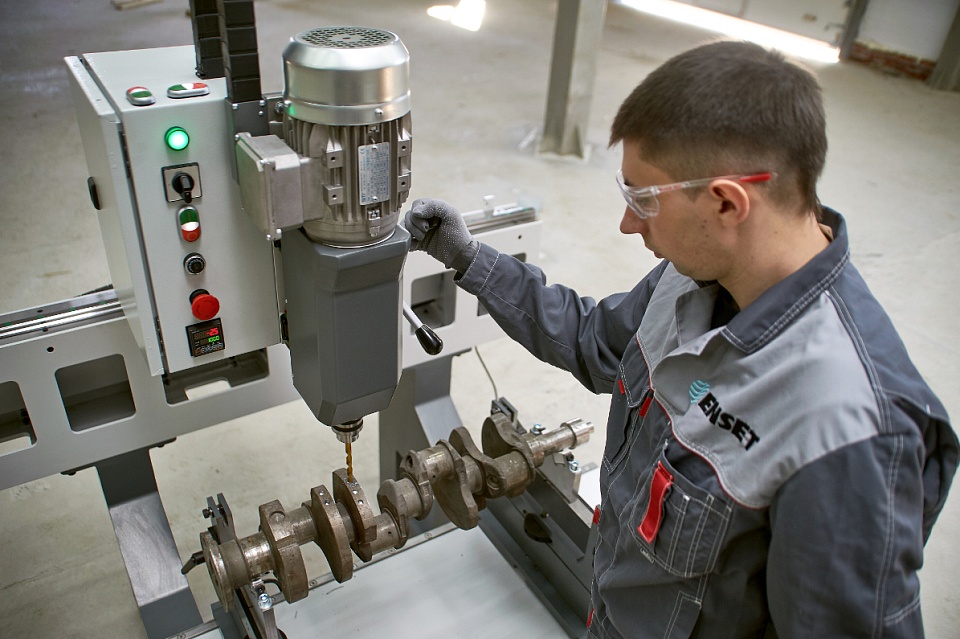

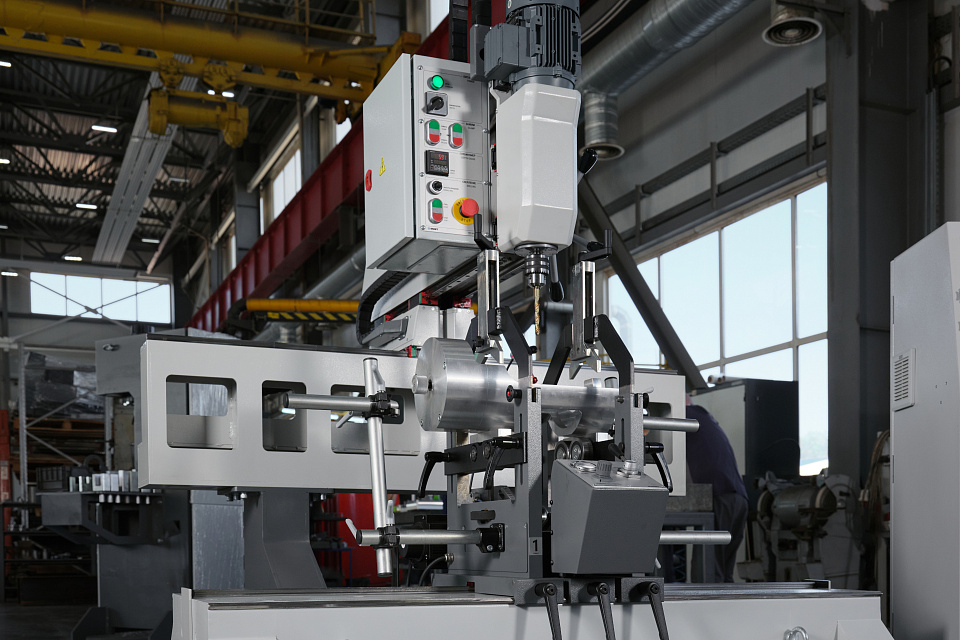

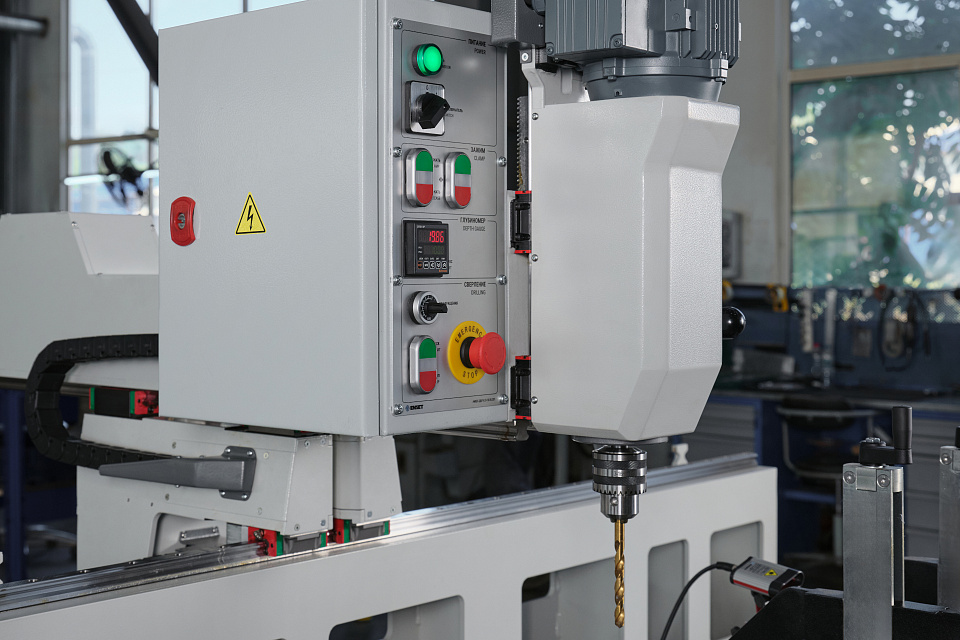

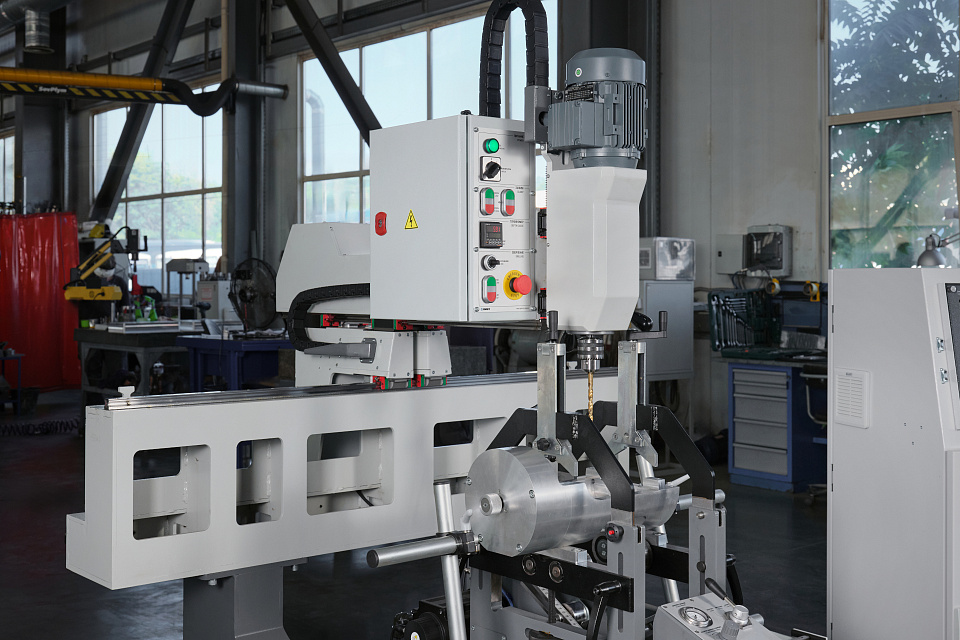

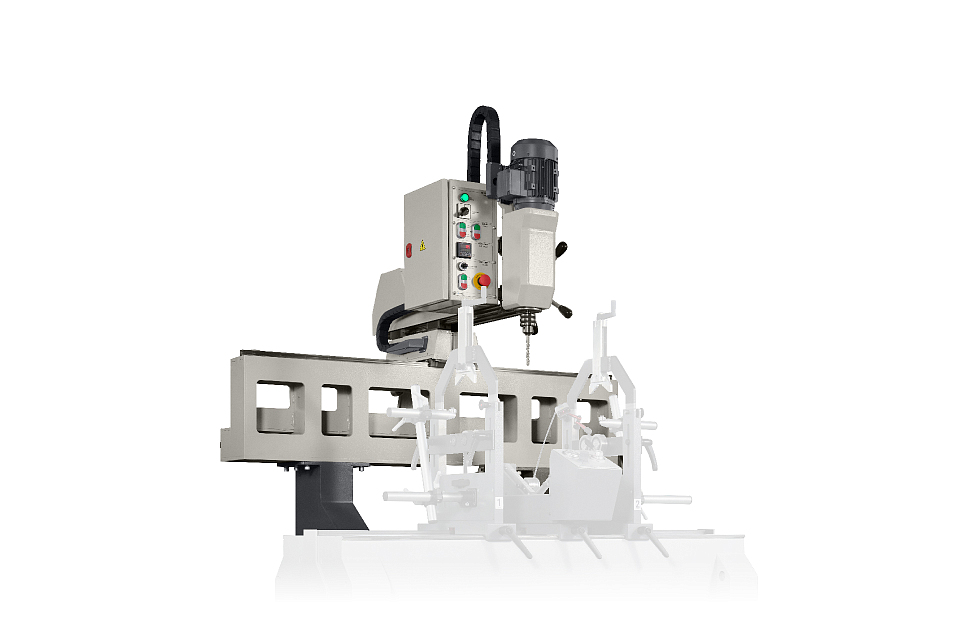

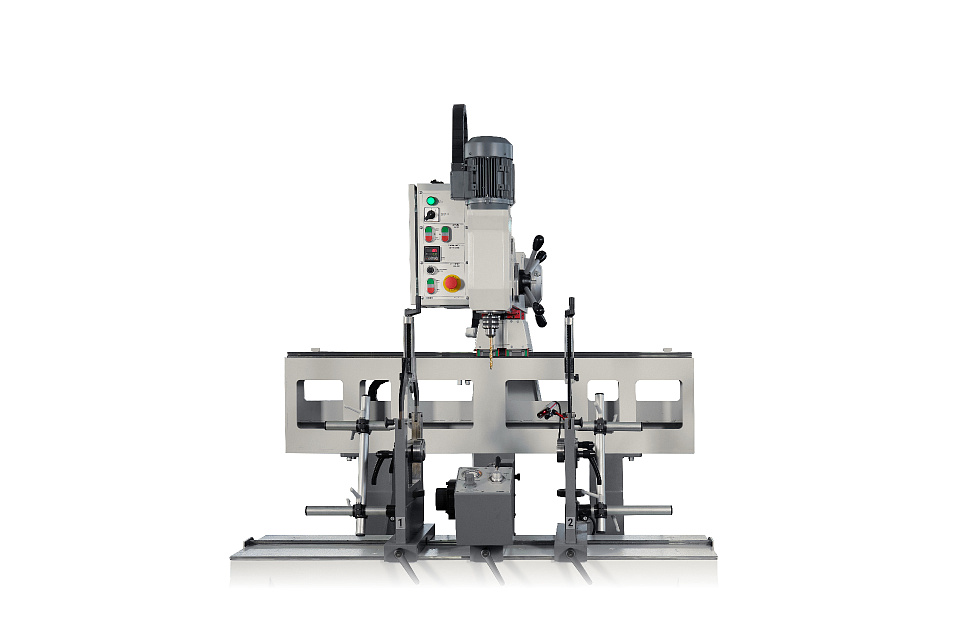

Drilling portal 150

Model
150300450600

Advantages

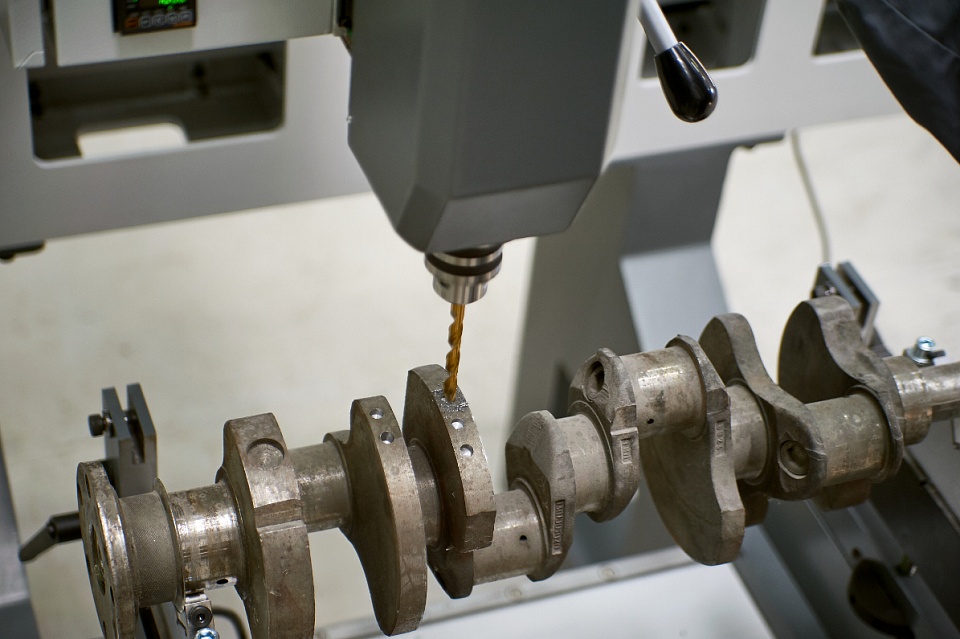

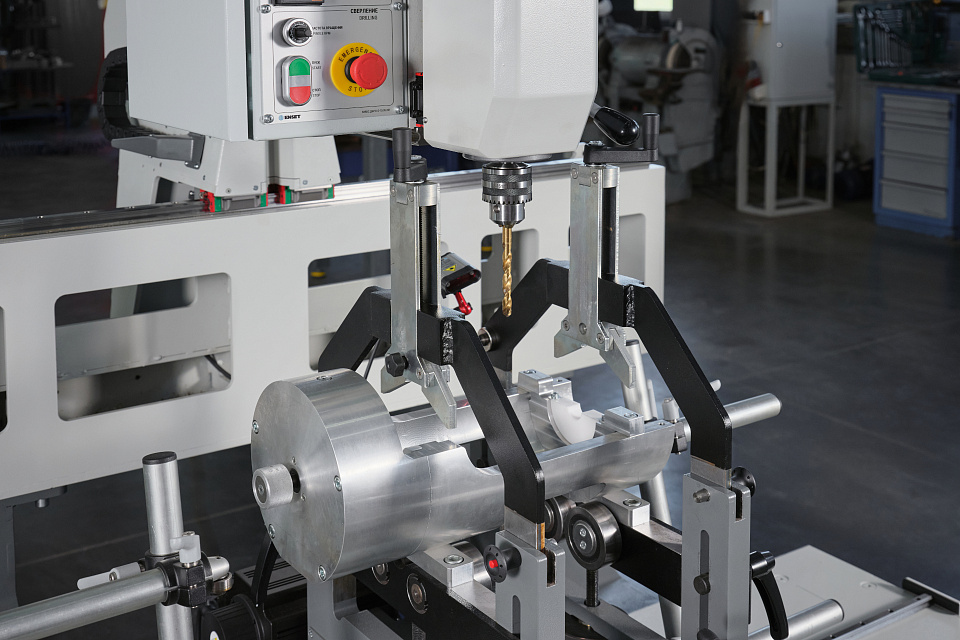

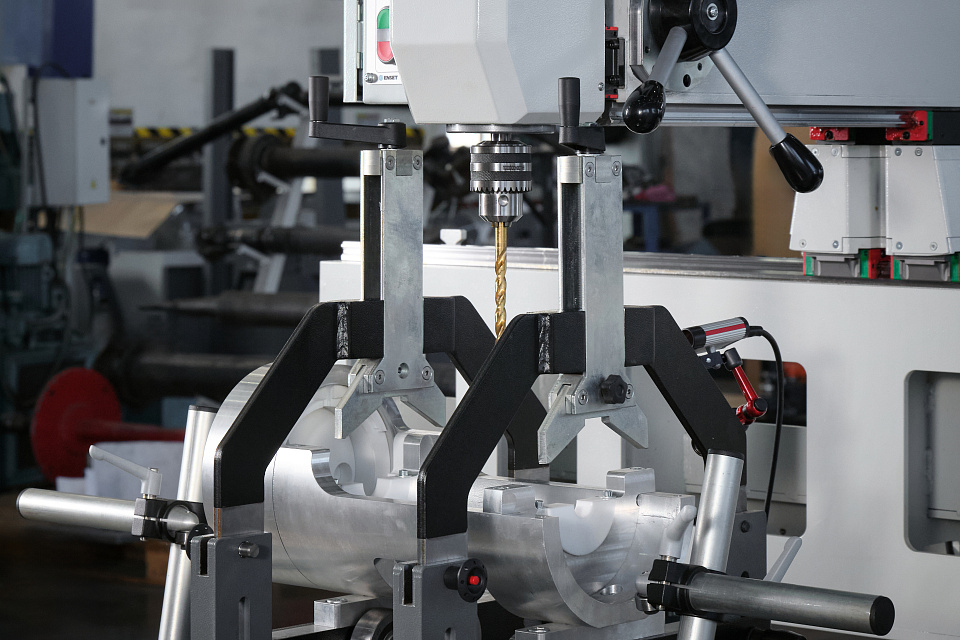

  • Designed to perform drilling work when balancing products

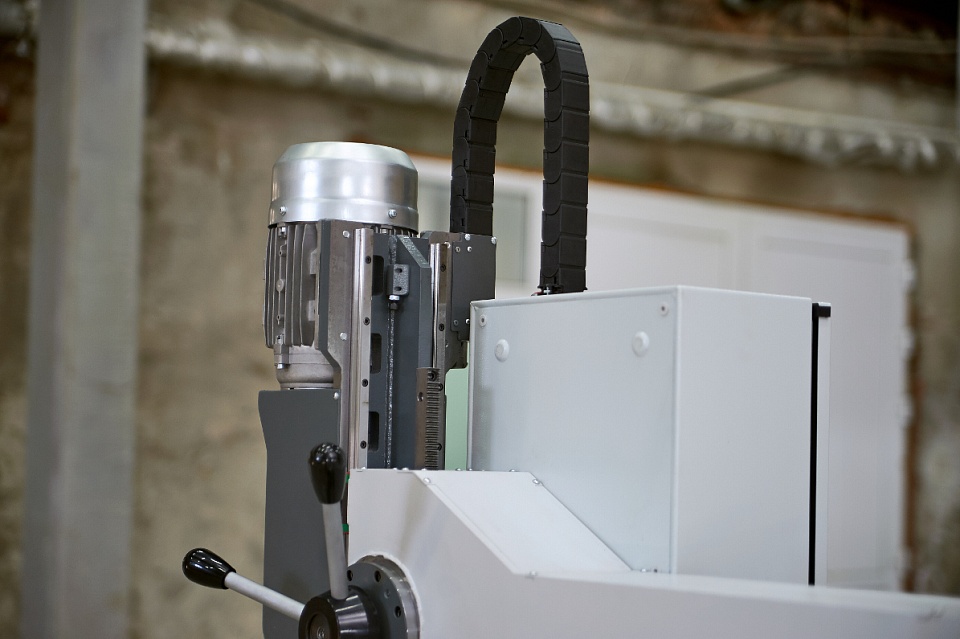

  • Inverter spindle drive with speed control is used
  • Reduces part processing time and increases productivity
  • Does not require complex care and maintenance
  • Easily moved by hand

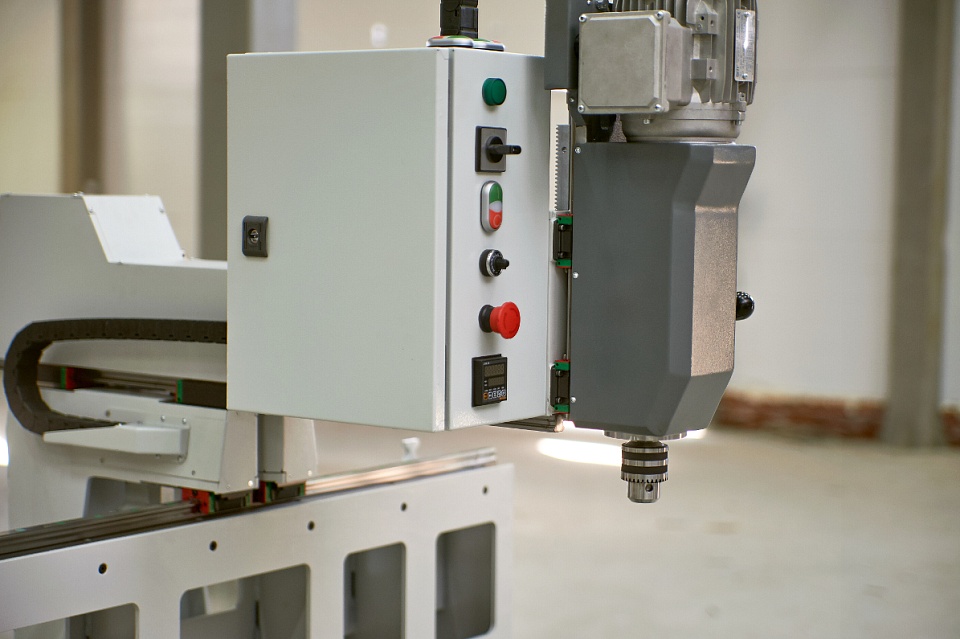

  • Simple and clear interface

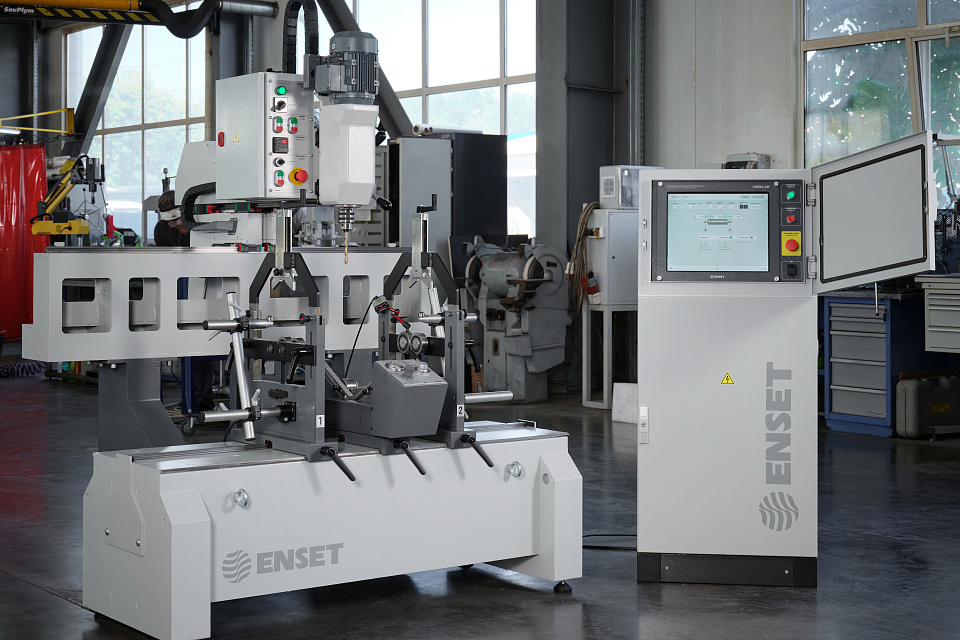

  • Option for machines of the DBR series

Specifications

Code DRILL
Power supply 1 phase, 220 V, 50 Hz, 16 A, protective grounding is mandatory
Rotor drive Variable frequency asynchronous motor, 1.1 kW
Phase sensor type for belt drive Laser keyphasor
Protection against dust and water IP55
Warranty period 12 months

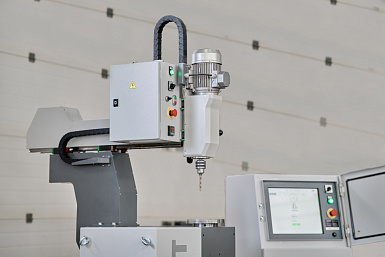

Drilling module dimensions (LxWxH) 1028 x 450 х 1152 mm
Maximum drill diameter 16 mm
Portal dimensions (LxWxH) 1500 x 590 x 1150 mm
Model 150
Weight of portal with drilling module, assembled 454 kg
Vertical working stroke 230 mm
Working stroke along the bed 1200 mm

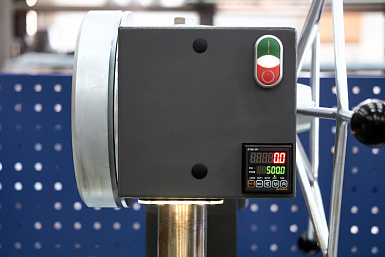

Depth gauge accuracy ± 0,1 mm
Drilling portal-150
Drilling portal
4 RUB
RUB
RUB
RUB
RUB
Code
DRILL
Power supply
1 phase, 220 V, 50 Hz, 16 A, protective grounding is mandatory
Rotor drive
Variable frequency asynchronous motor, 1.1 kW
Phase sensor type for belt drive
Laser keyphasor
Protection against dust and water
IP55
Warranty period
12 months
Drilling module dimensions (LxWxH)
1028 x 450 х 1152 mm
Maximum drill diameter
16 mm
Portal dimensions (LxWxH)
1500 x 590 x 1150 mm
Model
150
Weight of portal with drilling module, assembled
454 kg
Vertical working stroke
230 mm
Working stroke along the bed
1200 mm
Depth gauge accuracy
± 0,1 mm
Designed to perform drilling work when balancing products Inverter spindle drive with speed control is used Reduces part processing time and increases productivity Does not require complex care and maintenance Easily moved by hand Simple and clear interface Option for machines of the DBR series
