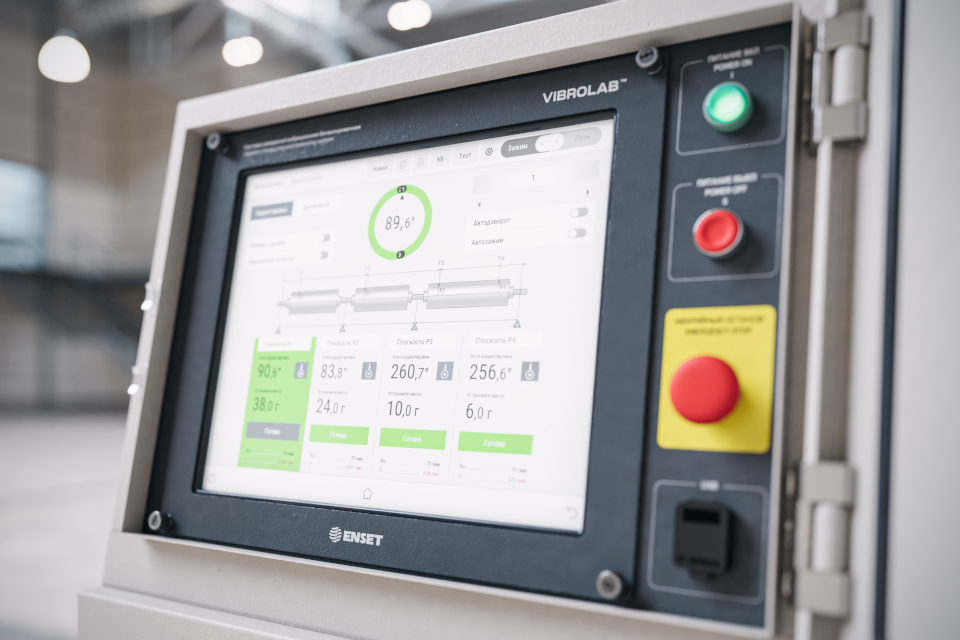

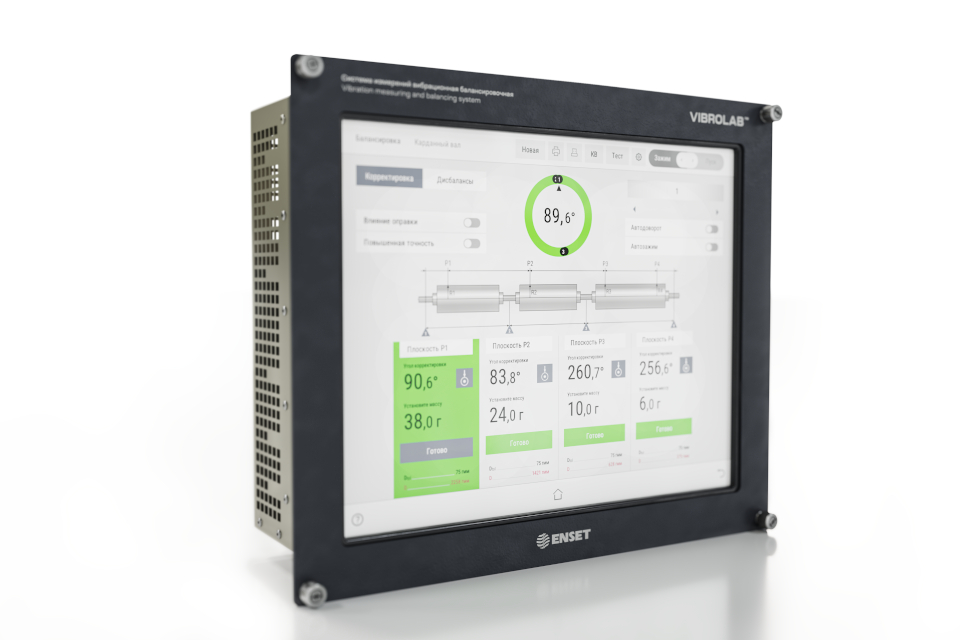

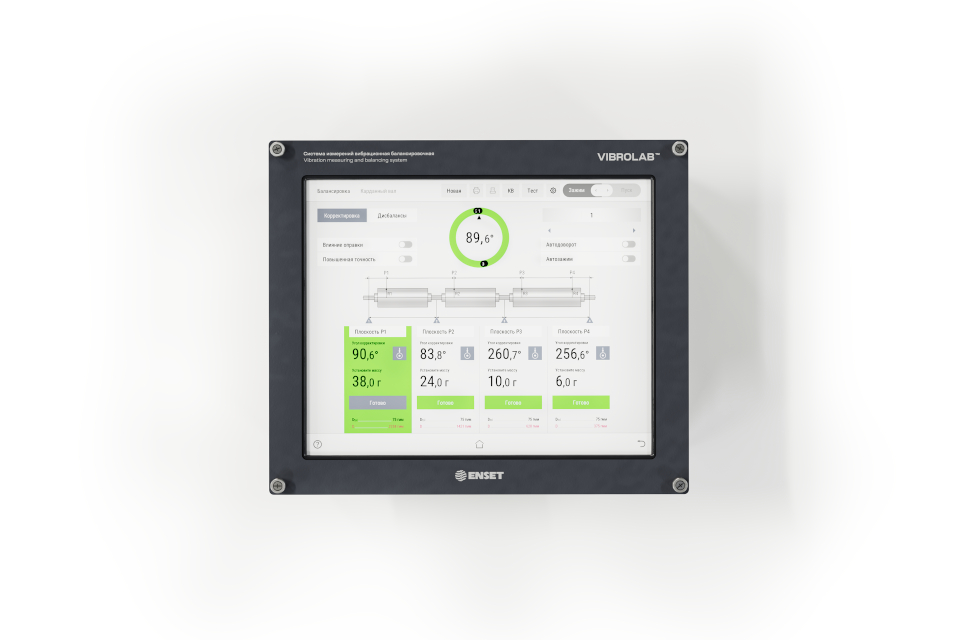

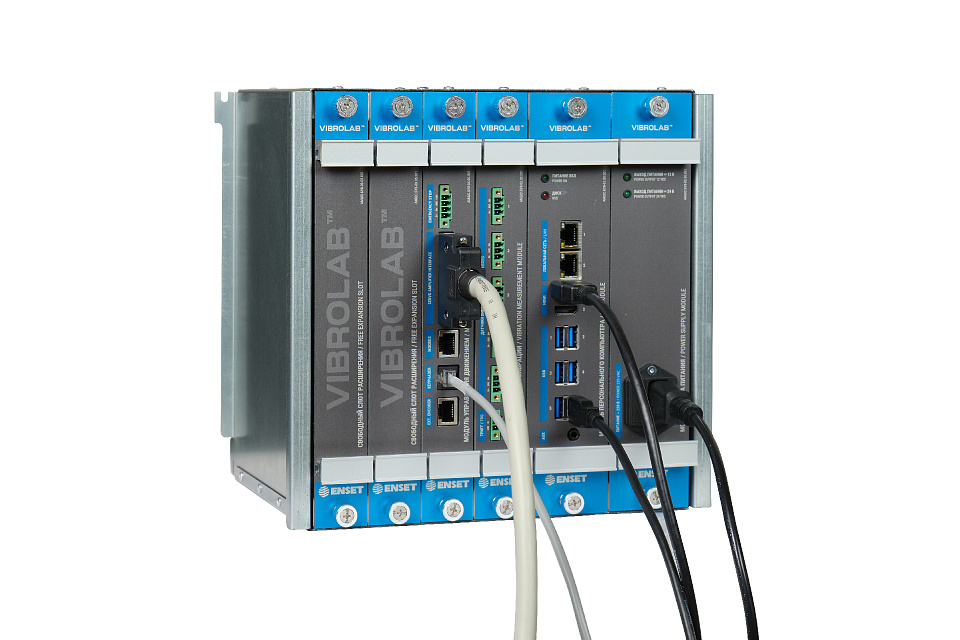

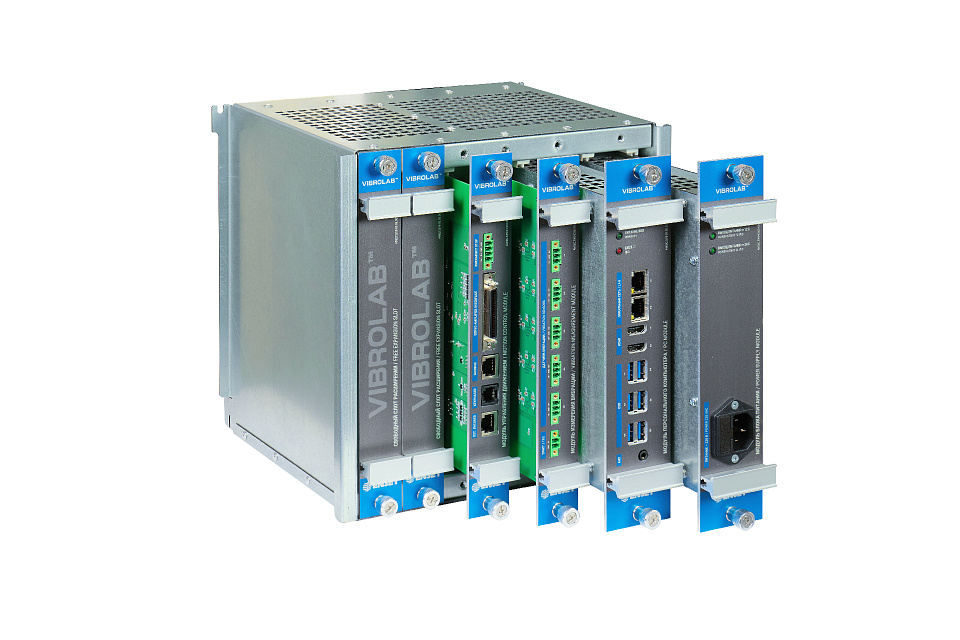

VIBROLAB Vibration balancing measuring system

In production 2 pcs.
Quote

Advantages

  • Included in the State Register of Measuring Instruments of the Russian Federation since 2016, can be supplied with calibration
  • Simple and user-friendly interface with prompts for the operator helps to avoid errors
  • Equipped with built-in algorithms for balancing quasi-flexible and flexible rotors.
  • Displays the current angular position of the rotor
  • Based on a reliable industrial computer and protected from failures and power surges
  • Various built-in programs, including adjustment by structural angles, drilling, milling, grinding, by arc or sector
  • Calculation of unbalances by means of vector coefficients of influence
  • Controls the frequency converter according to the digital protocol MODBUS
  • Calculates the acceleration and deceleration time of the part from its moment of inertia

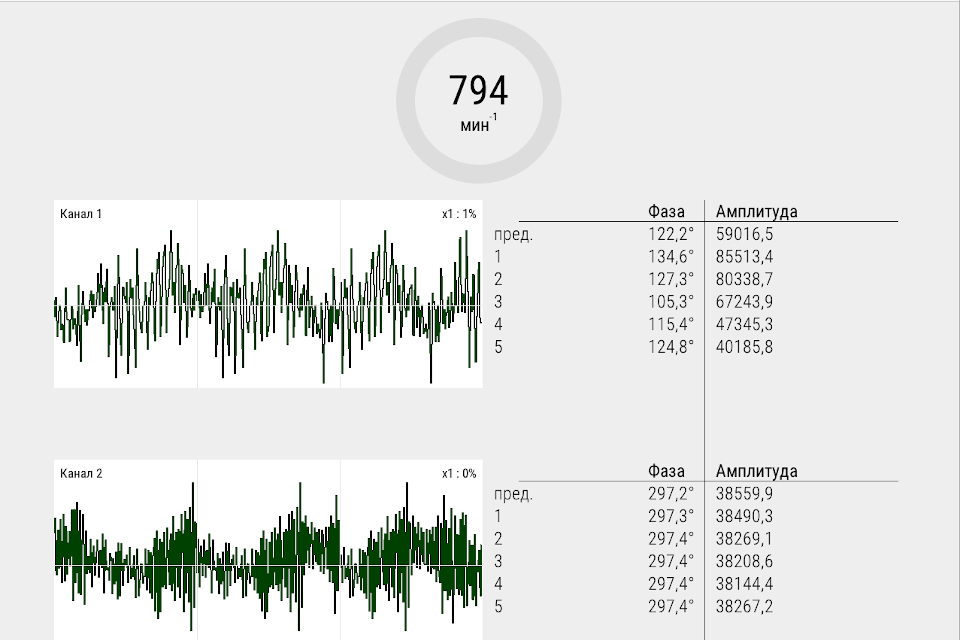

  • Digital filtering of signals guarantees accuracy of vibration measurement

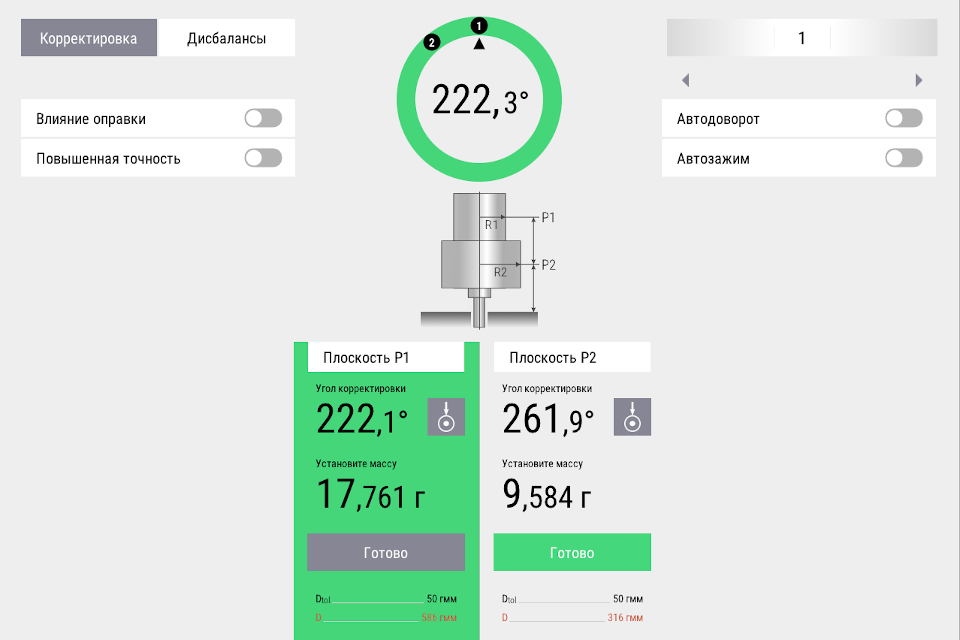

  • Automatic rotor turn to correction position
  • Prints out the balancing protocol or saves it to removable media

Specifications

Code VIBROLAB
Type of vibration sensors Accelerometers, force sensors, with active and passive electronics
Dimensions (L x W x H) 430 х 125 х 370 mm
Peripheral equipment Нет
Nameplate printing Нет
Number of measured vibration displacement channels 1 – 4 pcs.
Measurement range of vibration displacement amplitude 1 – 1000 µm
Limits of the permissible relative error of the amplitude measurements ±3 %
Range of permissible rotor rotational speeds 180 - 30000 rpm
Limits of permissible rotor speed measuring error ± (1+0.0025 n) rpm, where n is the number of rotor revolutions
Range of detected unbalances 0.1 – 500 gmm/kg
Operating frequency range 3 - 500 Hz
Type of angle sensor (encoder) Incremental
Sensor type Laser keyphasor
Consumed power, no more than 100 W
Supply voltage Variable, 50 Hz, 220 V +10-15%
Operating temperature range +10 - +35 °С
Average time to failure 40000 h
Average service life 25 years
Special offer Нет
InStock Нет
Main unit mass 15 kg
VIBROLAB
VIBROLAB
4033 1 EUR
Code
VIBROLAB
Type of vibration sensors
Accelerometers, force sensors, with active and passive electronics
Dimensions (L x W x H)
430 х 125 х 370 mm
Peripheral equipment
Нет
Nameplate printing
Нет
Number of measured vibration displacement channels
1 – 4 pcs.
Measurement range of vibration displacement amplitude
1 – 1000 µm
Limits of the permissible relative error of the amplitude measurements
±3 %
Range of permissible rotor rotational speeds
180 - 30000 rpm
Limits of permissible rotor speed measuring error
± (1+0.0025 n) rpm, where n is the number of rotor revolutions
Range of detected unbalances
0.1 – 500 gmm/kg
Operating frequency range
3 - 500 Hz
Type of angle sensor (encoder)
Incremental
Sensor type
Laser keyphasor
Consumed power, no more than
100 W
Supply voltage
Variable, 50 Hz, 220 V +10-15%
Operating temperature range
+10 - +35 °С
Average time to failure
40000 h
Average service life
25 years
Special offer
Нет
InStock
Нет
Main unit mass
15 kg
Included in the State Register of Measuring Instruments of the Russian Federation since 2016, can be supplied with calibration Simple and user-friendly interface with prompts for the operator helps to avoid errors Equipped with built-in algorithms for balancing quasi-flexible and flexible rotors. Displays the current angular position of the rotor Based on a reliable industrial computer and protected from failures and power surges Various built-in programs, including adjustment by structural angles, drilling, milling, grinding, by arc or sector Calculation of unbalances by means of vector coefficients of influence Controls the frequency converter according to the digital protocol MODBUS Calculates the acceleration and deceleration time of the part from its moment of inertia Digital filtering of signals guarantees accuracy of vibration measurement Automatic rotor turn to correction position Prints out the balancing protocol or saves it to removable media
