Home/Equipment/ Drilling module

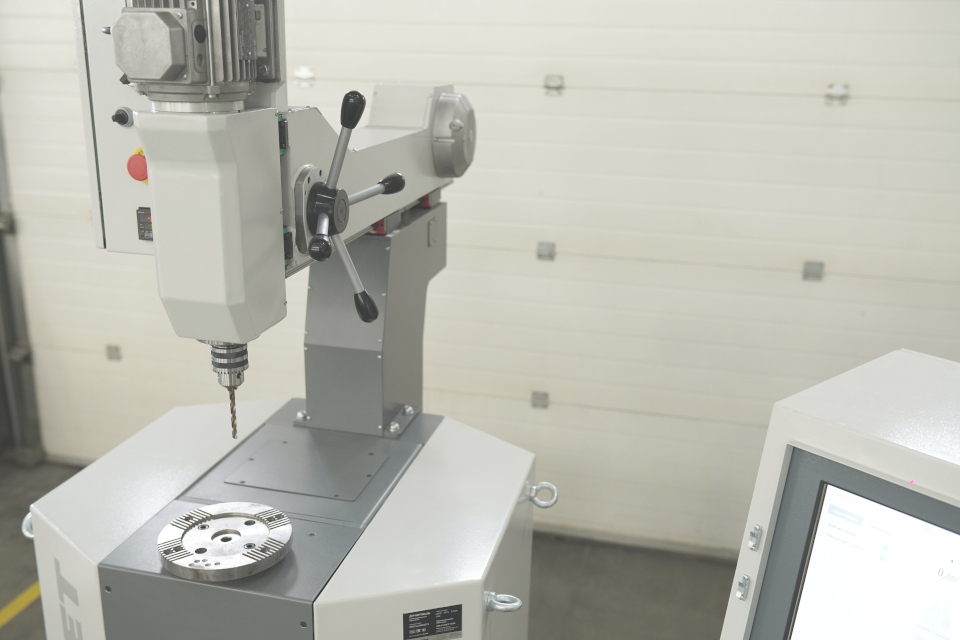

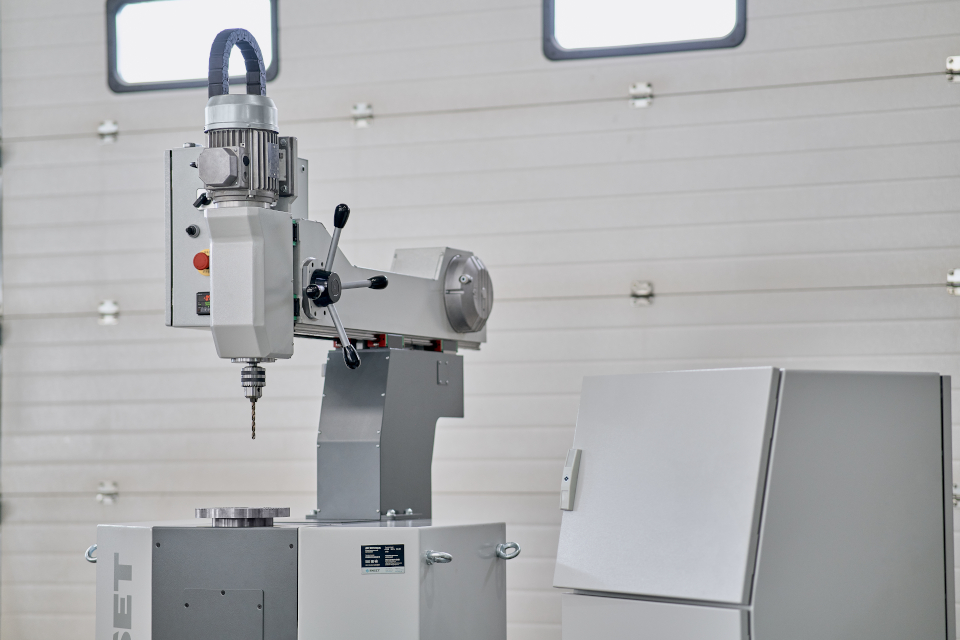

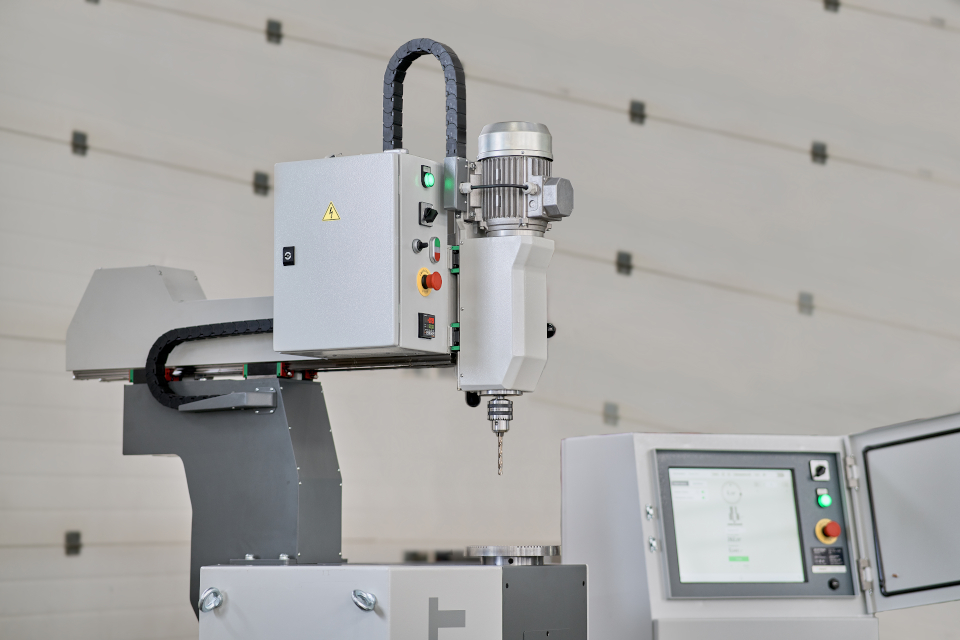

Drilling module

Advantages

  • Designed to perform drilling work when balancing products
  • Inverter spindle drive with speed control is used
  • Reduces part processing time and increases productivity
  • Does not require complex care and maintenance
  • Easily moved by hand
  • Simple and clear interface
  • Option for machines of the DBR series

Specifications

Code DRILL_MODULE
Power supply 1 phase, 220 V, 50 Hz, 16 A, protective grounding is mandatory
Rotor drive Variable frequency asynchronous motor, 1.1 kW
Protection against dust and water IP55
Warranty period 12 months
Maximum drill diameter 16 mm
Vertical working stroke 230 mm

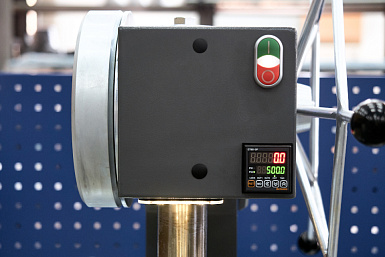

Depth gauge accuracy ± 0,1 mm
Drilling module
1
Code
DRILL_MODULE
Power supply
1 phase, 220 V, 50 Hz, 16 A, protective grounding is mandatory
Rotor drive
Variable frequency asynchronous motor, 1.1 kW
Protection against dust and water
IP55
Warranty period
12 months
Maximum drill diameter
16 mm
Vertical working stroke
230 mm
Depth gauge accuracy
± 0,1 mm
Designed to perform drilling work when balancing products Inverter spindle drive with speed control is used Reduces part processing time and increases productivity Does not require complex care and maintenance Easily moved by hand Simple and clear interface Option for machines of the DBR series
×
