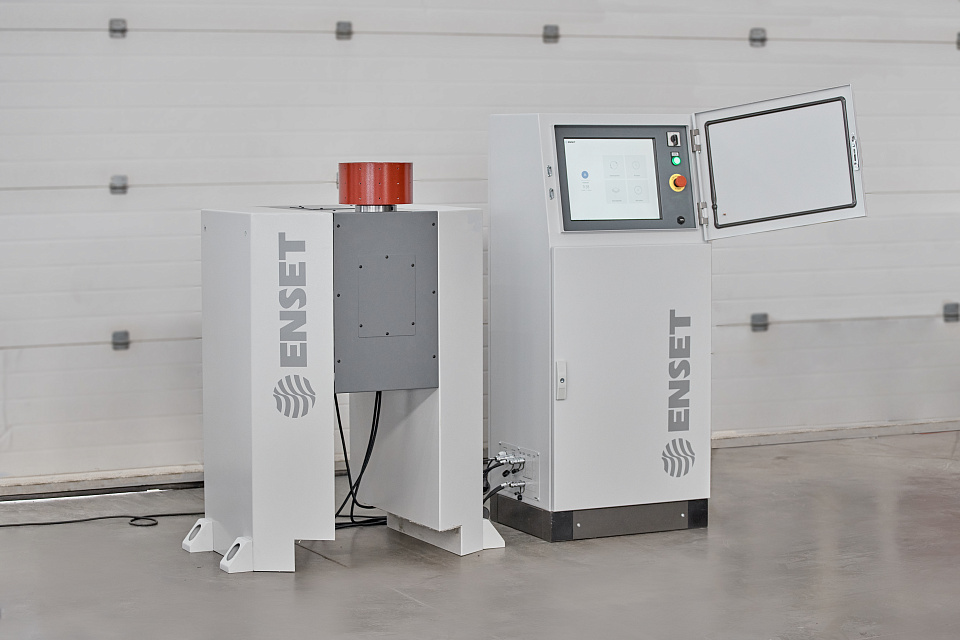

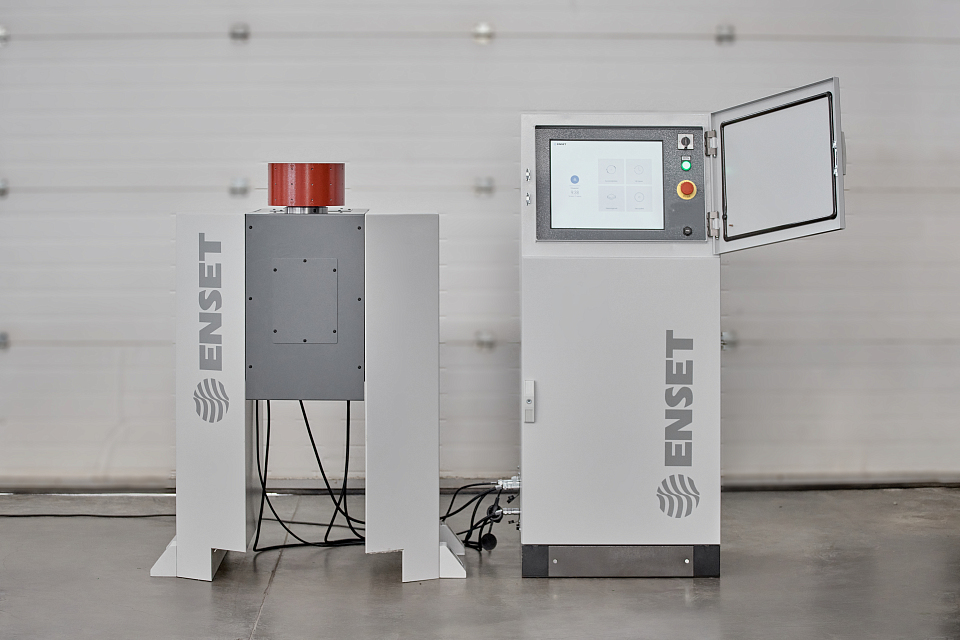

DBR VERTICAL Vertical balancing machine for disc-shaped rotors of up to 150 kg

Advantages

Balancing measurement system VIBROLAB is listed in the State Register of Measuring Instruments
Electrical and mechanical components are made in Europe
12 months warranty on the machine and all its components

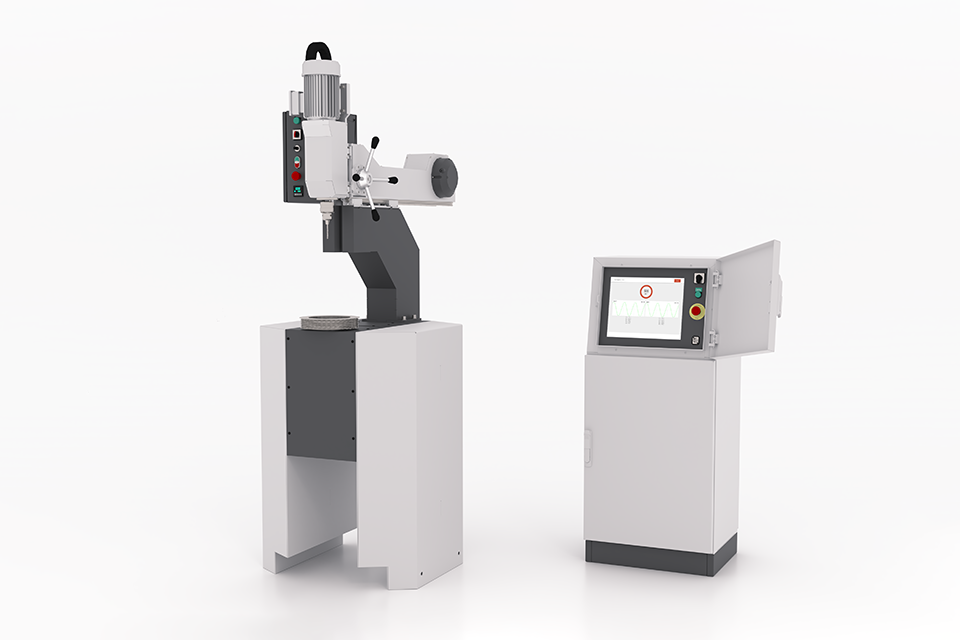

Additional option - drilling machine, allowing for drilling and countersinking works
Balancing of blade wheels of fans, pulleys, impellers of pumps, impellers of turbines, cutting tools, handwheels, dual mass flywheels, brake discs with weight up to 150 kg

Specifications

Code	DBR_VERTICAL
Type	Vertical
Rotor type drive	Axial
Rotor weight	0,5 – 150 kg
Power supply	1 phase, 220 V, 50 Hz, 10 A, protective grounding is mandatory
Number of supports	1
Number of measurement planes	2
Product diameter max.	up to 800 mm (depending on the weight of the product)
Minimum achievable residual unbalance	1 g mm/kg
Rotor drive	Variable frequency asynchronous motor, 400 – 1500 rpm, 2.2 kW
Rotor turn to correction position	Manual or automatic (option)
Type of vibration sensors	Piezoelectric power sensors
Protection against dust and water	IP55
User interface	Color touch-screen, impact-, oil- and dirt-resistant, and pendant with LCD
Machine basement	Not required
Machine dimensions (L x W x H)	750 х 1000 х 1500 mm
Electric cabinet dimensions (L x W x H)	600 х 500 х 1400 mm
Machine weight with the electrical cabinet, no more	850 kg
Drilling diameter (parameter for drilling module option)	3 – 12 mm
Spindle stroke (parameter for drilling module option)	80 mm
Peripheral equipment	No
Product length up to 20 kg	up to 900 mm
Product length up to 50 kg	up to 450 mm
Product length up to 100 kg	up to 200 mm
Product length up to 150 kg	up to 120 mm
