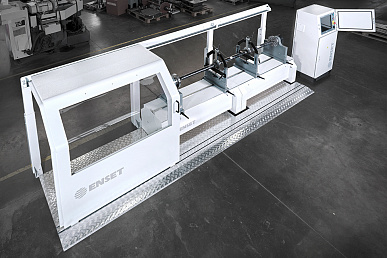

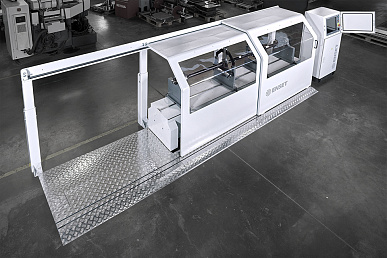

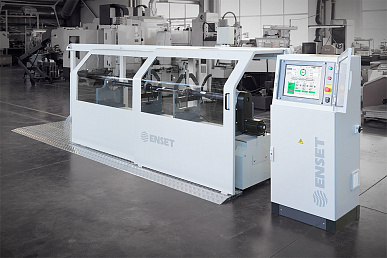

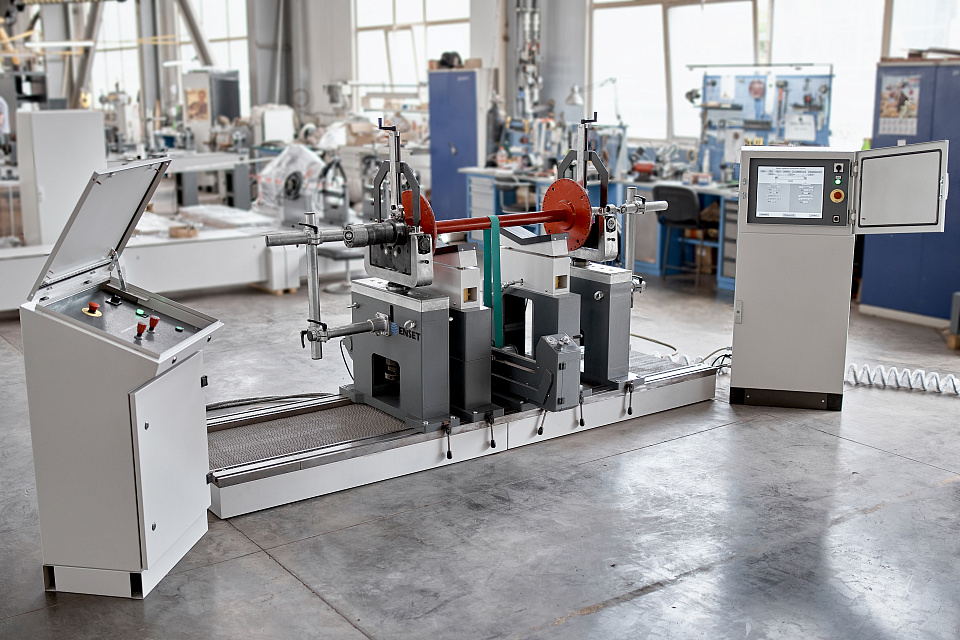

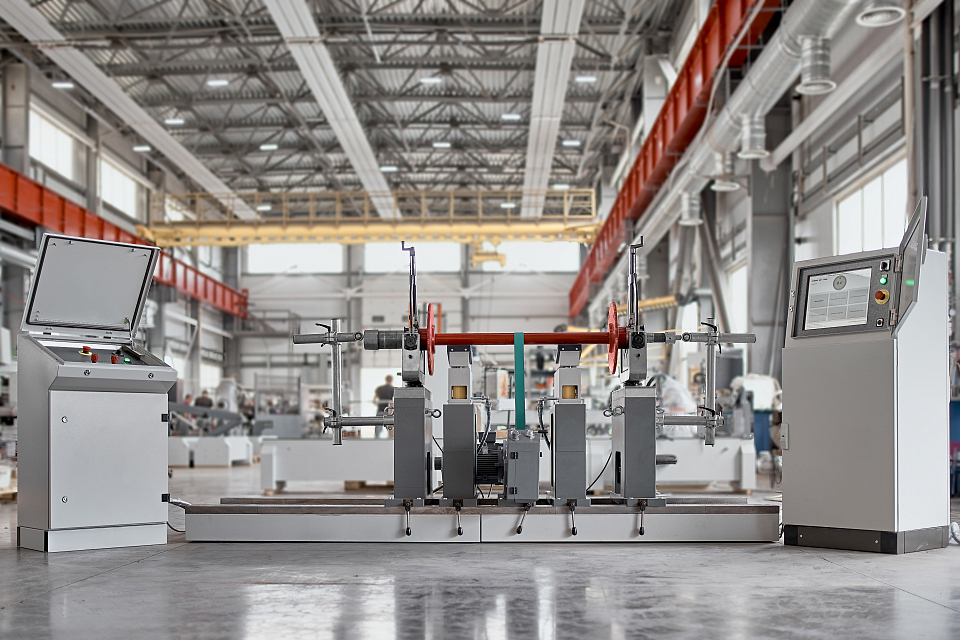

DBR-1500S Soft bearing rotor-balancing machine for rotors up to 1500 kg

Advantages

  • Horizontal soft bearing rotor-balancing machine
  • Optimized for balancing flexible and rigid rotors
  • Balancing measurement system VIBROLAB is listed in the State Register of Measuring Instruments
  • Built-in algorithms of machine check according to GOST

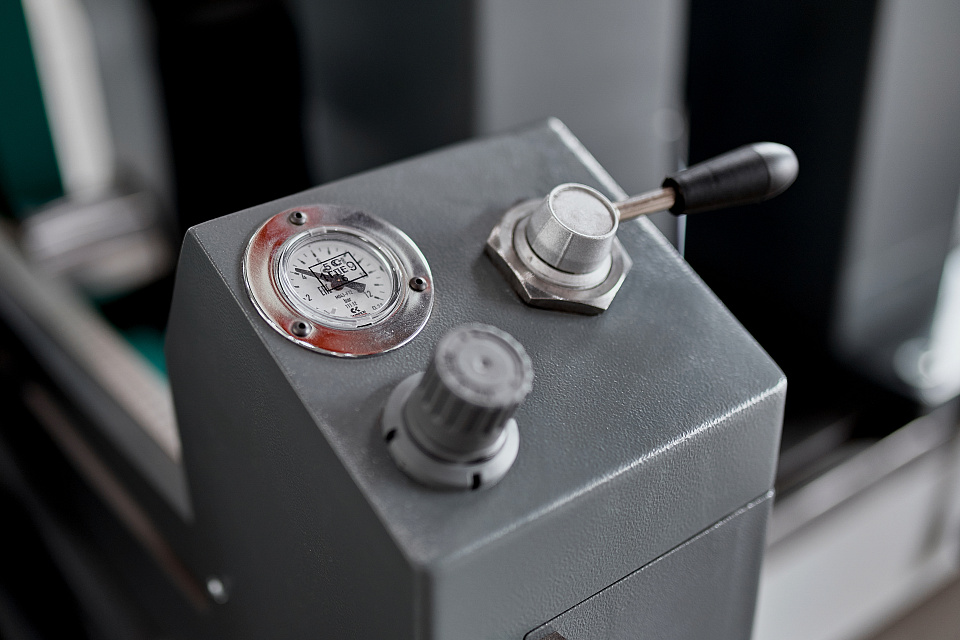

  • Weight of the product to be balanced - up to 1,5 tons Pneumatic belt tensioning system for drive belt
  • Electrical and mechanical components are made in Europe
  • Modular detachable design with possibility of subsequent extension
  • Lever-chain mechanism for supports transfer
  • Up to 4 degrees of supports mobility

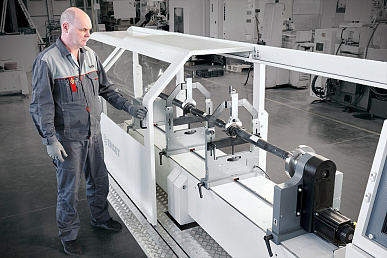

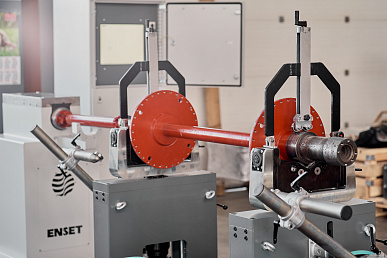

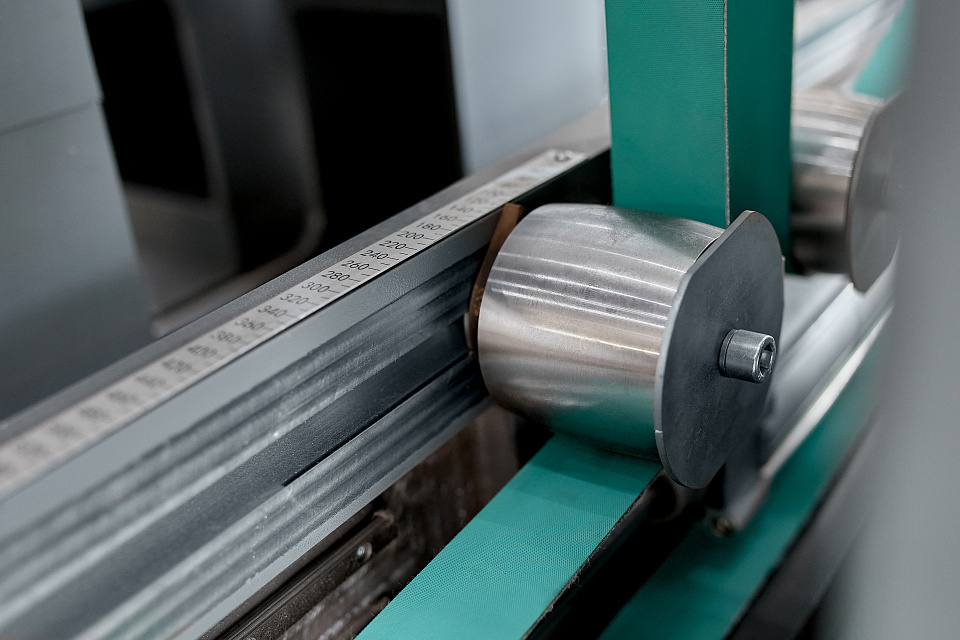

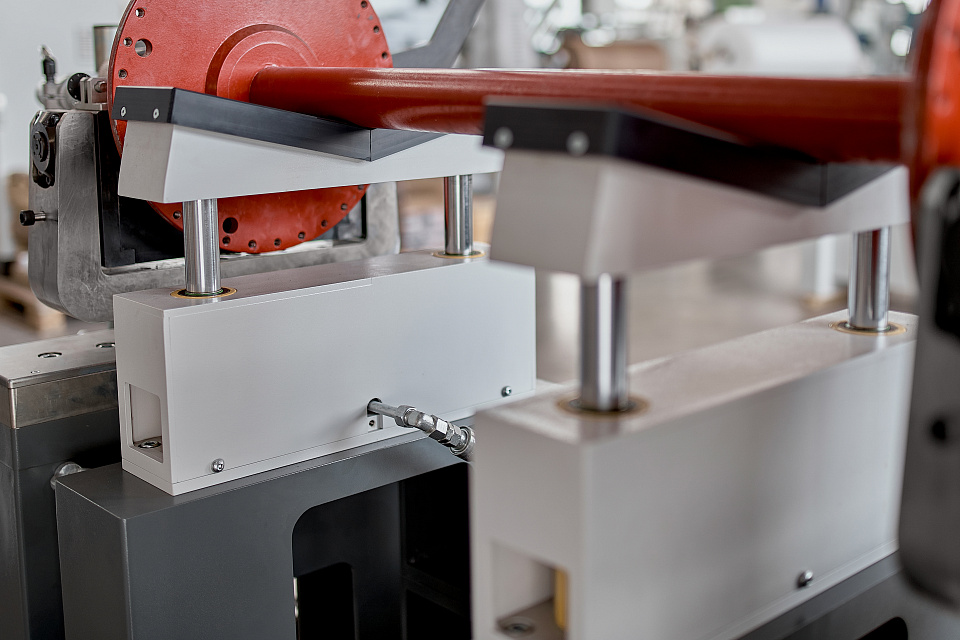

  • Axial stops and self-aligning roller supports are included in the scope of delivery
  • 12 months warranty on the machine and all its components
  • Soft-bearing balancing of rotors weighing from 30 kg to 1,5 tons and diameter up to 2300 mm, such as motor armature, turbines, drums

Specifications

Code DBR-1500S
Type Soft-bearing

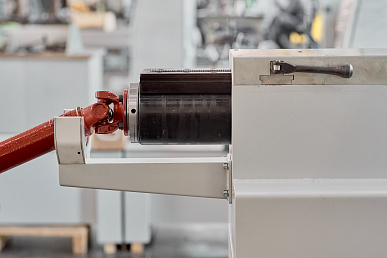

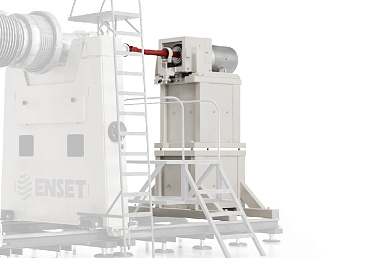

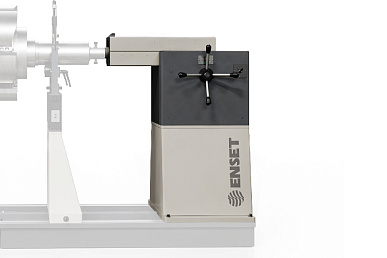

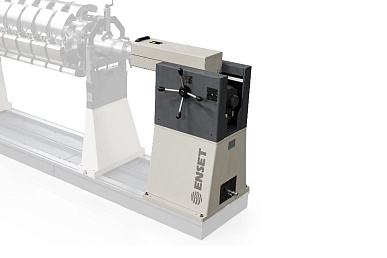

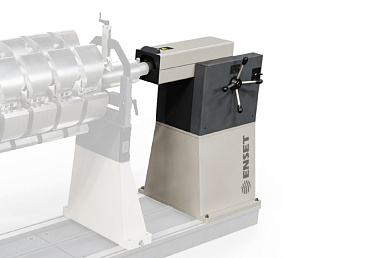

Rotor type drive Belt, with pneumatic tensioning mechanism (axial - optional)
Number of supports and measurement planes 2 pcs., height adjustable
Degrees of freedom provided by supports Around its axis; in the plane perpendicular to the axis of rotation; in the horizontal plane
Rotor weight 30 - 1500 kg
Product diameter max. 2300 mm
Distance between middles of the rotor supports 350 – 2750 mm
Balancing quality grade G1 according to ISO 1940-1
Power supply 3 phases, 380 V 50 Hz, 21 A, protective grounding is mandatory
Rotor drive Variable frequency asynchronous motor, 300 – 2500 rpm, 5,5 kW
Rotor turn to correction position Manual or automatic (option)
Type of vibration sensors Capacitive accelerometers

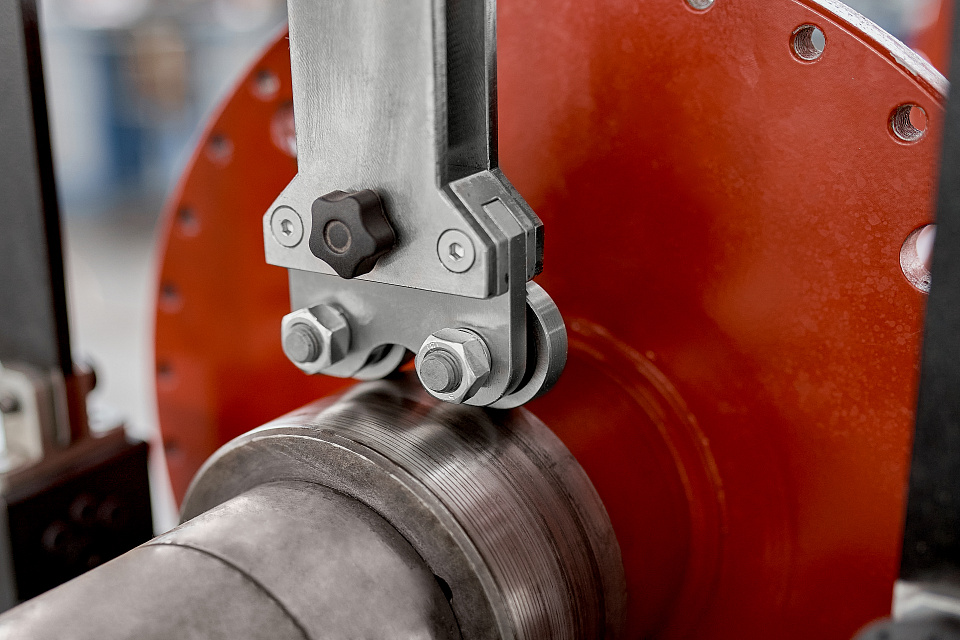

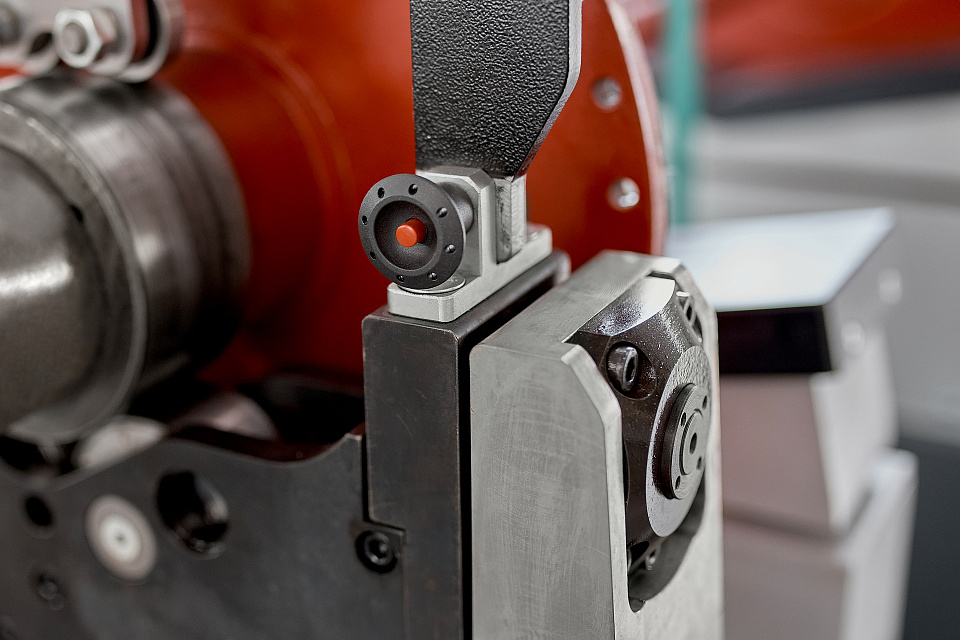

Phase sensor type for belt drive Laser keyphasor
Protection against dust and water IP55

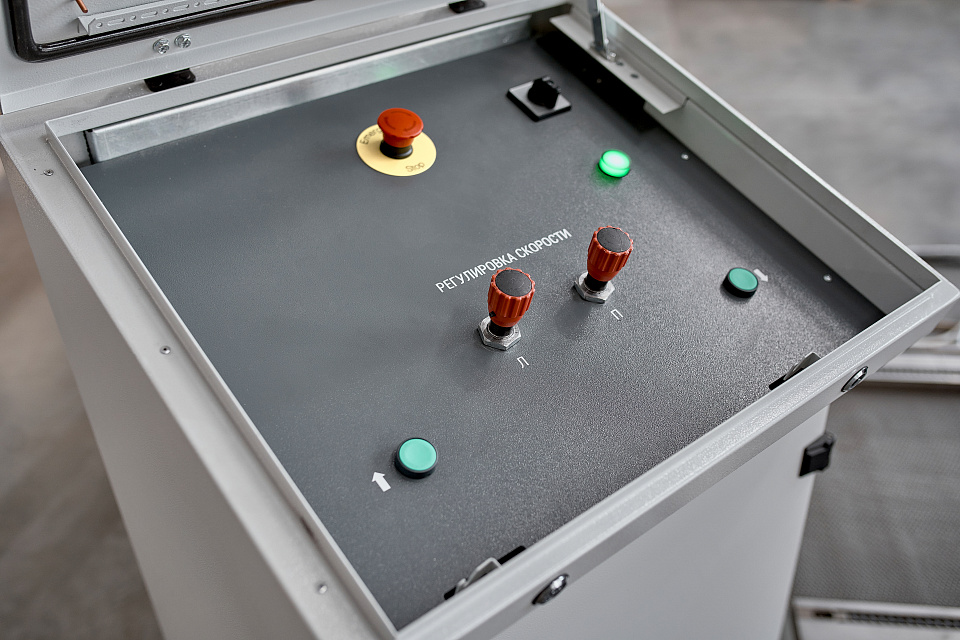

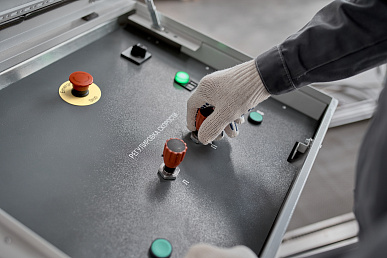

User interface Color touch-screen, impact-, oil- and dirt-resistant
Machine basement Concrete floor with a hard coating at least 160 mm thick
Machine dimensions (L x W x H) 3000 х 1090 х 1150 mm
Electric cabinet dimensions (L x W x H) 600 х 600 х 1960 mm
Machine weight (with the electrical cabinet) 2470 kg
Warranty period 12 months
Peripheral equipment Нет
Nameplate printing Нет
Special offer Нет
InStock Нет

Options and accessories

DBR-1500S
DBR-1500S
45294 1 EUR
Code
DBR-1500S
Type
Soft-bearing
Rotor type drive
Belt, with pneumatic tensioning mechanism (axial - optional)
Number of supports and measurement planes
2 pcs., height adjustable
Degrees of freedom provided by supports
Around its axis; in the plane perpendicular to the axis of rotation; in the horizontal plane
Rotor weight
30 - 1500 kg
Product diameter max.
2300 mm
Distance between middles of the rotor supports
350 – 2750 mm
Balancing quality grade
G1 according to ISO 1940-1
Power supply
3 phases, 380 V 50 Hz, 21 A, protective grounding is mandatory
Rotor drive
Variable frequency asynchronous motor, 300 – 2500 rpm, 5,5 kW
Rotor turn to correction position
Manual or automatic (option)
Type of vibration sensors
Capacitive accelerometers
Phase sensor type for belt drive
Laser keyphasor
Protection against dust and water
IP55
User interface
Color touch-screen, impact-, oil- and dirt-resistant
Machine basement
Concrete floor with a hard coating at least 160 mm thick
Machine dimensions (L x W x H)
3000 х 1090 х 1150 mm
Electric cabinet dimensions (L x W x H)
600 х 600 х 1960 mm
Machine weight (with the electrical cabinet)
2470 kg
Warranty period
12 months
Peripheral equipment
Нет
Nameplate printing
Нет
Special offer
Нет
InStock
Нет
Horizontal soft bearing rotor-balancing machine Optimized for balancing flexible and rigid rotors Balancing measurement system VIBROLAB is listed in the State Register of Measuring Instruments Built-in algorithms of machine check according to GOST Weight of the product to be balanced - up to 1,5 tons Pneumatic belt tensioning system for drive belt Electrical and mechanical components are made in Europe Modular detachable design with possibility of subsequent extension Lever-chain mechanism for supports transfer Up to 4 degrees of supports mobility Axial stops and self-aligning roller supports are included in the scope of delivery 12 months warranty on the machine and all its components Soft-bearing balancing of rotors weighing from 30 kg to 1,5 tons and diameter up to 2300 mm, such as motor armature, turbines, drums
