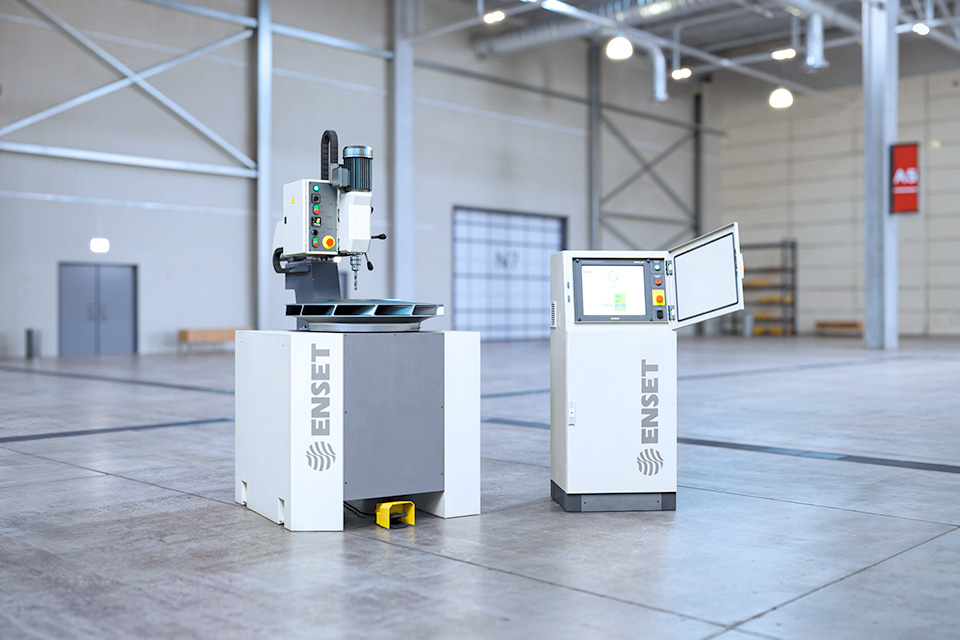

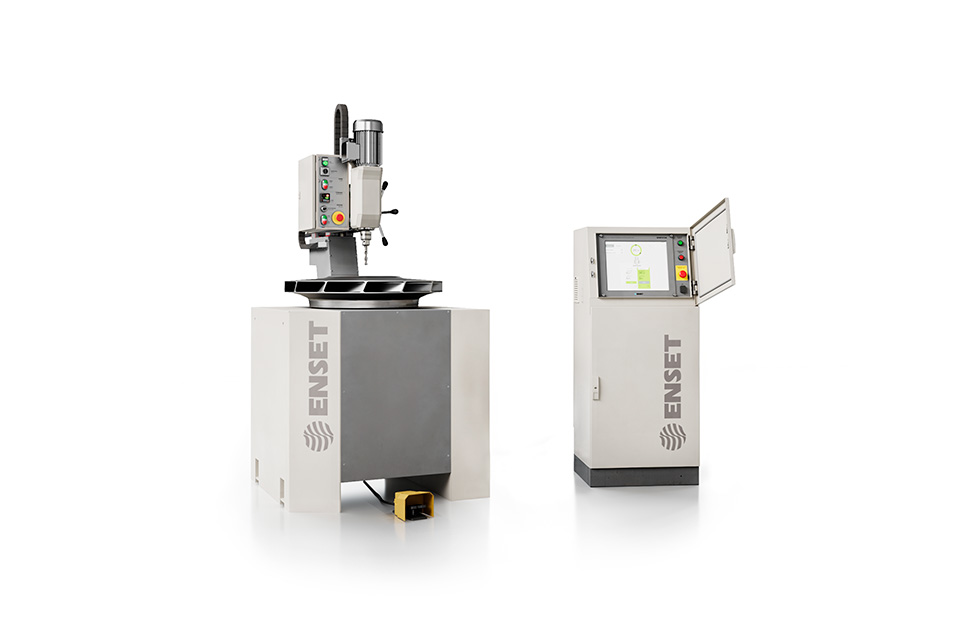

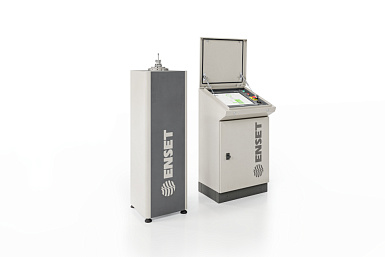

VERTICAL-300
18118
1
EUR
Rotor type drive
Axial, drive spindle
Rotor weight
0,5 – 300 кг
Power supply
3 phases, 380 V, 50 Hz, 10 A, protective grounding is mandatory
Accuracy of measuring the angular position of the product
± 0,01º
Vibration sensors
Piezoelectric force sensors
Dimensions (L x W x H)
1010 х 1000 х 1015 mm
Electric cabinet dimensions (L x W x H)
600 х 500 х 1400 mm
Accuracy of measuring the rotation frequency of the product
± (1+0,0025·n)
Warranty period
60 months
Anchoring to the base or foundation
Anchoring to a concrete floor at least 100 mm thick
Angular position sensor of the product
Incremental encoder
Climatic performance according to GOST 15150
Operation: UHL 4.2 (temperature from + 10 to + 35 ºC, relative air humidity up to 80%). Storage and transportation: 1L (temperature from + 5 to + 40 ºC, relative air humidity up to 80%)
Control system

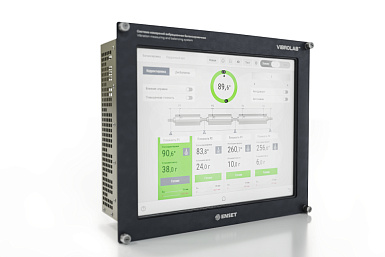

Vibration balancing measuring system VIBROLAB, with color touch display
Equipment weight (net)
1400 kg
Keeping the product from turning
Option

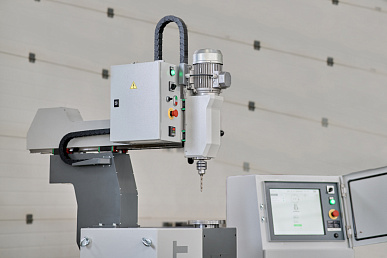

Drilling diameter (parameter for drilling module option)
3 – 12 mm
Maximum product diameter
1600 mm
Minimum achievable residual specific imbalance emar
0.1 gmm/kg
Number of vibration measurement channels
2
Protecting electronics from dust and moisture
IP54
Rotation frequency of the product during balancing n
100 – 2000 rpm
Engine type and its characteristics
Variable frequency asynchronous, 3000 rpm, 5.5 kW
Structural features of the frame
Frame made of structural steel with cast vibration-absorbing filling
Turning the product at an angle
Manual (Automatic)
Type of speed and phase sensor
Inductive sensor
URR Unbalance reduction ratio
95 %
Частота вращения изделия при балансировке n
100 – 2000 об/мин
Number and type of supports
Spindle drive support
Spindle stroke (parameter for drilling module option)
80 mm
Purpose
Universal, for cantilever rotors
Type of equipment
Vertical pre-resonance balancing machine
Balancing measurement system VIBROLAB is listed in the State Register of Measuring Instruments № 84333-22 Electrical and mechanical components are made in Europe 60 months warranty on the machine and all its components

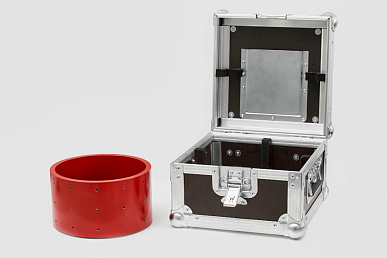

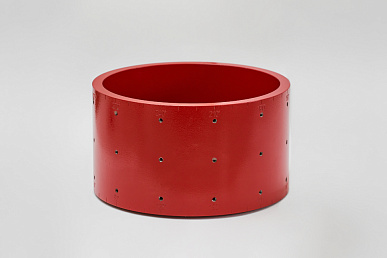

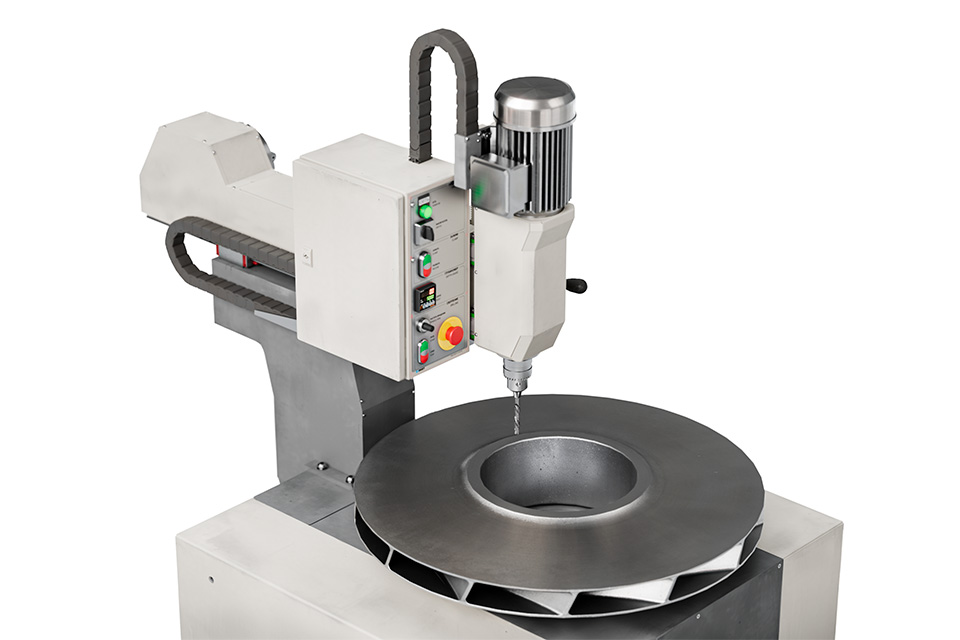

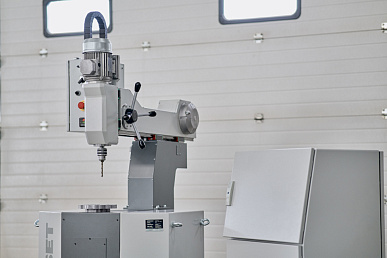

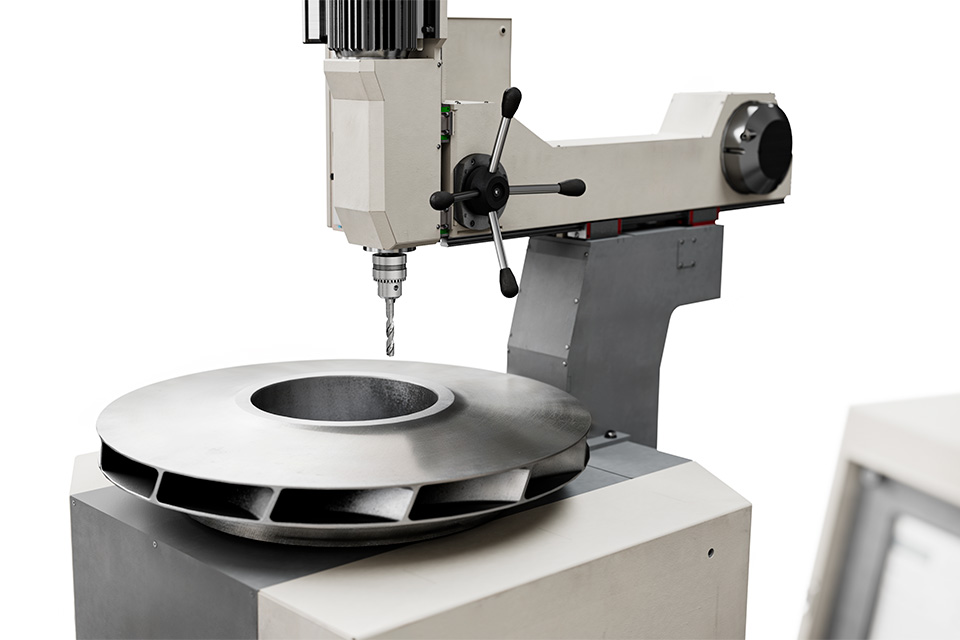

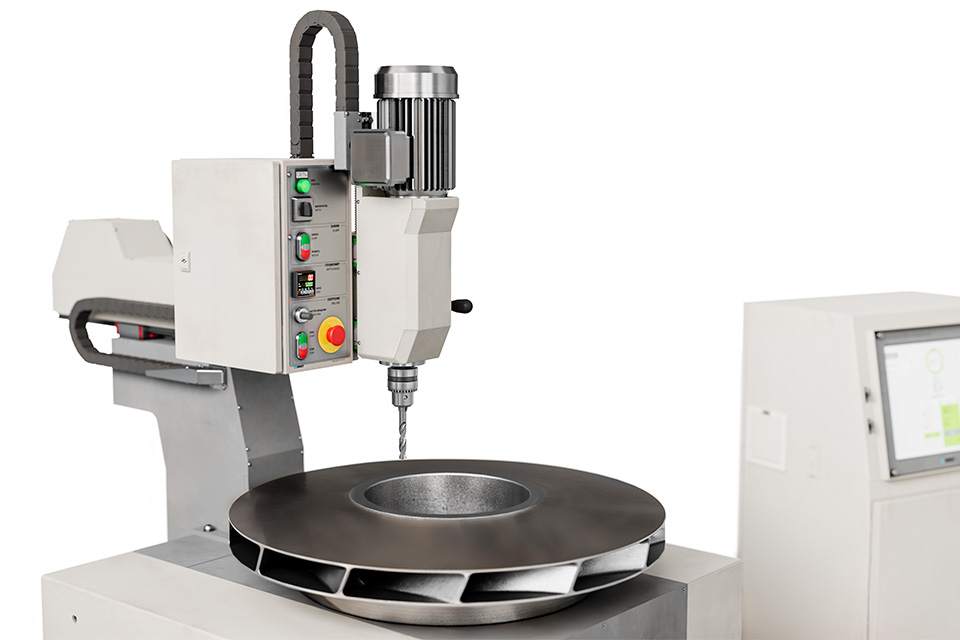

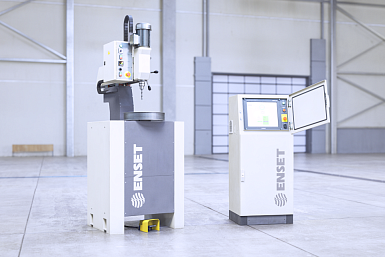

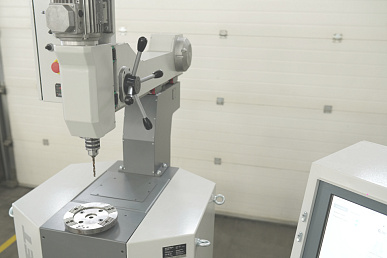

Additional option - drilling machine, allowing for drilling and countersinking works The balancing machine VERTICAL-60 is ideal for balancing centrifuges, gear shafts, screws, clutch discs, pump impellers, turbine wheels, fan impellers, pump impellers, flywheels, couplings, milling machine chucks, centrifugal pump impellers, fan impellers, cutting tools, agricultural machinery rotors, brake discs, gears, pulleys, rotary saws (impact saws), toothed wheels, hydraulic transformers
