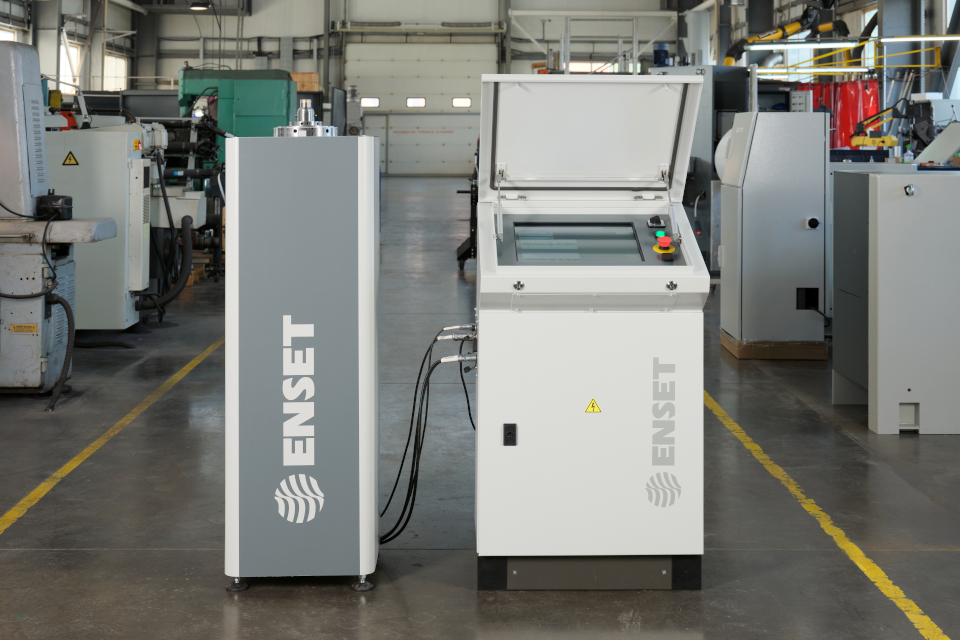

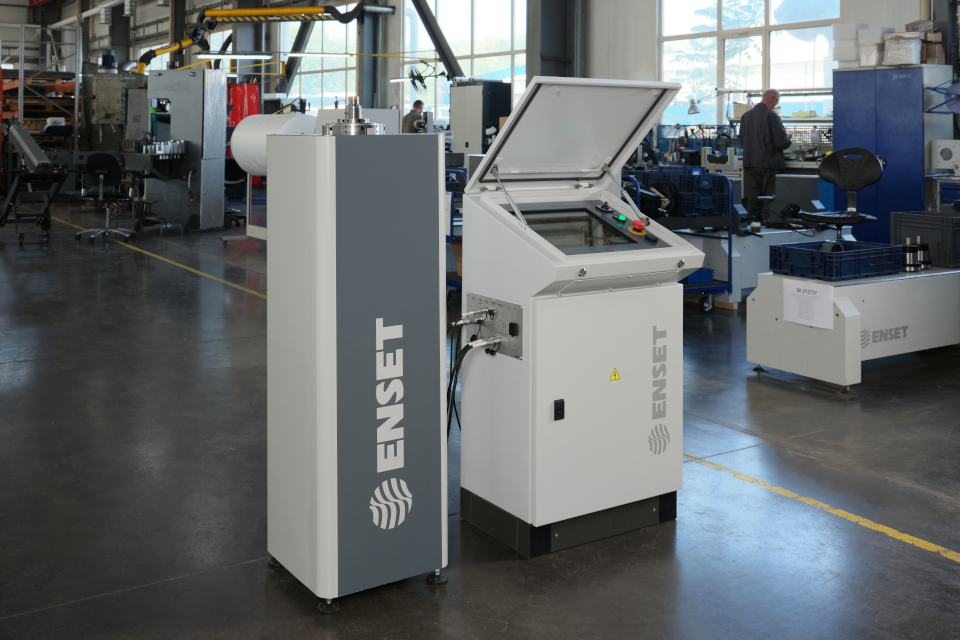

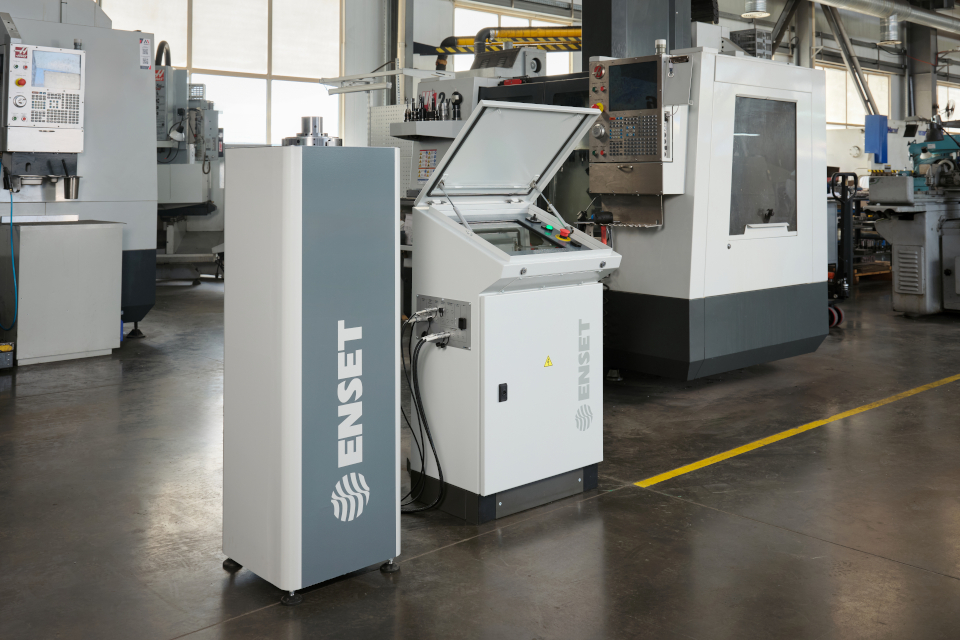

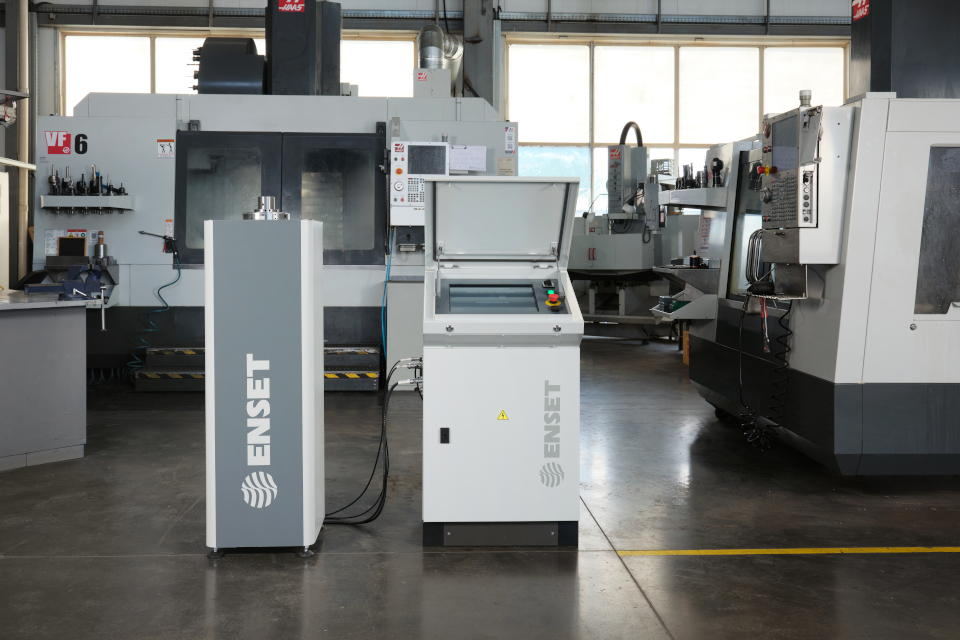

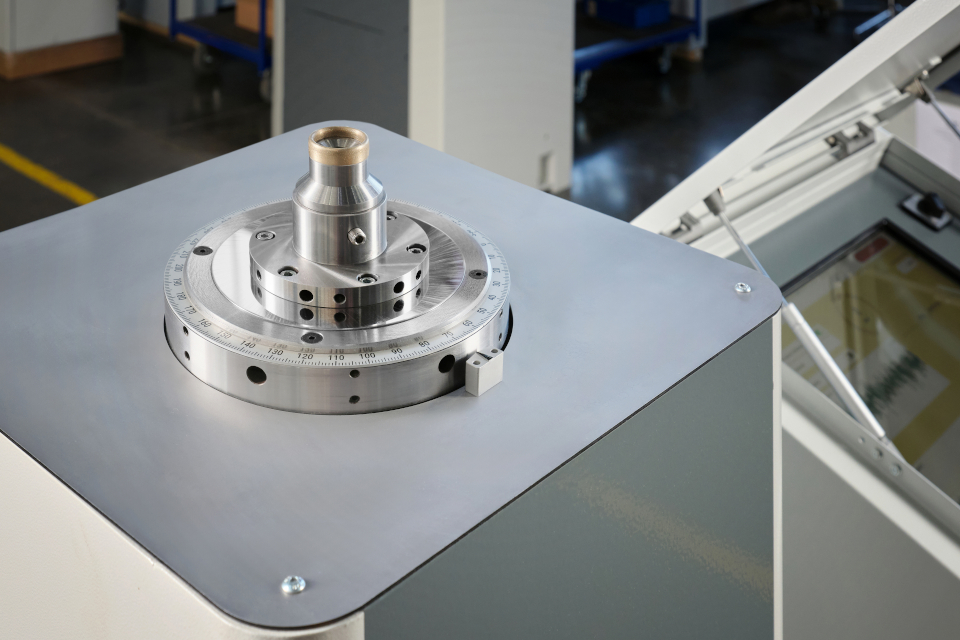

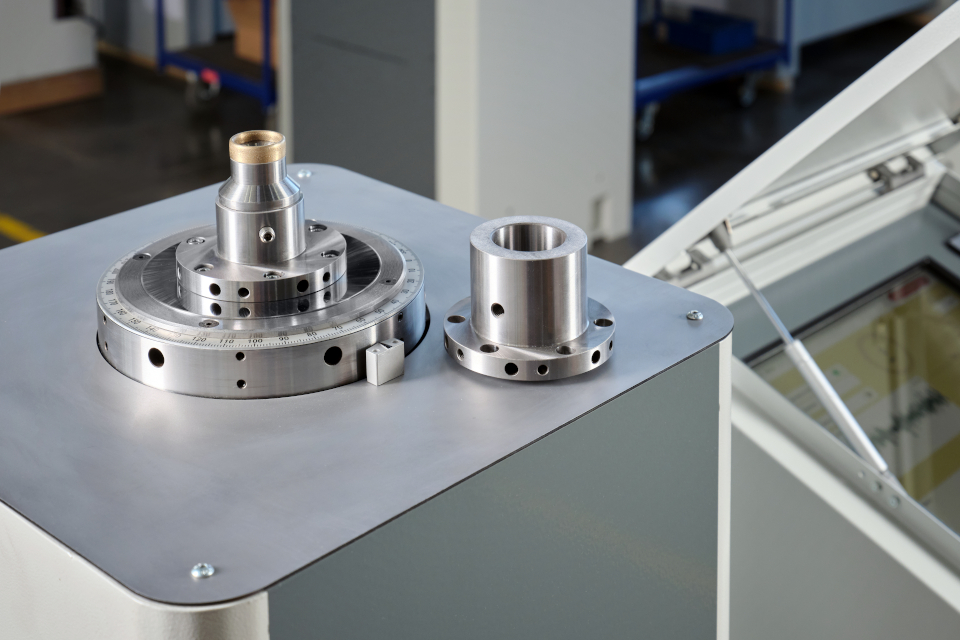

VERTICAL-15 Balancing machine for tools

Advantages

Balancing measurement system VIBROLAB is listed in the State Register of Measuring Instruments № 84333-22
Electrical and mechanical components are made in Europe
60 months warranty on the machine and all its components
Additional option - drilling machine, allowing for drilling and countersinking works
The balancing machine VERTICAL-15 is ideal for balancing centrifuges, gear shafts, screws, clutch discs, pump impellers, turbine wheels, fan impellers, pump impellers, flywheels, couplings, milling machine chucks, centrifugal pump impellers, fan impellers, cutting tools, agricultural machinery rotors, brake discs, gears, pulleys, rotary saws (impact saws), toothed wheels, hydraulic transformers

Specifications

Code	VERTICAL-15
Type of equipment	Vertical pre-resonance balancing machine
Purpose	Universal, for cantilever rotors

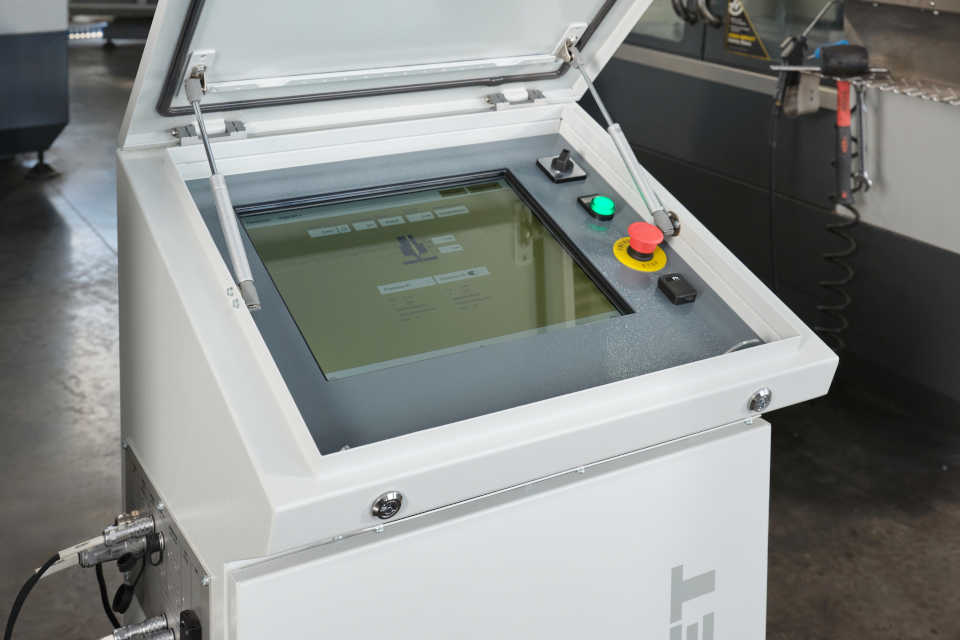

Control system	Vibration balancing measuring system VIBROLAB, with color touch display

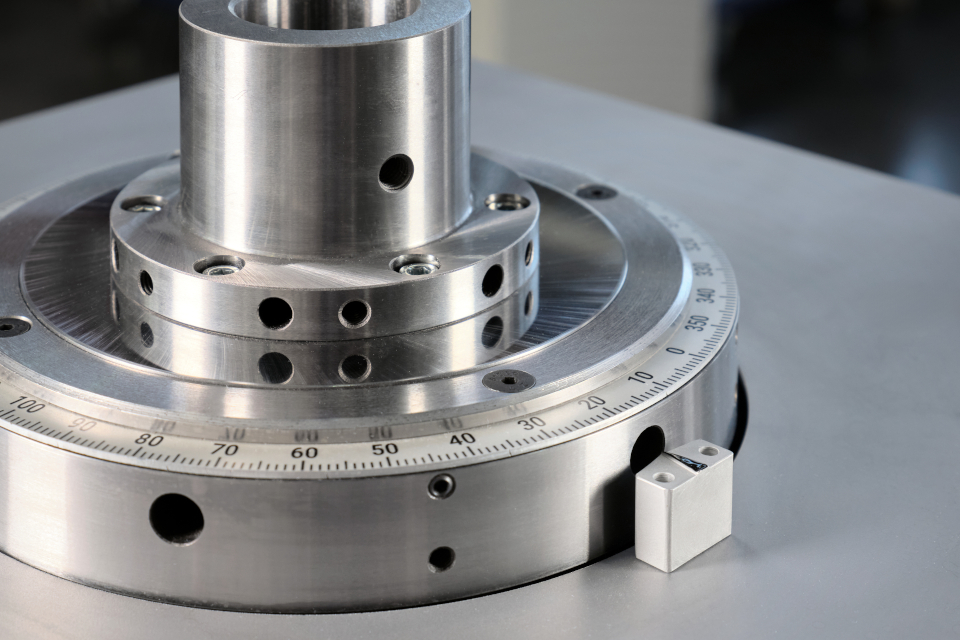

Rotor type drive	Axial, drive spindle
Engine type and its characteristics	Servo motor, 3000 rpm, 0.4 kW
Number and type of supports	Spindle drive support
Rotor weight	0,05 – 15,0 kg
Maximum product diameter	250 mm
Minimum achievable residual specific imbalance emar	0.05 gmm/kg
URR Unbalance reduction ratio	95 %
Rotation frequency of the product during balancing n	100 – 6000 rpm
Accuracy of measuring the rotation frequency of the product	± (1+0,0025·n)
Accuracy of measuring the angular position of the product	± 0,01º
Power supply	1 phase, 220 V, 50 Hz, 6 A, protective grounding is mandatory
Vibration sensors	Piezoelectric force sensors

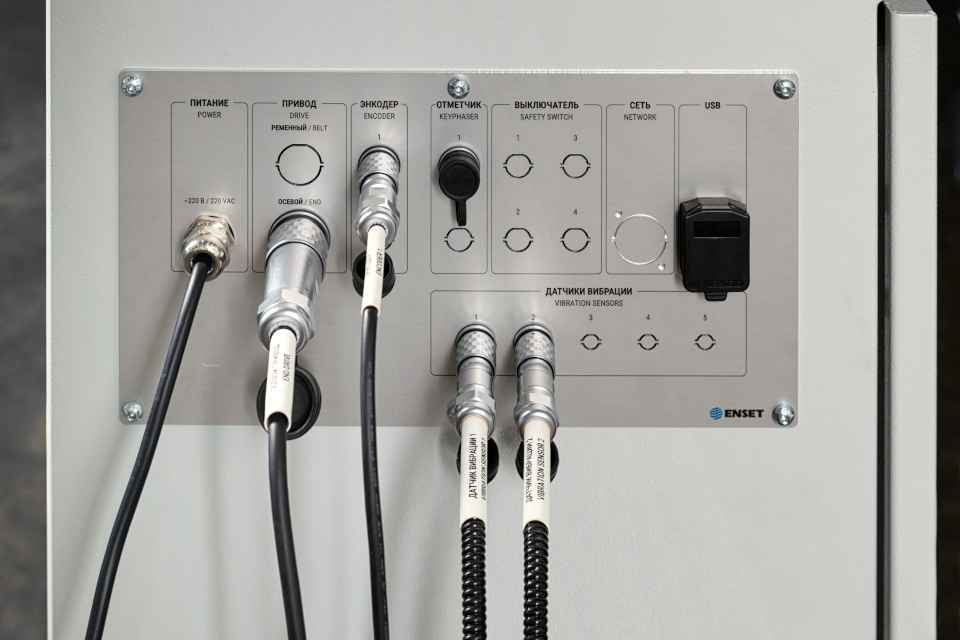

Number of vibration measurement channels	2
Type of speed and phase sensor	Inductive sensor
Angular position sensor of the product	Incremental encoder
Protecting electronics from dust and moisture	IP54
Anchoring to the base or foundation	Anchoring to any concrete floor
Structural features of the frame	Frame made of structural steel with cast vibration-absorbing filling
Climatic performance according to GOST 15150	Operation: UHL 4.2 (temperature from + 10 to + 35 ºC, relative air humidity up to 80%). Storage and transportation: 1L (temperature from + 5 to + 40 ºC, relative air humidity up to 80%)
Warranty period	60 months
Peripheral equipment	No
Holding the product in the adjustment position	Yes
Nameplate printing	No
Turning the product to the correction position	Auto
