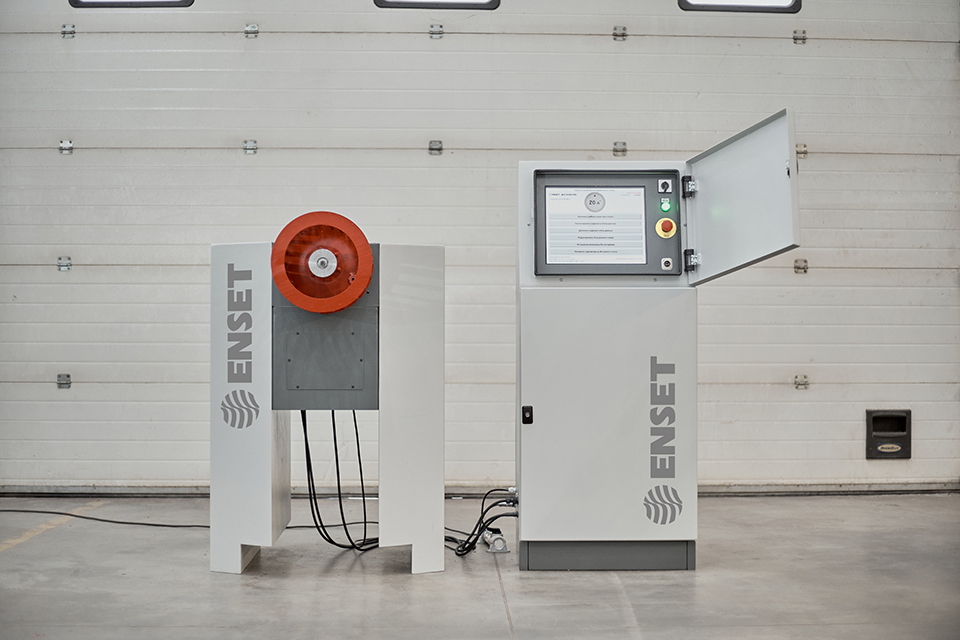

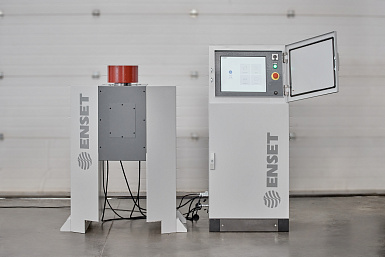

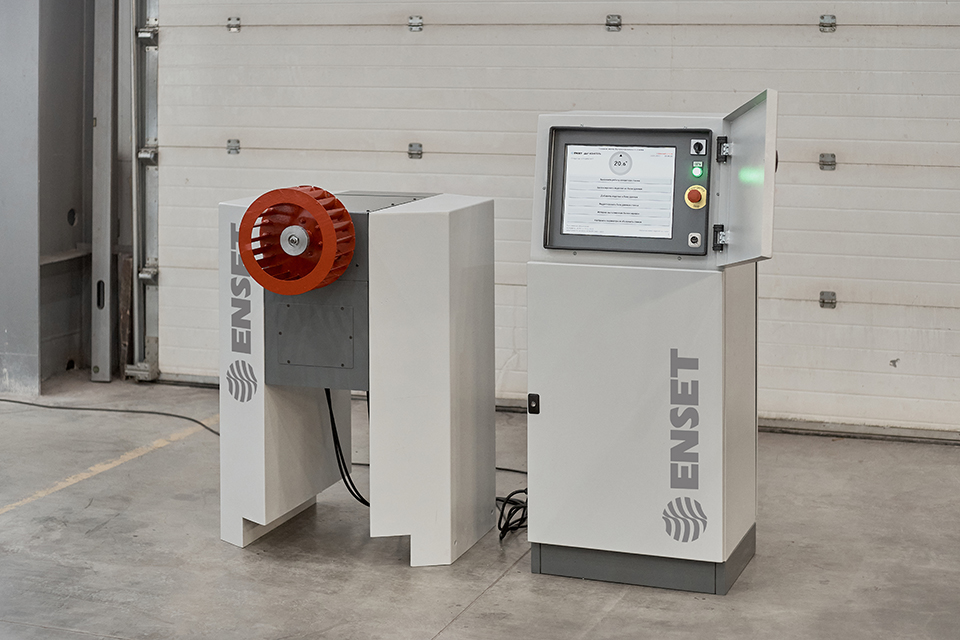

DBR CONSOLE Overhung balancing machine for rotors up to 2000 mm diameter and up to 150 kg

Advantages

Balancing measurement system VIBROLAB is listed in the State Register of Measuring Instruments and can be supplied with primary verification
The machine is designed specifically for cantilever balancing, features no intermediate supports or process shafts in its design, which would increase time of re-adjusting the machine for a new type of product

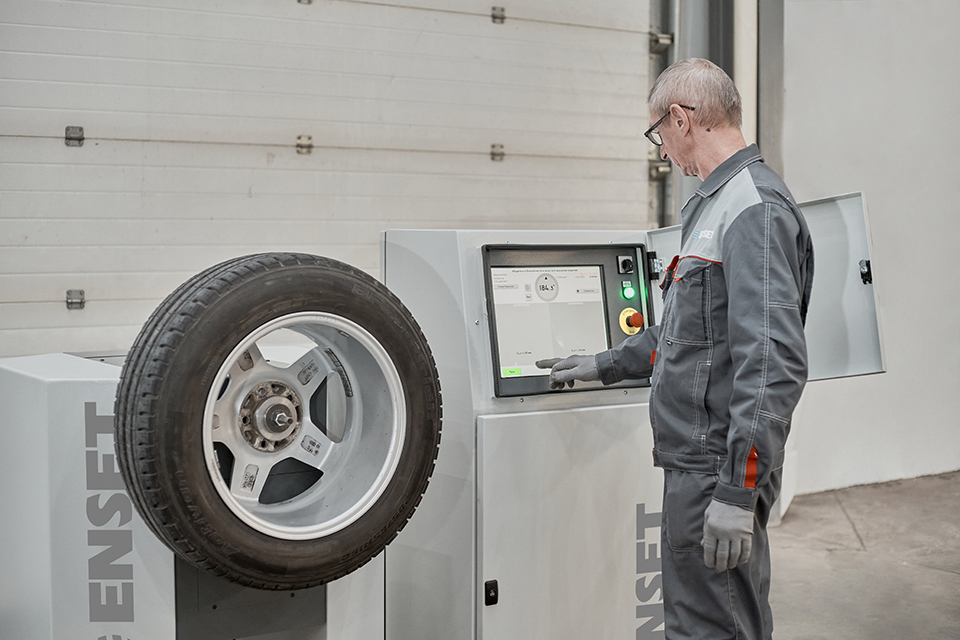

The compact size of the machine allow to place it even in the most limited space, and its range of balancing products is very wide - from disk rotors, blade wheels and impellers to car wheels

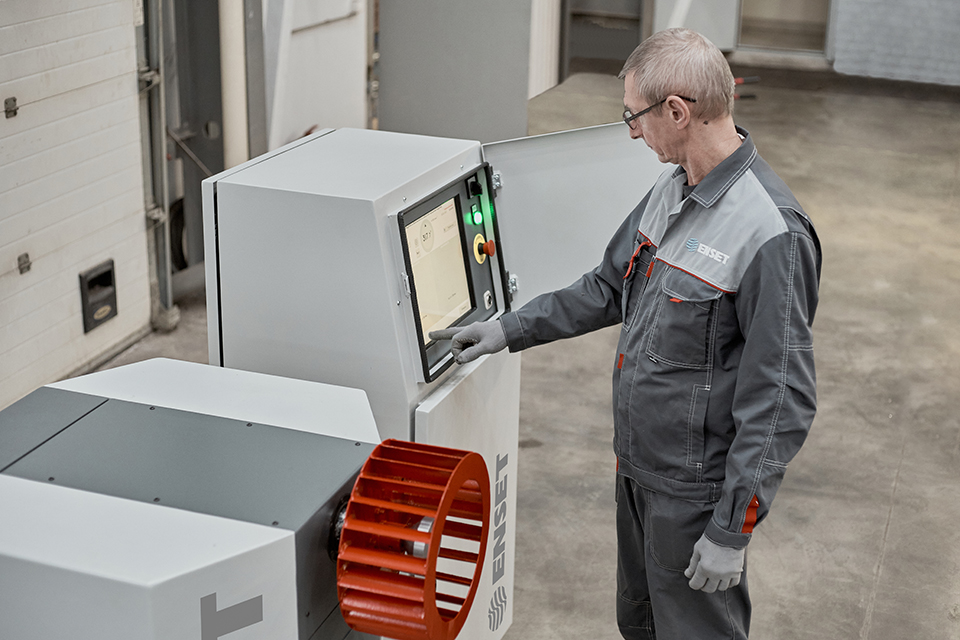

The software features a special mode of impellers unbalance correction on constructive angles, in which the machine itself shows on which blades load should be added (or removed) - the operator does not need to perform complex calculations
Rigid reliable design allows for correction of imbalances directly on the machine, including welding, drilling or milling of loads

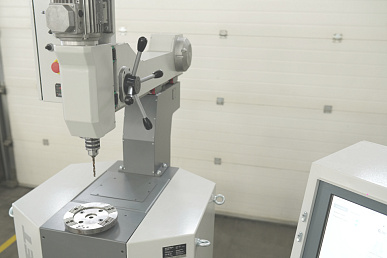

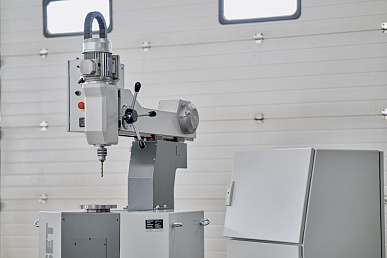

Optionally, the machine can be equipped by the manufacturer with a drilling module. The machine can be equipped with a drilling module or other devices for unbalance correction by the customer by installing the unbalance correction module next to the machine or by mounting it directly on the machine bed

Specifications

Code	DBR_CONSOLE
Type	Cantilever
Rotor type drive	Axial
Rotor weight	0,5 – 150 kg
Power supply	1 phase, 220 V, 50 Hz, 10 A, protective grounding is mandatory
Number of supports	1
Number of measurement planes	2
Product diameter max.	up to 2000 mm
Minimum achievable residual unbalance	1 g mm/kg
Rotor drive	Variable frequency asynchronous motor, 400 – 1500 rpm, 2.2 kW
Rotor turn to correction position	Manual or automatic (option)
Type of vibration sensors	Piezoelectric power sensors
Protection against dust and water	IP55
User interface	Color touch-screen, impact-, oil- and dirt-resistant
Machine basement	Not required
Machine dimensions (L x W x H)	750 x 1000 x 1150 mm
Electric cabinet dimensions (L x W x H)	600 х 500 х 1400 mm
Machine weight with the electrical cabinet, no more	850 kg
Drilling diameter (parameter for drilling module option)	3 – 12 mm
Spindle stroke (parameter for drilling module option)	80 mm
Peripheral equipment	No
Product length up to 20 kg	up to 900 mm
Product length up to 50 kg	up to 450 mm
Product length up to 100 kg	up to 200 mm
Product length up to 150 kg	up to 120 mm
