DBR-3000S
44118
1
EUR
Rotor type drive
Belt, with pneumatic tensioning mechanism (axial - optional)
Rotor weight
30 - 3000 kg
Power supply
3 phases, 380 V 50 Hz, 21 A, protective grounding is mandatory
Number of supports and measurement planes
2 pcs., height adjustable
Degrees of freedom provided by supports
Around its axis; in the plane perpendicular to the axis of rotation; in the horizontal plane
Product diameter max.
2300 mm
Distance between middles of the rotor supports
350 – 2750 mm
Warranty period
12 months
Balancing quality grade
G1 according to ISO 1940-1
Rotor drive
Variable frequency asynchronous motor, 300 – 2500 rpm, 5,5 kW
Rotor turn to correction position
Manual or automatic (option)

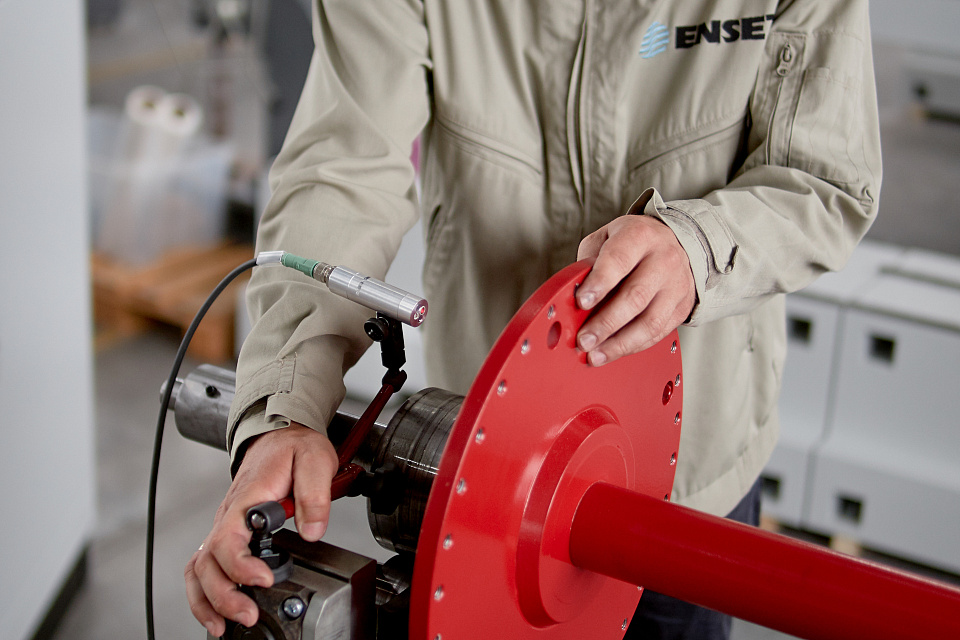

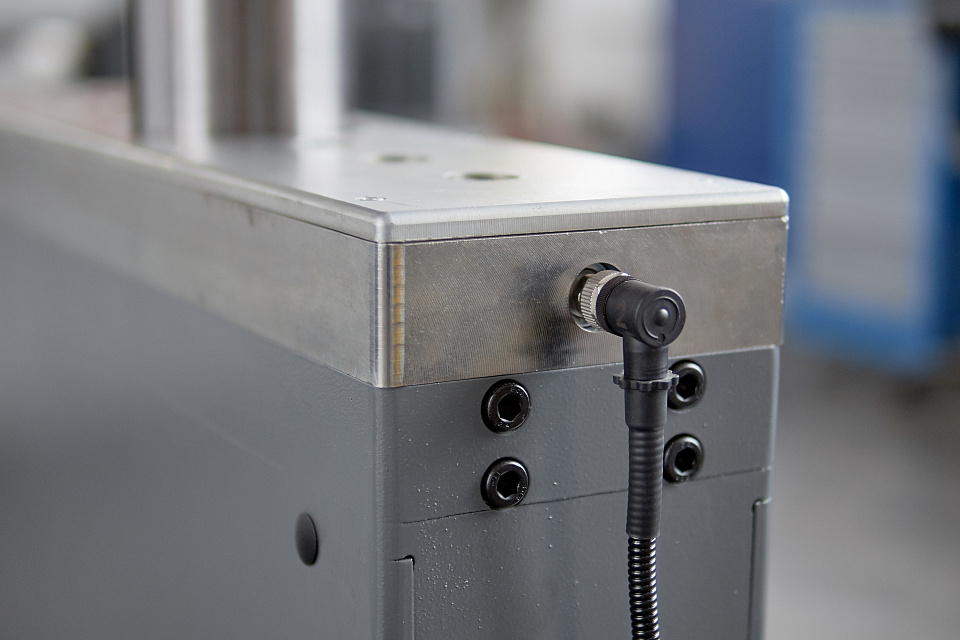

Type of vibration sensors
Capacitive accelerometers
Phase sensor type for belt drive
Laser keyphasor
Protection against dust and water
IP55

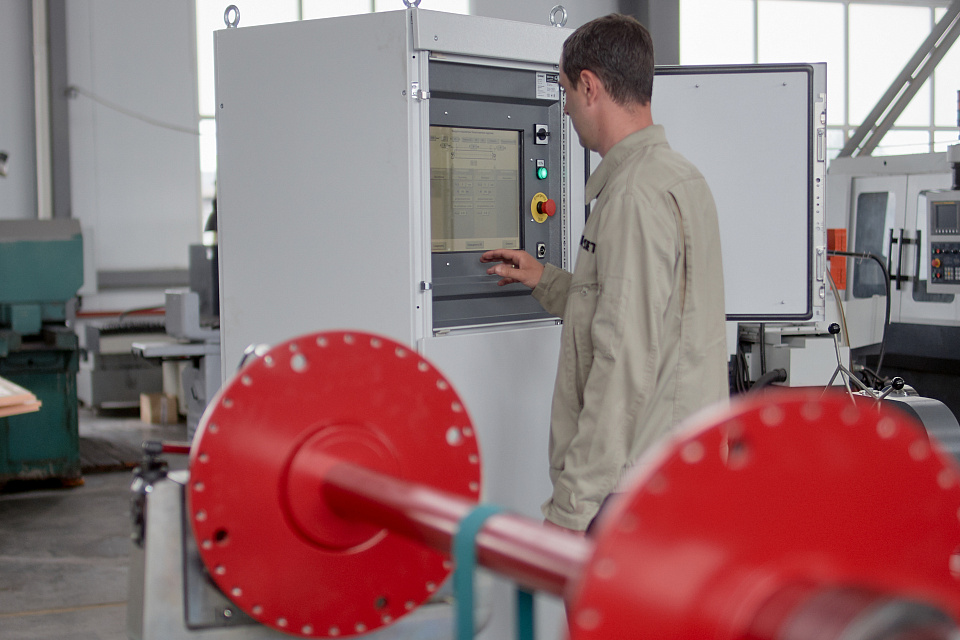

User interface
Color touch-screen, impact-, oil- and dirt-resistant
Machine basement
Concrete floor with a hard coating at least 160 mm thick
Machine dimensions (L x W x H)
3000 х 1090 х 1150 mm

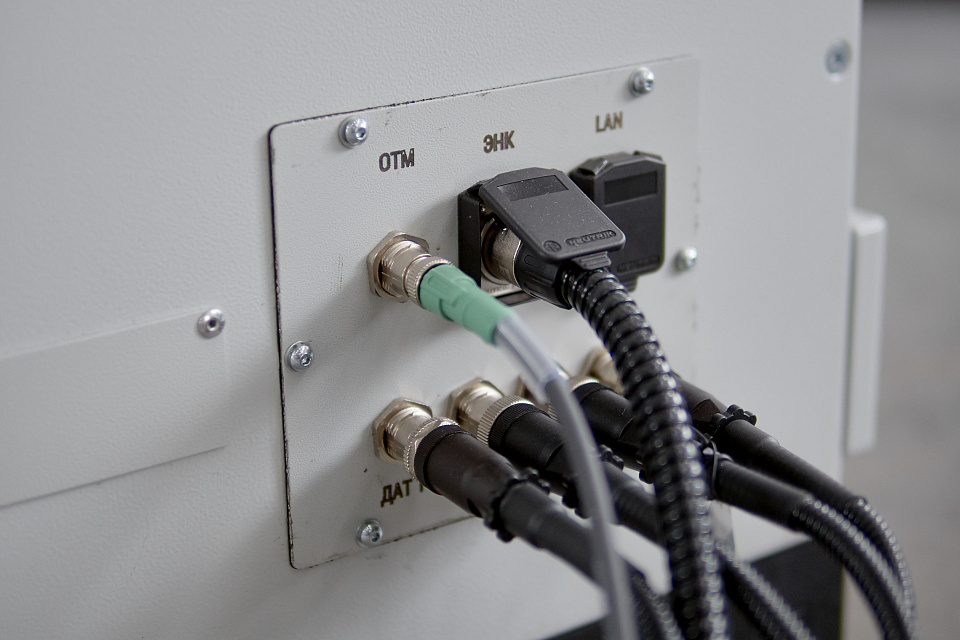

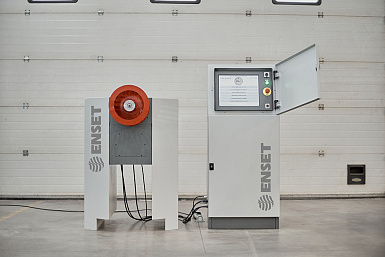

Electric cabinet dimensions (L x W x H)
600 х 600 х 1960 mm
Machine weight (with the electrical cabinet)
2470 kg

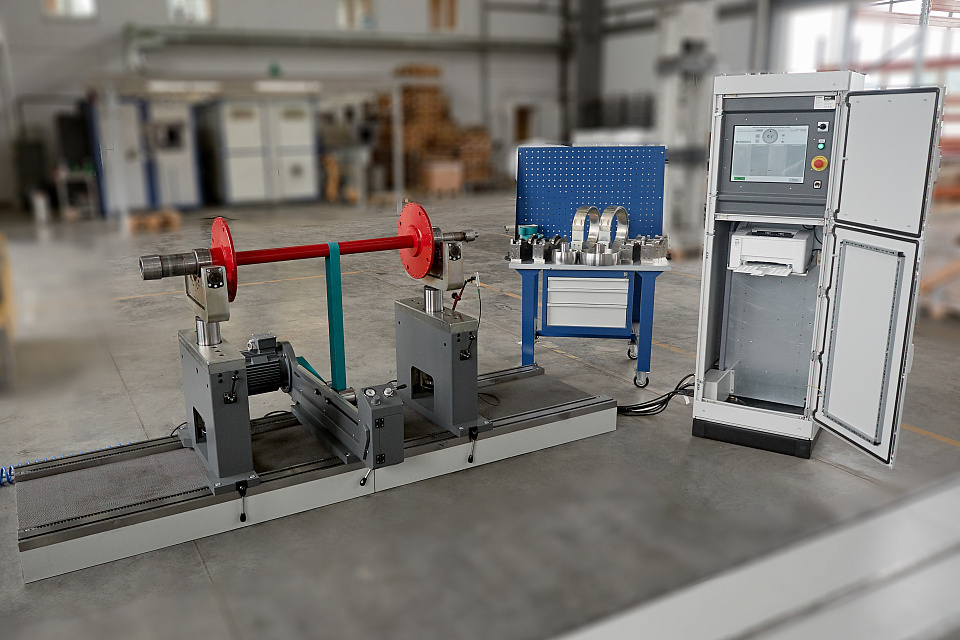

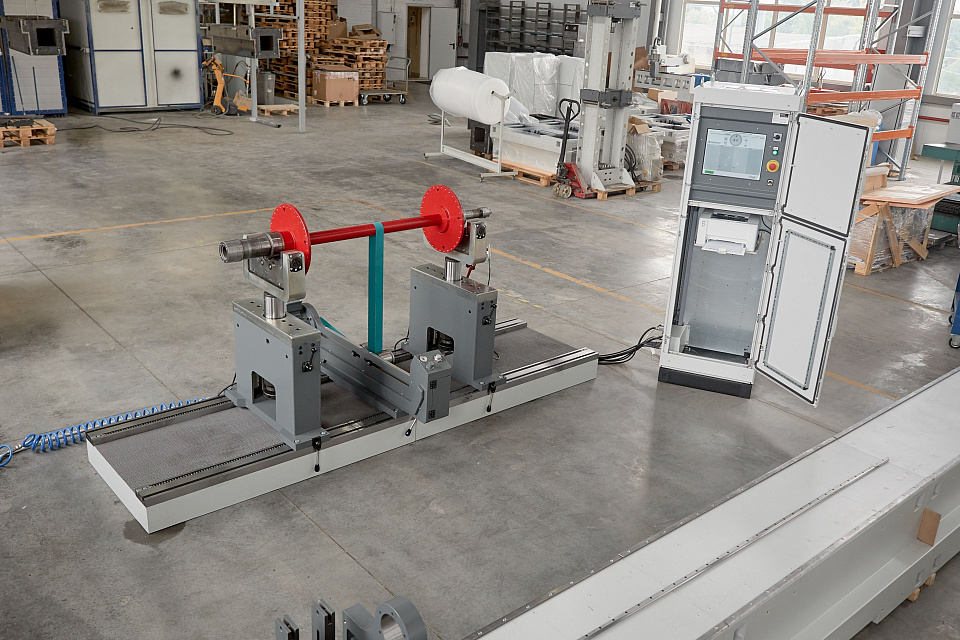

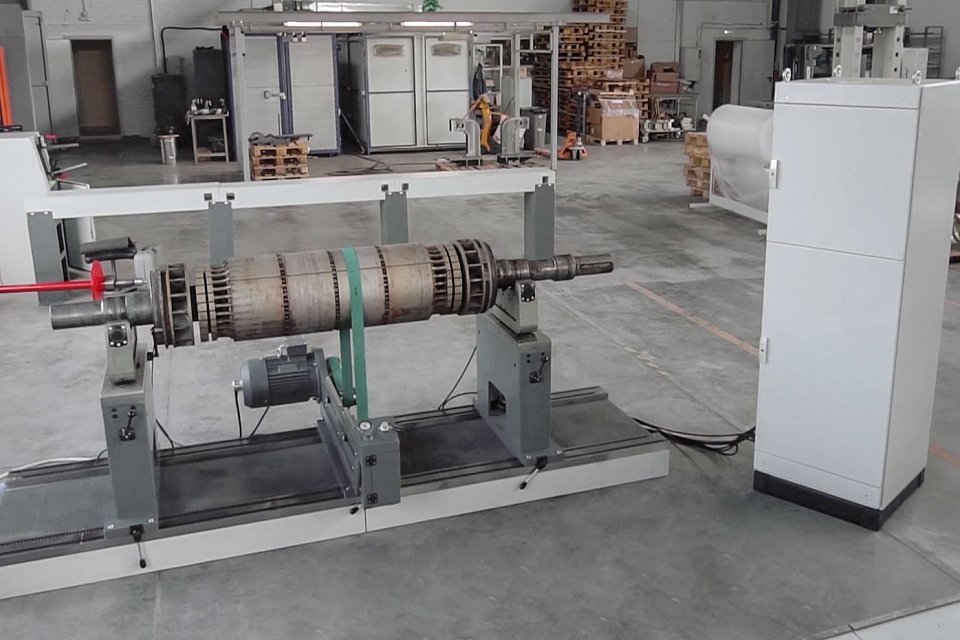

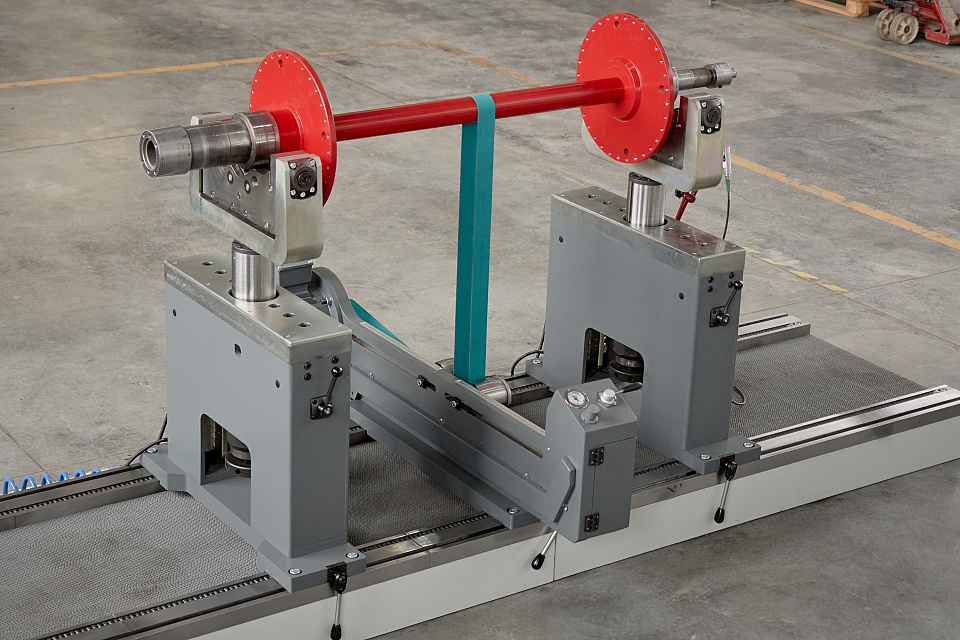

Horizontal soft bearing rotor-balancing machine Optimized for balancing flexible and rigid rotors Balancing measurement system VIBROLAB is listed in the State Register of Measuring Instruments Built-in algorithms of machine check according to GOST Weight of the product to be balanced - up to 3 tons

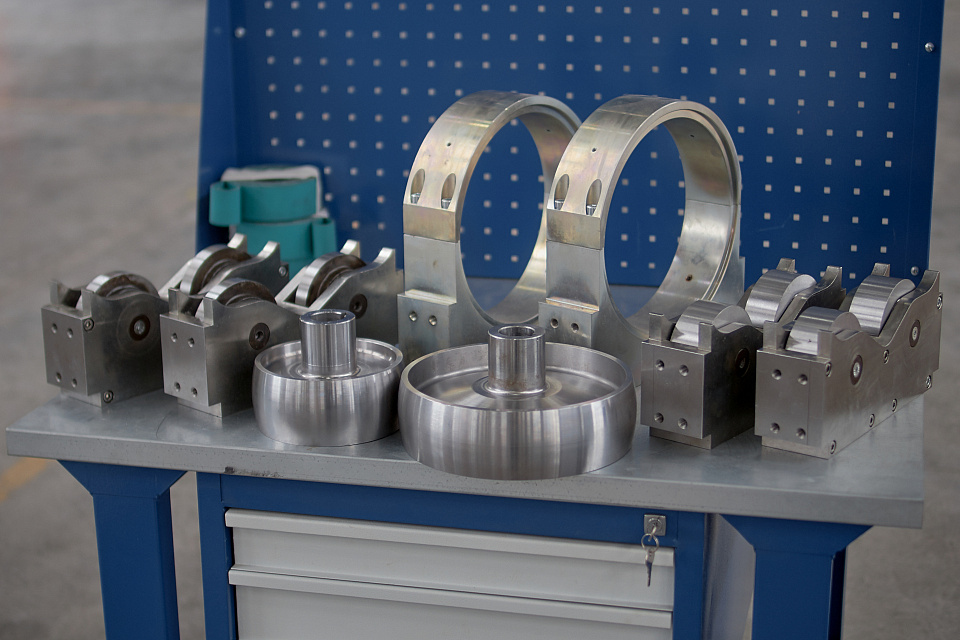

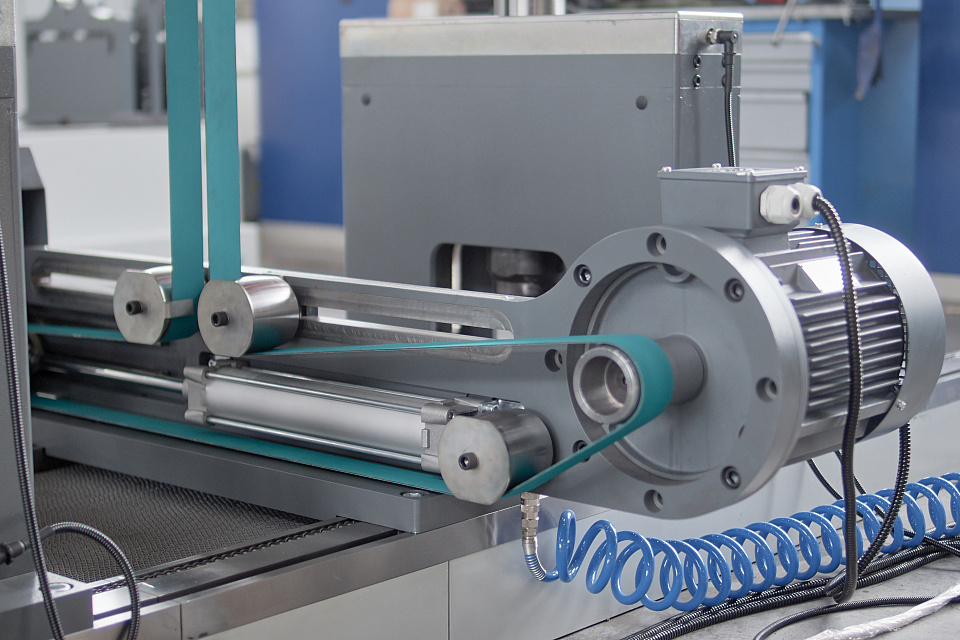

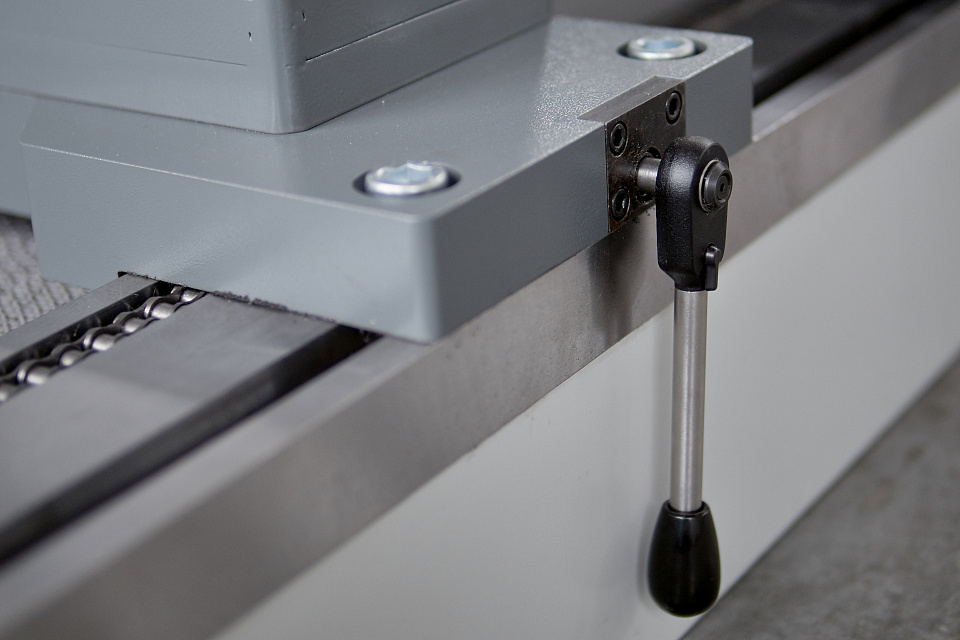

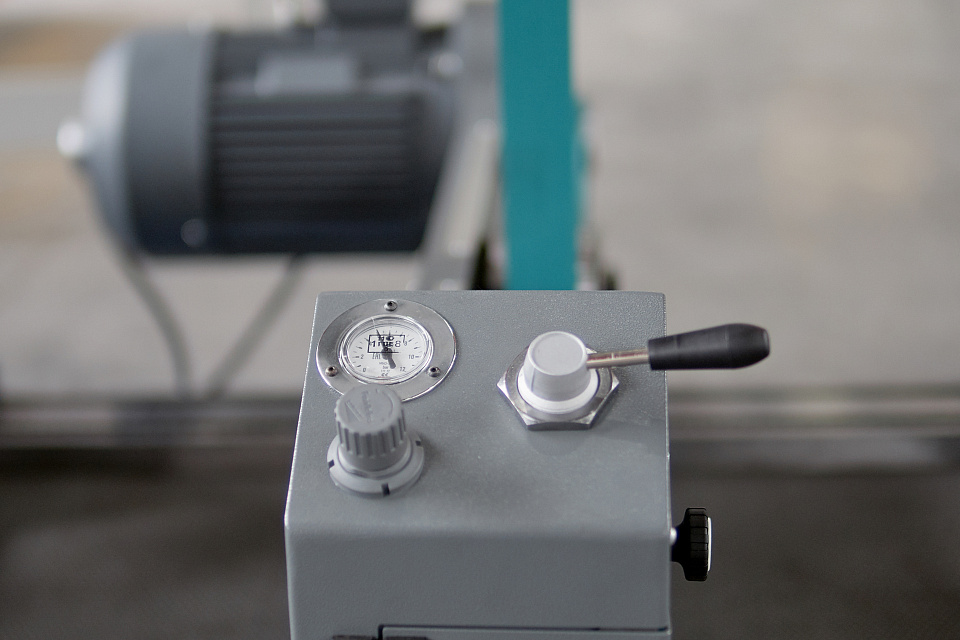

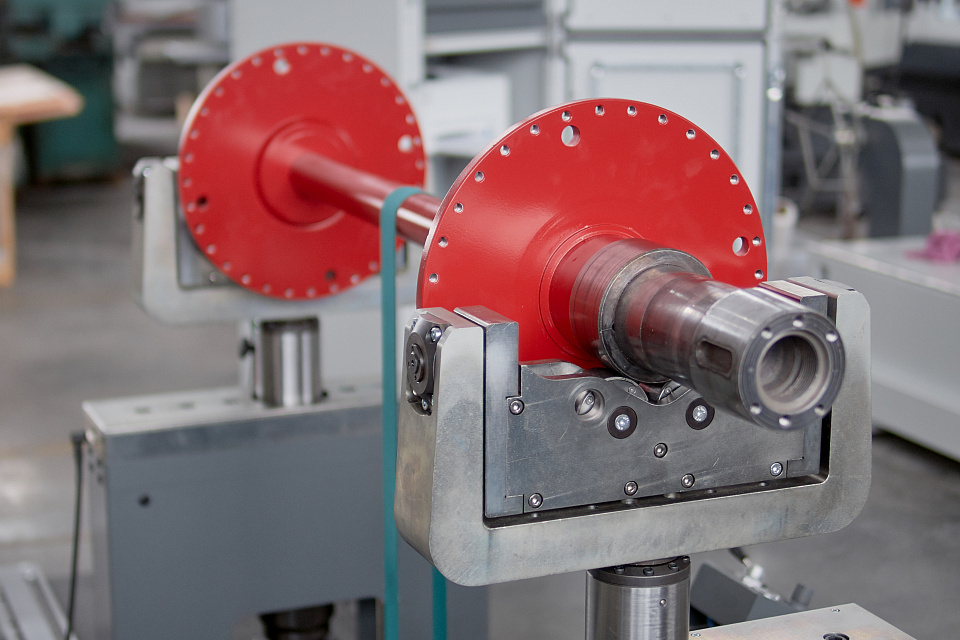

Pneumatic belt tensioning system for drive belt Electrical and mechanical components are made in Europe Modular detachable design with possibility of subsequent extension Lever-chain mechanism for supports transfer Up to 4 degrees of supports mobility Axial stops and self-aligning roller supports are included in the scope of delivery
12 months warranty on the machine and all its components Soft-bearing balancing of rotors weighing from 30 kg to 3 tons and diameter up to 2300 mm, such as motor armature, turbines, drums
