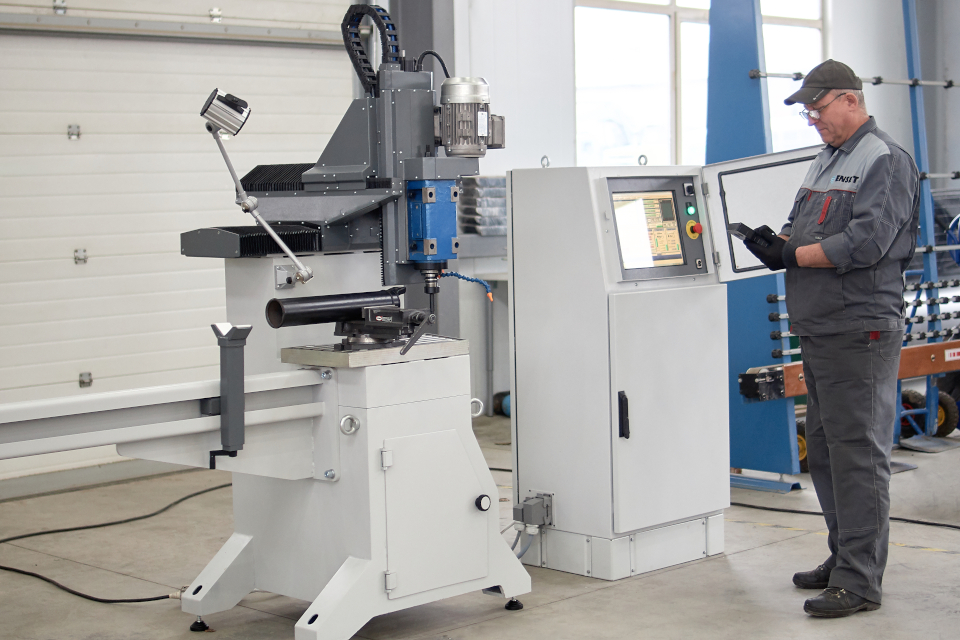

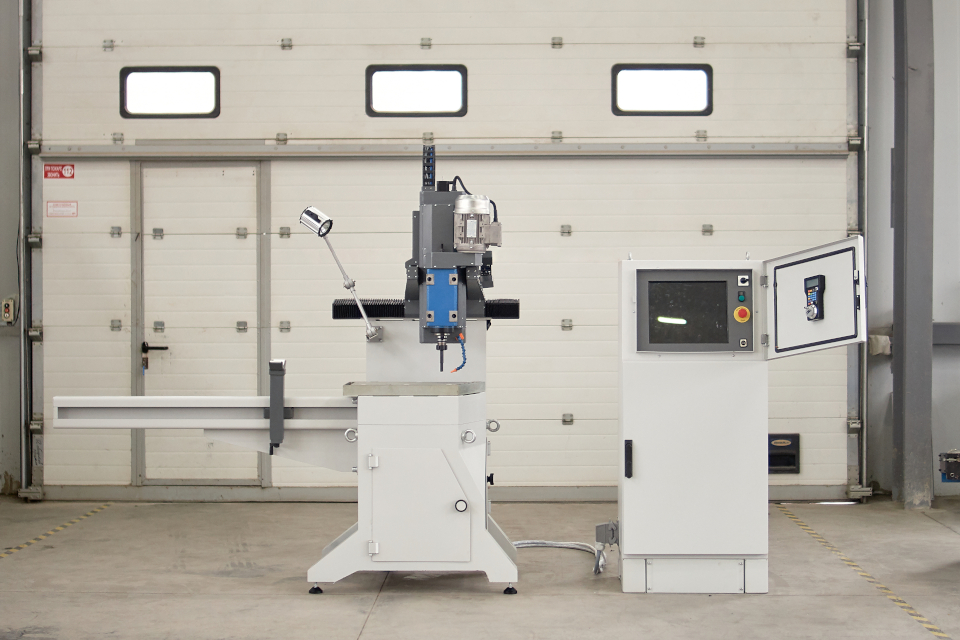

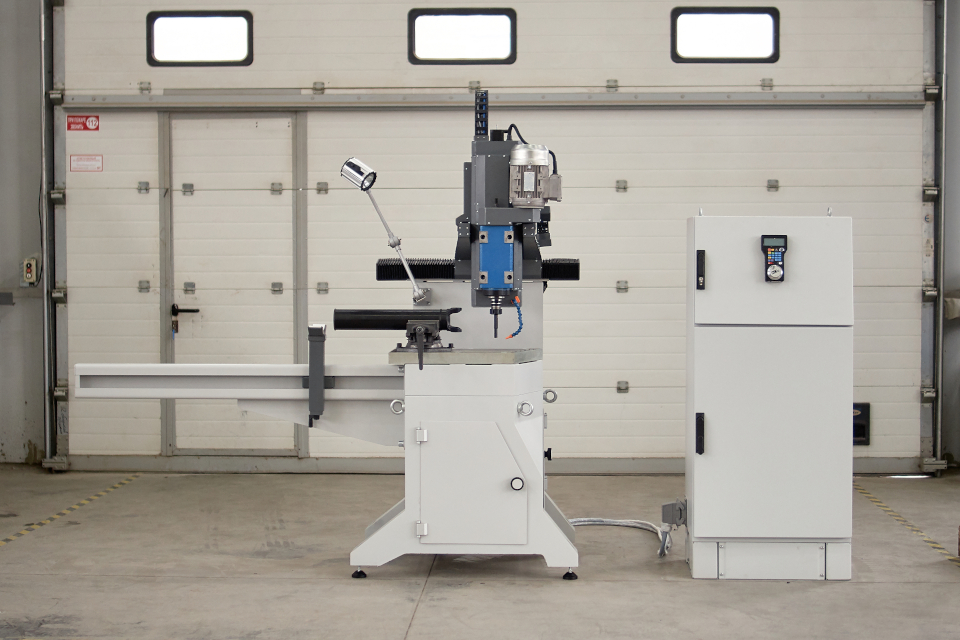

FREZER 3D CNC Milling Machine

Advantages

  • 3-axis CNC milling machine
  • Fixed workholding table - cardan shaft does not move during processing
  • For milling grooves for locking rings
  • For drilling the U-joint yokes after thermal spraying or changing the U-joint size
  • Only high quality components - ball screws, drives, linear guideways
  • A complete CNC program set for all common types of U-joint
  • Touch screen monitor in the control panel
  • Warranty - 12 months

Specifications

Code FREZER
Type 3-axis CNC milling machine with fixed working table
Power supply 3 phases, 380 V 50 Hz, 16 A, protective grounding is mandatory
Machine dimensions (L x W x H) 2700 х 1020 х 2030 mm
Warranty period 12 months
Travel speed along axes X,Y 4000 mm / min
Machine mass 740 kg
FREZER
FREZER
1
Code
FREZER
Type
3-axis CNC milling machine with fixed working table
Power supply
3 phases, 380 V 50 Hz, 16 A, protective grounding is mandatory
Machine dimensions (L x W x H)
2700 х 1020 х 2030 mm
Warranty period
12 months
Travel speed along axes X,Y
4000 mm / min
Machine mass
740 kg
3-axis CNC milling machine Fixed workholding table - cardan shaft does not move during processing For milling grooves for locking rings For drilling the U-joint yokes after thermal spraying or changing the U-joint size Only high quality components - ball screws, drives, linear guideways A complete CNC program set for all common types of U-joint Touch screen monitor in the control panel Warranty - 12 months
×
