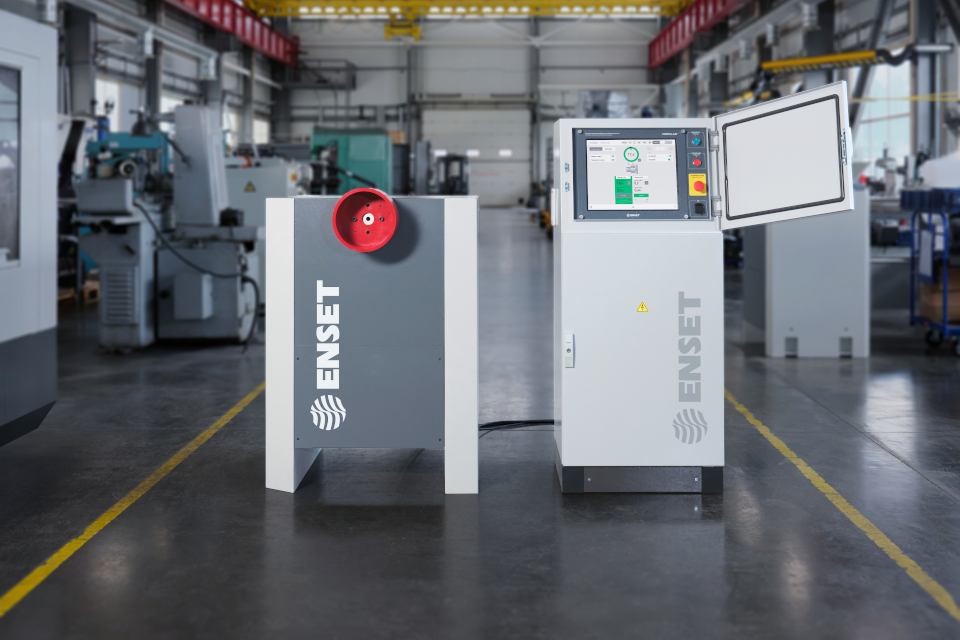

Machine for brake disc balancing CONSOLE-60

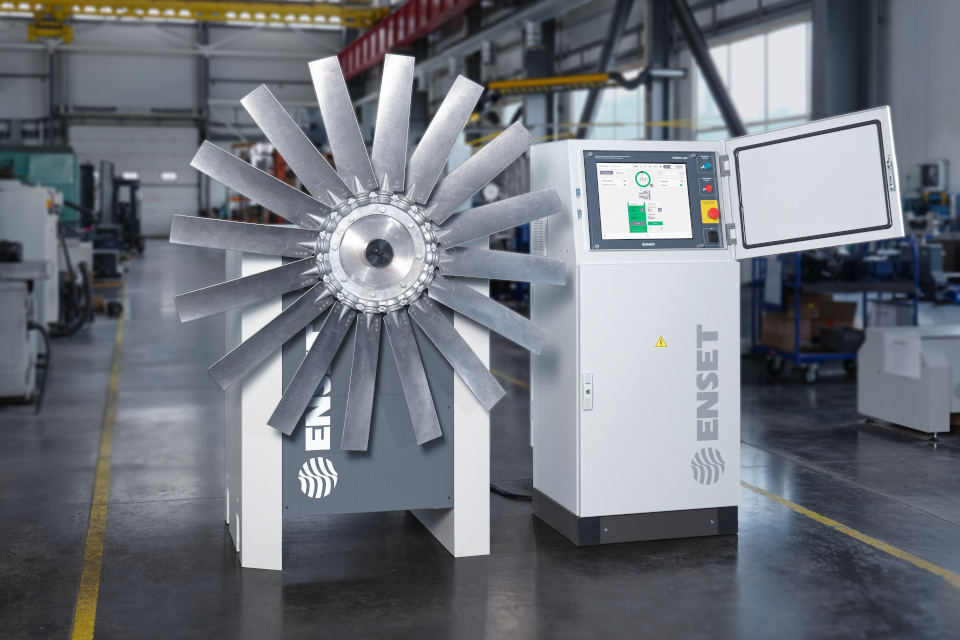

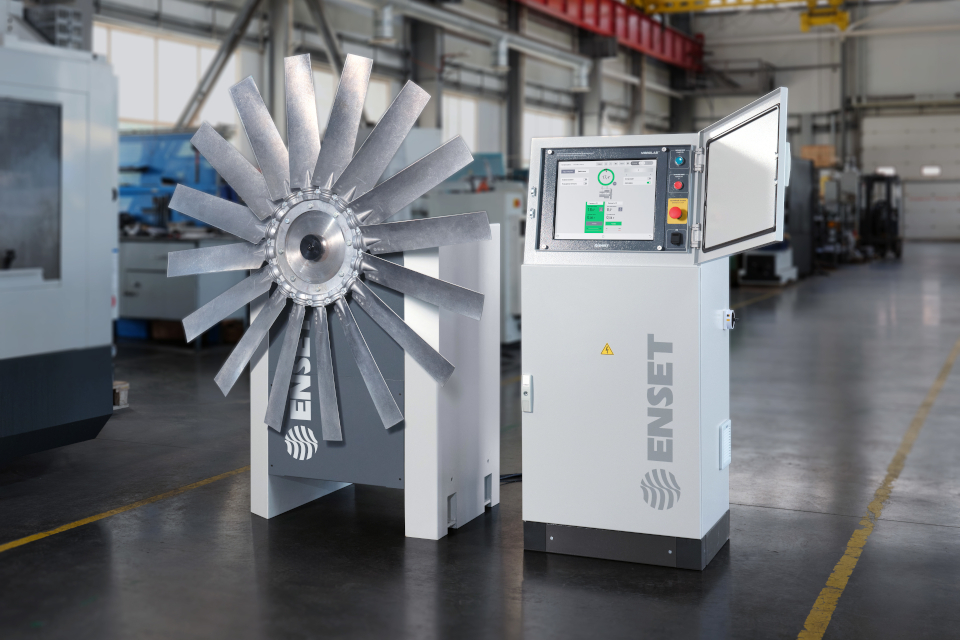

Machine for impeller balancing CONSOLE-60

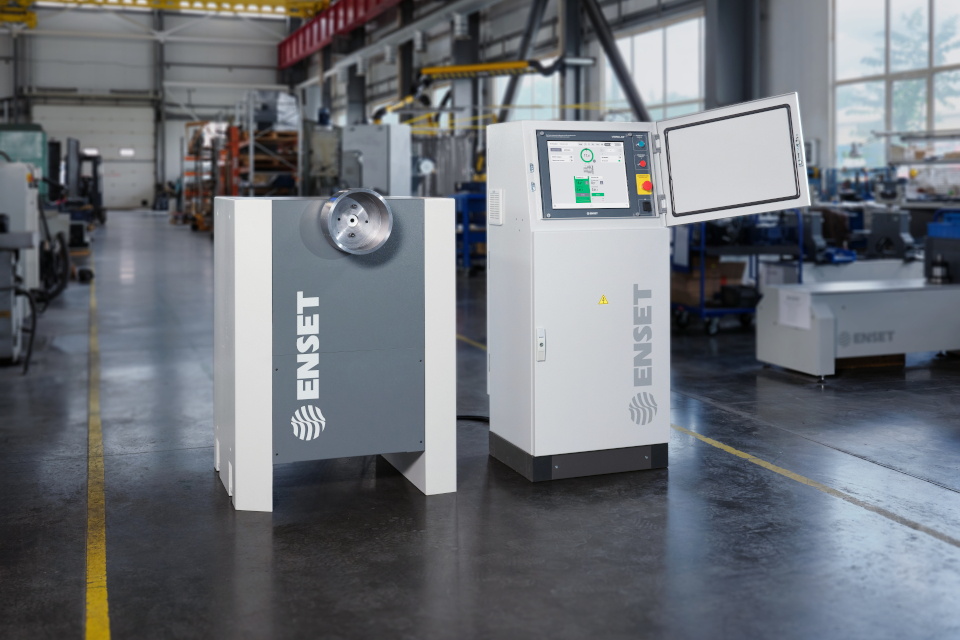

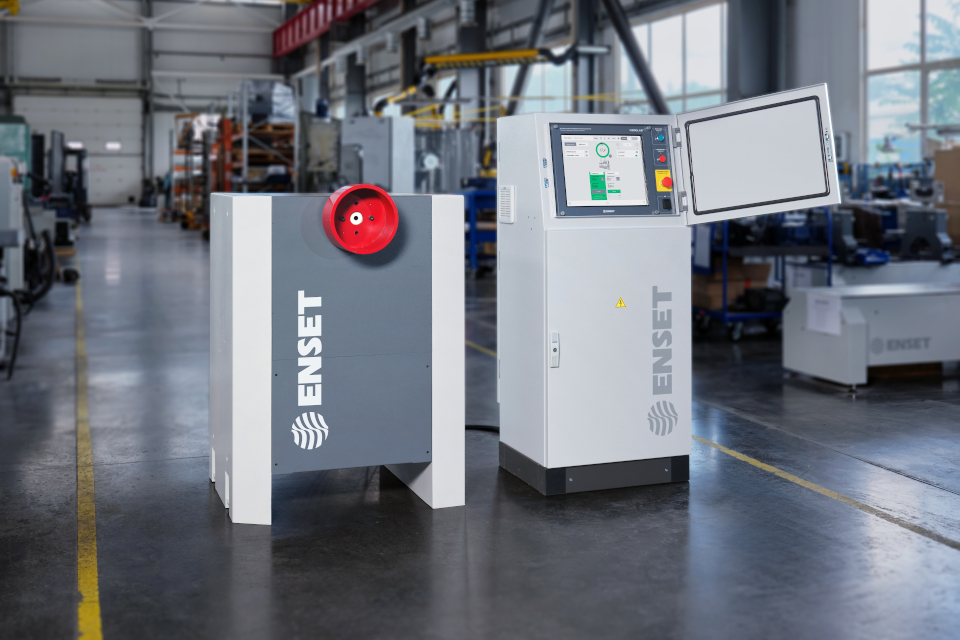

Photo of the machine for rotor balancing CONSOLE-60

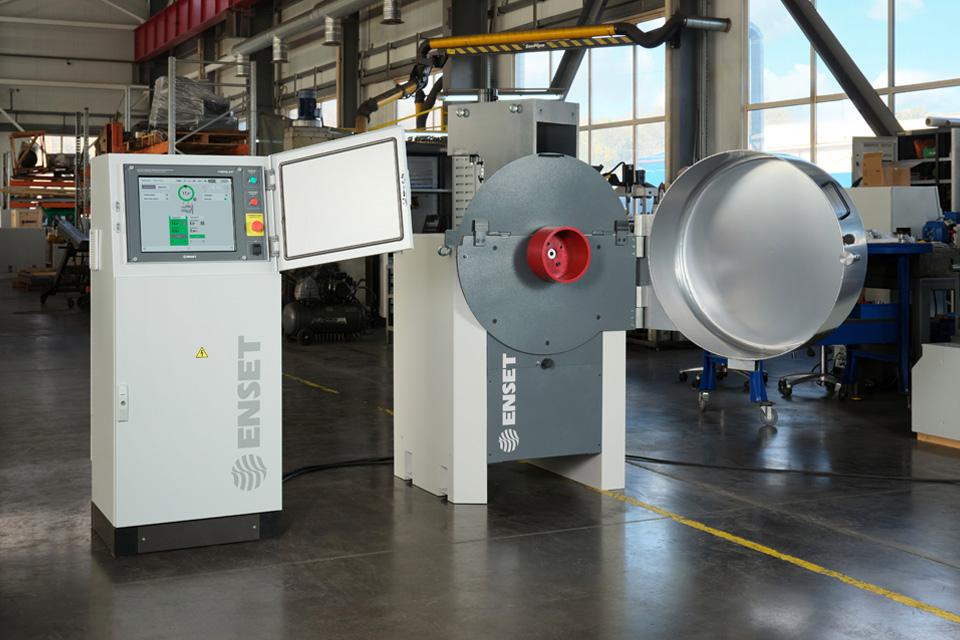

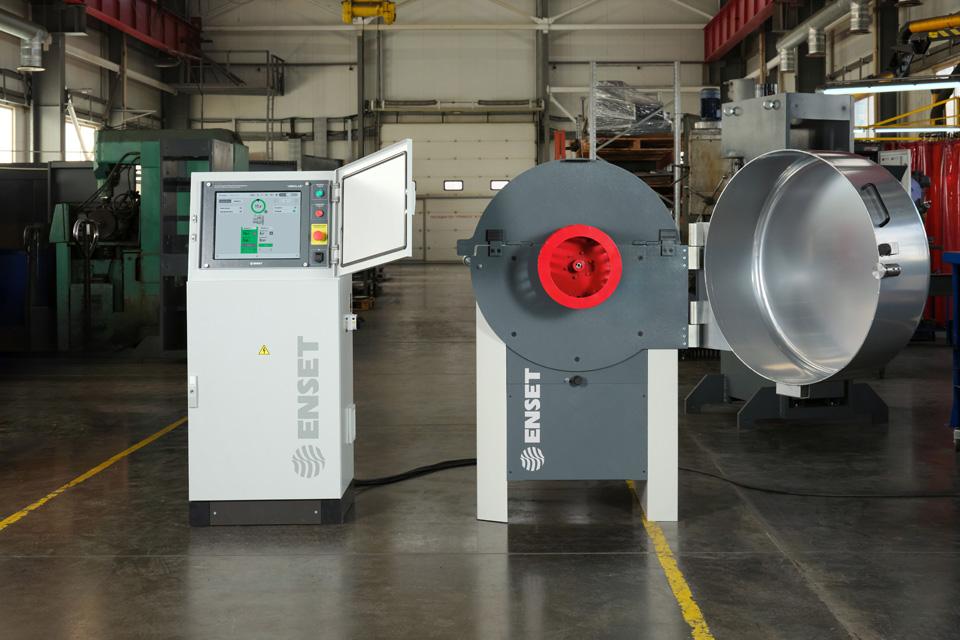

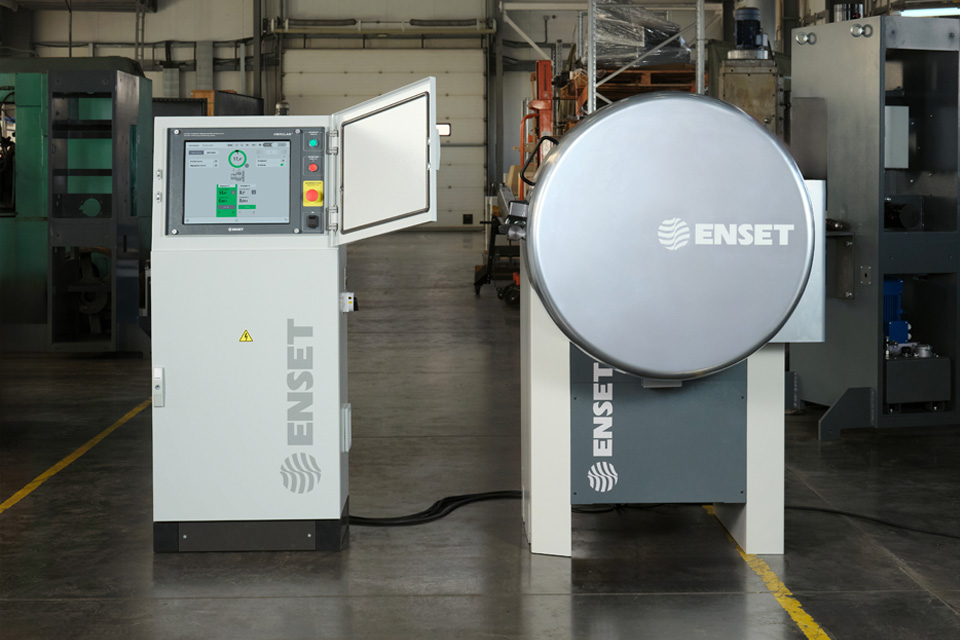

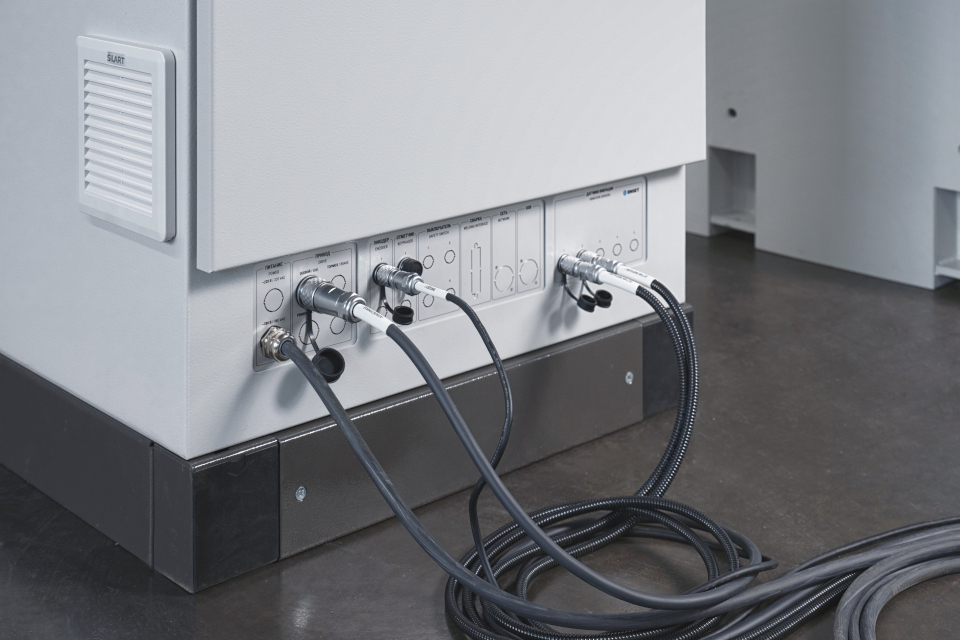

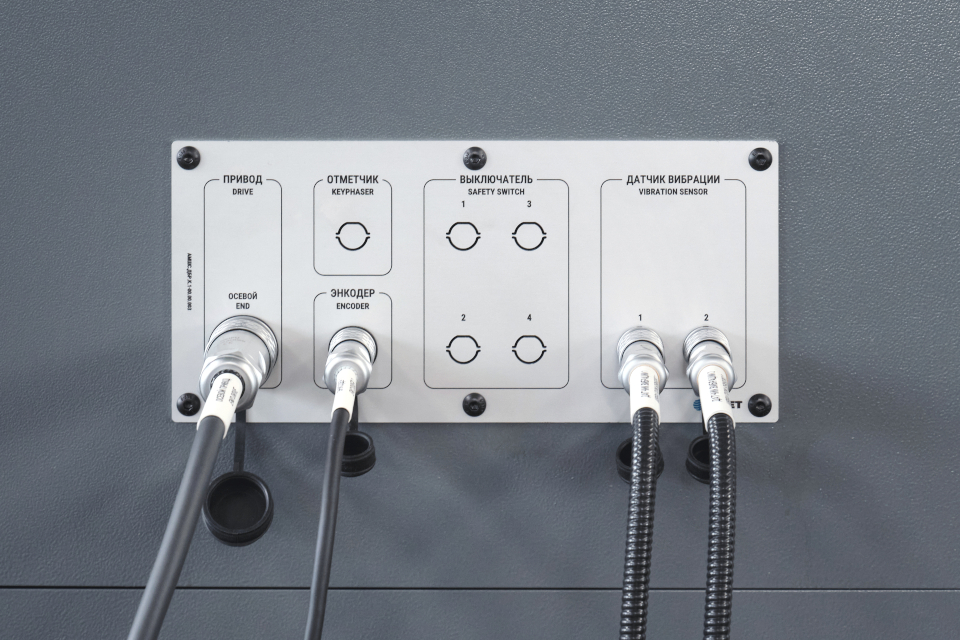

CONSOLE-60 Balancing machine for rotors

Advantages

Balancing measurement system VIBROLAB is listed in the State Register of Measuring Instruments № 84333-22 and can be supplied with primary verification
The machine is designed specifically for cantilever balancing, features no intermediate supports or process shafts in its design, which would increase time of re-adjusting the machine for a new type of product
The compact size of the machine allow to place it even in the most limited space
The software features a special mode of impellers unbalance correction on constructive angles, in which the machine itself shows on which blades load should be added (or removed) - the operator does not need to perform complex calculations
Rigid reliable design allows for correction of imbalances directly on the machine, including welding, drilling or milling of loads

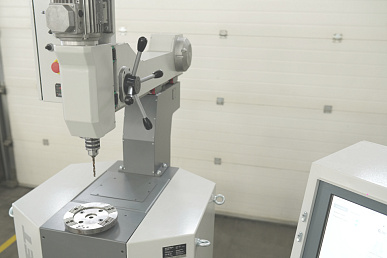

Optionally, the machine can be equipped by the manufacturer with a drilling module. The machine can be equipped with a drilling module or other devices for unbalance correction by the customer by installing the unbalance correction module next to the machine or by mounting it directly on the machine bed
The balancing machine CONSOL-60 is ideal for balancing shaft gears, screws, clutch discs, pump impellers, turbine wheels, fan impellers, pump impellers, flywheels, couplings, centrifugal pump impellers, fan impellers, agricultural machinery rotors, brake discs, gears, pulleys, rotary saws (impact saws), toothed wheels.

Specifications

Code	CONSOLE-60
Type of equipment	Cantilever hard-bearing balancing machine
Purpose	For static and dynamic balancing of rotors with one support surface
Control system	Vibration balancing measuring system VIBROLAB with color touch display 17 inches
Engine type and its characteristics	Servo motor, 3000 rpm, 3 kW
Number and type of supports	Spindle drive support
Rotor weight	0.5 – 60 kg
Maximum product diameter	800 mm
URR Unbalance reduction ratio	95 %
Rotation frequency of the product during balancing n	100 – 2900 rpm
Accuracy of measuring the rotation frequency of the product	±(1+0.0025·n)
Accuracy of measuring the angular position of the product	± 0,01º
Power supply	3 phases, 400 V, 50 Hz, 16 A, protective grounding is mandatory
Turning the product to the correction position	Auto
Holding the product in the adjustment position	Yes
Vibration sensors	Piezoelectric force sensors
Number of vibration measurement channels	2
Angular position sensor of the product	Incremental encoder
Protecting electronics from dust and moisture	IP54
Anchoring to the base or foundation	Anchoring to any concrete floor
Structural features of the frame	Frame made of structural steel with cast vibration-absorbing filling
Dimensions (L x W x H)	700 x 800 x 1100 mm
Electric cabinet dimensions (L x W x H)	600 х 500 х 1400 mm
Equipment weight (net)	850 kg
Climatic performance according to GOST 15150	Operation: UHL 4.2 (temperature from + 10 to + 35 ºC, relative air humidity up to 80%). Storage and transportation: 1L (temperature from + 5 to + 40 ºC, relative air humidity up to 80%)
Warranty period	60 months
Drive type	Axial, drive spindle
Minimum achievable residual specific imbalance	0.1 gmm/kg

Options and accessories: PRINTER

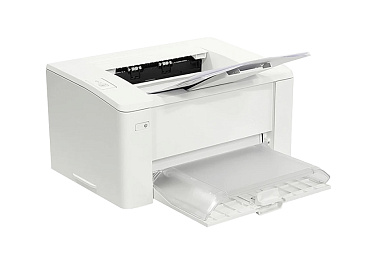

Laser printer for printing balancing protocols

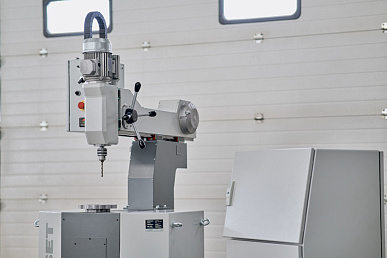

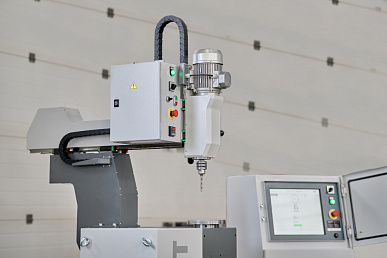

Drilling module

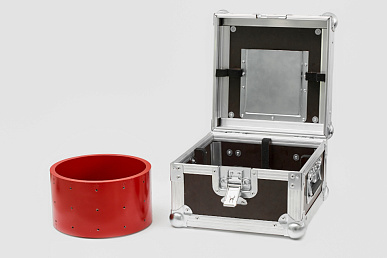

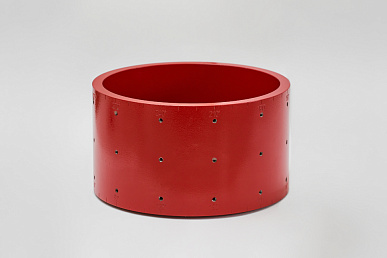

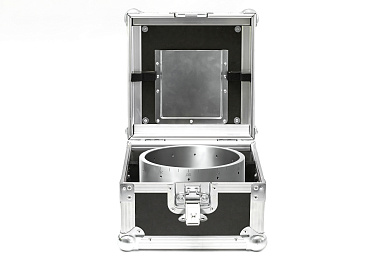

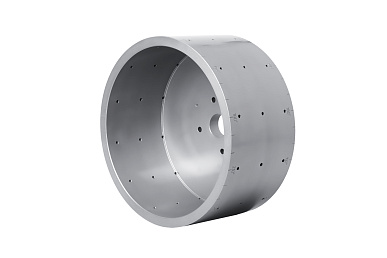

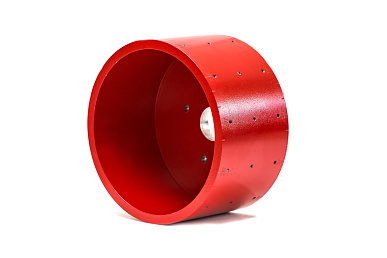

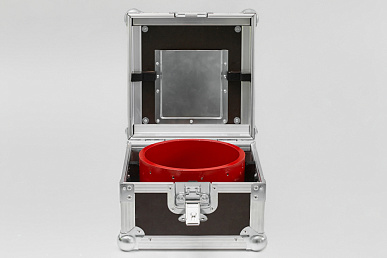

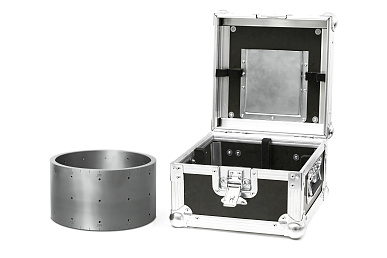

Master rotor type A No. 3 ISO 2953:1999

Designed to check the balancing machine in accordance with ISO 2953:1999
