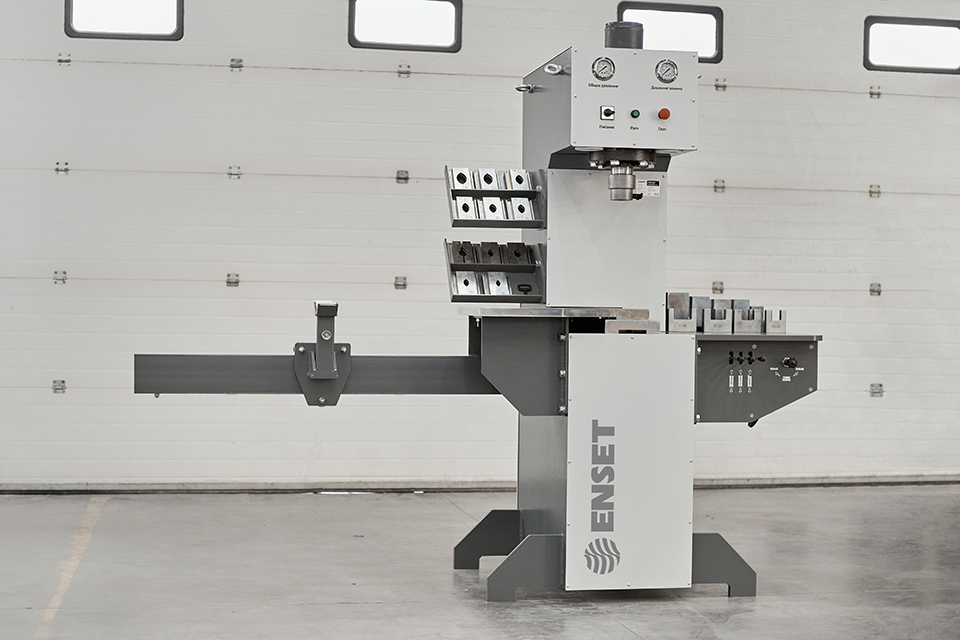

TITAN Light Special press for assembling and disassembling of cardan joints

Advantages

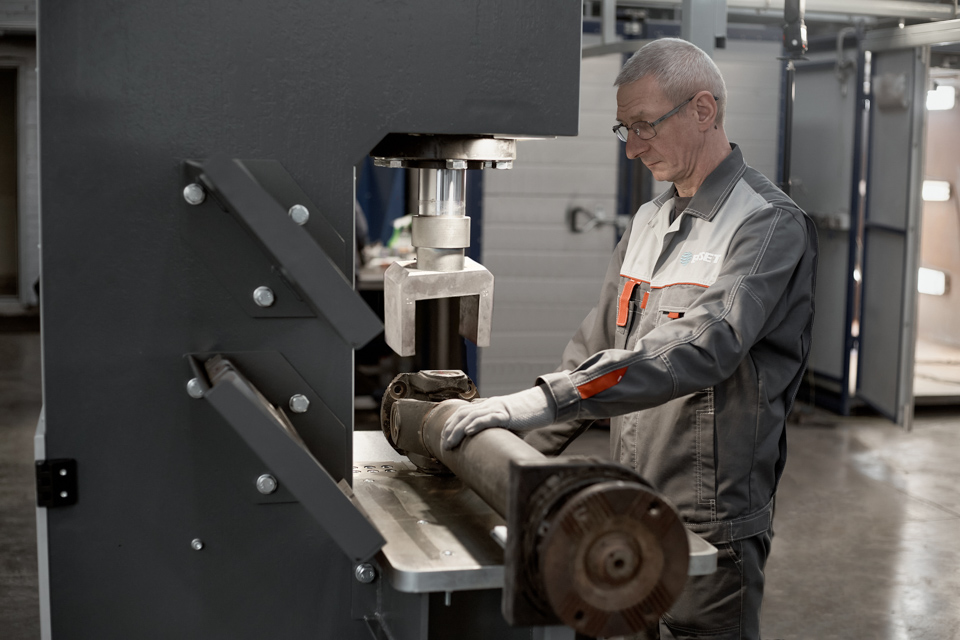

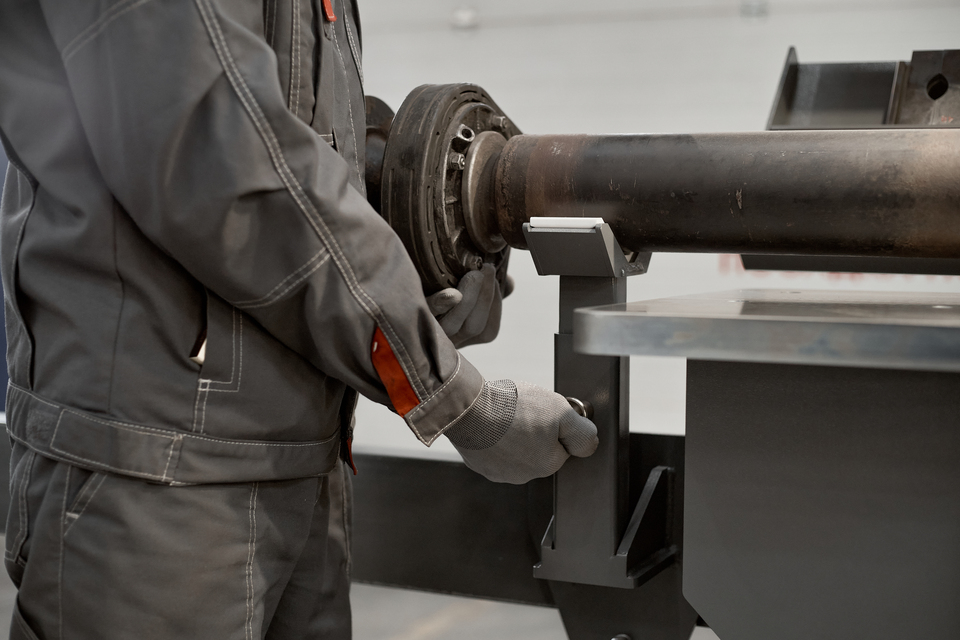

  • The press is designed for large cardan shafts of trucks

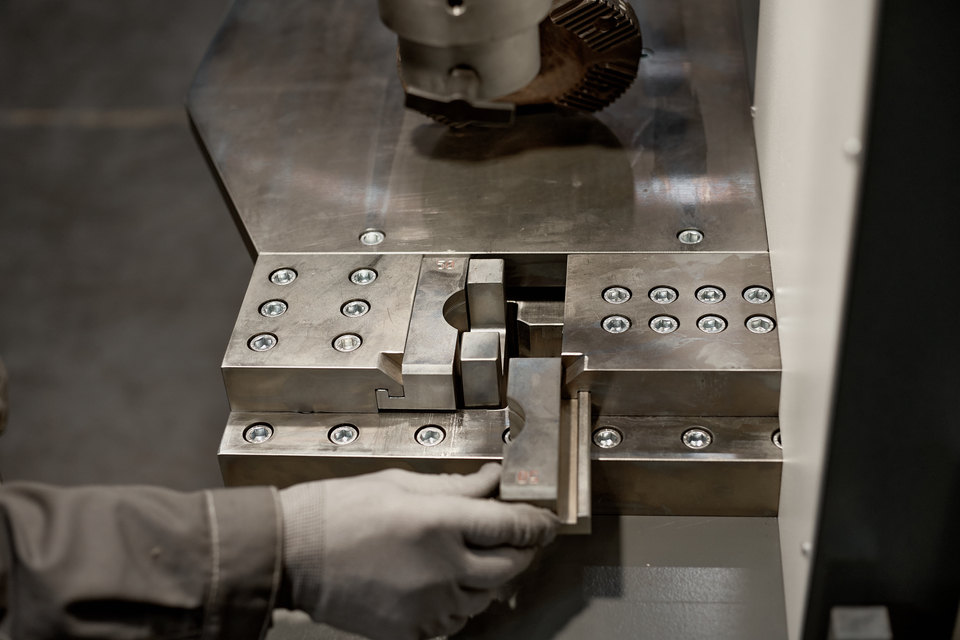

  • Adjustment of the crosshead clamping when disassembling the joint to prevent damage and slipping out of the head
  • All hydraulic components made in Italy only

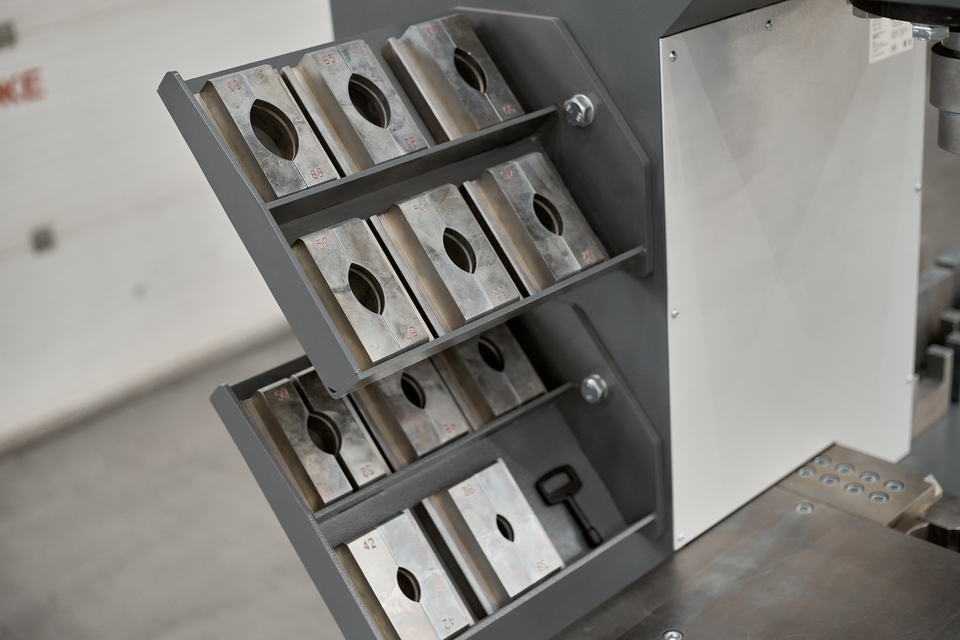

  • Tooling included into delivery set
  • 12 months warranty for the press and all its components.

Specifications

Code TITAN Lite
Type Hydraulic press with 3 working cylinders and clamping action
Description Special press for assembling and disassembling of cardan joints
Power supply 3 phases, 380 V 50 Hz, 16 A, protective grounding is mandatory
Rotor drive Asynchronous motor, 1500 rpm, 4,0 kW
Protection against dust and water IP55

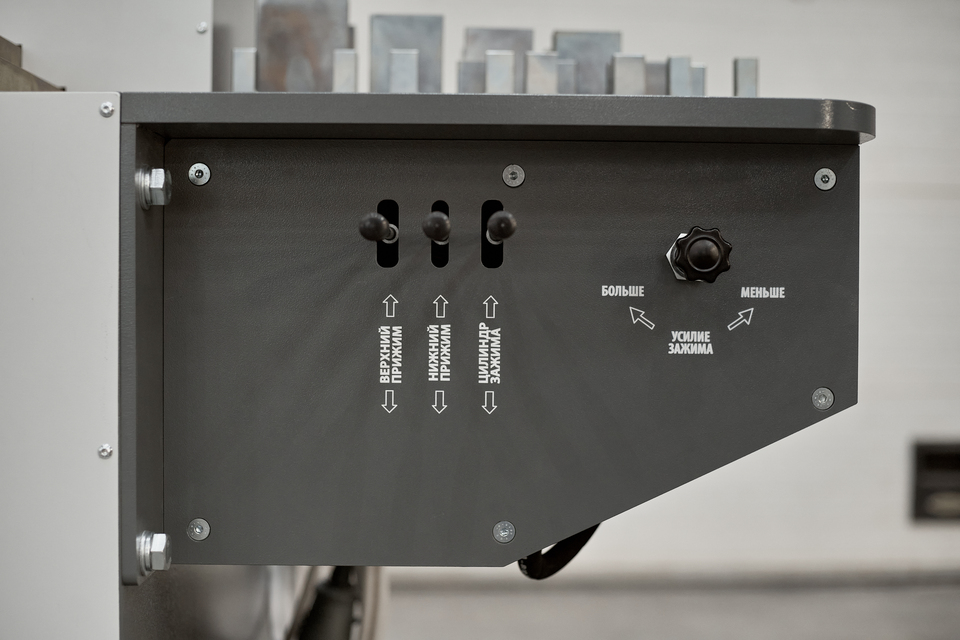

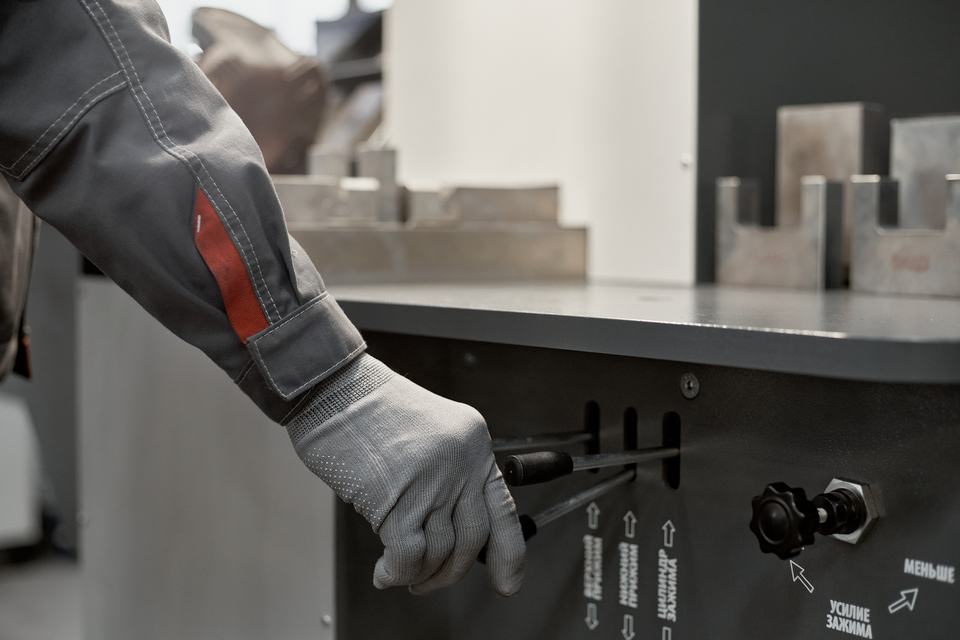

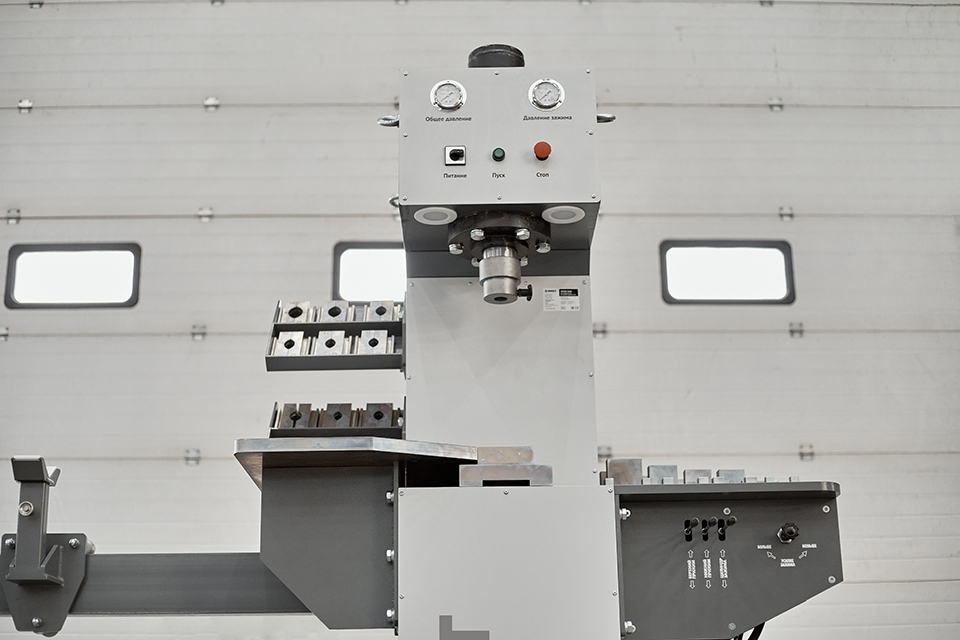

User interface Hydraulic distributor levers
Dimensions (L x W x H) 2400 x 1000 x 2100 mm

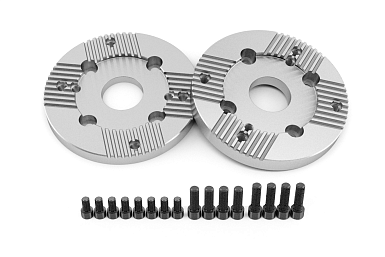

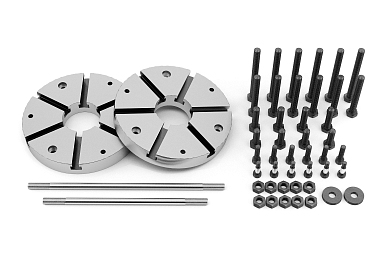

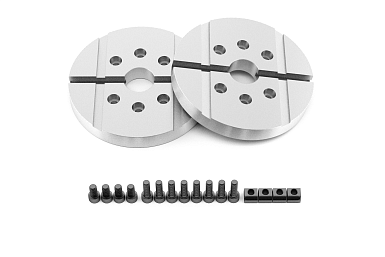

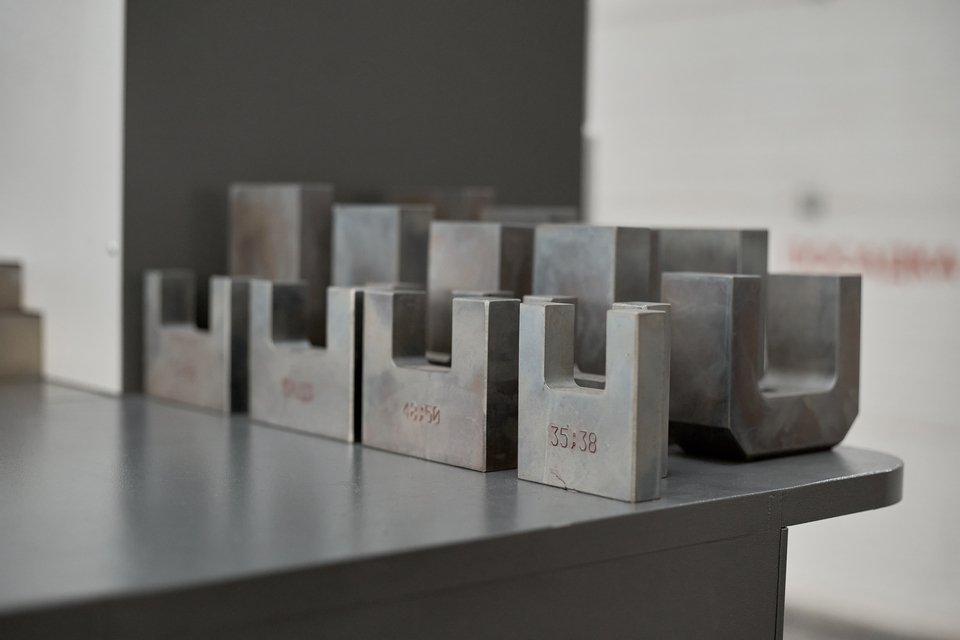

Accessories included for universal joints with a diameter of 38; 42; 47,6; 50; 52; 53; 57; 59; 65; 68 mm
Warranty period 12 months
Volume of the hydraulic tank 40 l
Maximum force of the upper cylinder 25 t
Maximum force of the lower cylinder 15 t
Force on the universal joint clamping cylinder 1 – 9 t
Maximum stroke of the upper cylinder 300 mm
Press mass together with hydroelectric station 1200 kg
TITAN Lite
TITAN Lite
19412 1 EUR
Code
TITAN Lite
Type
Hydraulic press with 3 working cylinders and clamping action
Description
Special press for assembling and disassembling of cardan joints
Power supply
3 phases, 380 V 50 Hz, 16 A, protective grounding is mandatory
Rotor drive
Asynchronous motor, 1500 rpm, 4,0 kW
Protection against dust and water
IP55
User interface
Hydraulic distributor levers
Dimensions (L x W x H)
2400 x 1000 x 2100 mm
Accessories included for universal joints with a diameter of
38; 42; 47,6; 50; 52; 53; 57; 59; 65; 68 mm
Warranty period
12 months
Volume of the hydraulic tank
40 l
Maximum force of the upper cylinder
25 t
Maximum force of the lower cylinder
15 t
Force on the universal joint clamping cylinder
1 – 9 t
Maximum stroke of the upper cylinder
300 mm
Press mass together with hydroelectric station
1200 kg
The press is designed for large cardan shafts of trucks Adjustment of the crosshead clamping when disassembling the joint to prevent damage and slipping out of the head All hydraulic components made in Italy only Tooling included into delivery set 12 months warranty for the press and all its components.
