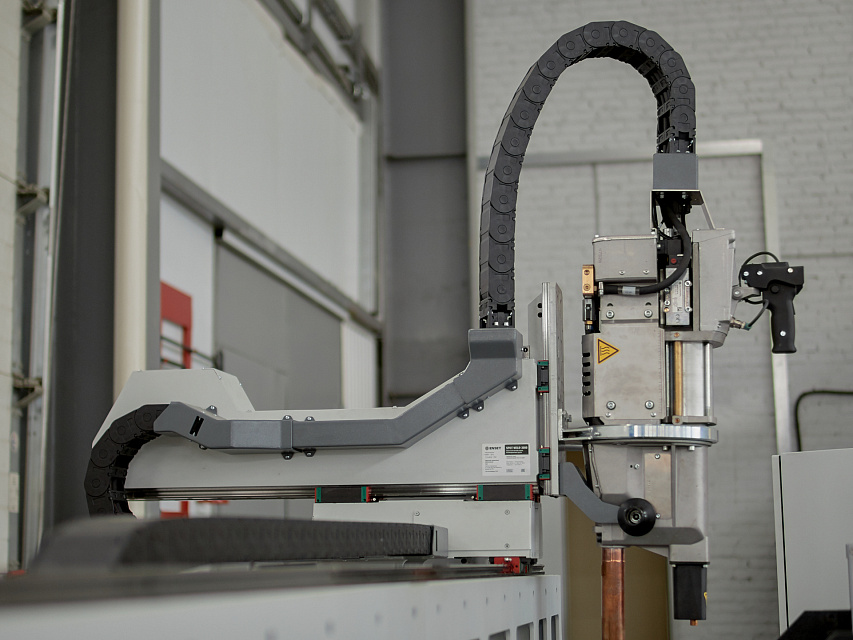

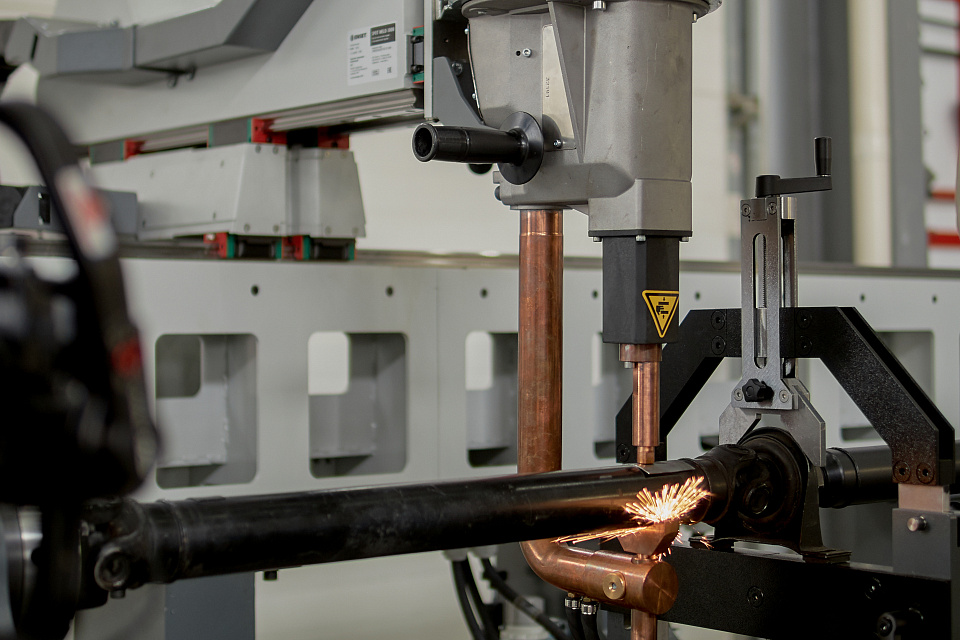

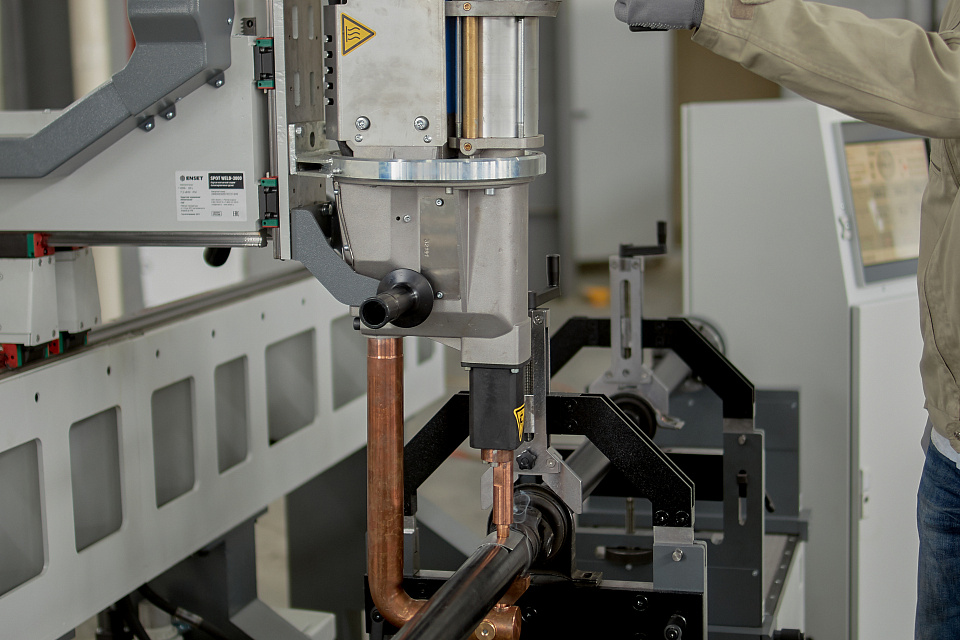

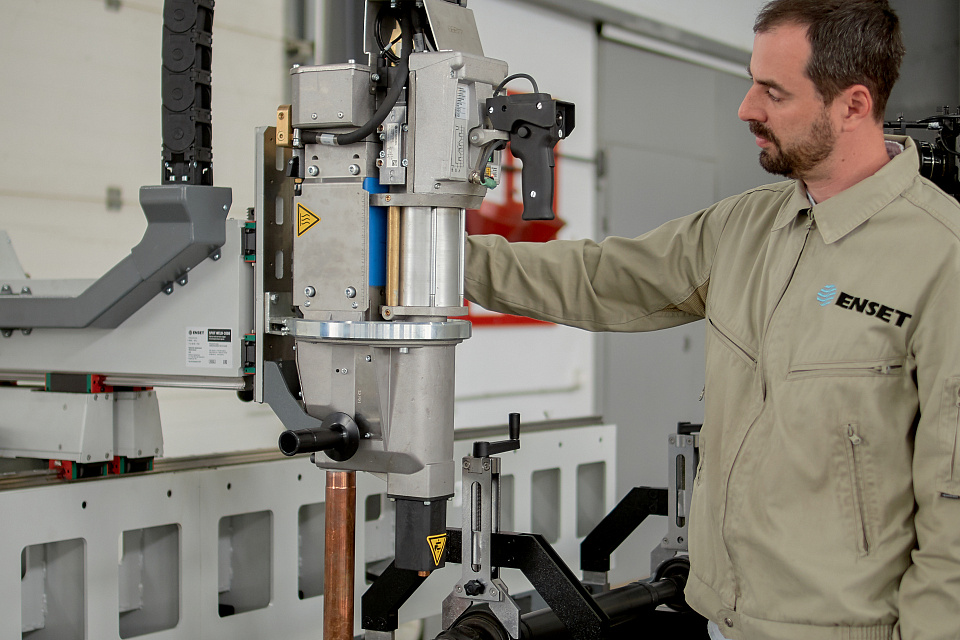

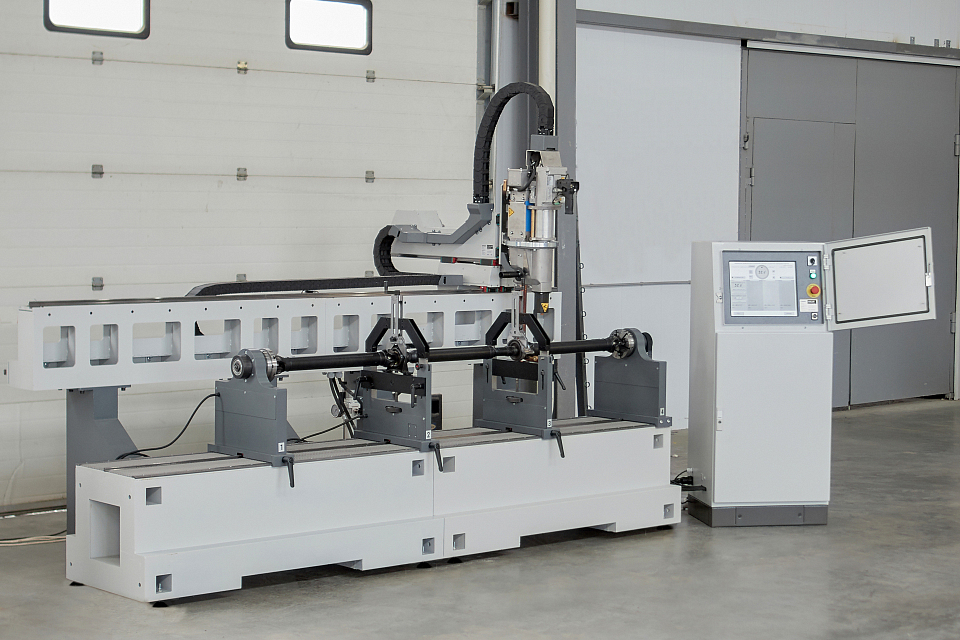

Spot welding gantry 1500

Advantages

  • High efficiency due to the short welding process
  • Copper, fully cooled secondary circuit

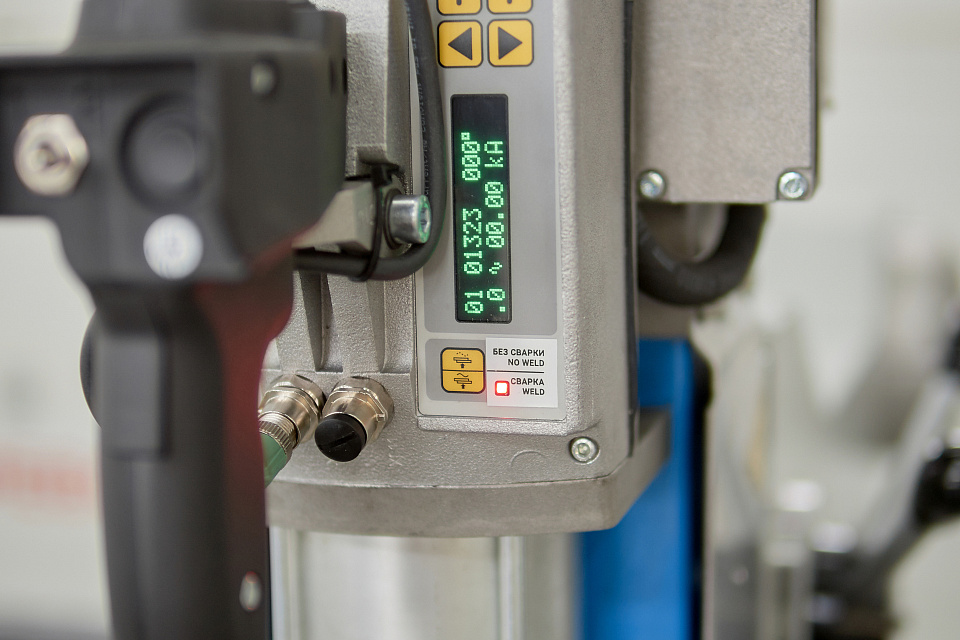

  • Simple and user-friendly interface
  • Highly rigid linear guides
  • Easy to move by hand

Specifications

Code SPOT_WELD
Power supply 3 phases, 400 V, 50 Hz, 10 A, protective grounding is mandatory
Machine basement Not required
Dimensions (LxWxH) 1497x480x1500 mm
Machine weight 474 kg
Number of programs with direct call 2 pcs
Working stroke along the beam 1190 mm
Model 1500
Vertical working stroke 150 mm

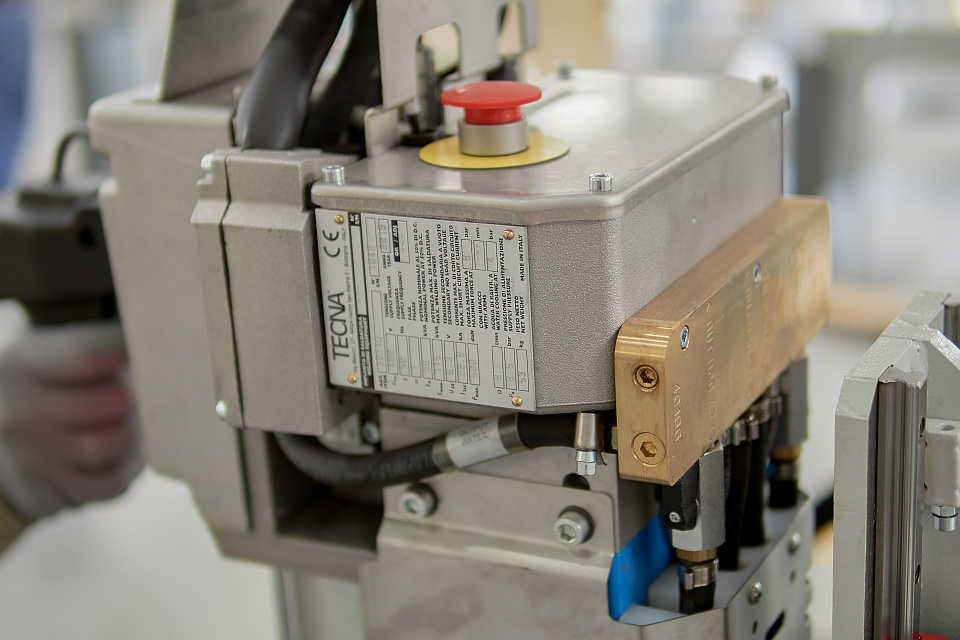

Welding machine TECNА-3323
Timer Built-in
Short circuit current 22,8 кА
Cable cross-section, length L = 30 m 16 mm2

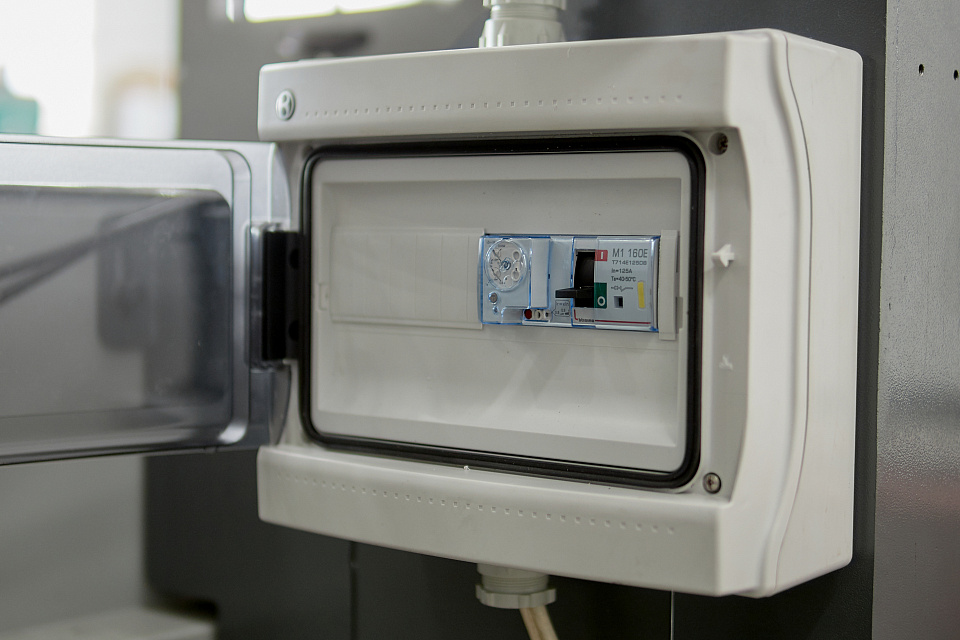

Fuses with response delay 63 А

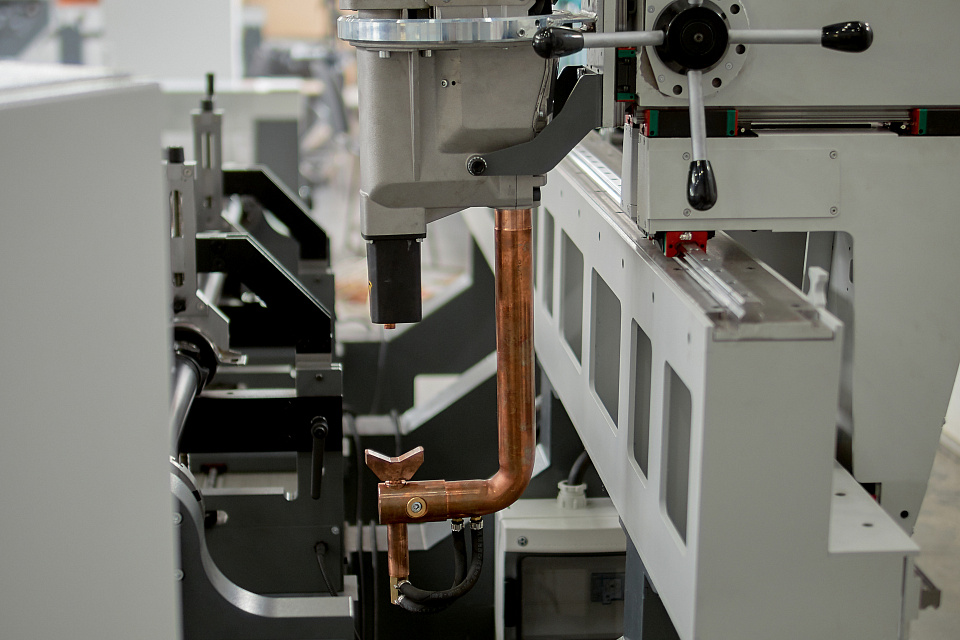

Secondary circuit Copper, fully cooled

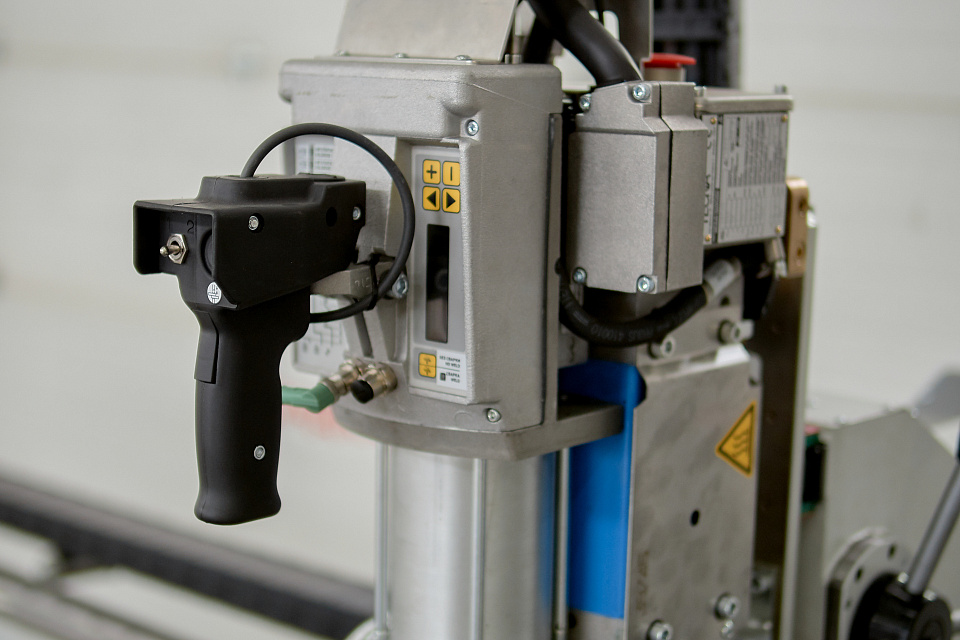

Operating controls Welding machine handle
Spot welding gantry-1500
Spot welding gantry
4
Code
SPOT_WELD
Power supply
3 phases, 400 V, 50 Hz, 10 A, protective grounding is mandatory
Machine basement
Not required
Dimensions (LxWxH)
1497x480x1500 mm
Machine weight
474 kg
Number of programs with direct call
2 pcs
Working stroke along the beam
1190 mm
Model
1500
Vertical working stroke
150 mm
Welding machine
TECNА-3323
Timer
Built-in
Short circuit current
22,8 кА
Cable cross-section, length L = 30 m
16 mm2
Fuses with response delay
63 А
Secondary circuit
Copper, fully cooled
Operating controls
Welding machine handle
High efficiency due to the short welding process Copper, fully cooled secondary circuit Simple and user-friendly interface Highly rigid linear guides Easy to move by hand
×
