Automatic girth welding function

In production 17 pcs.
Quote

Advantages

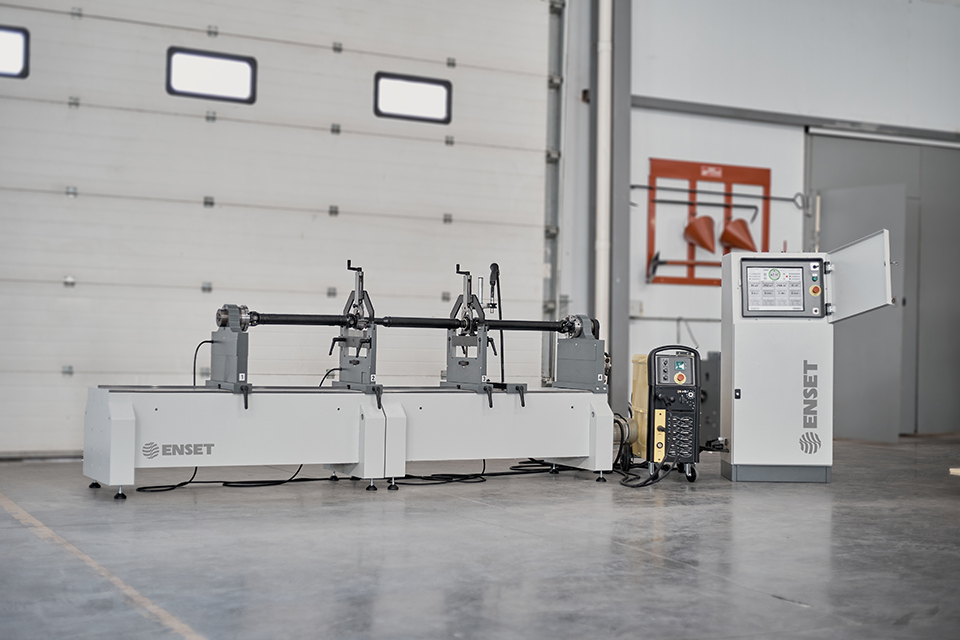

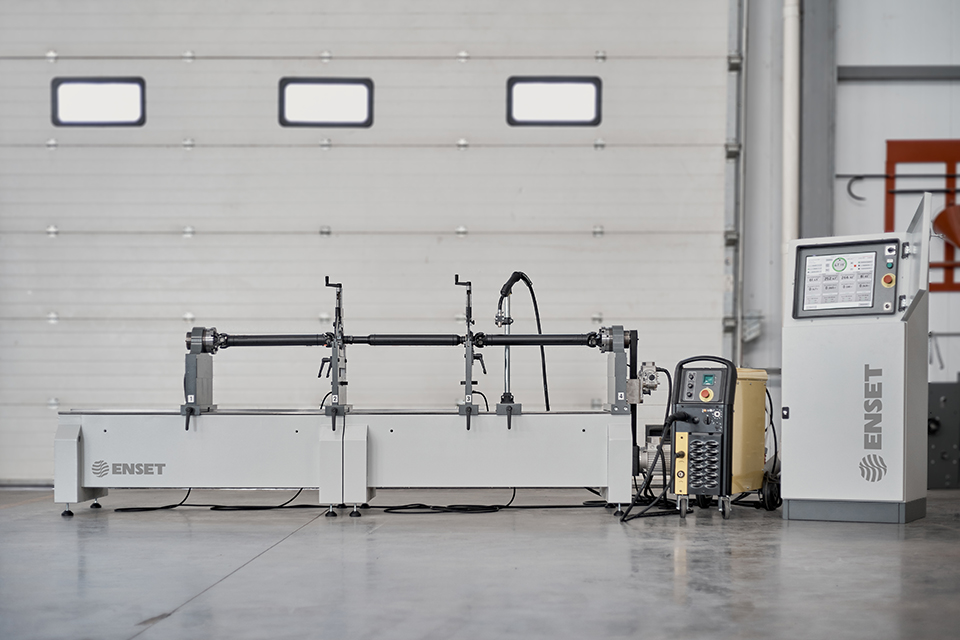

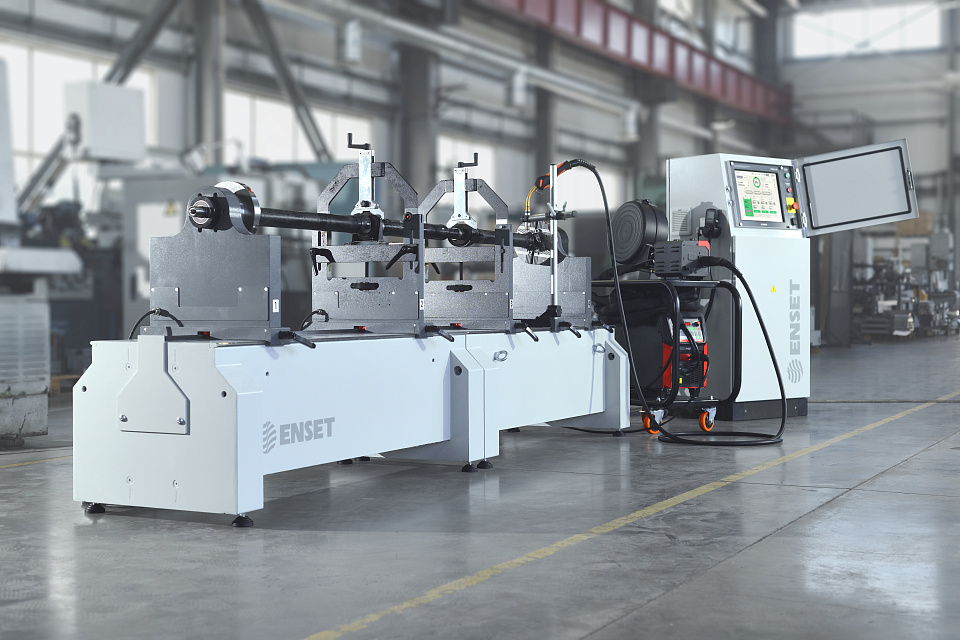

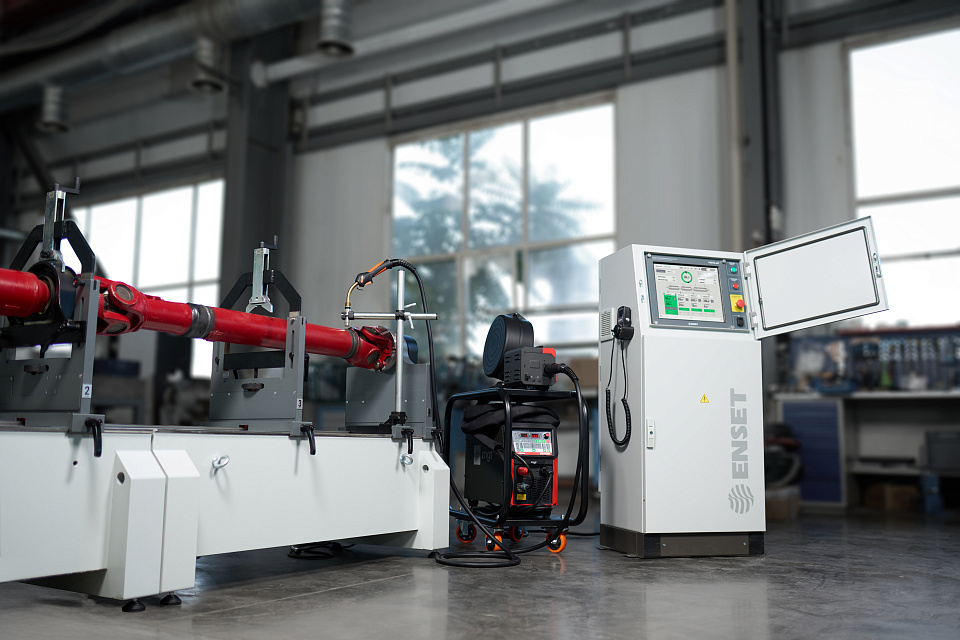

  • This option adds welding rotator function to the balancing machine
  • This option can be ordered either together with the machine or can be added to existing DBR CARDAN machines
  • The second option will require the option to be installed by the customer according to the instructions or by ENSET specialist

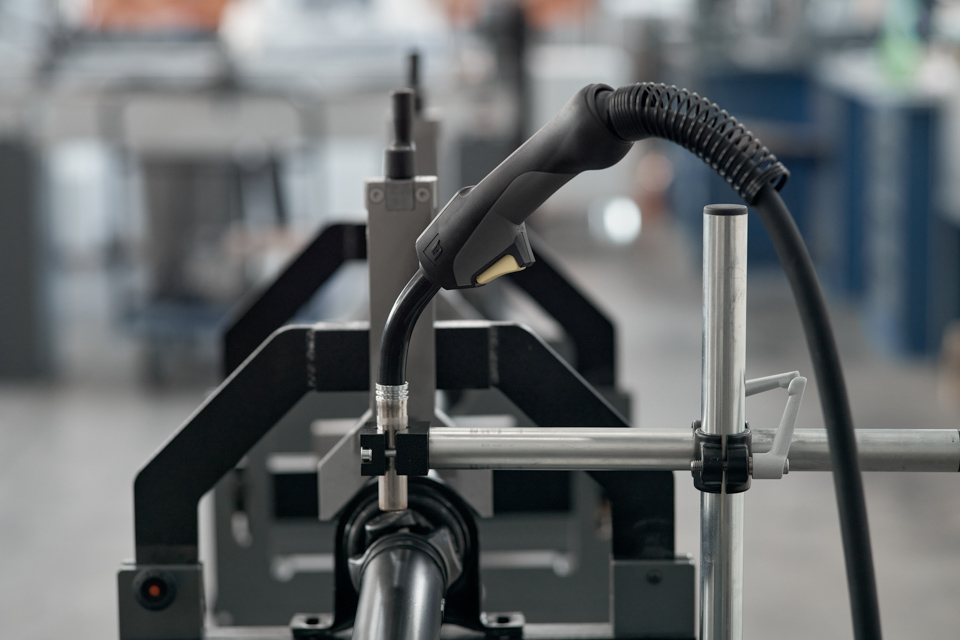

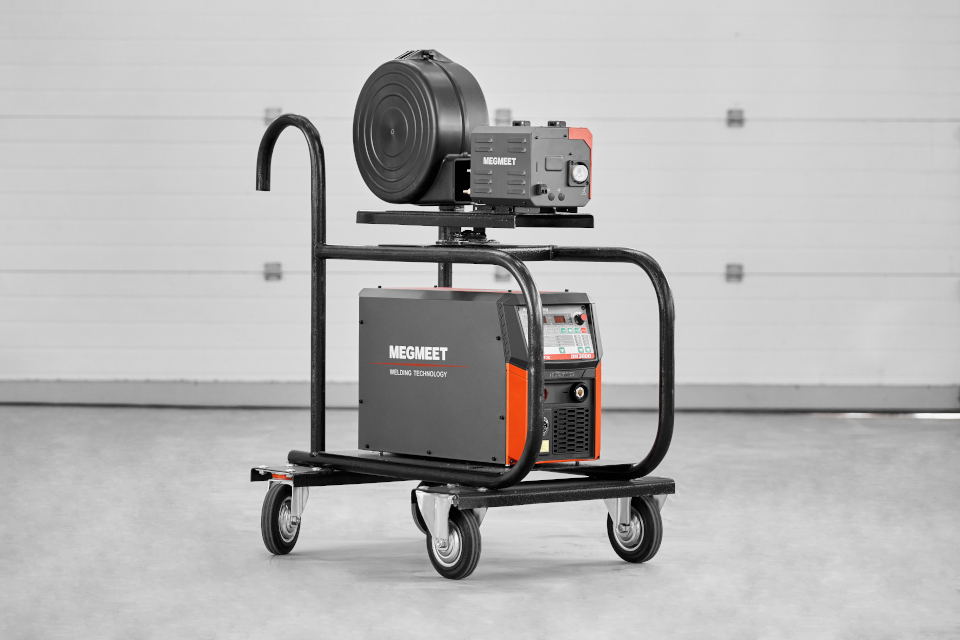

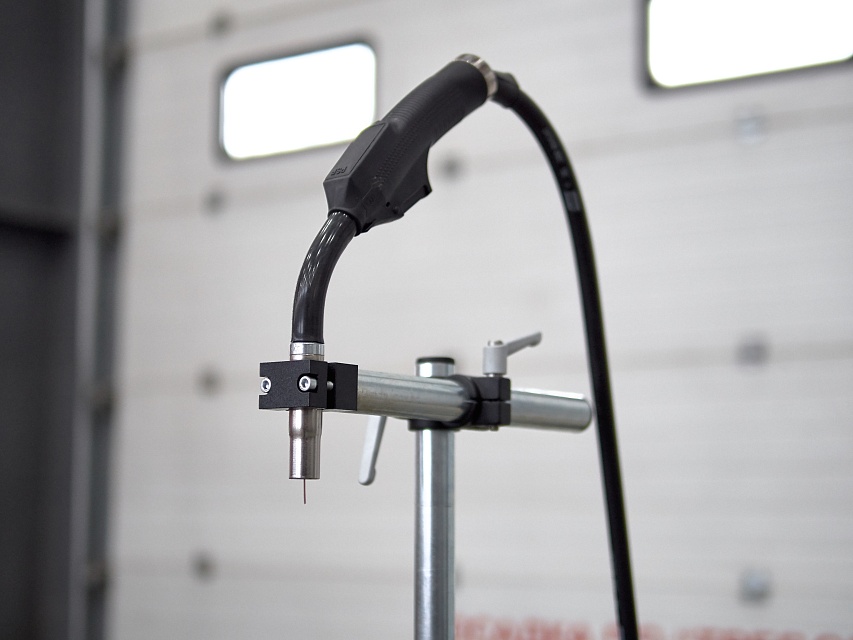

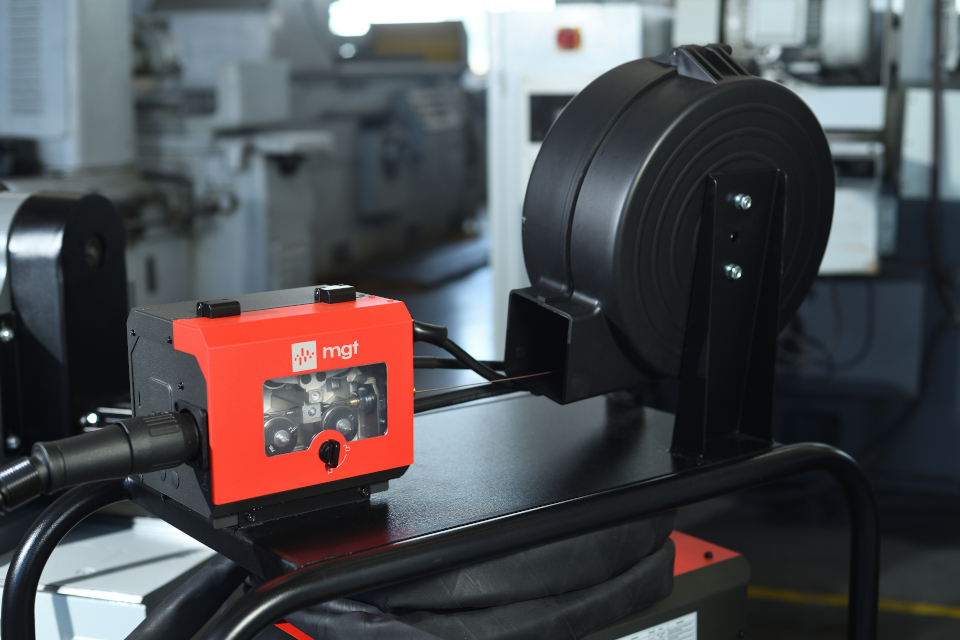

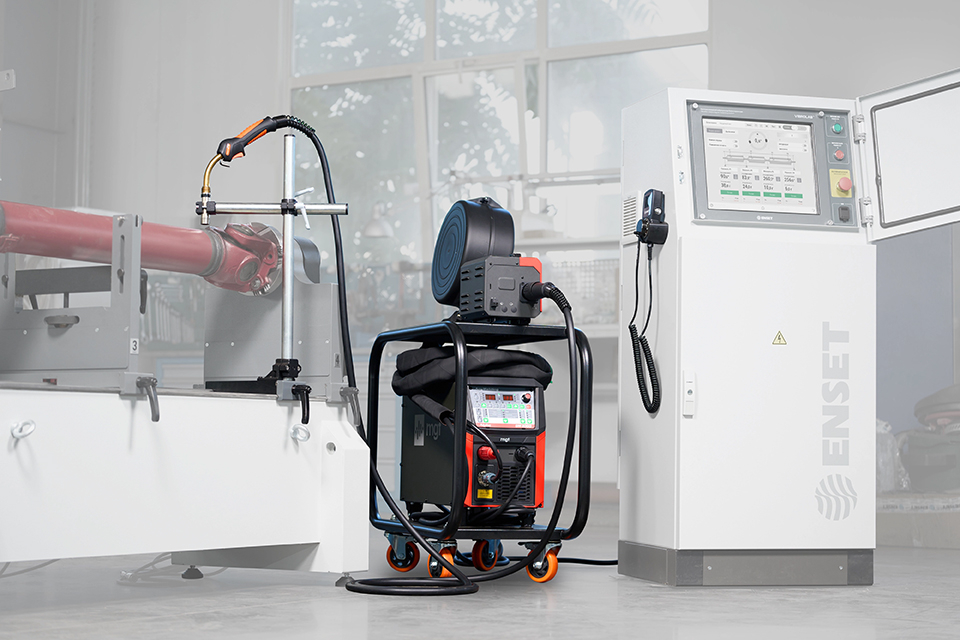

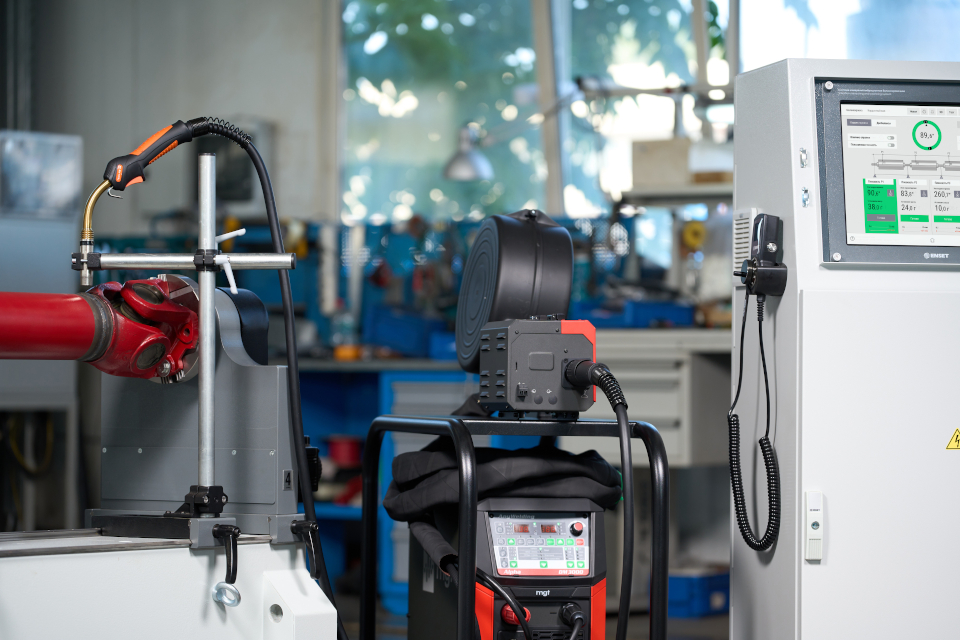

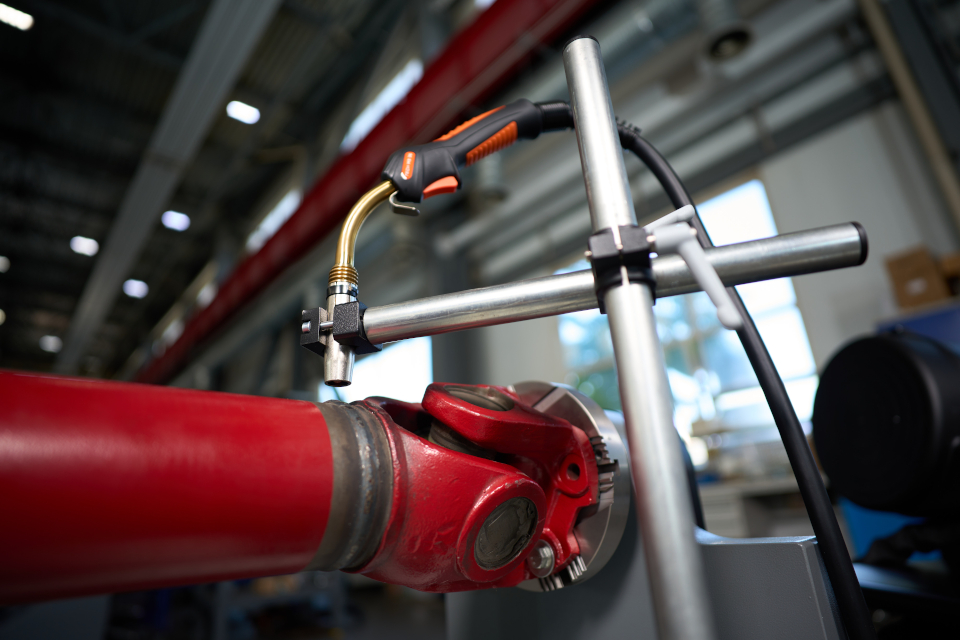

  • The supply package includes welding machine, control panel, torch, welding torch rack, welding drive, connection cables and wires

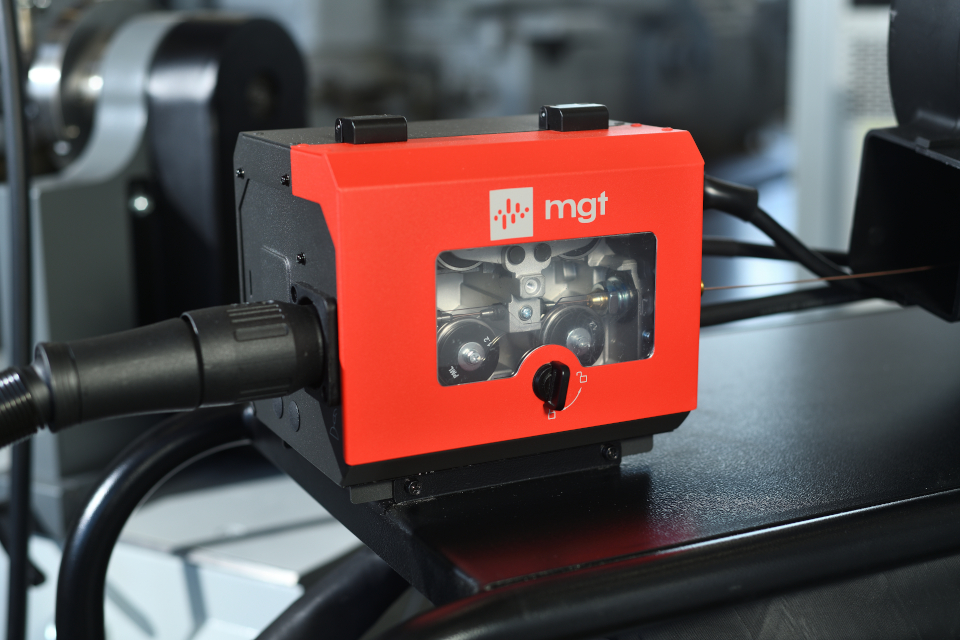

  • Welding quality does not depend on the worker’s skills - the welding control module developed by us automatically selects the welding mode, wire feeding rate and product rotation
  • Complete integration into the machine control system.

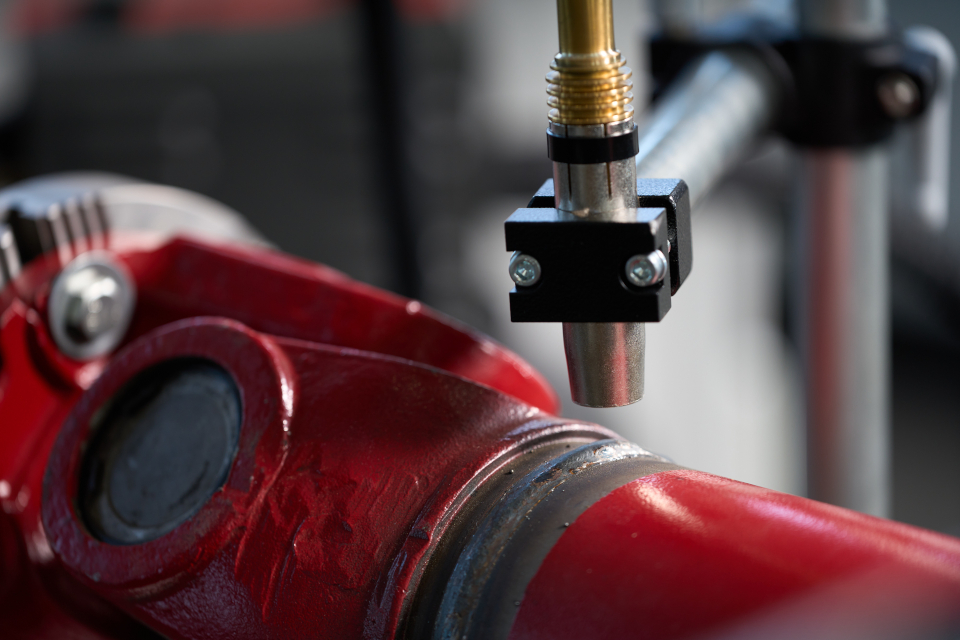

  • The machine is equipped with additional drive controlled by the electronics of the welding machine, the beginning and end of the welding process of the girth weld is synchronized with the rotation of the part

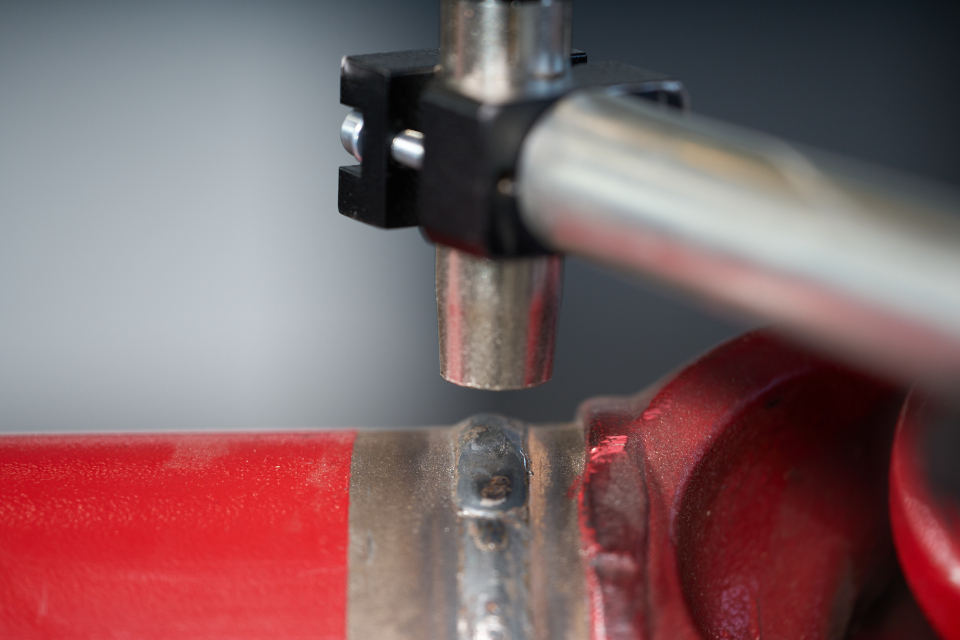

  • Welding time of a girth weld - less than 10 seconds


Documentation

Specifications

Code CWELD_OPT
Type Option – welding rotator function for balancing machine
Power supply 3 phases, 380 V 50 Hz, 16 A, protective grounding is required
Electric drive of the welding rotator Frequency-controlled asynchronous, 0.36 kW
Protection against dust and water IP20

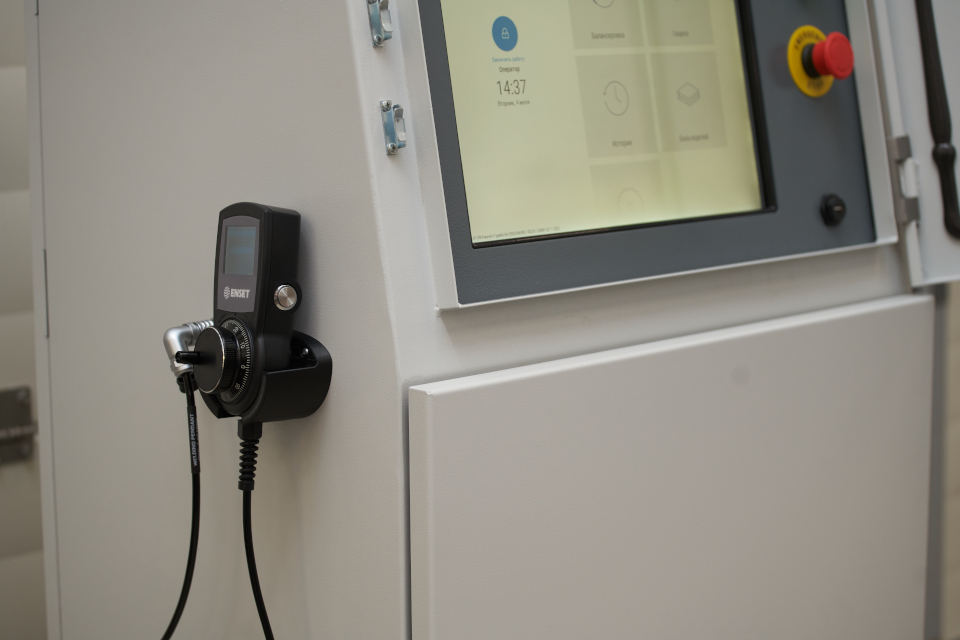

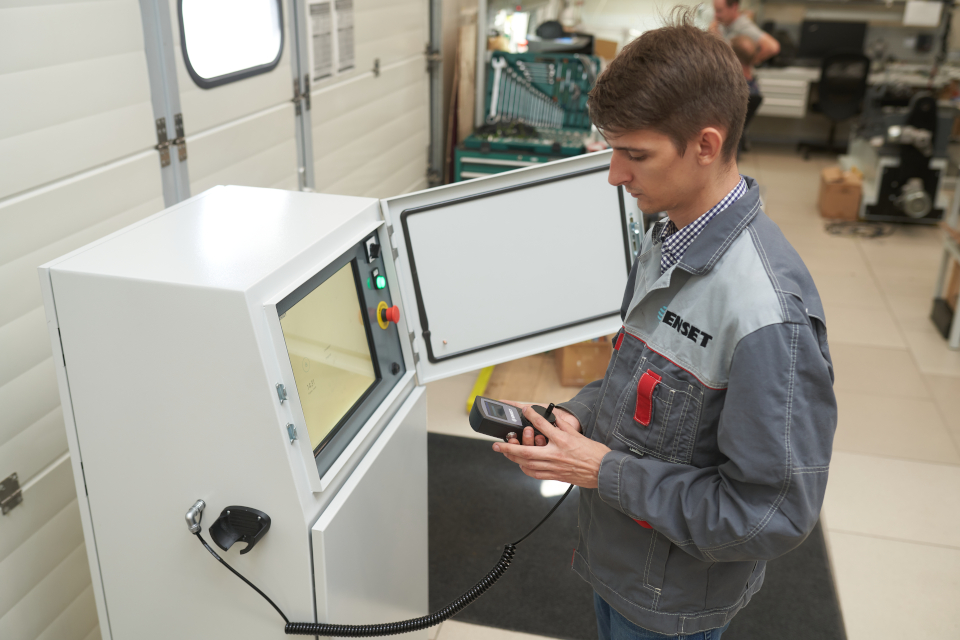

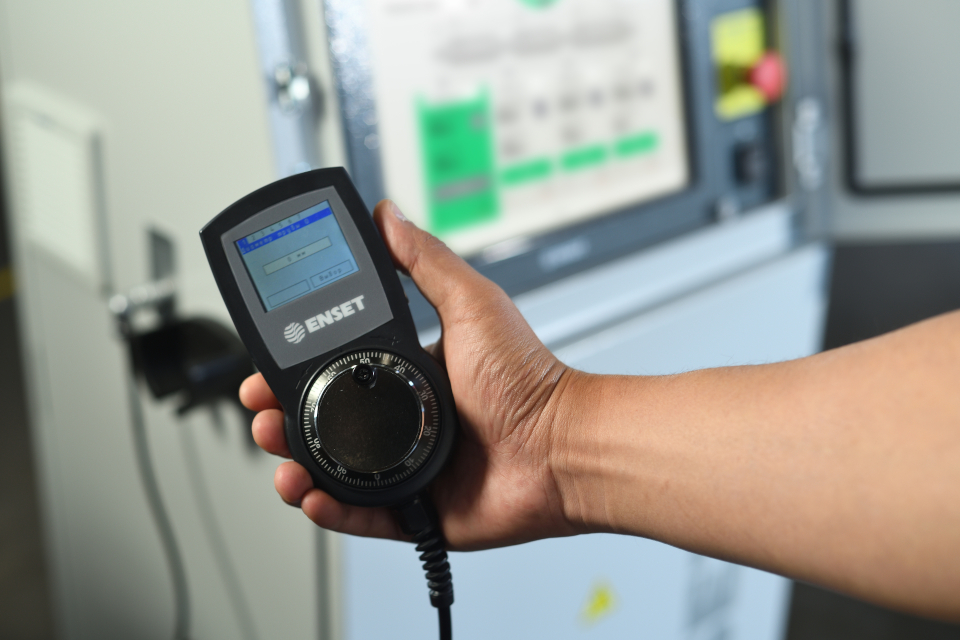

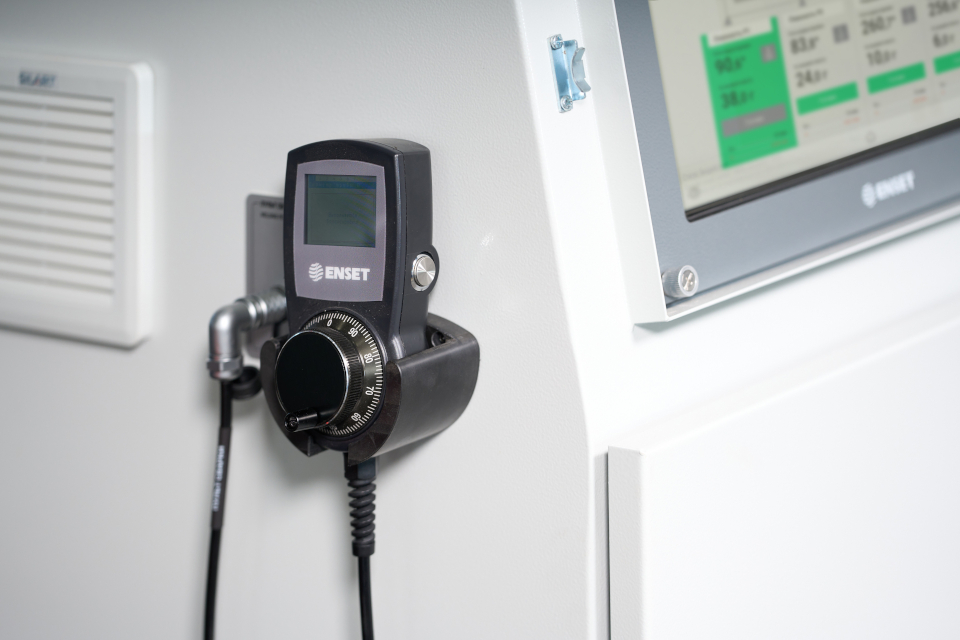

User interface Wired remote control with display
Dimensions (L x W x H) 840 х 425 х 830 mm
Warranty period 12 months
Welding modes Solid girth weld, setting of tie points
Cardan shaft pipe wall thickness 0,5 – 12 mm
Protective gas Ar+CO2 Mixture
Compatible with equipment DBR CARDAN line machines
Operating temperature limit From -10 °C to +40 °C
Automatic girth welding function
Automatic girth welding function
8824 1 EUR
Code
CWELD_OPT
Type
Option – welding rotator function for balancing machine
Power supply
3 phases, 380 V 50 Hz, 16 A, protective grounding is required
Electric drive of the welding rotator
Frequency-controlled asynchronous, 0.36 kW
Protection against dust and water
IP20
User interface
Wired remote control with display
Dimensions (L x W x H)
840 х 425 х 830 mm
Warranty period
12 months
Welding modes
Solid girth weld, setting of tie points
Cardan shaft pipe wall thickness
0,5 – 12 mm
Protective gas
Ar+CO2 Mixture
Compatible with equipment
DBR CARDAN line machines
Operating temperature limit
From -10 °C to +40 °C
This option adds welding rotator function to the balancing machine This option can be ordered either together with the machine or can be added to existing DBR CARDAN machines The second option will require the option to be installed by the customer according to the instructions or by ENSET specialist The supply package includes welding machine, control panel, torch, welding torch rack, welding drive, connection cables and wires Welding quality does not depend on the worker’s skills - the welding control module developed by us automatically selects the welding mode, wire feeding rate and product rotation Complete integration into the machine control system. The machine is equipped with additional drive controlled by the electronics of the welding machine, the beginning and end of the welding process of the girth weld is synchronized with the rotation of the part Welding time of a girth weld - less than 10 seconds
