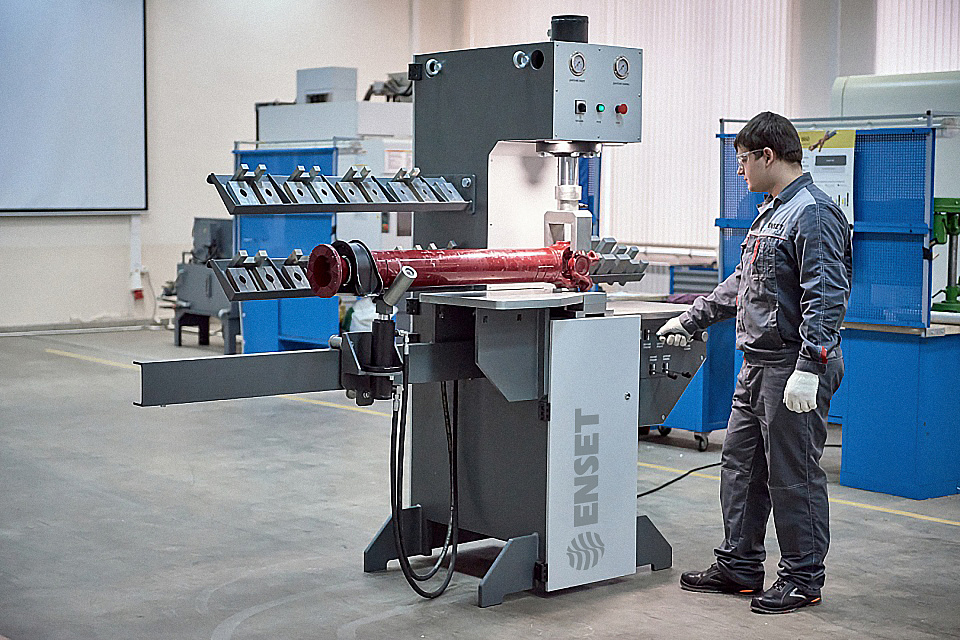

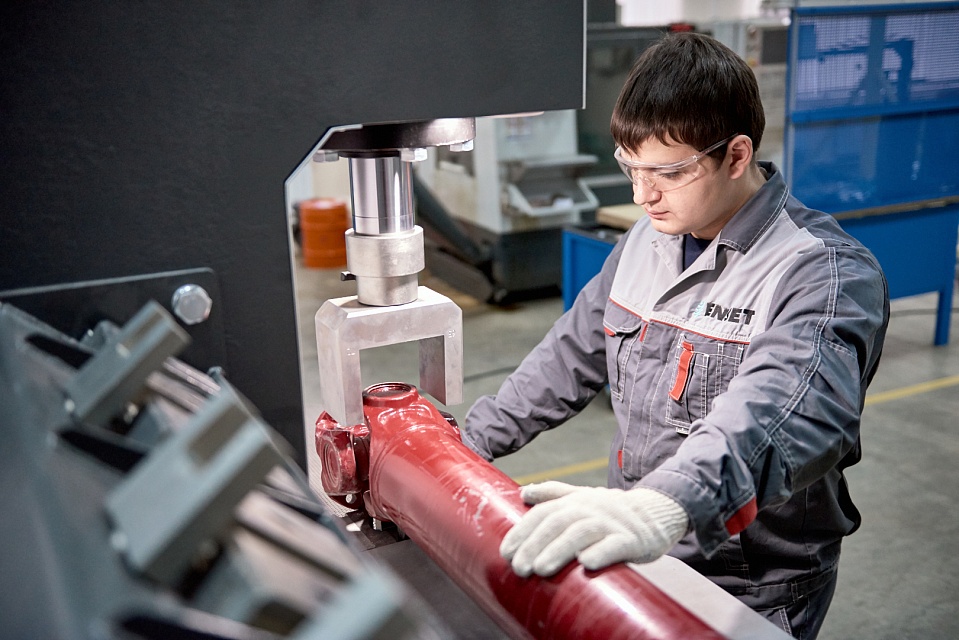

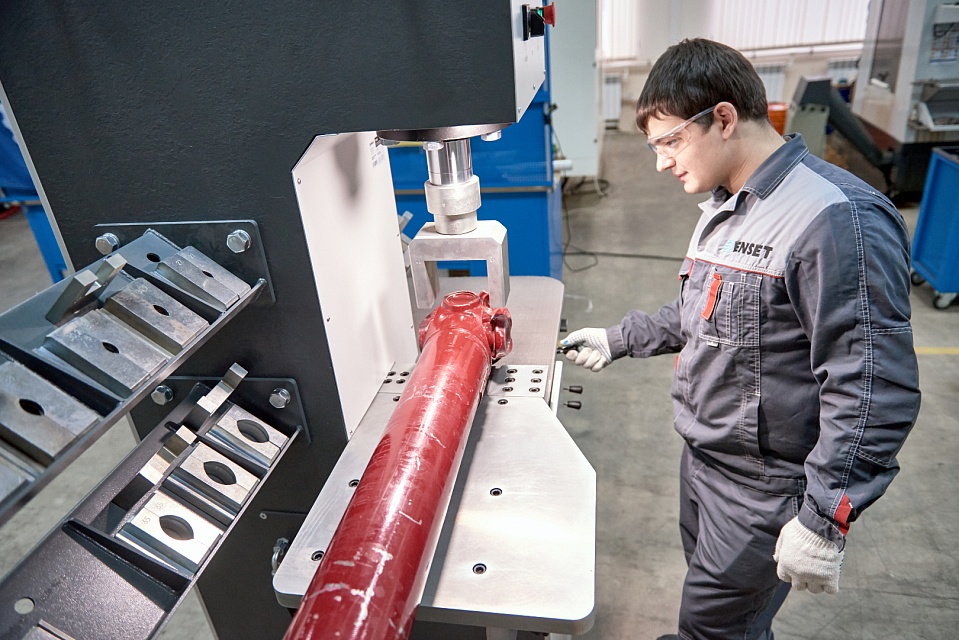

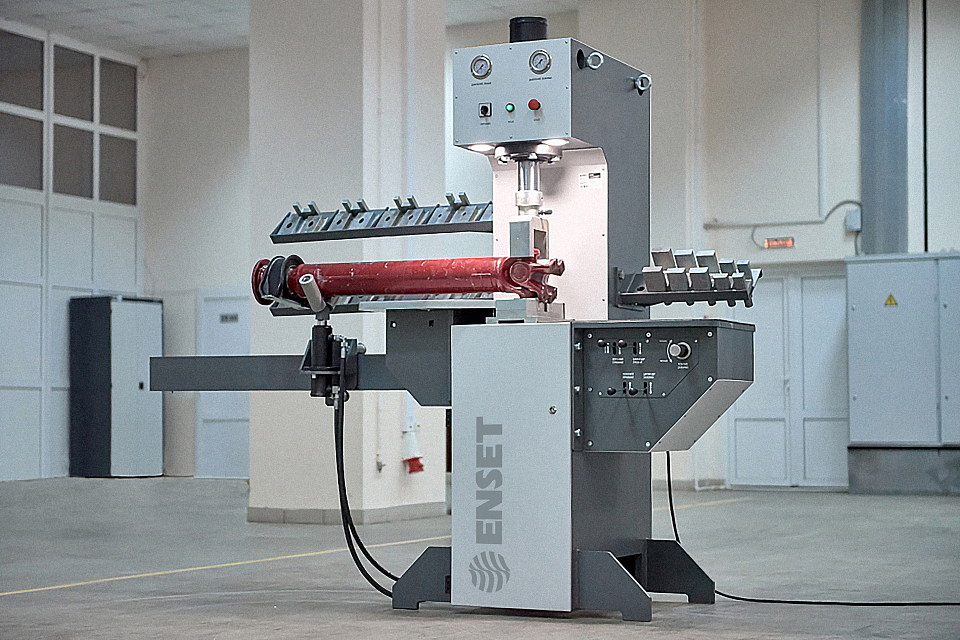

TITAN Press for disassembly and assembly of cardan joints

In production 18 pcs.
Quote

Advantages

  • Supplied with a set of accessories for all types of truck U-joints
  • Adjustable clamping of the U-joint when disassembling, eliminating damage and slipping
  • All hydraulic components are of Italian manufacture
  • 12 months warranty for the press and all its components


Documentation

TITAN passport
PDF, 496 KB
TITAN usermanual
PDF, 3 MB, october 2019

Specifications

Code TITAN
Type Hydraulic press with 4 working cylinders and clamping action
Power supply 3 phases, 380 V 50 Hz, 16 A, protective grounding is mandatory
Rotor drive Asynchronous motor, 1500 rpm, 4,0 kW
Protection against dust and water IP55

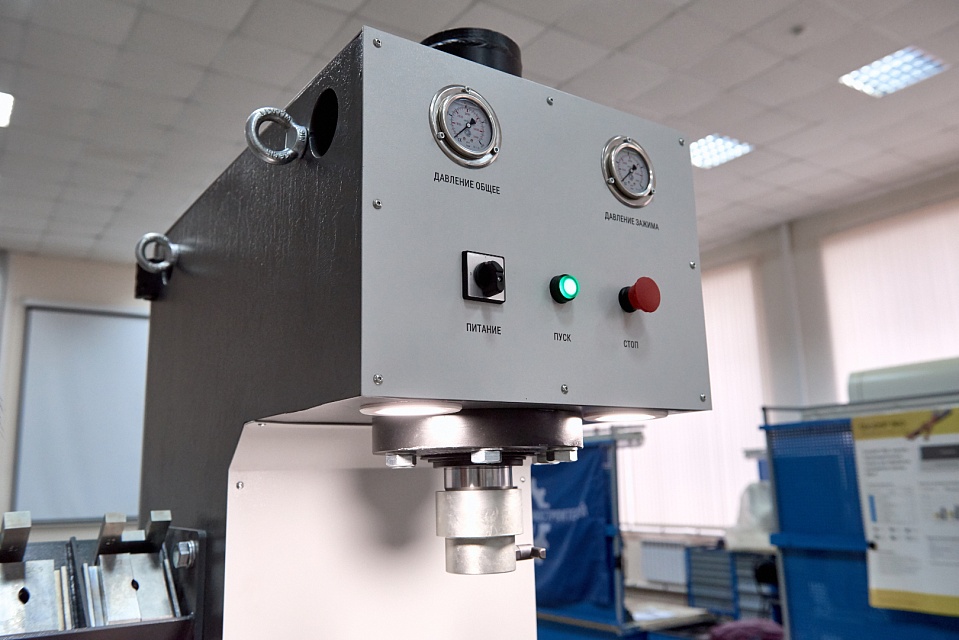

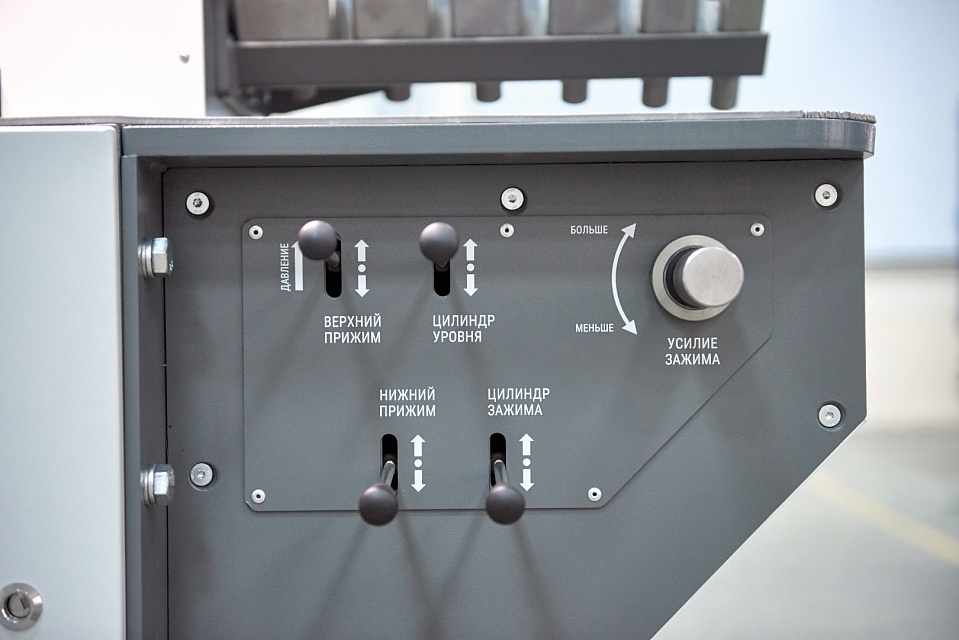

User interface Hydraulic distributor levers
Dimensions (L x W x H) 2400 x 1000 x 2100 mm
Accessories included for universal joints with a diameter of 27; 30; 34,9; 38; 39,7; 42; 44; 45; 47,6; 48; 50, 52; 53; 57; 59; 65; 68; 72 mm
Warranty period 12 months
Peripheral equipment Нет
Nameplate printing Нет
Volume of the hydraulic tank 40 l
Maximum force of the upper cylinder 30 t
Maximum force of the lower cylinder 15 t
Force on the universal joint clamping cylinder 1 – 13 t
Maximum stroke of the upper cylinder 300 mm

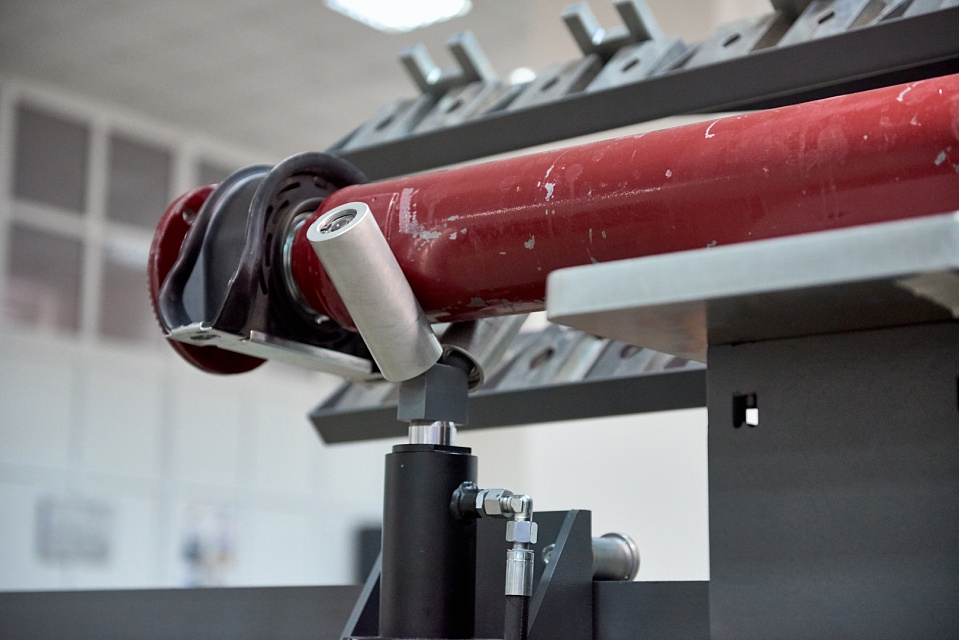

Moving the stop of the cardan shaft pipe Hydraulic, by a hydraulic cylinder
Special offer Нет
InStock Нет
Press mass together with hydroelectric station 1500 kg
TITAN
TITAN
24706 1 EUR
Code
TITAN
Type
Hydraulic press with 4 working cylinders and clamping action
Power supply
3 phases, 380 V 50 Hz, 16 A, protective grounding is mandatory
Rotor drive
Asynchronous motor, 1500 rpm, 4,0 kW
Protection against dust and water
IP55
User interface
Hydraulic distributor levers
Dimensions (L x W x H)
2400 x 1000 x 2100 mm
Accessories included for universal joints with a diameter of
27; 30; 34,9; 38; 39,7; 42; 44; 45; 47,6; 48; 50, 52; 53; 57; 59; 65; 68; 72 mm
Warranty period
12 months
Peripheral equipment
Нет
Nameplate printing
Нет
Volume of the hydraulic tank
40 l
Maximum force of the upper cylinder
30 t
Maximum force of the lower cylinder
15 t
Force on the universal joint clamping cylinder
1 – 13 t
Maximum stroke of the upper cylinder
300 mm
Moving the stop of the cardan shaft pipe
Hydraulic, by a hydraulic cylinder
Special offer
Нет
InStock
Нет
Press mass together with hydroelectric station
1500 kg
Supplied with a set of accessories for all types of truck U-joints Adjustable clamping of the U-joint when disassembling, eliminating damage and slipping All hydraulic components are of Italian manufacture 12 months warranty for the press and all its components
