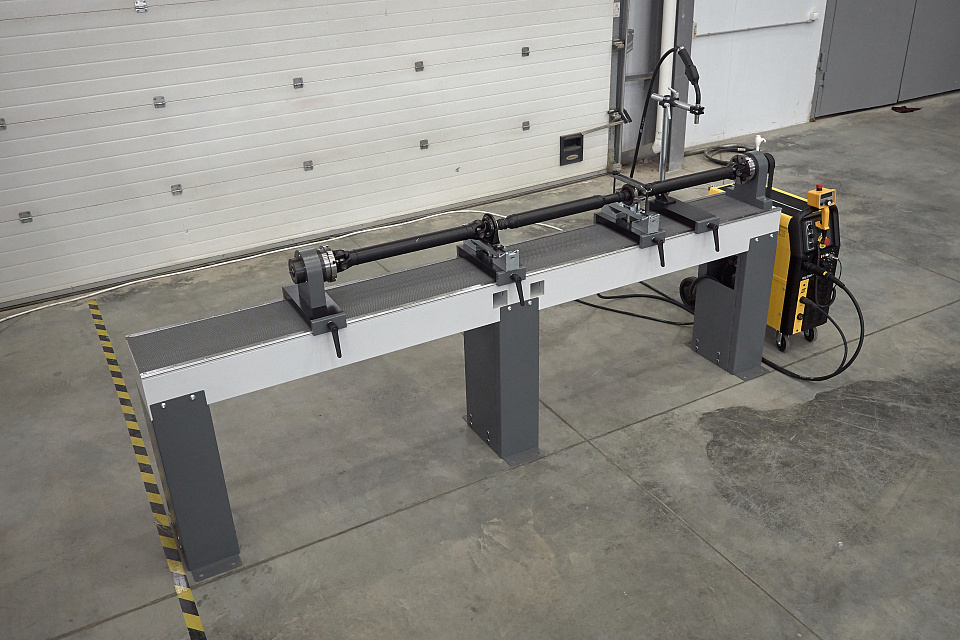

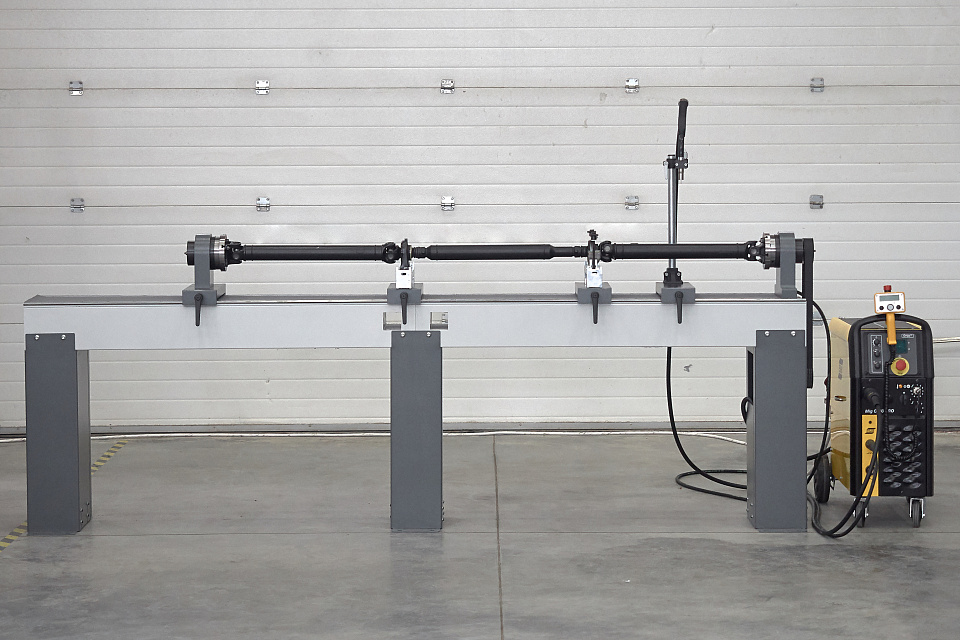

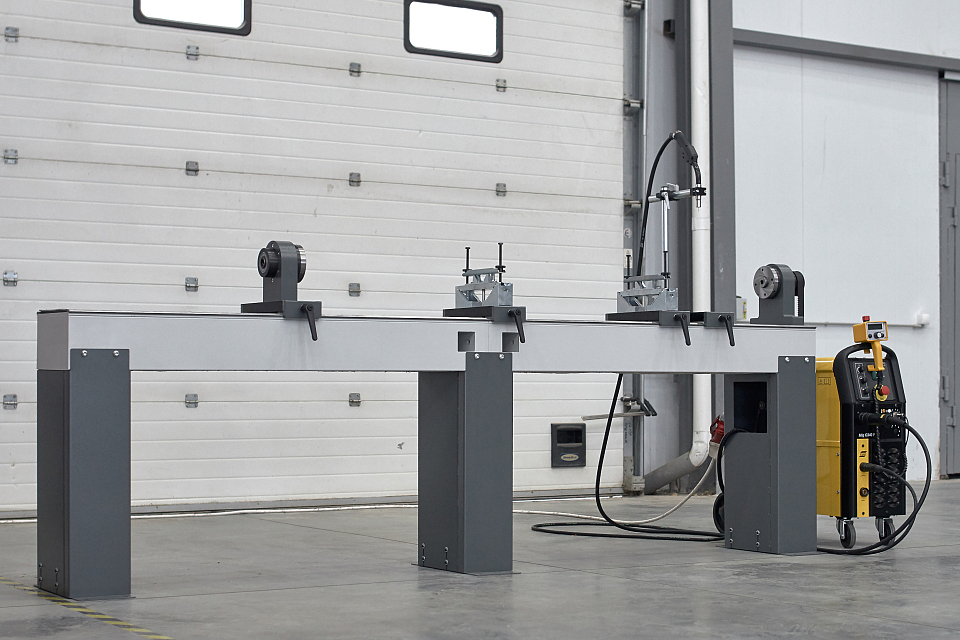

SKV- 3000А Stand for welding cardan shafts-3000А
Type of equipment
Automatic CNC rotator with welding machine
Purpose
Special, for any cardan shafts

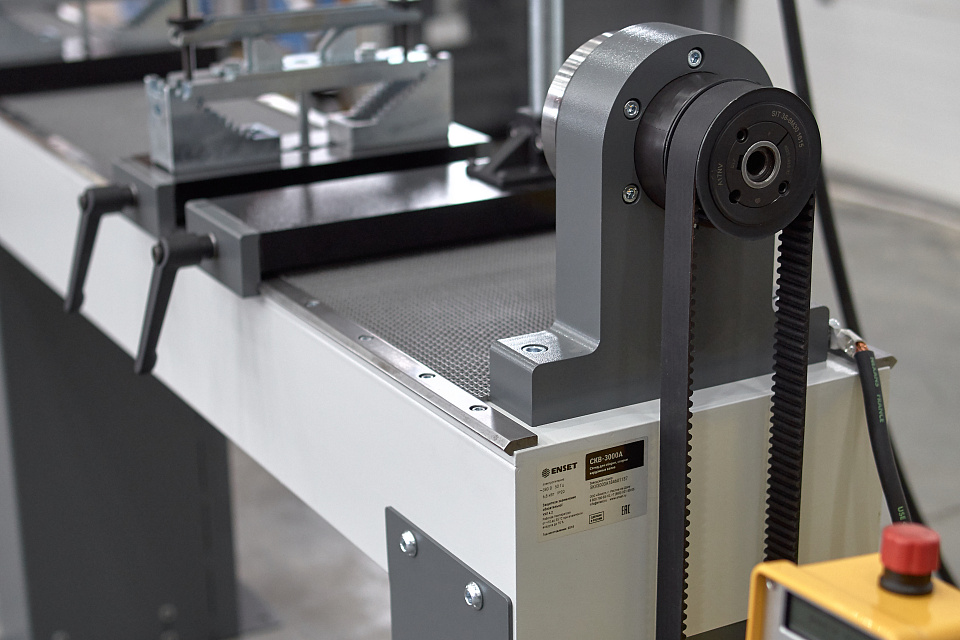

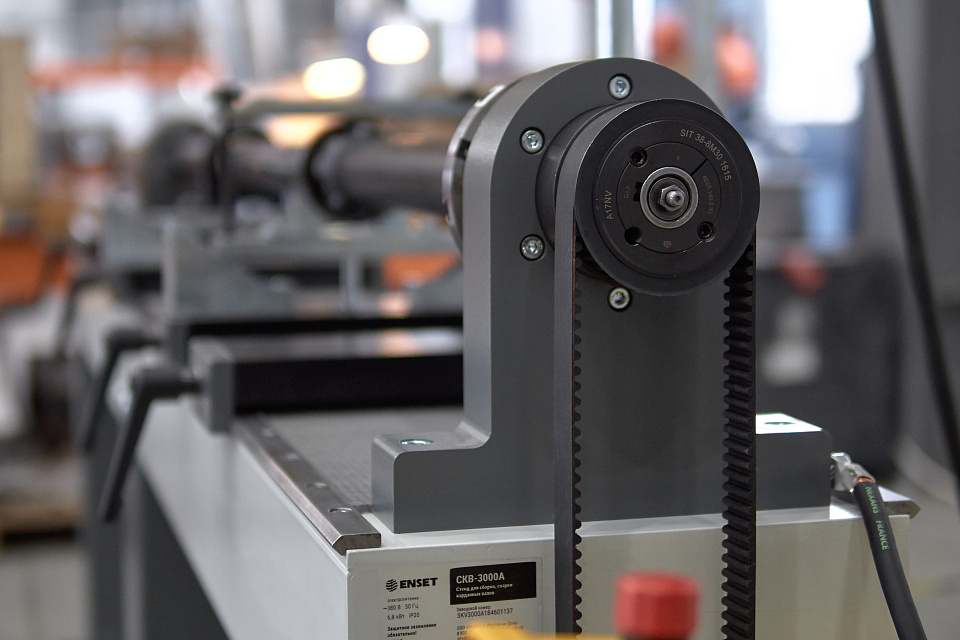

Rotor type drive
Axial, drive spindle
Engine type and its characteristics
Asynchronous, 1400 rpm, 0.09 kW
Number and type of supports

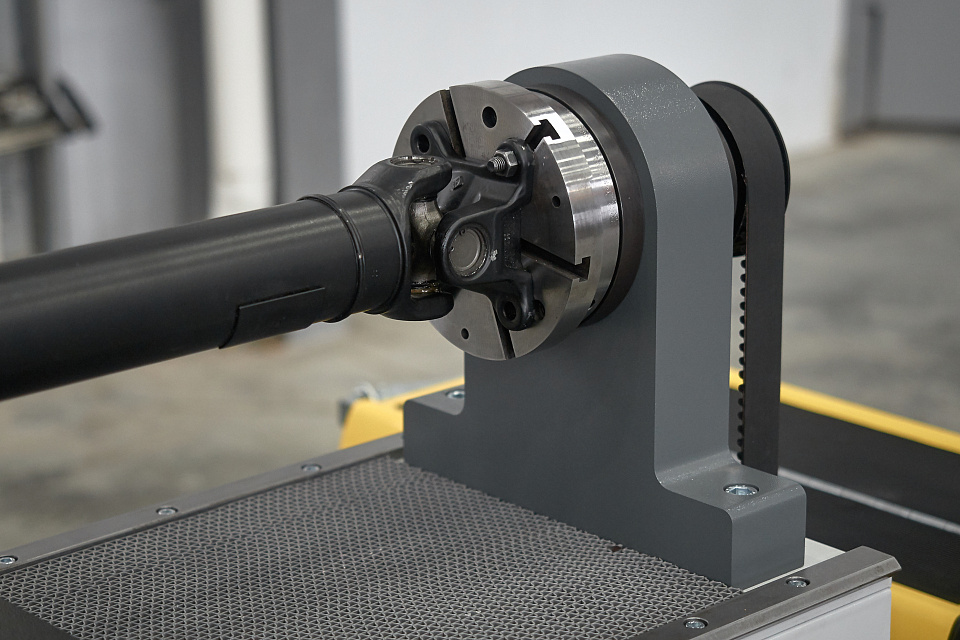

4 supports: 2 spindle, 2 height adjustable
Rotor weight
up to 300 kg
Maximum product diameter
350 mm
Product length
50 – 2650 mm
Power supply
3 phases, 380 V, 50 Hz, 16 A, protective grounding is mandatory
Angular position sensor of the product
Incremental encoder
Protecting electronics from dust and moisture
IP23S
Anchoring to the base or foundation
Anchoring to any concrete floor
Structural features of the frame
Frame made of structural steel with cast vibration-absorbing filling, V-shaped guides
Length of frame section
1500 mm
Dimensions (L x W x H)
3250 x 475 x 1400 mm
Equipment weight (net)
945 kg
Climatic performance according to GOST 15150
Operation: UHL 4.2 (temperature from + 10 to + 35 ºC, relative air humidity up to 80%). Storage and transportation: 1L (temperature from + 5 to + 40 ºC, relative air humidity up to 80%)
Warranty period
12 months
Holding the product in the adjustment position
Yes
Turning the product to the correction position
Auto

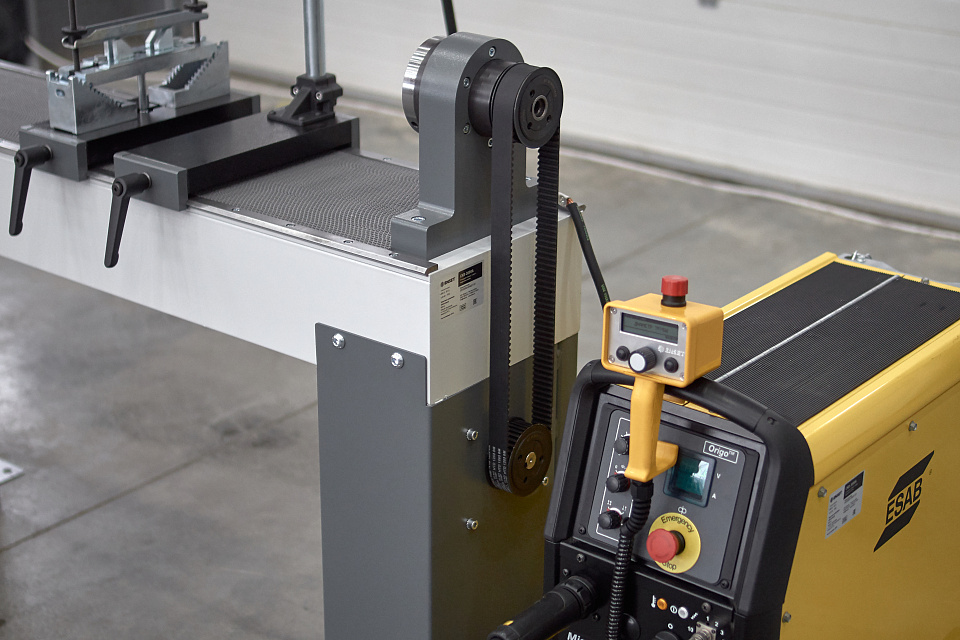

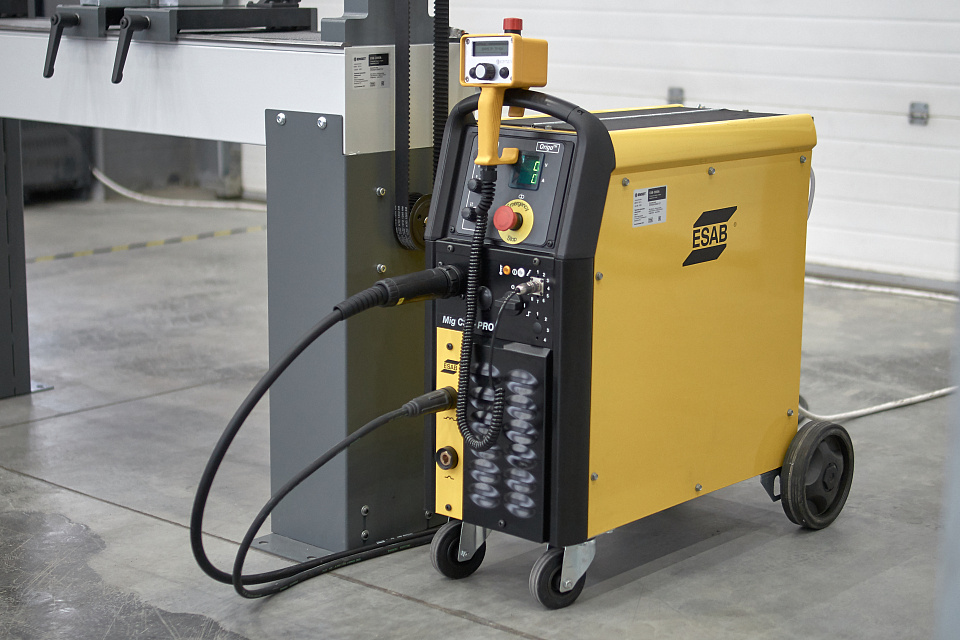

Welding unit included into delivery set Convenient impact resistant manual remote control protected from dust and water according to IP54 Rigid frame design allows for adjustment of the cardan shaft parts relative runout on the machine Easy manual supports movement via the highly precise roller guides Unique system of the machine supports height adjustment Electrical and mechanical components of European origin only Modular take-apart design with the possibility of further elongation No basement required 12 months warranty for the machine and all its components
