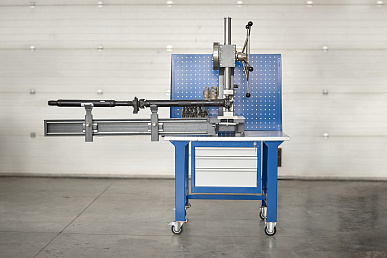

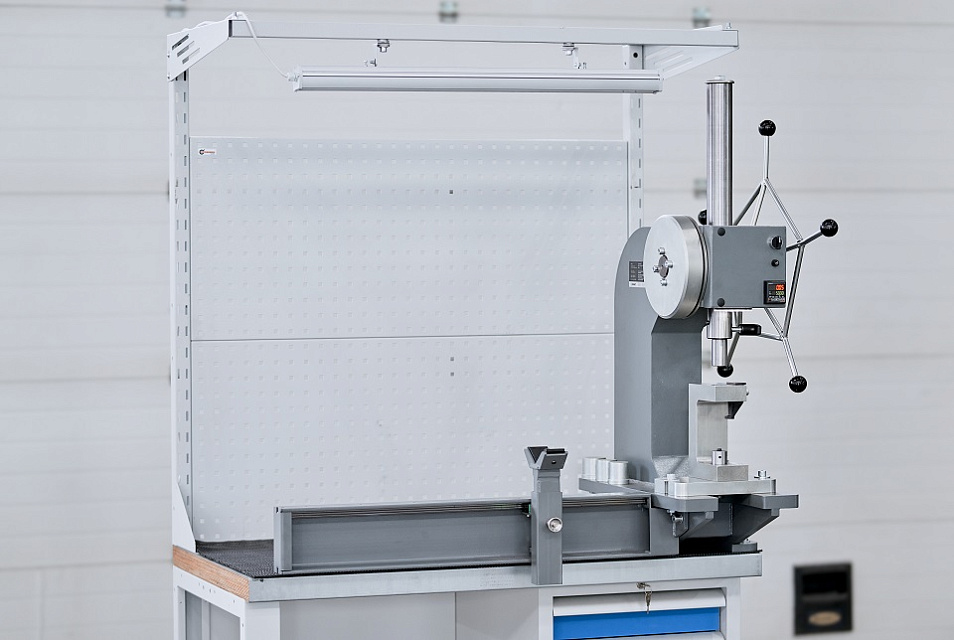

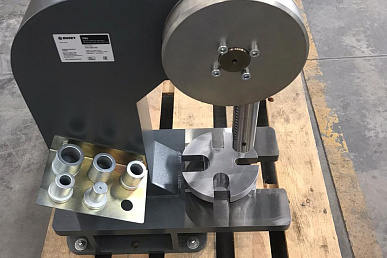

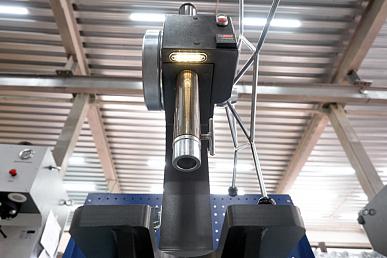

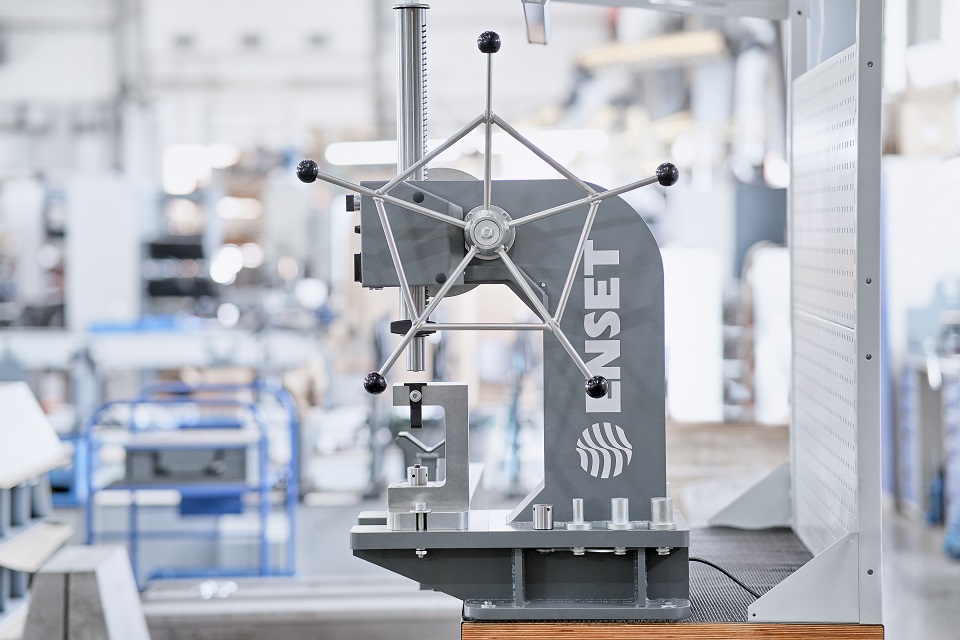

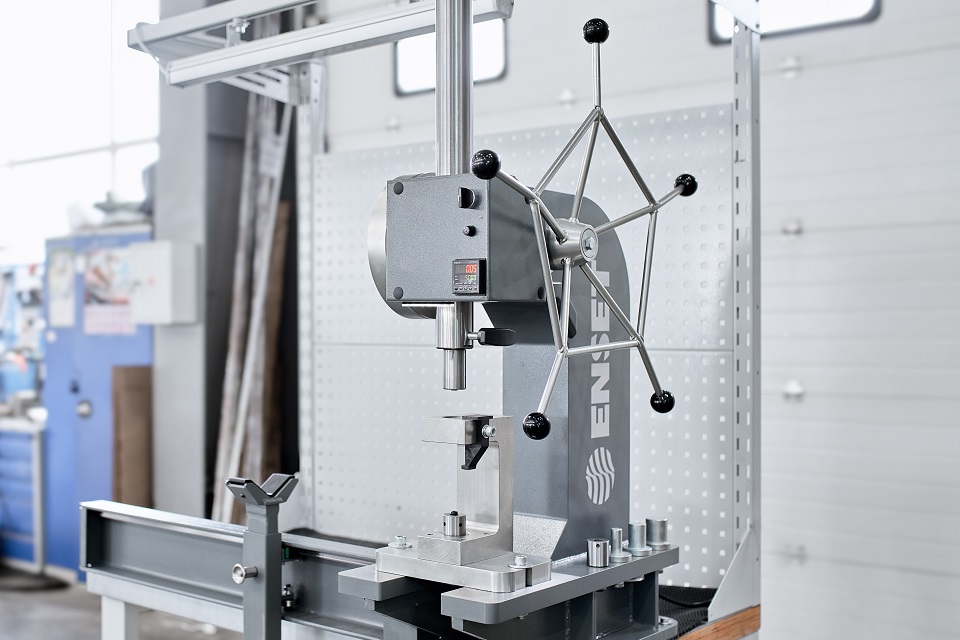

PR-6 Press for assembly of universal joints and punching of crosspieces

Advantages

Powerful pressing due to a two-action toothed gear
Reliable design that guarantees many years of operation under high loads

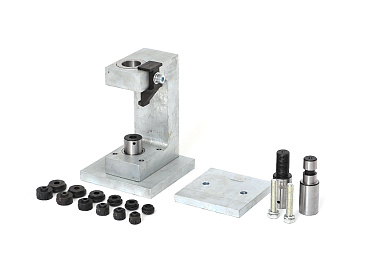

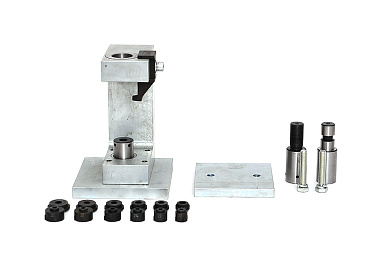

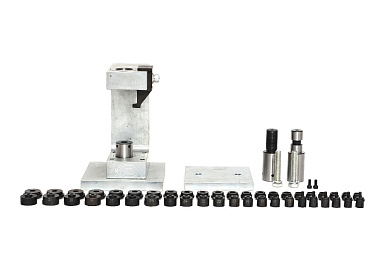

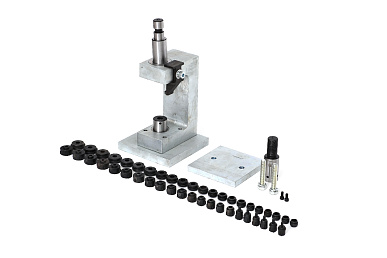

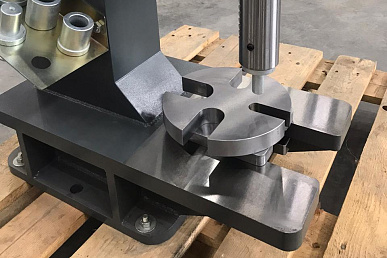

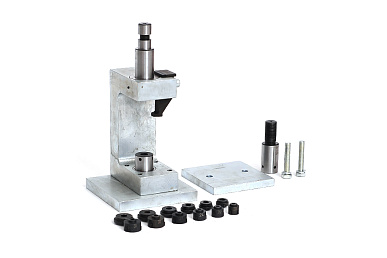

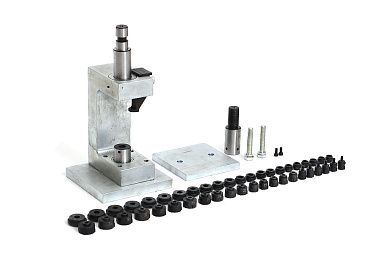

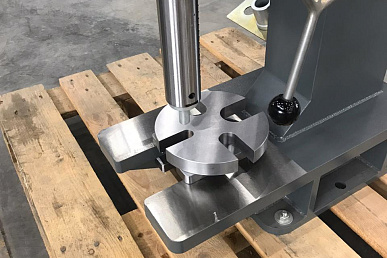

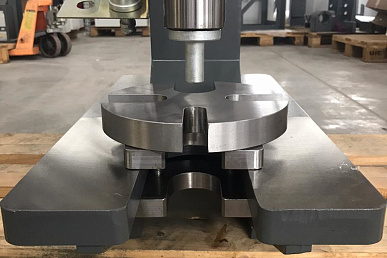

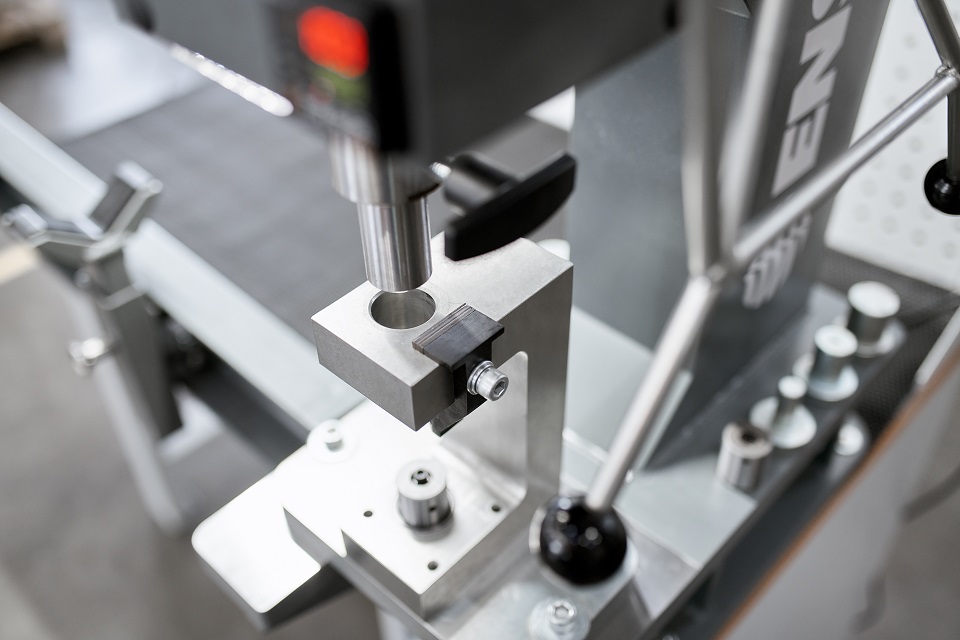

Assembling tooling set is included
All parts of toothed gears and rack are tempered
Warranty for the press and all its components – 12 months.

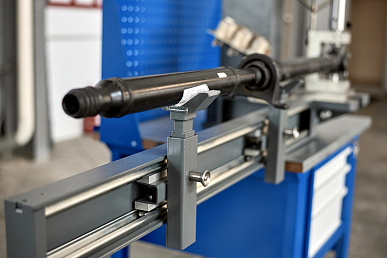

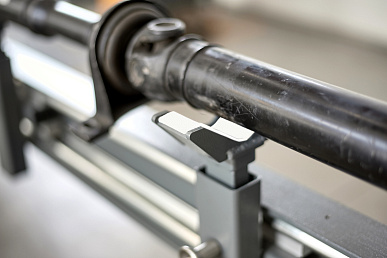

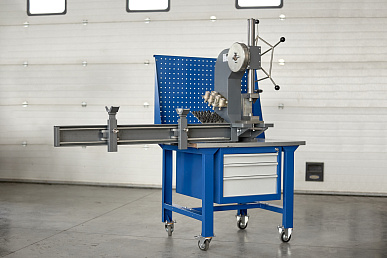

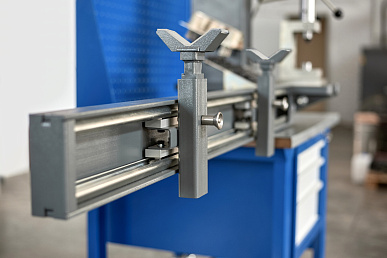

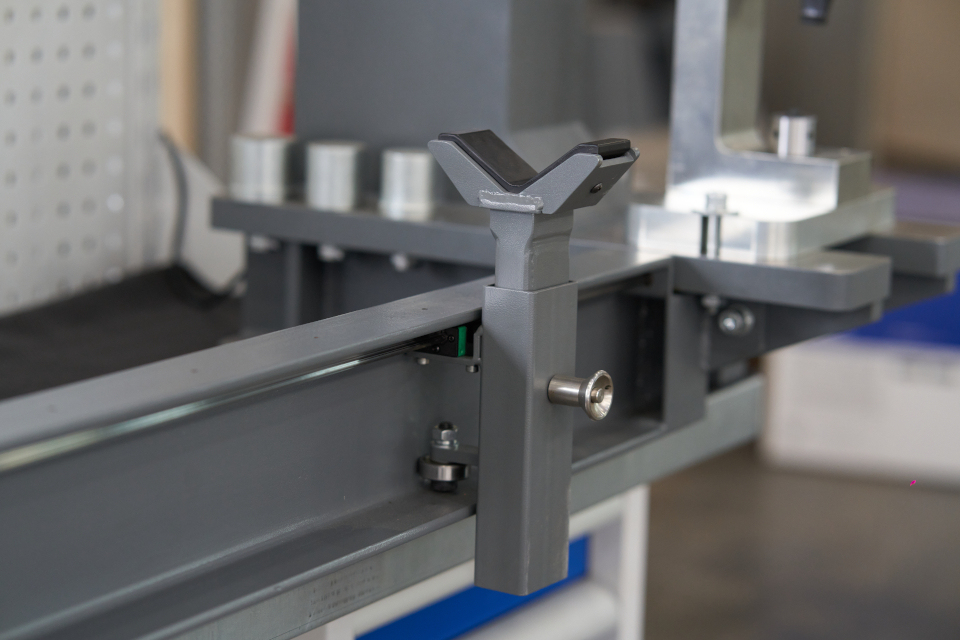

The press can be equipped with a beam to support cardan shafts. The option is indispensable for reliable fixation of the cardan shaft during work

Specifications

Code	PR-6
Type of equipment	Tabletop manual rack press

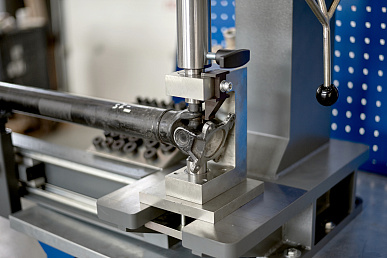

Purpose	Special for assembling joints of any cardan shafts
Power supply	1 phase, 220 V, 50 Hz, 1.5 A, protective grounding is mandatory
Protecting electronics from dust and moisture	IP54

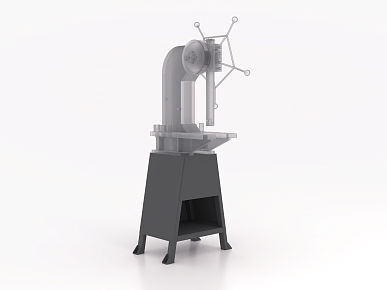

Anchoring to the base or foundation	Screws to a table or a special stand
Structural features of the frame	Housing made of structural steel
Dimensions (L x W x H)	600 x 340 x 940 mm
Equipment weight (net)	210 kg
Climatic performance according to GOST 15150	Operation: UHL 4.2 (temperature from + 10 to + 35 ºC, relative air humidity up to 80%). Storage and transportation: 1L (temperature from + 5 to + 40 ºC, relative air humidity up to 80%)
Warranty period	12 months
Peripheral equipment	No
Maximum height of the installed product	210 mm
Nameplate printing	No
Stroke of the working element of the press	380 mm
Special offer	No
InStock	No
