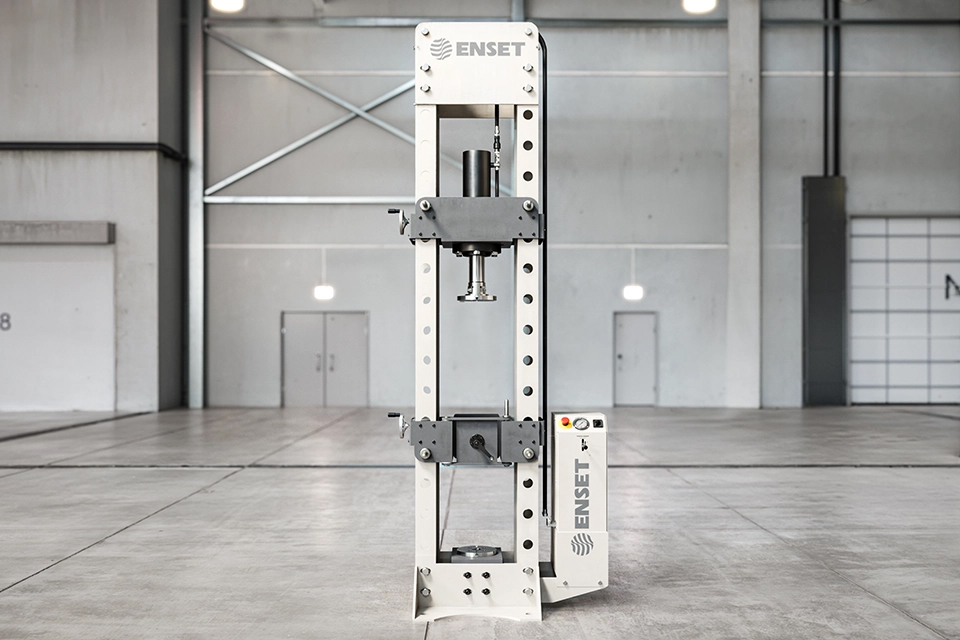

| Code | GOLIATH |

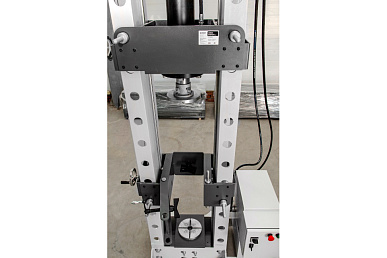

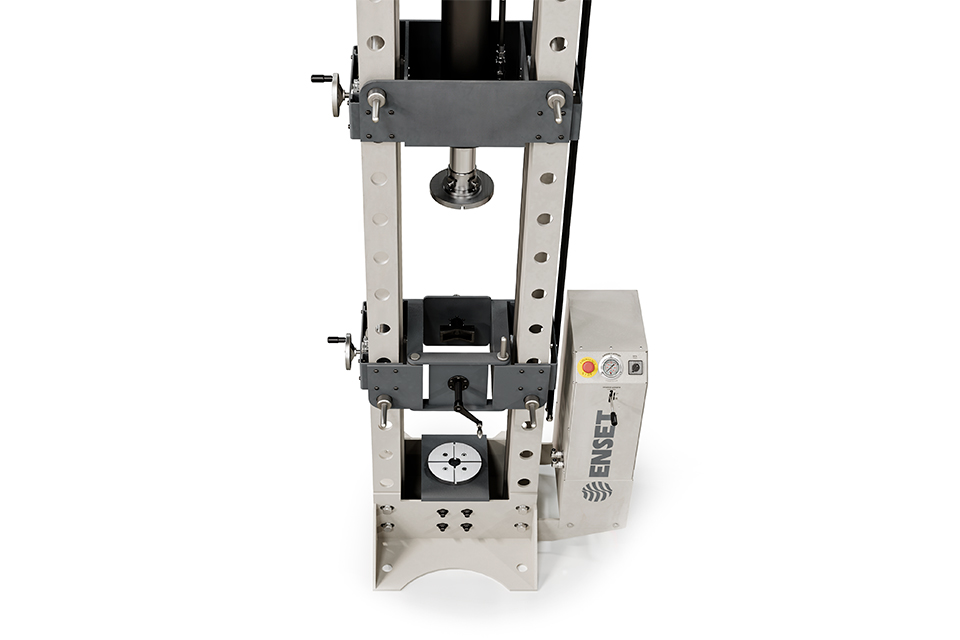

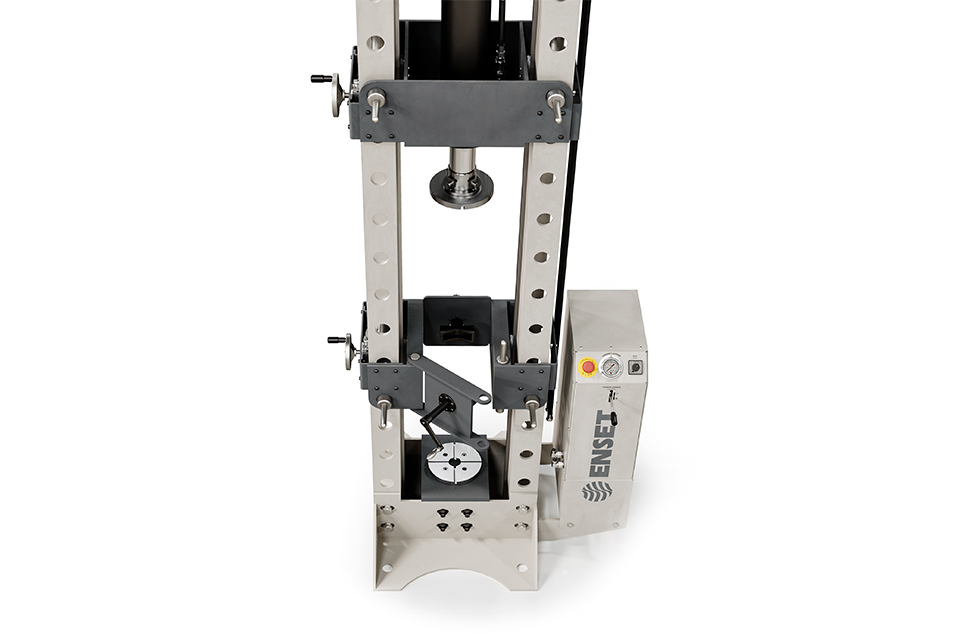

| Type of equipment | Floor hydraulic press |

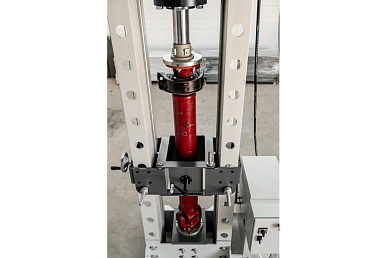

| Purpose | Special for pressing in and out units of any cardan shafts |

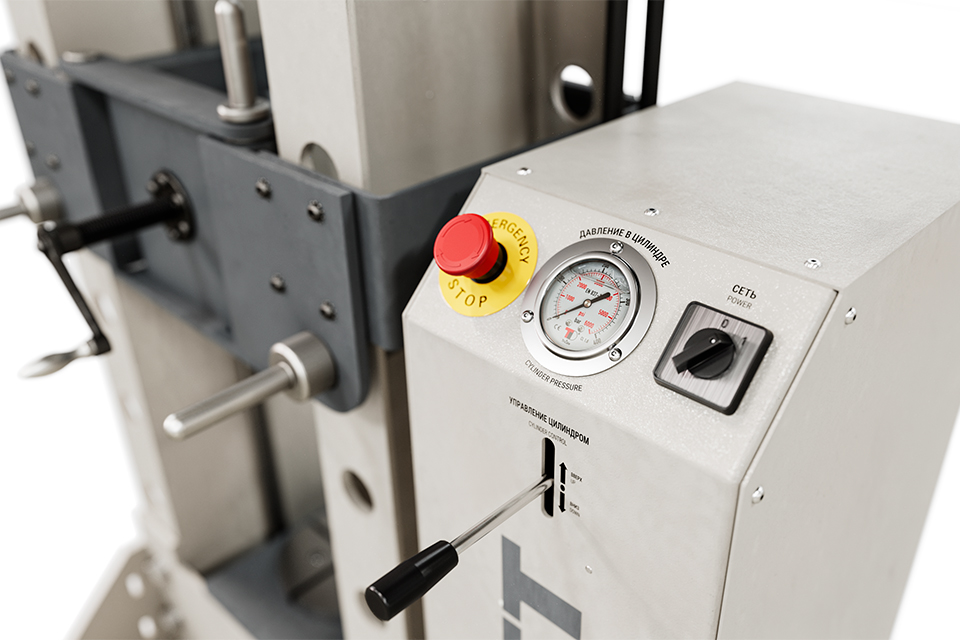

| Control system | Hydraulic proportional distributor |
| Engine type and its characteristics | Asynchronous, 1500 rpm, 2.2 kW |
| Maximum product diameter | 160 mm |
| Power supply | 3 phases, 400 V, 50 Hz, 3 A, protective grounding is mandatory |
| Protecting electronics from dust and moisture | IP54 |
| Anchoring to the base or foundation | Anchoring to any concrete floor |
| Structural features of the frame | Frame made of structural steel |
| Dimensions (L x W x H) | 1070 х 800 х 2860 mm |
| Equipment weight (net) | 670 kg |
| Climatic performance according to GOST 15150 | Operation: UHL 4.2 (temperature from + 10 to + 35 ºC, relative air humidity up to 80%). Storage and transportation: 1L (temperature from + 5 to + 40 ºC, relative air humidity up to 80%) |
| Maximum height of the installed product | 1800 mm |
| Volume of the hydraulic tank | 18 l |
| Warranty period | 12 months |
| Maximum press force | 300 kN (30 t) |
