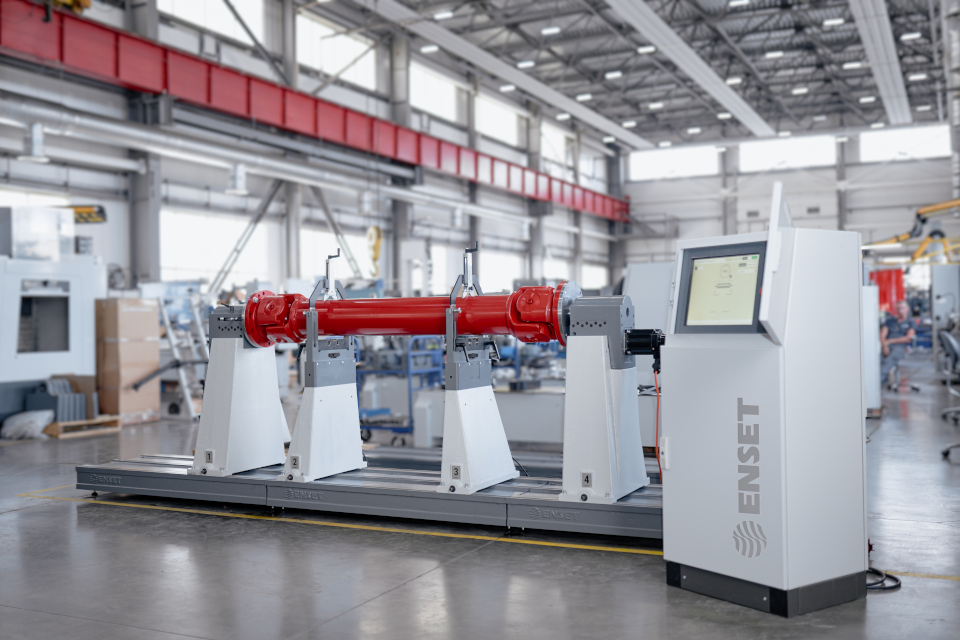

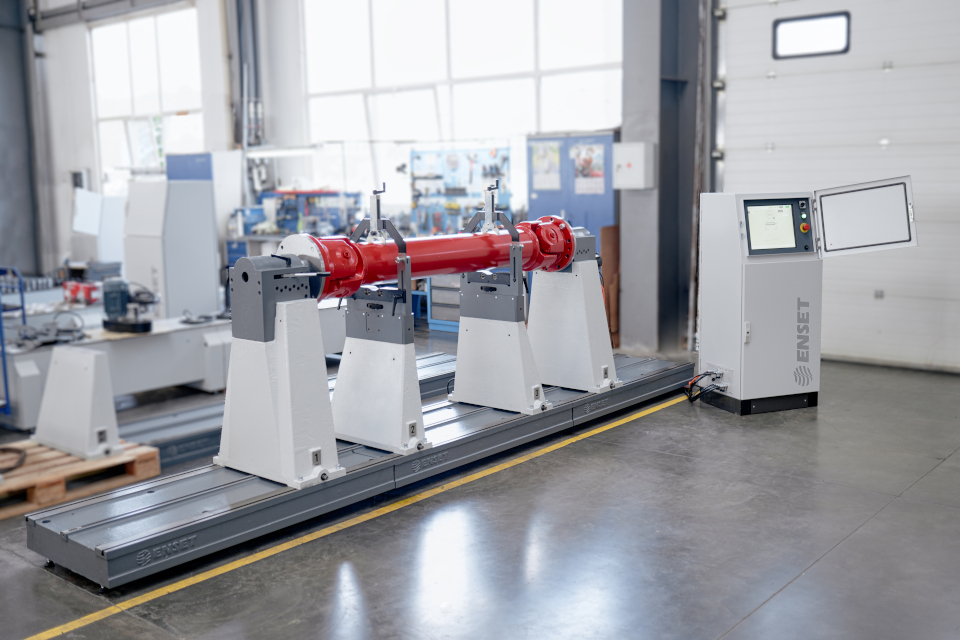

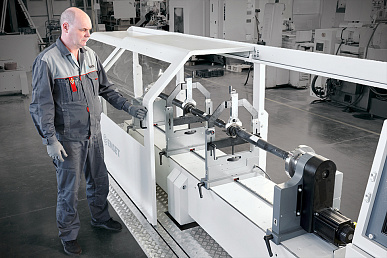

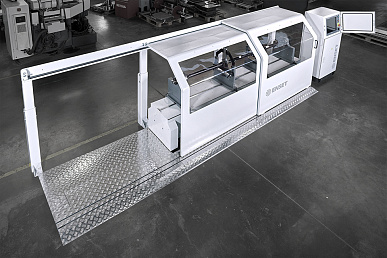

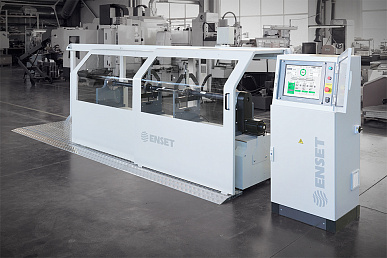

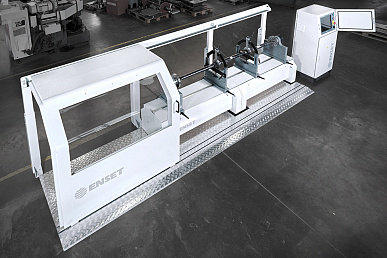

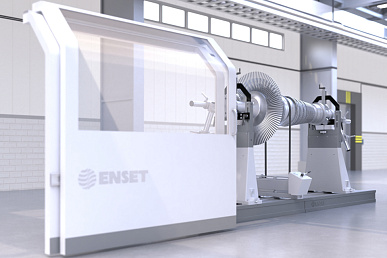

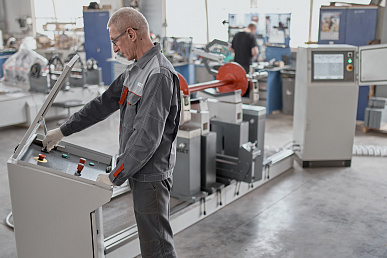

BALTRON-300.D Balancing machine for cardan shafts-300
Type of equipment
Horizontal pre-resonance balancing machine
Purpose
Universal, for cardan shafts and rotors
Control system
Vibration balancing measuring system VIBROLAB, with color touch display

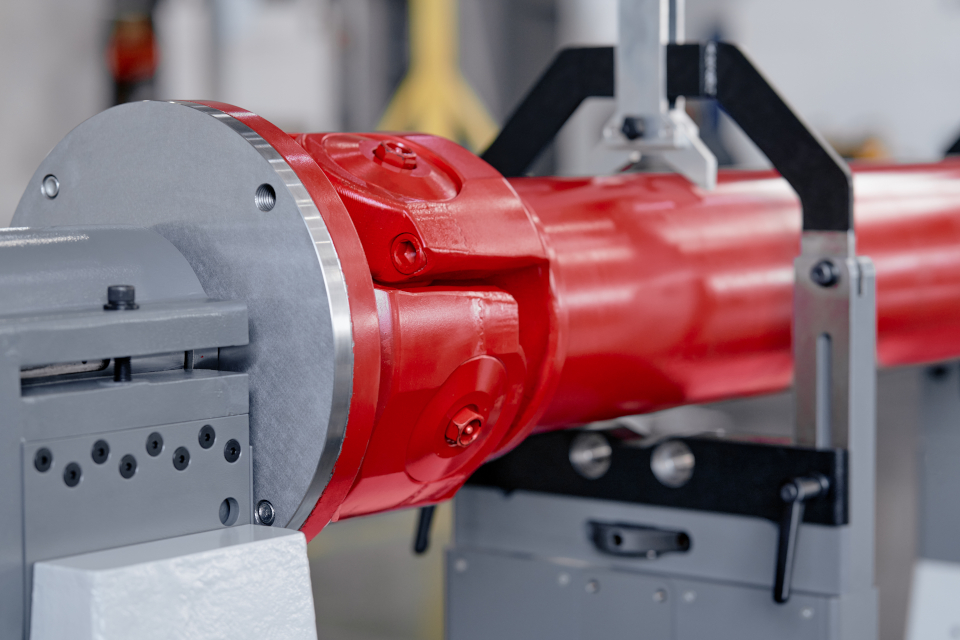

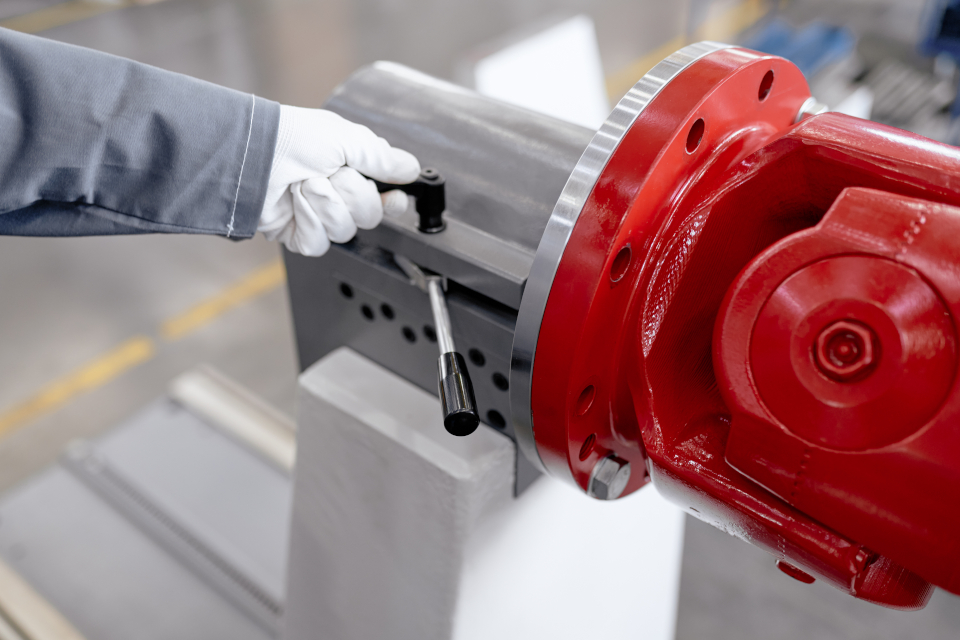

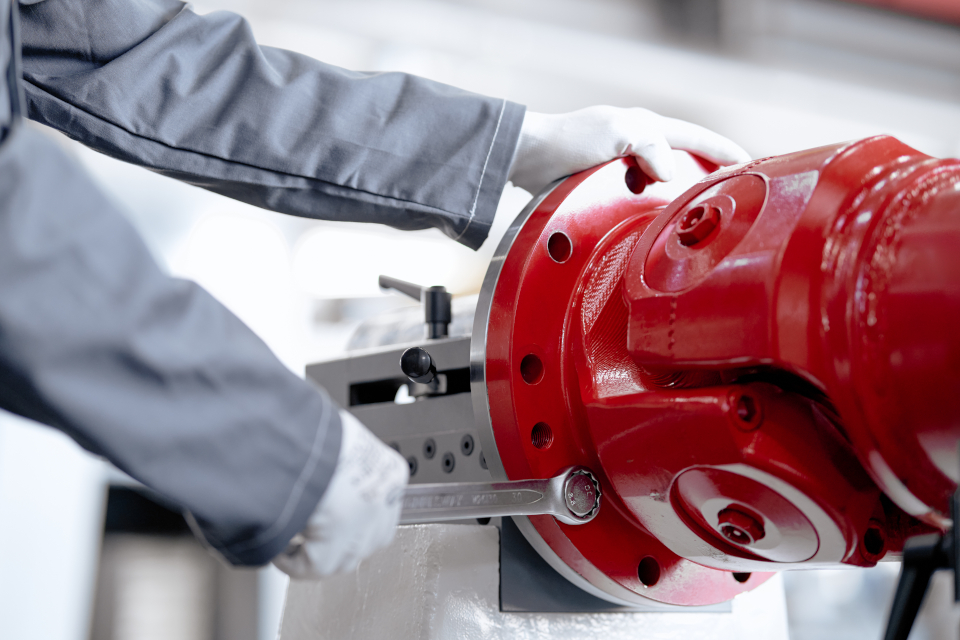

Rotor type drive
Axial, drive spindle
Engine type and its characteristics
Servo motor, 6000 rpm, 5.5 kW

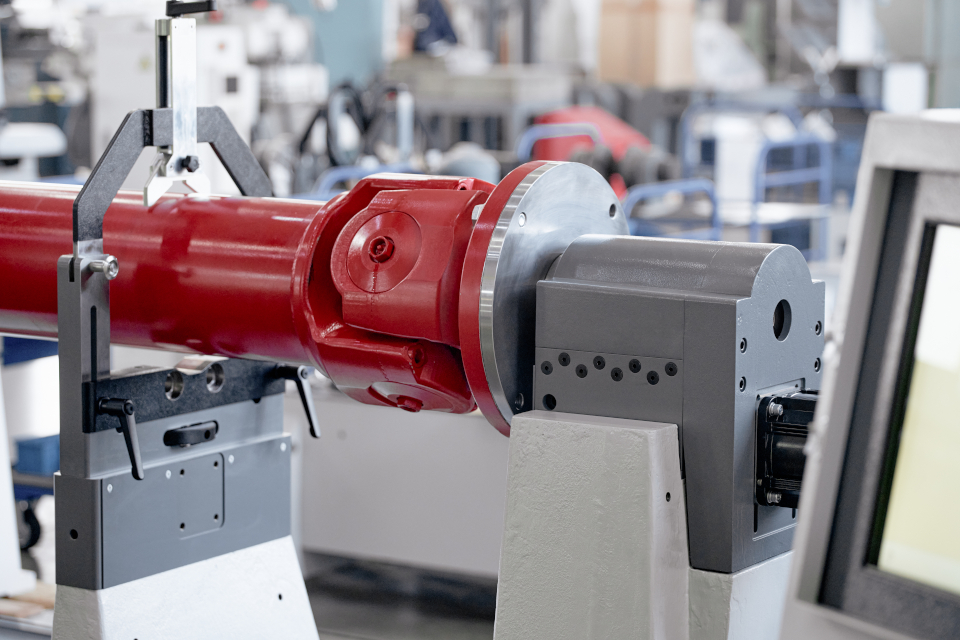

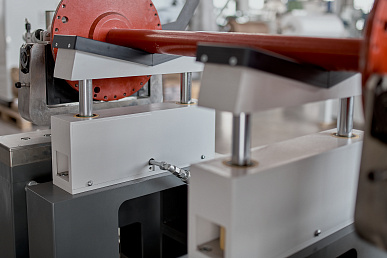

Number and type of supports
4 supports: 2 spindle, 2 height adjustable
Maximum load on 1 support
1000 kg
Maximum product diameter
1800 mm
Product length
275 – 2370 mm (along spindle planes)

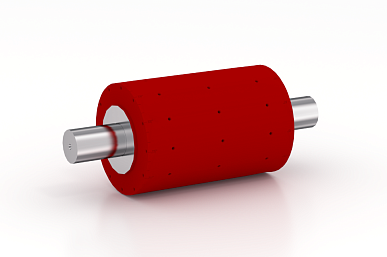

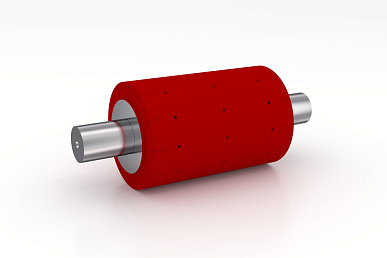

Minimum achievable residual specific imbalance emar
0.05 gmm/kg
URR Unbalance reduction ratio
95 %
Rotation frequency of the product during balancing n
up to 6000 rpm
Accuracy of measuring the rotation frequency of the product
± (1+0,0025·n)
Accuracy of measuring the angular position of the product
± 0,01º
Power supply
3 phases, 380 V, 50 Hz, 16 A, protective grounding is mandatory

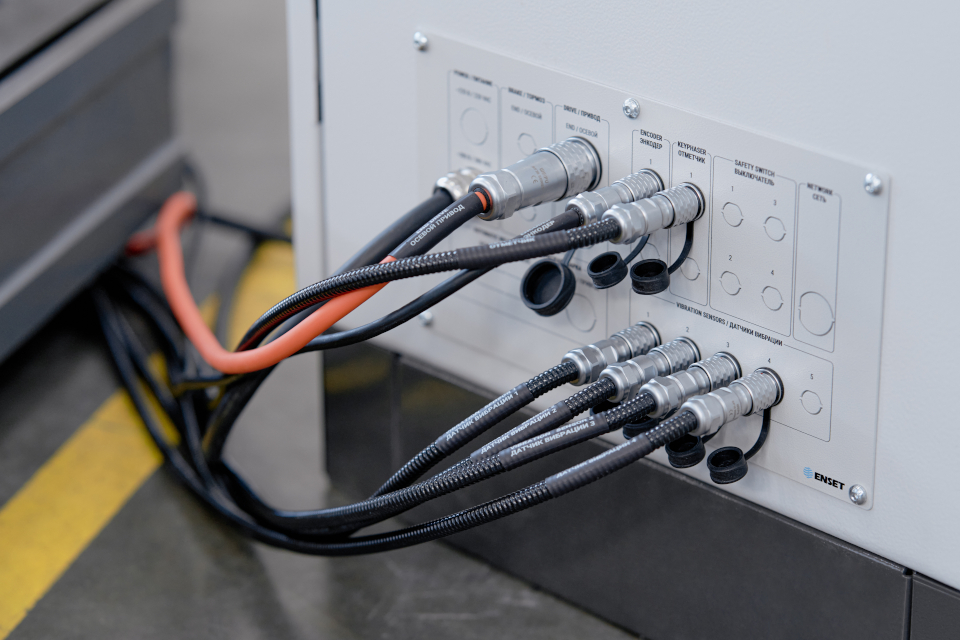

Vibration sensors
Piezoelectric force sensors
Number of vibration measurement channels
4
Type of speed and phase sensor
Incremental encoder
Angular position sensor of the product
Incremental encoder
Protecting electronics from dust and moisture
IP54
Anchoring to the base or foundation
Anchoring to a concrete floor at least 100 mm thick
Structural features of the frame
High-strength cast iron frame with T-slots and sliding guides
Length of frame section
1500 mm
Dimensions (L x W x H)
3300 × 650 × 1485 mm
Equipment weight (net)
1496 kg
Climatic performance according to GOST 15150
Operation: UHL 4.2 (temperature from + 10 to + 35 ºC, relative air humidity up to 80%). Storage and transportation: 1L (temperature from + 5 to + 40 ºC, relative air humidity up to 80%)
Warranty period
60 months
Electric cabinet dimensions (L x W x H)
600 х 500 х 1400 mm
Holding the product in the adjustment position
Yes
Turning the product to the correction position
Auto
HIGH ACCURACY
EMAR - 0.05 gmm/kg
POWERFUL SERVO DRIVE Balancing at speeds up to 15,000 min-1 thanks to a powerful servo drive (5.5 kW). Increase in machine productivity by 2 - 5 times, compared to machines with an asynchronous drive.

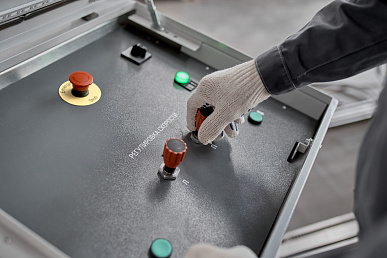

SOFTWARE
VIBROLAB Measuring system. Developed and manufactured by ENSET and registered in the State Register of Measuring Instruments under № 84333-22. The system can be supplied with primary verification. It has a simple and intuitive, fully touchscreen operator interface that eliminates errors. The system stores a product database and a full history of each balancing. If necessary, it prints out the balancing protocol, transfers it to a USB drive or transmits it over the network. The system is absolutely reliable. Protected from failures, malware, network attacks, external interference and unskilled actions. Ready for Industry 4.0 – compatible with SCADA, MES and ERP systems.

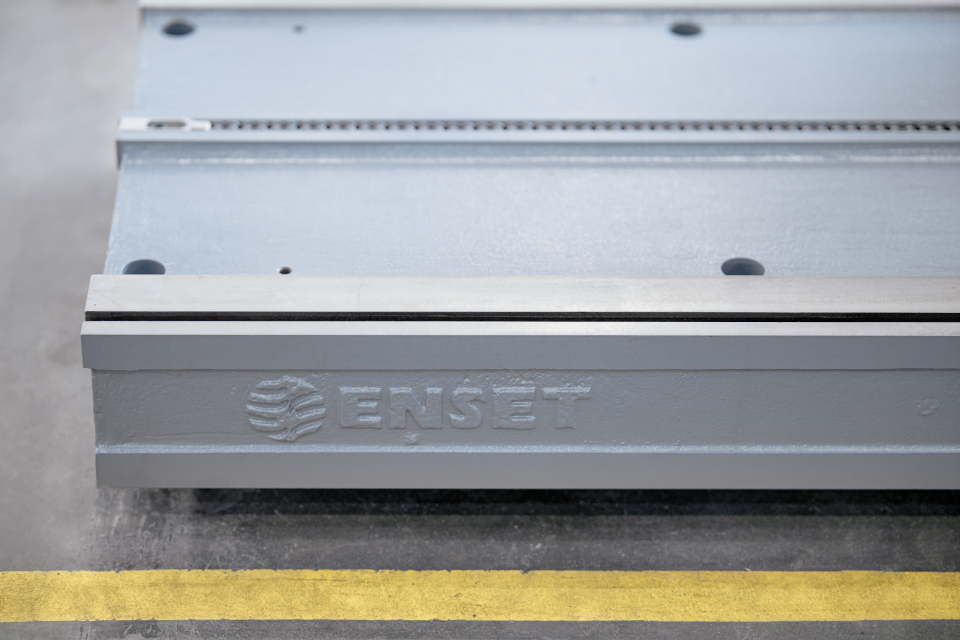

MODULAR CAST IRON FRAME Massive cast high-strength iron frame with sliding guide system and maximum rigidity. The modular frame consists of 1.5 m sections and allows you to assemble the machine of any desired length. No special foundation is required to install the machine.
The machine is suitable for balancing machine and mechanism shafts, crushers, cardan shafts, heavy and super-heavy series industrial cardan shafts, and agricultural machinery rotors.
