Code |
Picasso |
Type of equipment |

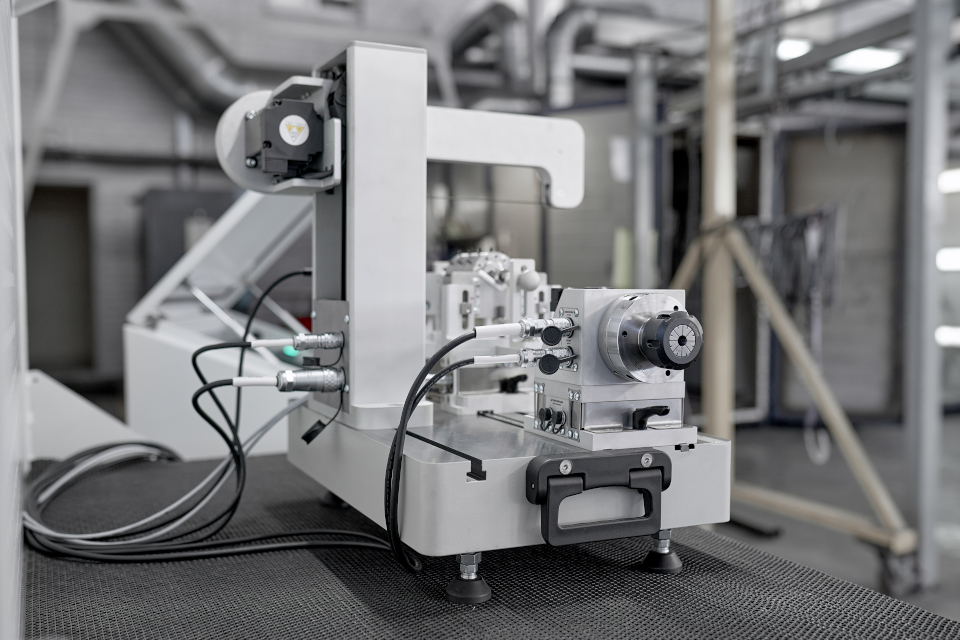

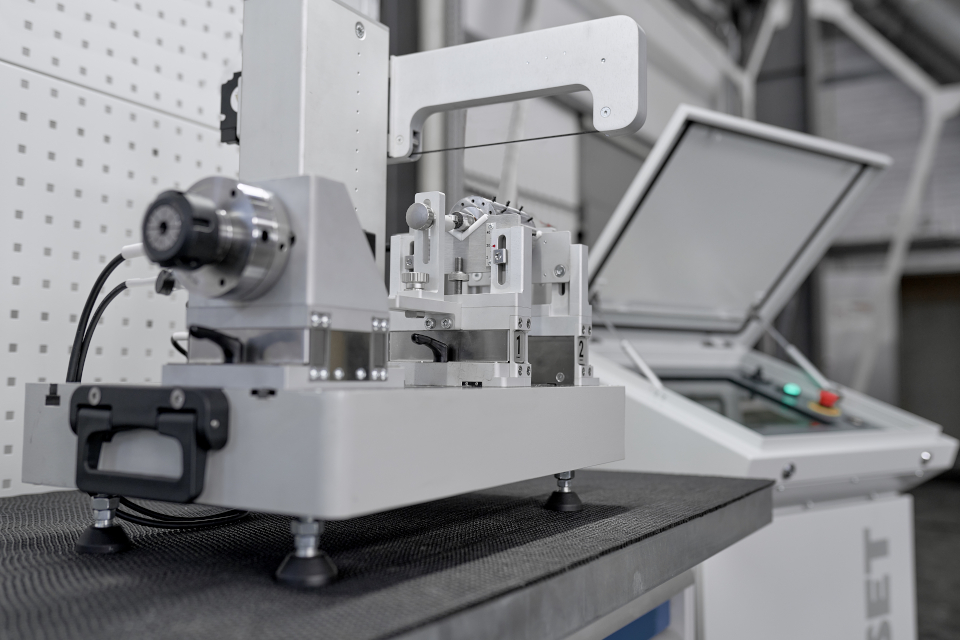

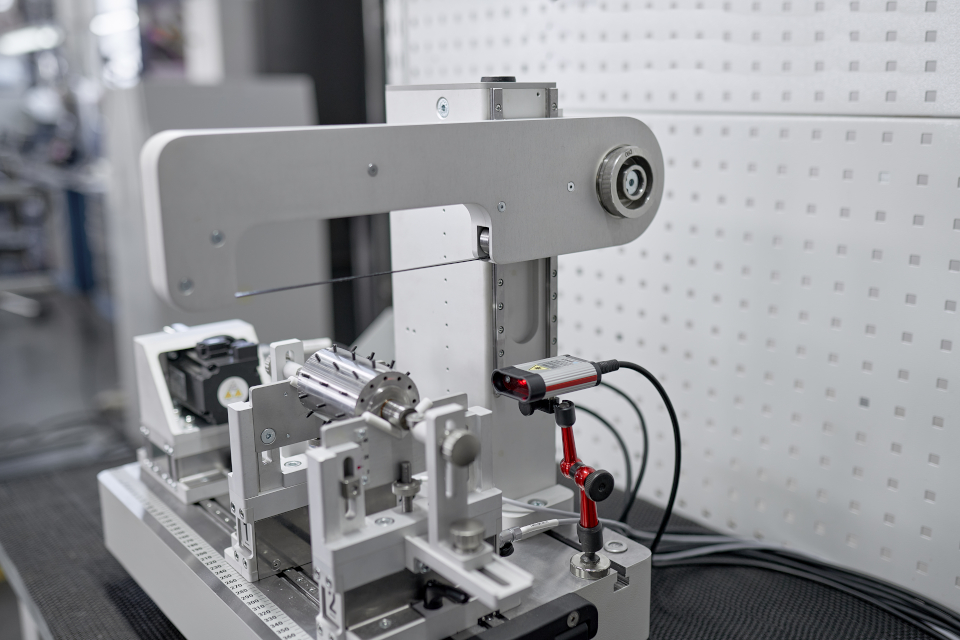

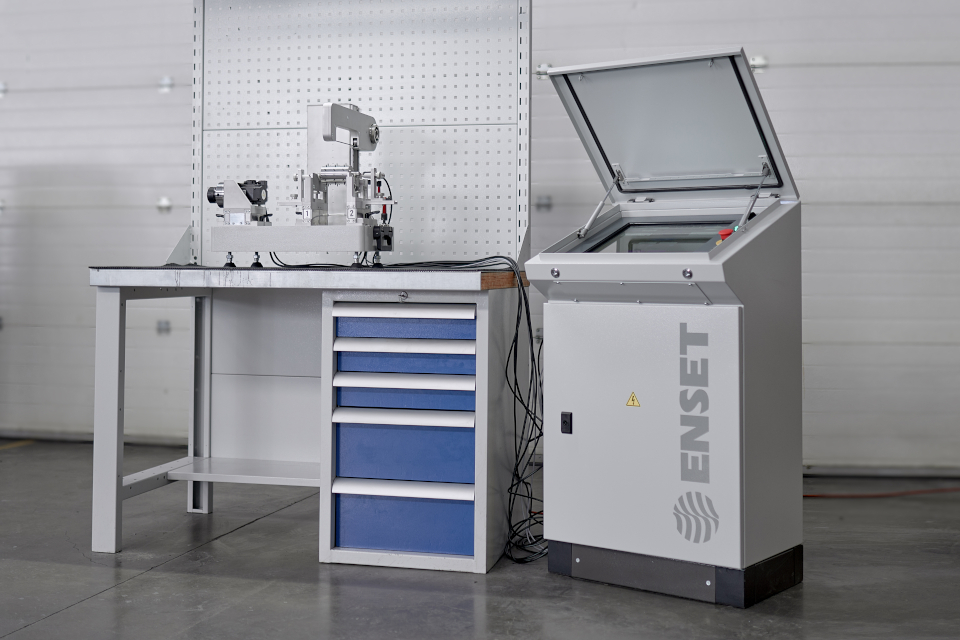

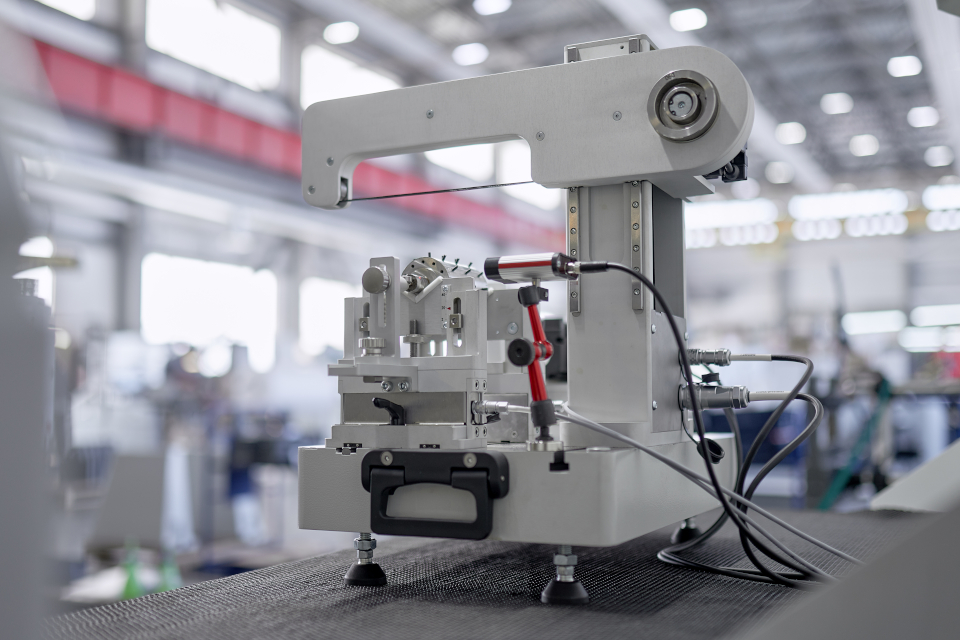

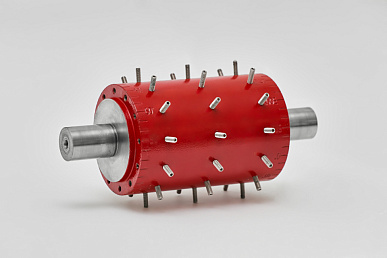

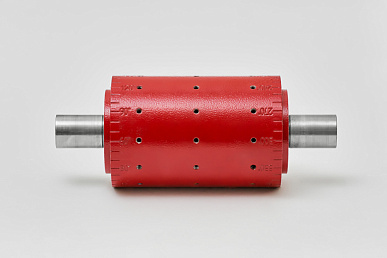

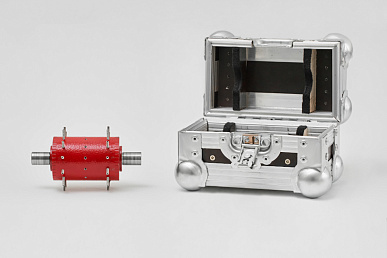

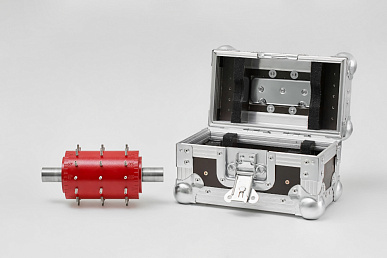

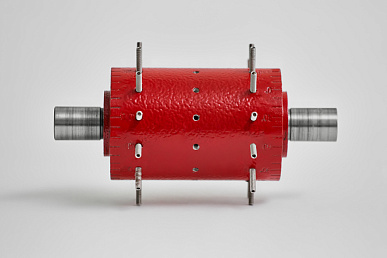

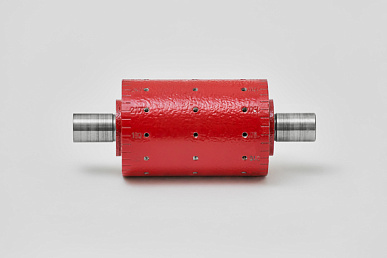

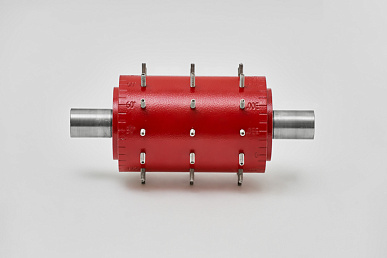

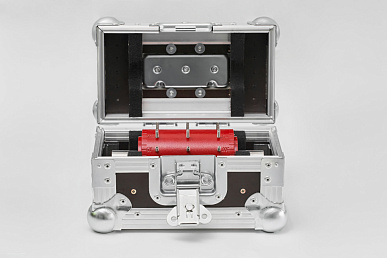

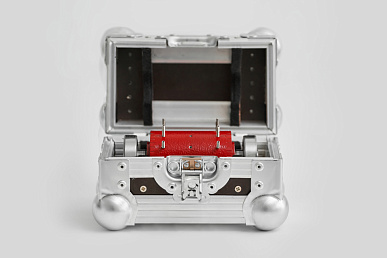

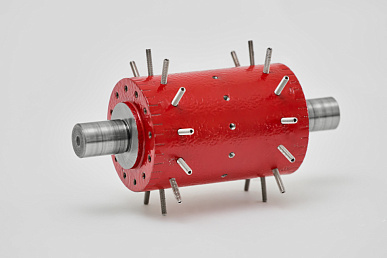

Horizontal hard-bearing balancing machine in antimagnetic design |
Purpose |
For dynamic balancing of rotors with two bearing surfaces |
Control system |
Vibration balancing measuring system VIBROLAB with color touch display 17 inches |

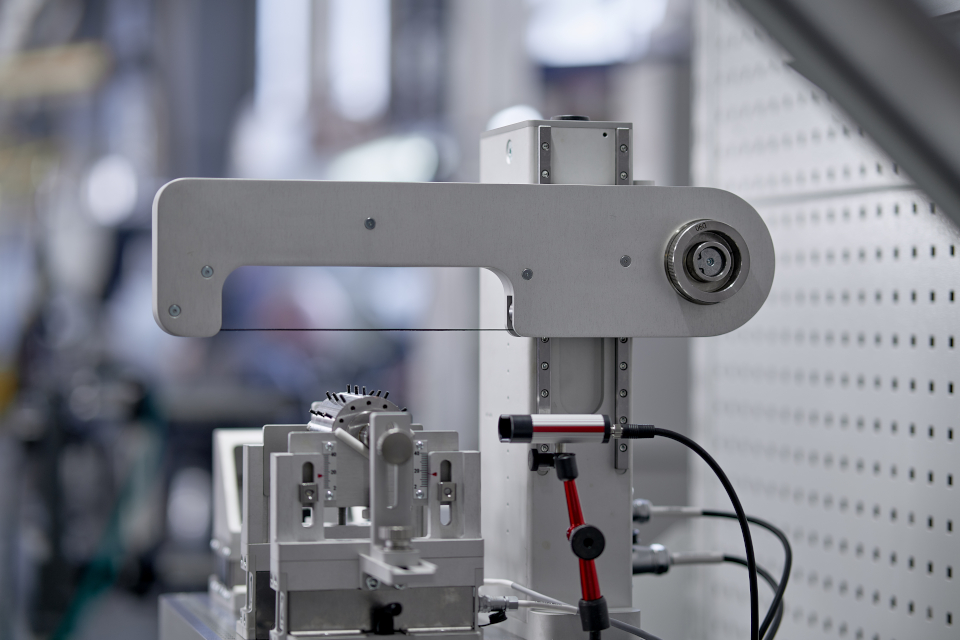

Belt tension |
Gravitational |
Engine type and its characteristics |
Servo motor, 6000 rpm, 0.4 kW |
Number and type of supports |
2 supports, adjustable in height |
Rotor weight |
0.01 – 5.0 kg |
Maximum load on 1 support |
3 kg |
Maximum product diameter |
240 mm |
Maximum diameter of the product above the belt drive |
120 mm |
Product length |
5 – 475 mm, between the centers of the support journals |
URR Unbalance reduction ratio |
95 % |
Rotation frequency of the product during balancing n |
100 – 30000 rpm |
Accuracy of measuring the rotation frequency of the product |
± (1+0,0025·n) |
Accuracy of measuring the angular position of the product |
± 0,01º |
Power supply |
1 phase, 230 V, 50 Hz, 6 A, protective grounding is mandatory |
Turning the product to the correction position |
Auto |
Holding the product in the adjustment position |
Yes |
Vibration sensors |
Piezoelectric force sensors |
Number of vibration measurement channels |
2 |
Angular position sensor of the product |
Incremental encoder |
Protecting electronics from dust and moisture |
IP54 |
Anchoring to the base or foundation |
Tabletop design |
Structural features of the frame |
Duralumin alloy bed with T-slots and linear rolling rails |
Dimensions (L x W x H) |
530 x 430 x 490 mm |

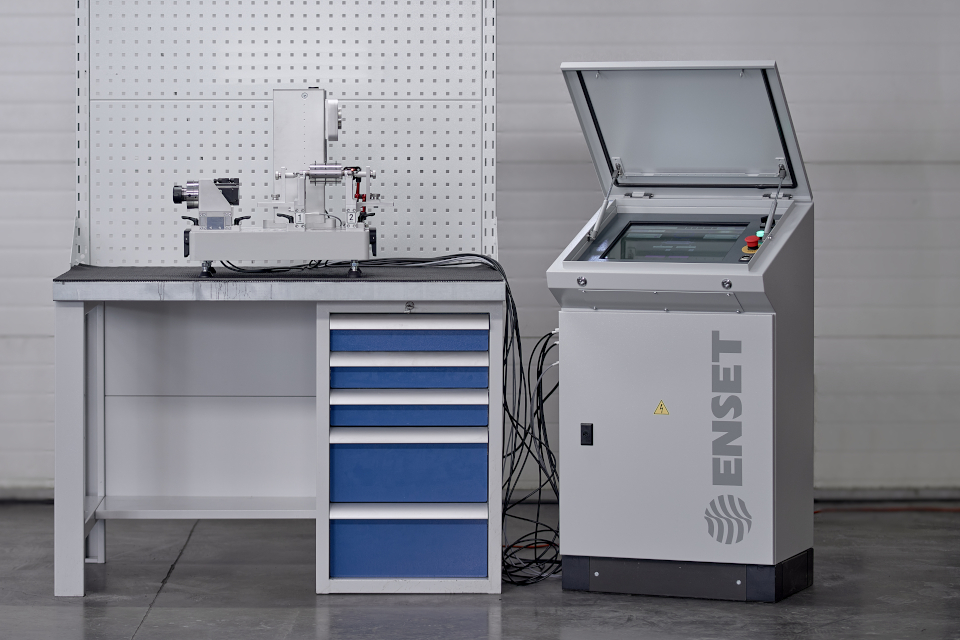

Electric cabinet dimensions (L x W x H) |
600 х 500 х 1100 mm |
Equipment weight (net) |
180 kg |
Climatic performance according to GOST 15150 |
Operation: UHL 4.2 (temperature from + 10 to + 35 ºC, relative air humidity up to 80%). Storage and transportation: 1L (temperature from + 5 to + 40 ºC, relative air humidity up to 80%) |
Warranty period |
24 months |
Drive type |
Belt |
Minimum achievable residual specific imbalance |
0.01 gmm/kg |
Type of speed sensor |

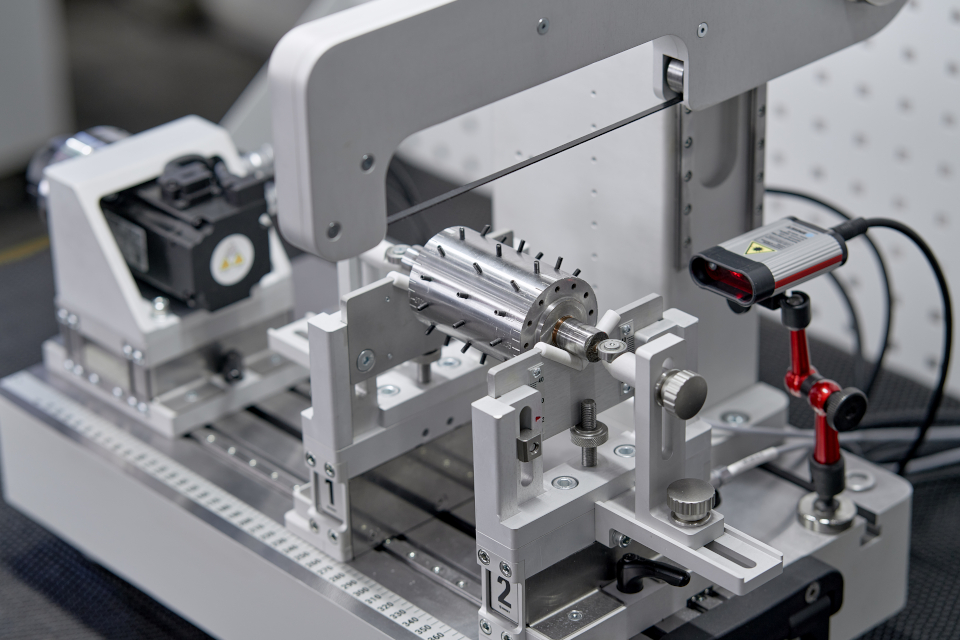

Laser marker |
Diameter of trunnions of the balanced product |
2 – 70 mm |
|
|
|
|
