| Code | АМШС.75885583 |
| Model | 005.B |

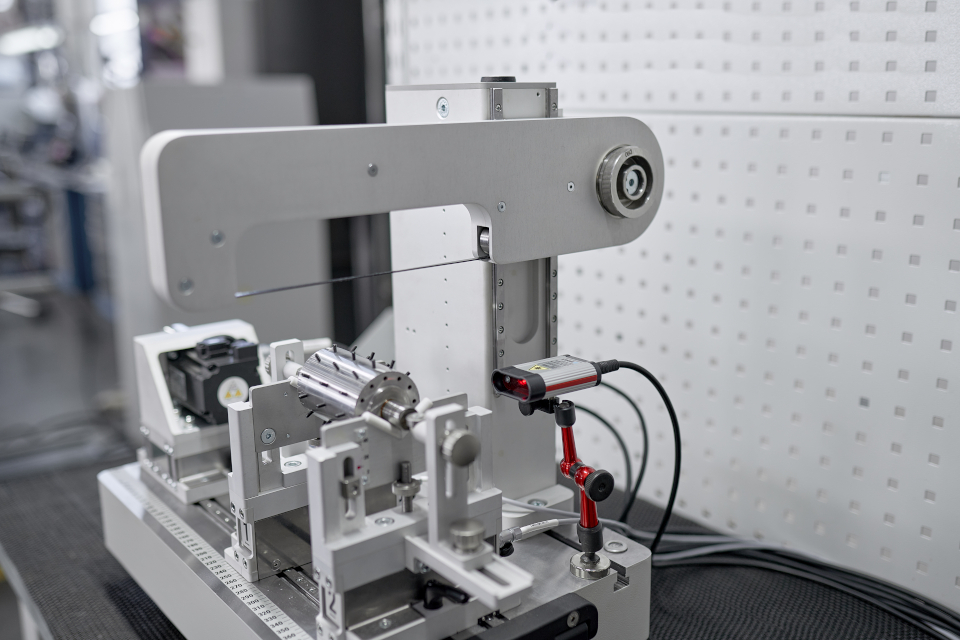

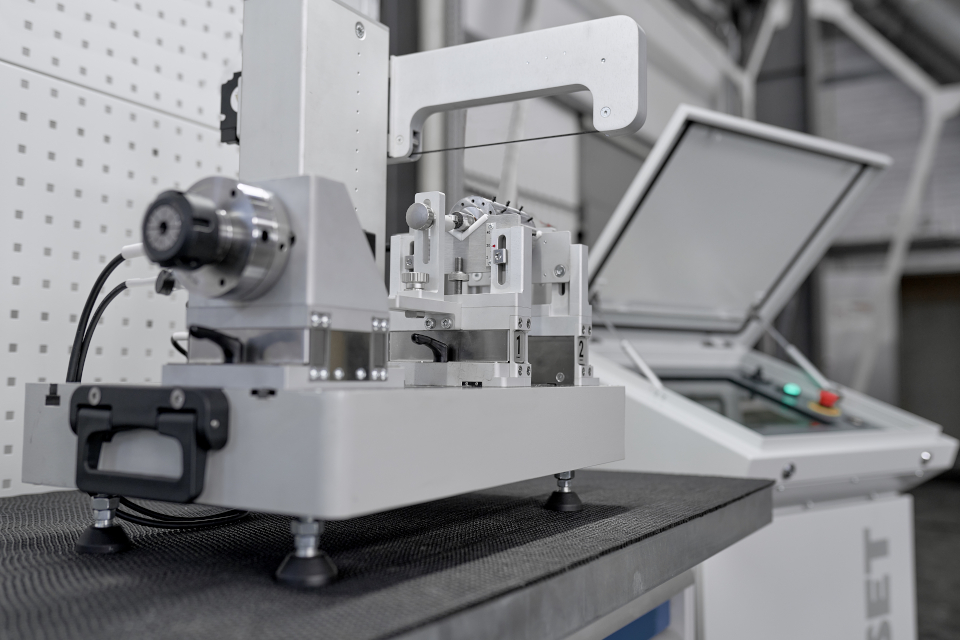

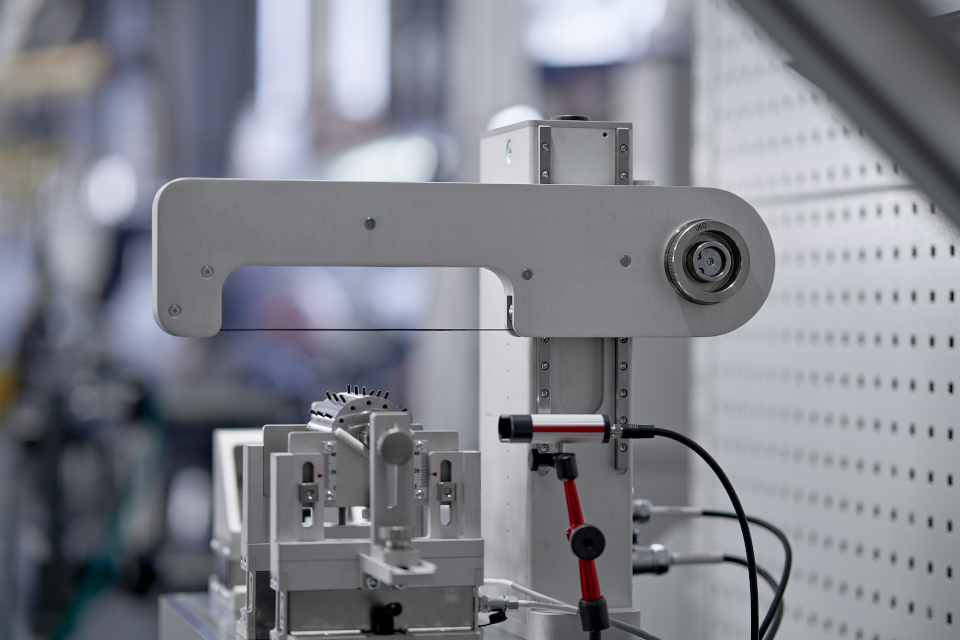

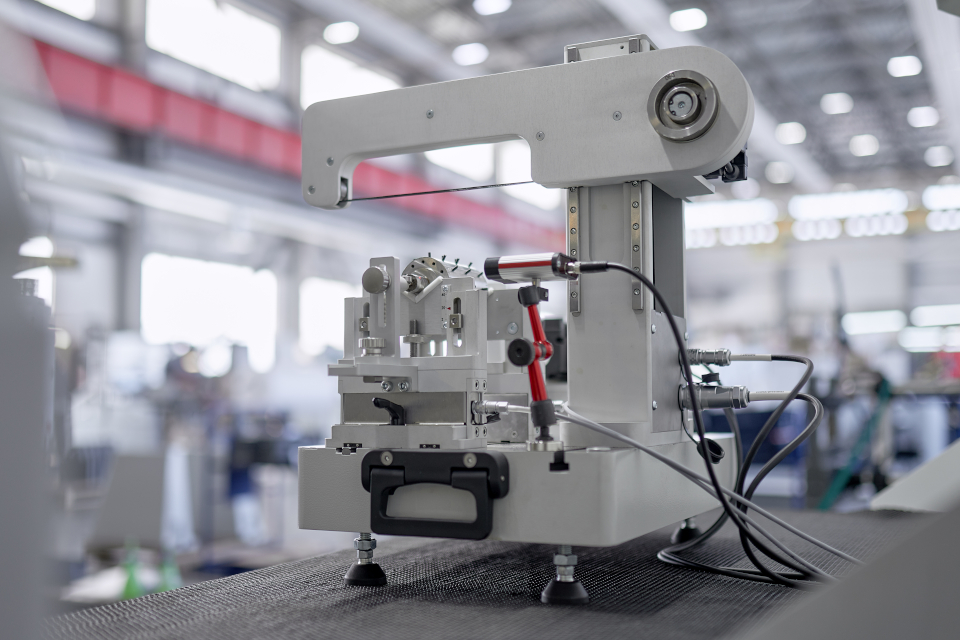

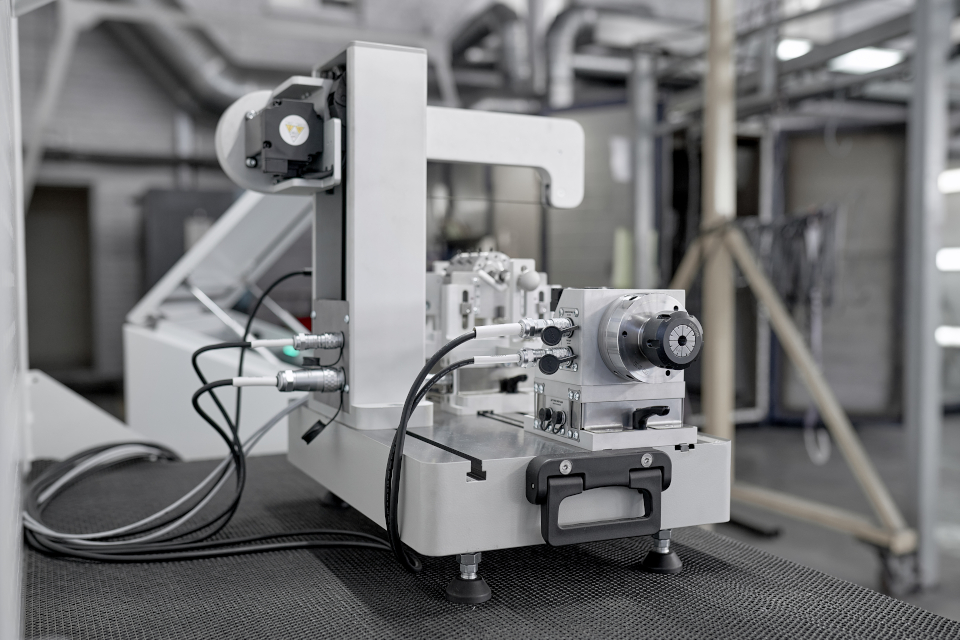

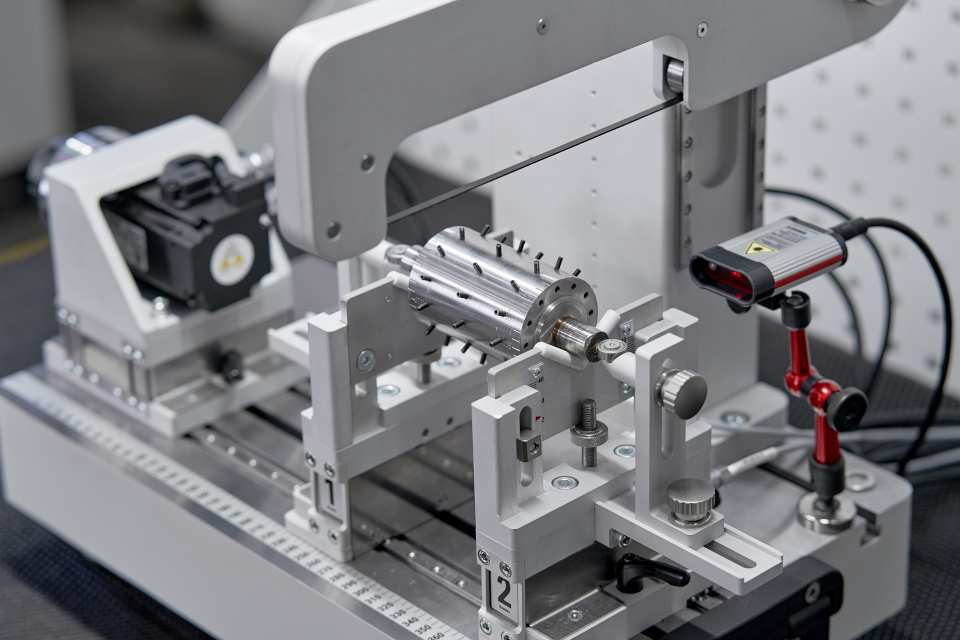

| Type of equipment | Horizontal hard-bearing balancing machine in antimagnetic design |
| Purpose | For dynamic balancing of rotors with two bearing surfaces |

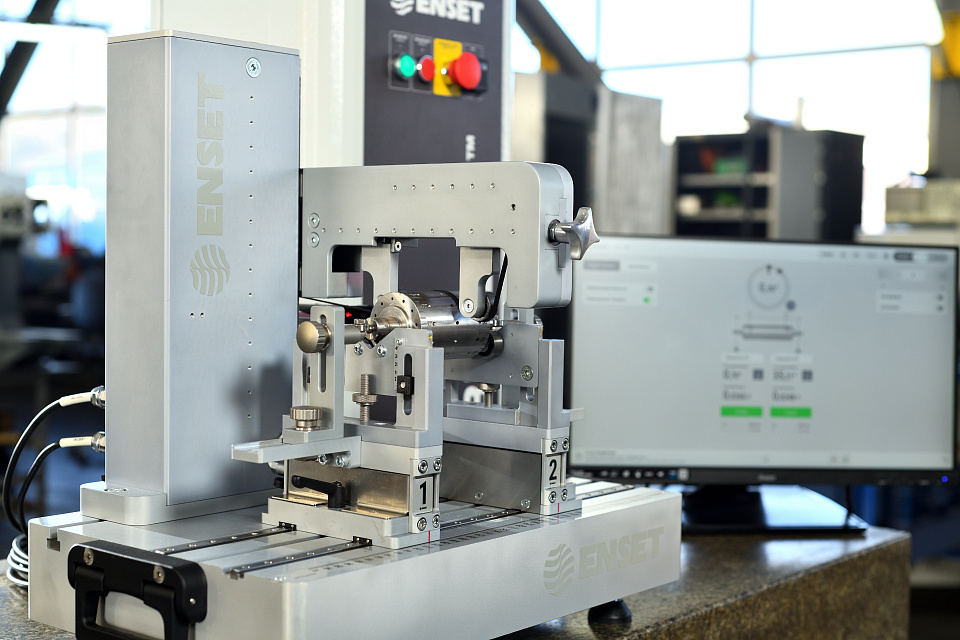

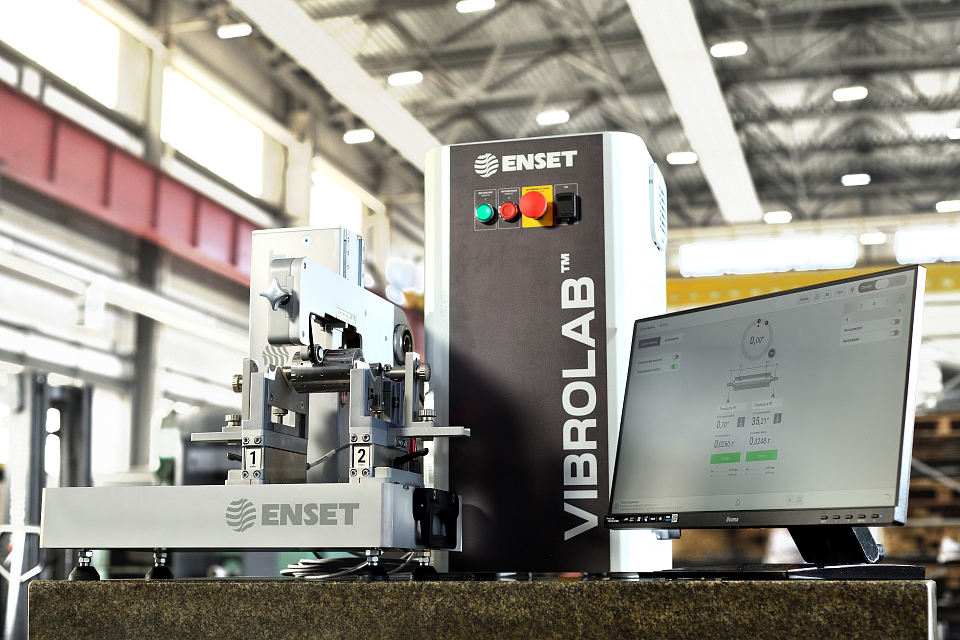

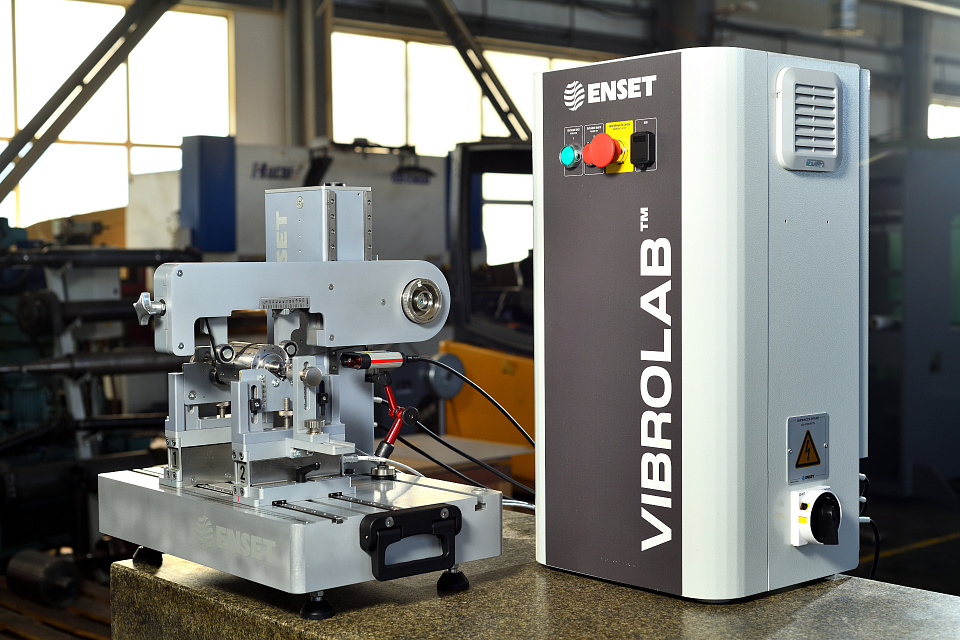

| Control system | Vibration balancing measuring system VIBROLAB with color touch display 17 inches |
| Belt tension | Gravitational |

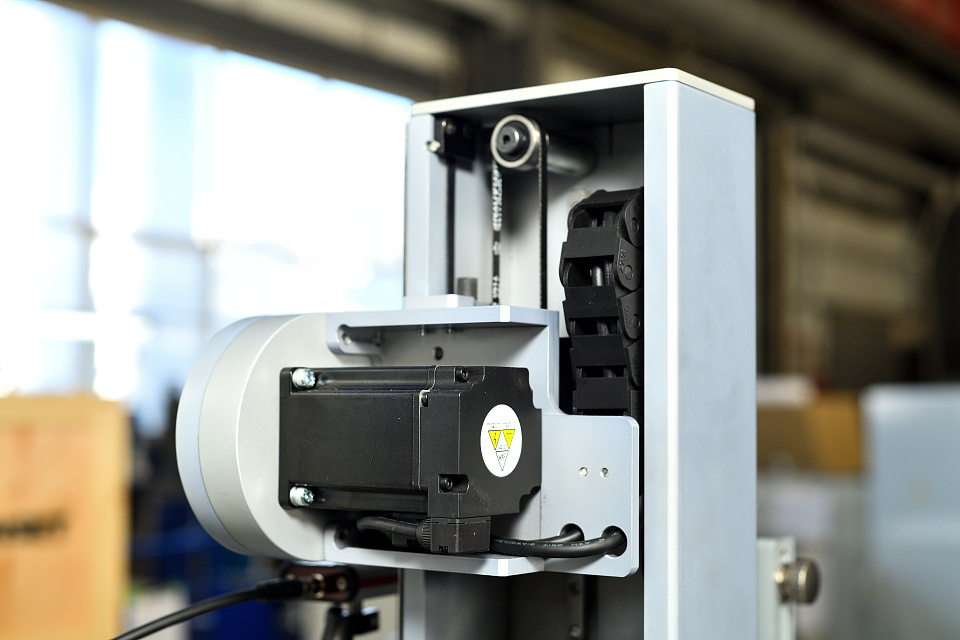

| Engine type and its characteristics | Servo motor, 6000 rpm, 0.4 kW |
| Number and type of supports | 2 supports, adjustable in height |
| Rotor weight | 0.5 g – 50 g |
| Maximum load on 1 support | 0.03 kg |
| Maximum product diameter | 240 mm |
| Maximum diameter of the product above the belt drive | 120 mm |
| Product length | 5 – 475 mm, between the centers of the support journals |
| URR Unbalance reduction ratio | 95 % |
| Rotation frequency of the product during balancing n | 100 – 30000 rpm |
| Accuracy of measuring the rotation frequency of the product | ± (1+0,0025·n) |
| Accuracy of measuring the angular position of the product | ± 0,01º |
| Power supply | 1 phase, 230 V, 50 Hz, 6 A, protective grounding is mandatory |
| Turning the product to the correction position | Auto |
| Holding the product in the adjustment position | Yes |
| Vibration sensors | Piezoelectric force sensors |
| Number of vibration measurement channels | 2 |
| Angular position sensor of the product | Incremental encoder |
| Protecting electronics from dust and moisture | IP54 |
| Anchoring to the base or foundation | Tabletop design |
| Structural features of the frame | Duralumin alloy bed with T-slots and linear rolling rails |
| Dimensions (L x W x H) | 530 х 460 х 490 mm |

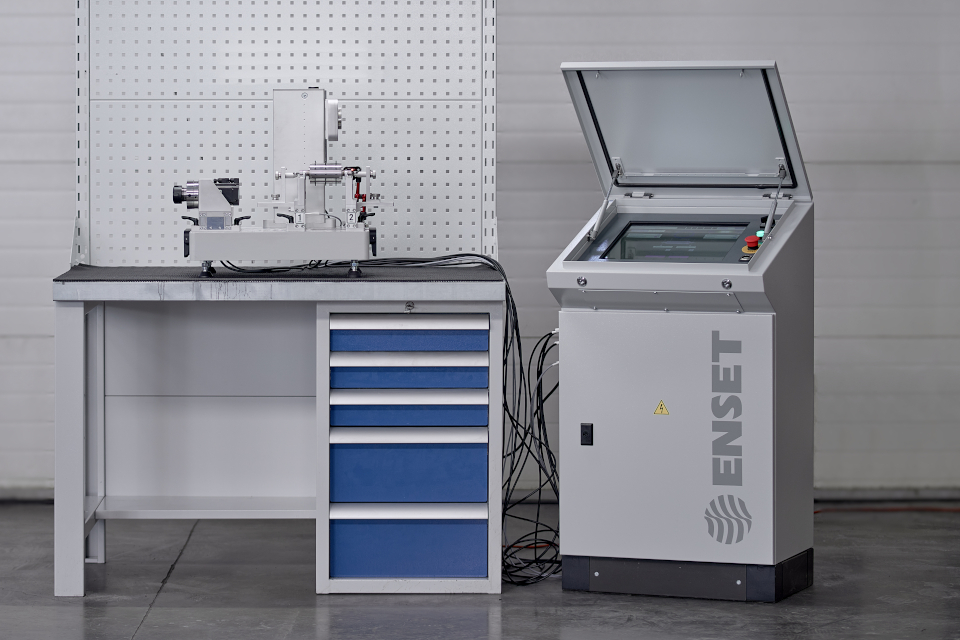

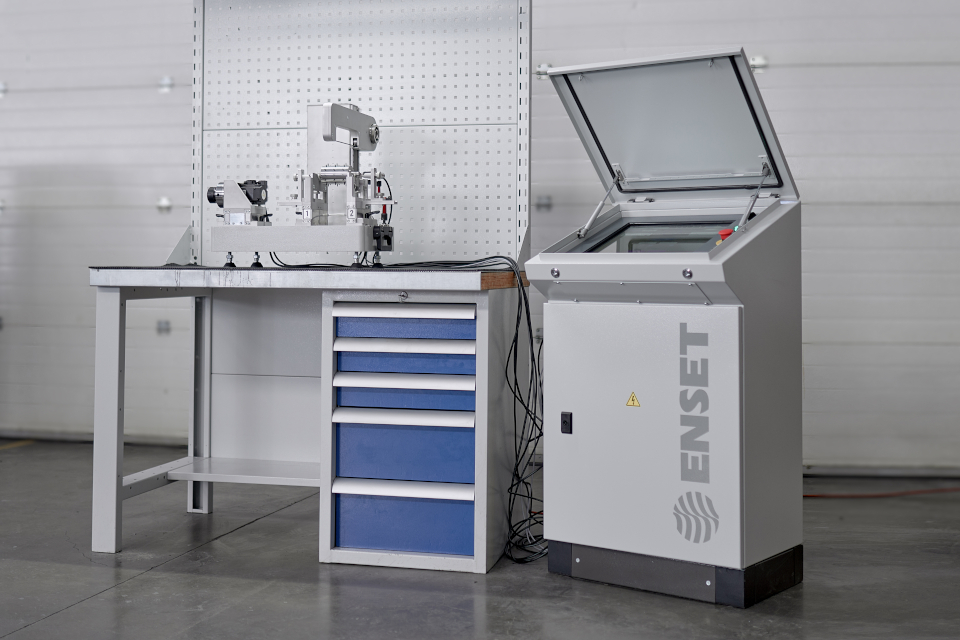

| Electric cabinet dimensions (L x W x H) | 600 х 500 х 1100 mm |
| Equipment weight (net) | 50 kg |
| Climatic performance according to GOST 15150 | Operation: UHL 4.2 (temperature from + 10 to + 35 ºC, relative air humidity up to 80%). Storage and transportation: 1L (temperature from + 5 to + 40 ºC, relative air humidity up to 80%) |
| Warranty period | 24 months |
| Diameter of trunnions of the balanced product | 2 – 70 mm |
| Minimum achievable residual specific imbalance | 0.2 gmm/kg |
| Drive type | Belt |
| Type of speed sensor | Laser marker |
