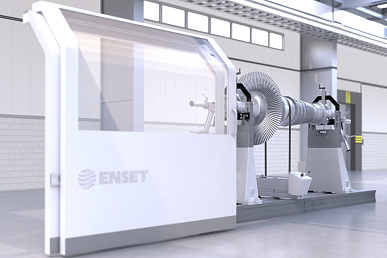

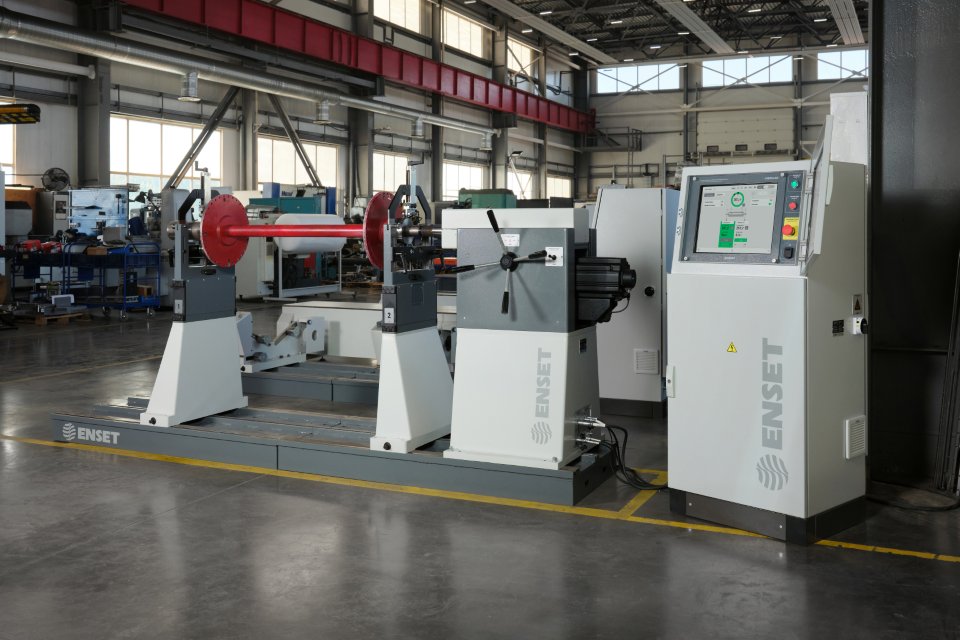

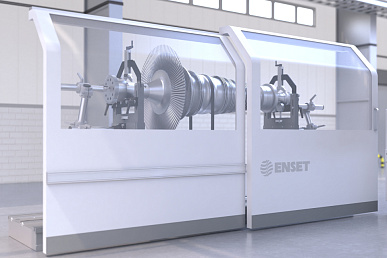

BALTRON-E balancing machine for turbines

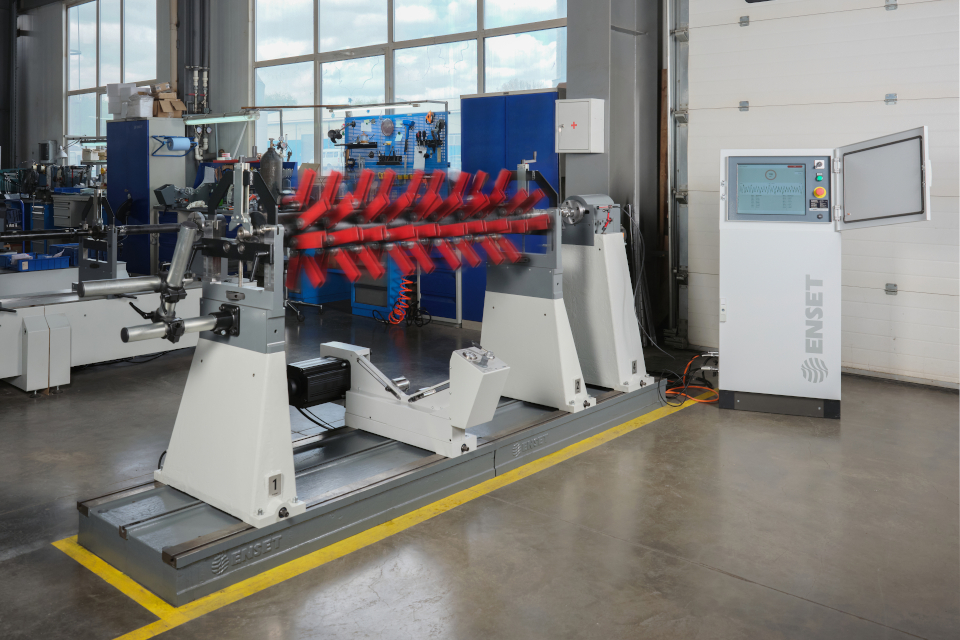

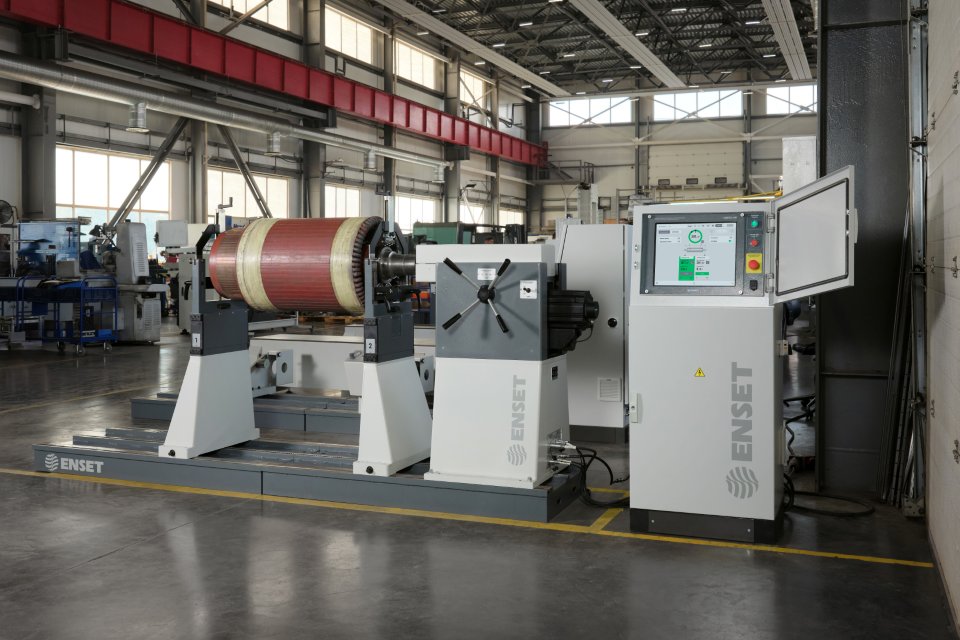

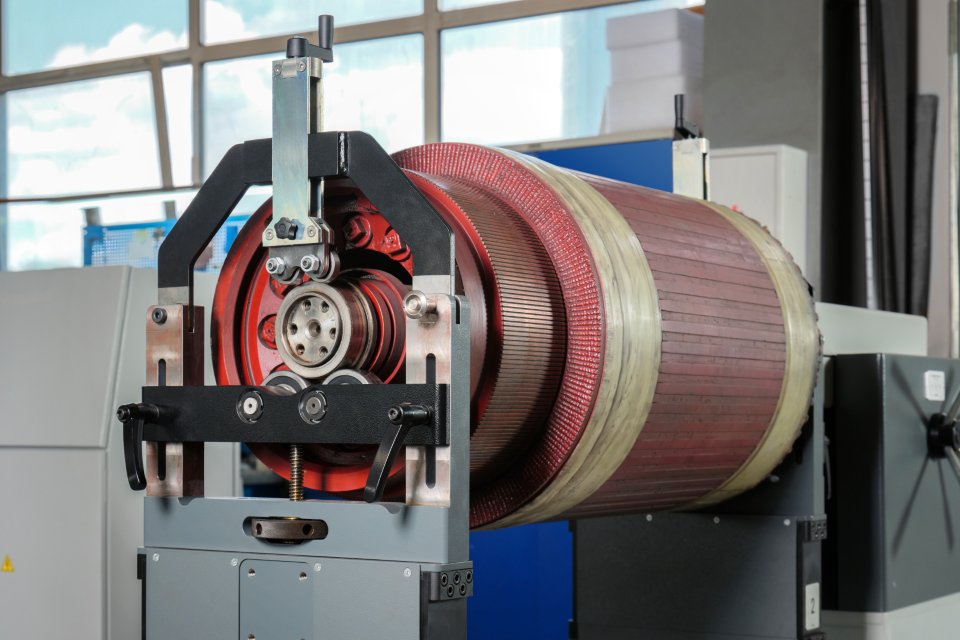

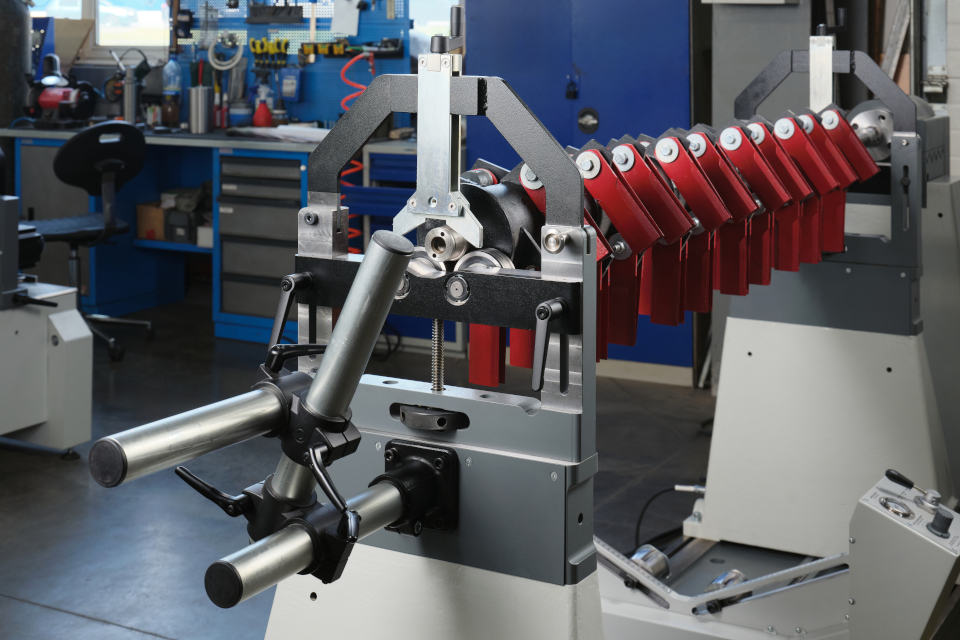

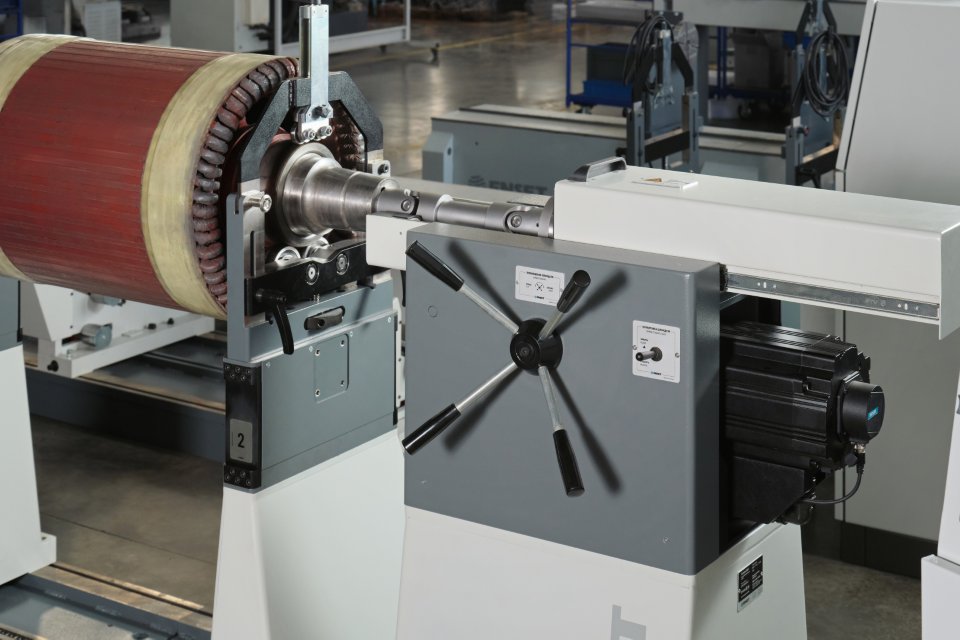

BALTRON-E balancing machine for electric motor armatures

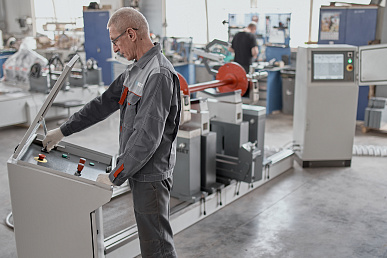

Horizontal hard-bearing balancing machine BALTRON-E

Hard-bearing balancing machine BALTRON-E

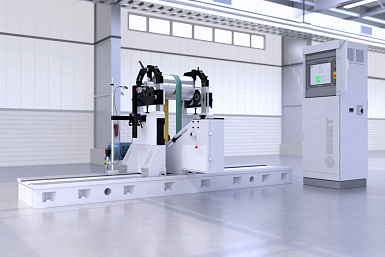

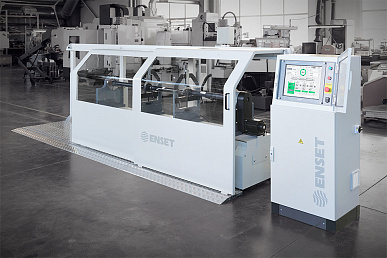

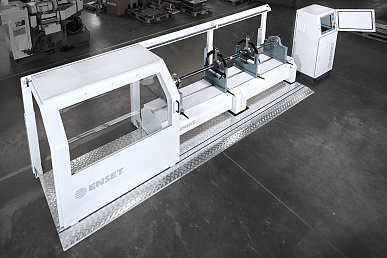

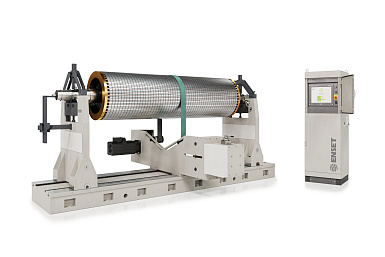

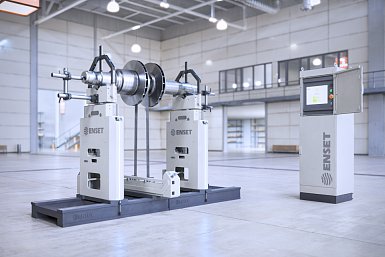

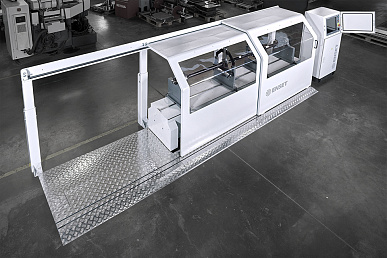

BALTRON-300.E Horizontal hard-bearing balancing machine

Model: 300450 600

Advantages

HIGH ACCURACY
EMAR - 0.1 gmm/kg

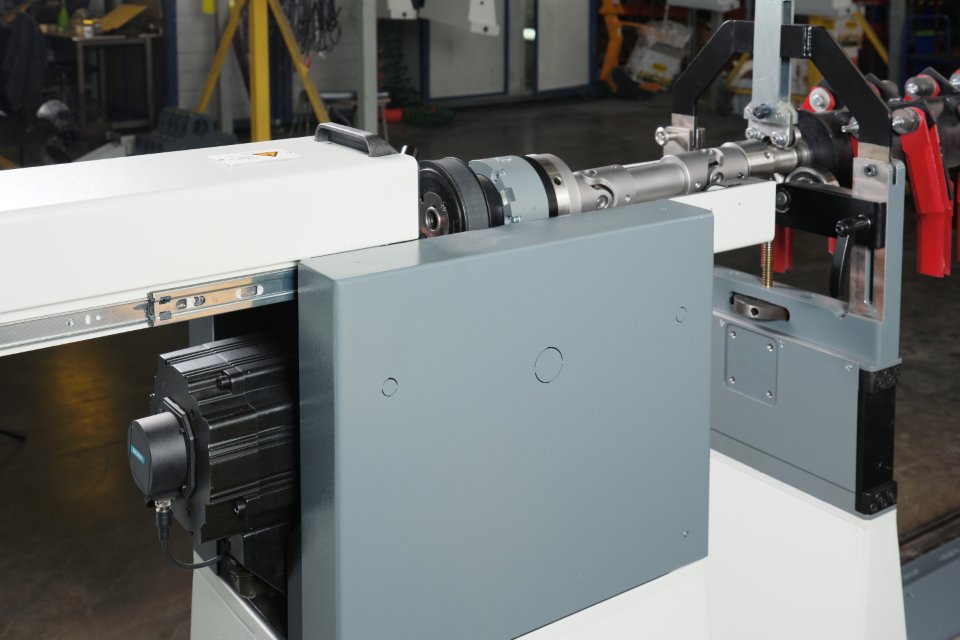

POWERFUL SERVO DRIVE
Balancing at speeds up to 1,500 rpm thanks to a powerful servo drive (5.5 kW). Increase in machine productivity by 2 – 5 times, compared to machines with an asynchronous drive.

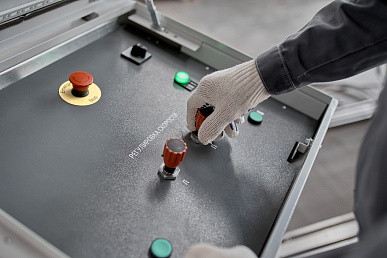

SOFTWARE

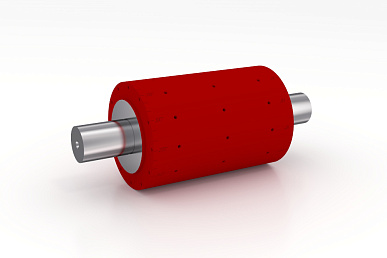

VIBROLAB Measuring system. Developed and manufactured by ENSET and registered in the State Register of Measuring Instruments under № 84333-22. The system can be supplied with primary verification. It has a simple and intuitive, fully touchscreen operator interface that eliminates errors. The system stores a product database and a full history of each balancing. If necessary, it prints out the balancing protocol, stores it on a USB drive or transmits it over the network. The system is absolutely reliable. It is protected from failures, malware, network attacks, external interference and unskilled actions. Ready for Industry 4.0 - compatible with SCADA, MES and ERP systems.

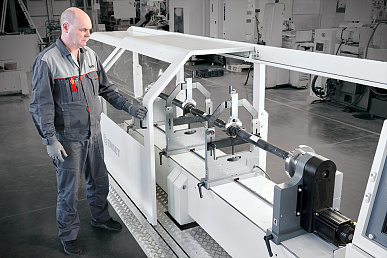

MODULAR CAST IRON FRAME

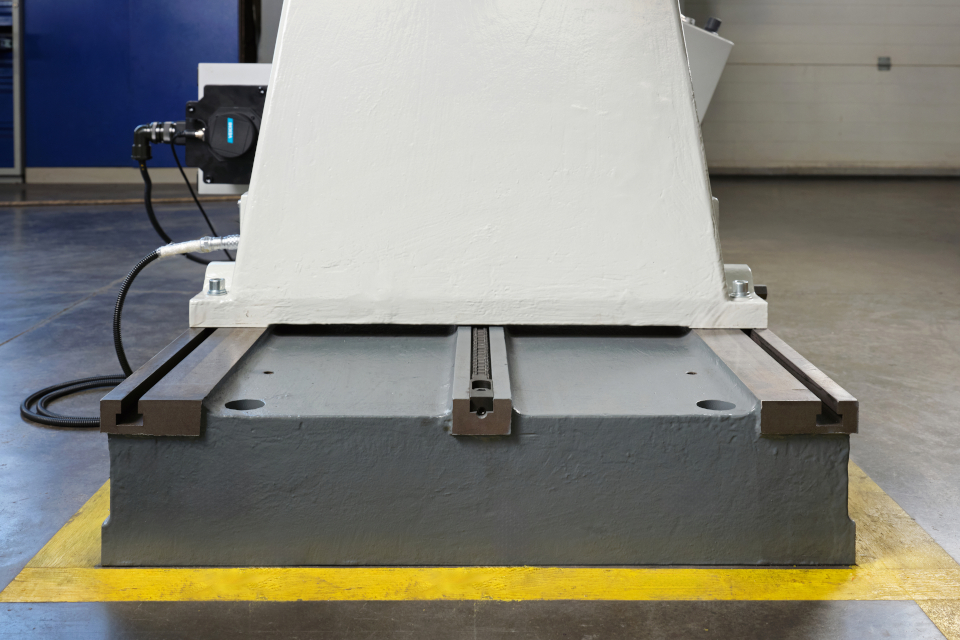

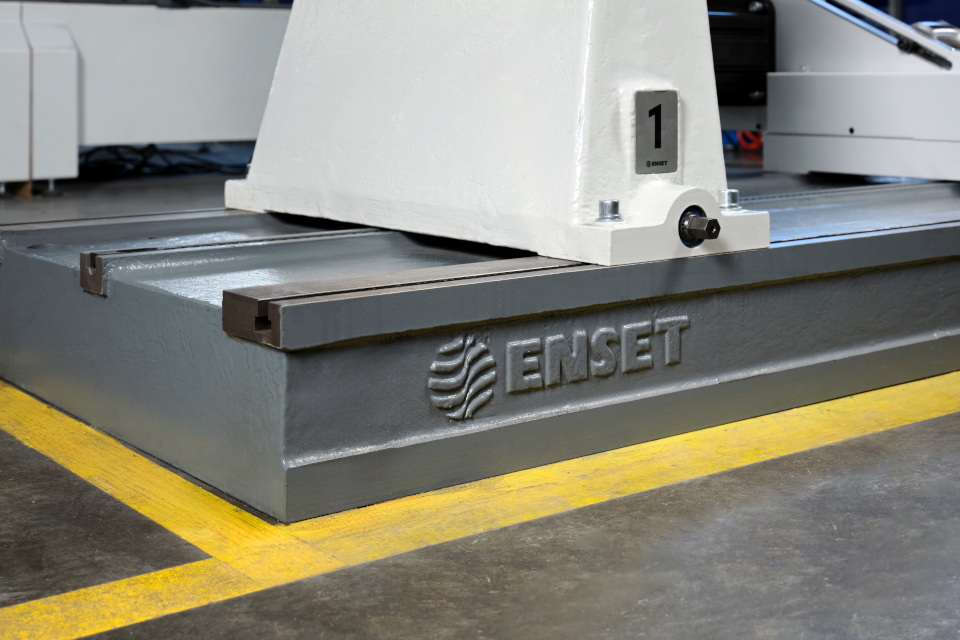

Massive frame made of high-strength cast iron with a system of sliding guides and maximum rigidity. The modular frame consists of 1.5 m sections and allows you to assemble the machine of any desired length. A special foundation for installing the machine is not required.

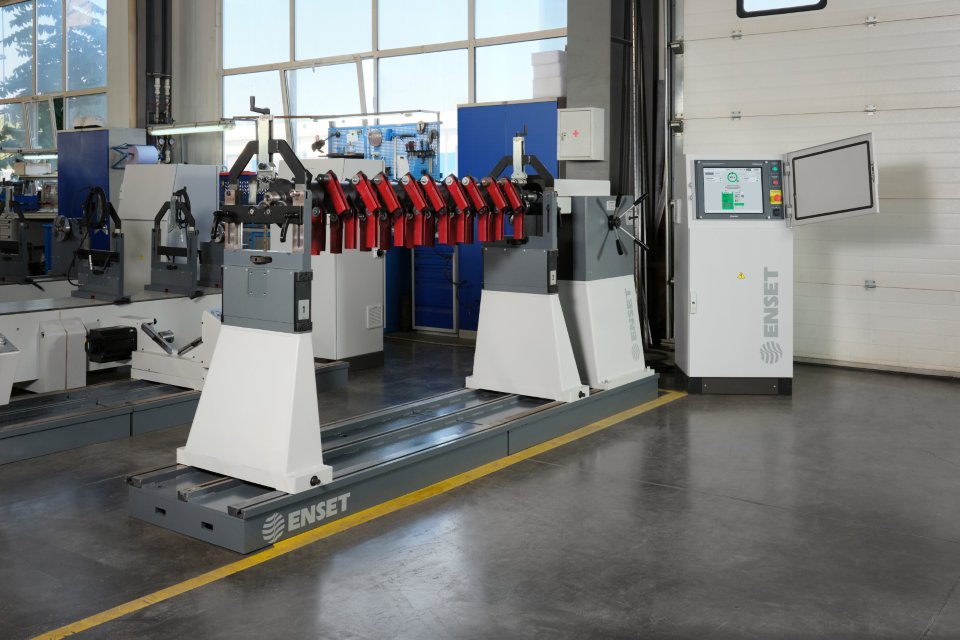

The machine is convenient for balancing gear shafts, machine and mechanism shafts, paper machine rolls, screws, shredders, cardan shafts, internal combustion engine crankshafts, locomotive wheel pairs, drive spindles, generator rotors, turbocharger rotors (turbines), rotors (anchors), electric motors, agricultural machinery rotors, brake discs, aircraft gas turbine turbines, augers, traction motor anchors, rotary saws (impact saws), crushers, gyromotors, gear wheels, hydraulic converter.

Specifications

Code	АМШС.51257088
Model	300
Type of equipment	Horizontal hard-bearing balancing machine
Purpose	For dynamic balancing of rotors with two bearing surfaces
Control system	Vibration balancing measuring system VIBROLAB with color touch display 17 inches
Engine type and its characteristics	Servo motor, 2000 rpm, 5.5 kW
Spindle stroke	250 mm

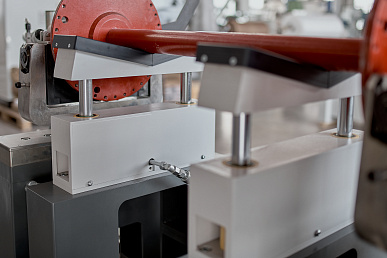

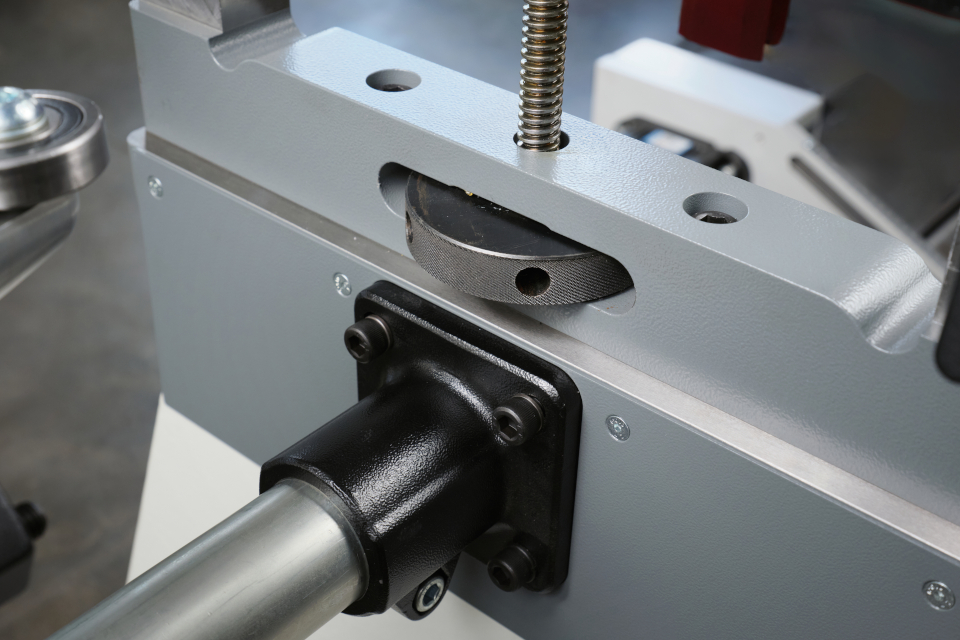

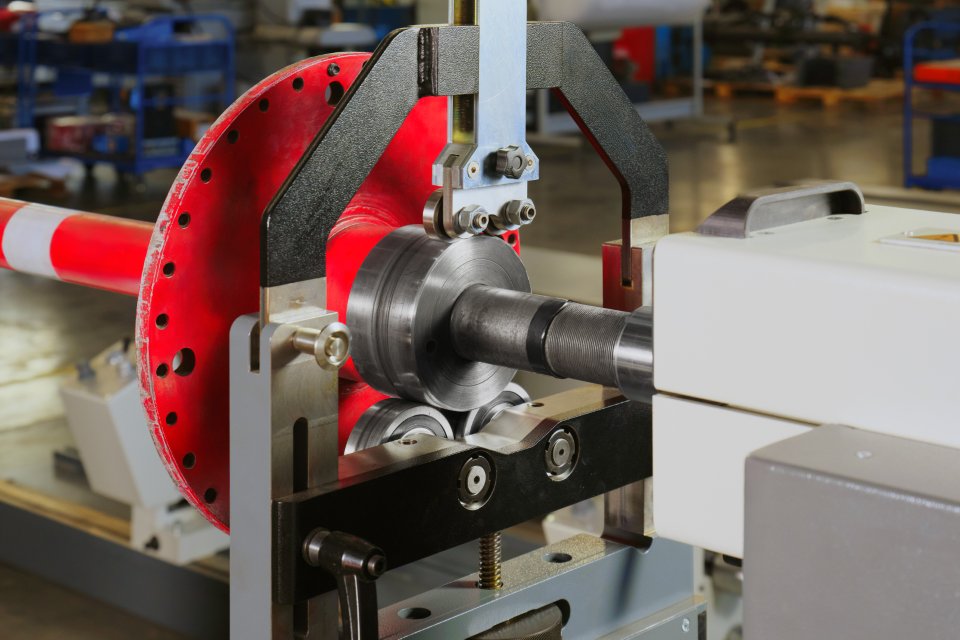

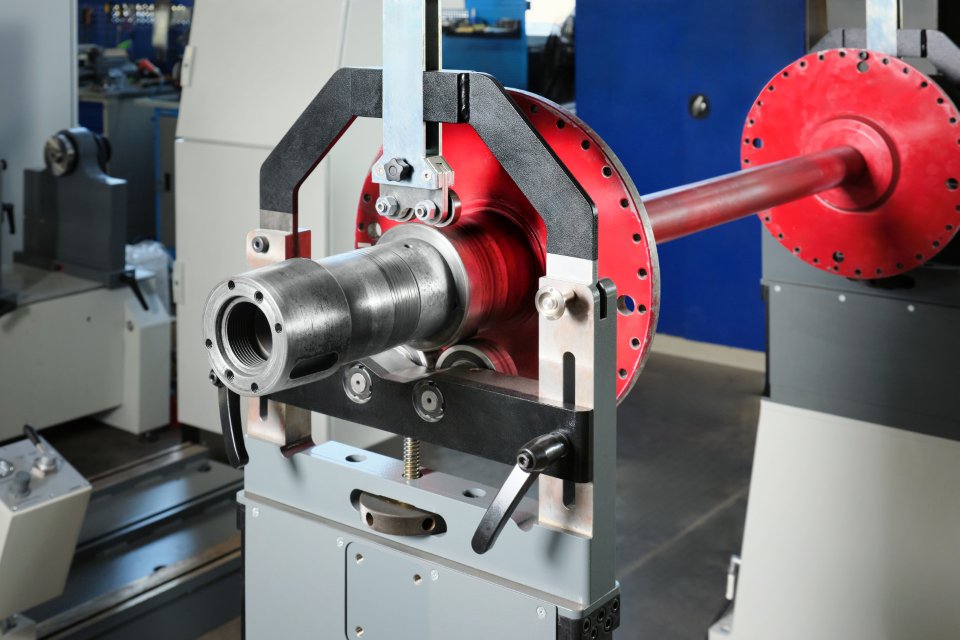

Number and type of supports	2 roller supports, height adjustable
Rotor weight	5 - 1500 kg
Maximum load on 1 support	1000 kg
Maximum product diameter	1800 mm
Product length	35 – 2110 mm, between the centers of the support journals
URR Unbalance reduction ratio	95 %
Rotation frequency of the product during balancing n	up to 1500 rpm
Accuracy of measuring the rotation frequency of the product	± (1+0,0025·n)
Accuracy of measuring the angular position of the product	± 0,01º
Power supply	3 phases, 400 V, 50 Hz, 24 A, protective grounding is mandatory
Turning the product to the correction position	Auto
Holding the product in the adjustment position	Yes
Vibration sensors	Piezoelectric force sensors
Number of vibration measurement channels	2
Angular position sensor of the product	Incremental encoder
Protecting electronics from dust and moisture	IP54
Anchoring to the base or foundation	Anchoring to a concrete floor at least 100 mm thick
Structural features of the frame	High-strength cast iron frame with T-slots and sliding guides
Length of frame section	1500 mm
Dimensions (L x W x H)	3000 × 650 × 1485 mm
Electric cabinet dimensions (L x W x H)	600 х 500 х 1400 mm
Equipment weight (net)	1386 kg
Climatic performance according to GOST 15150	Operation: UHL 4.2 (temperature from + 10 to + 35 ºC, relative air humidity up to 80%). Storage and transportation: 1L (temperature from + 5 to + 40 ºC, relative air humidity up to 80%)
Warranty period	60 months

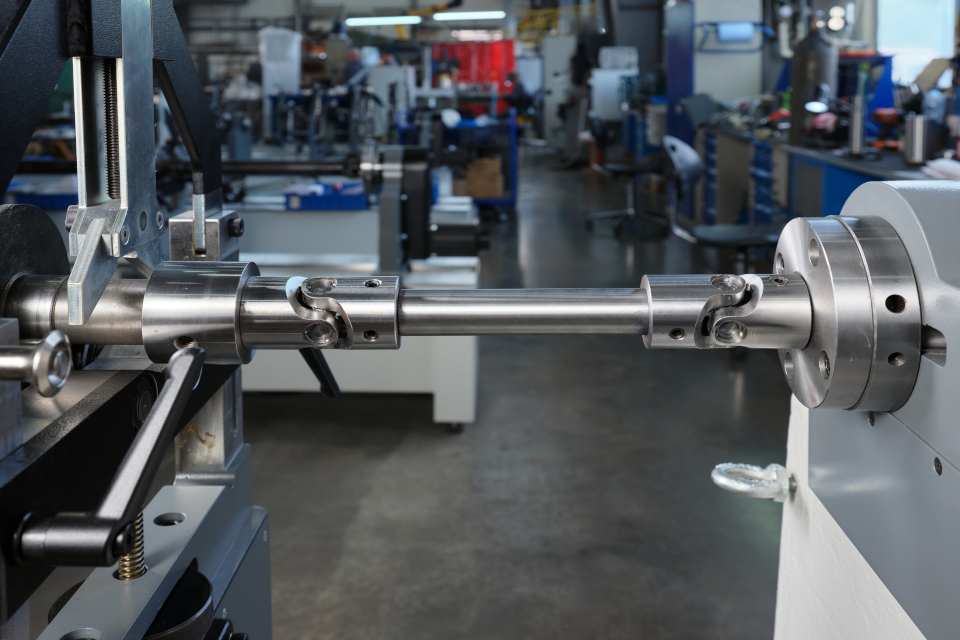

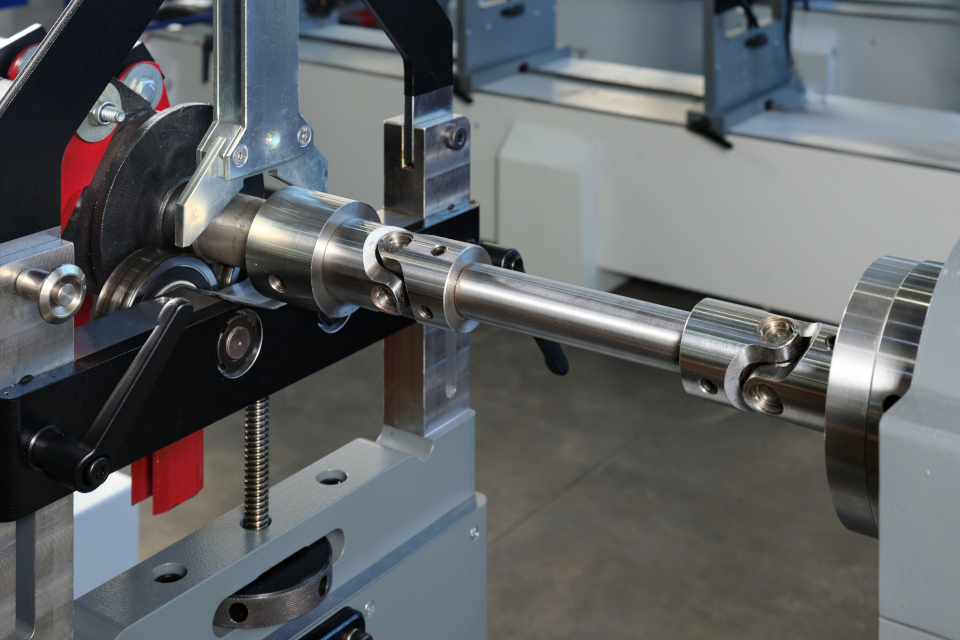

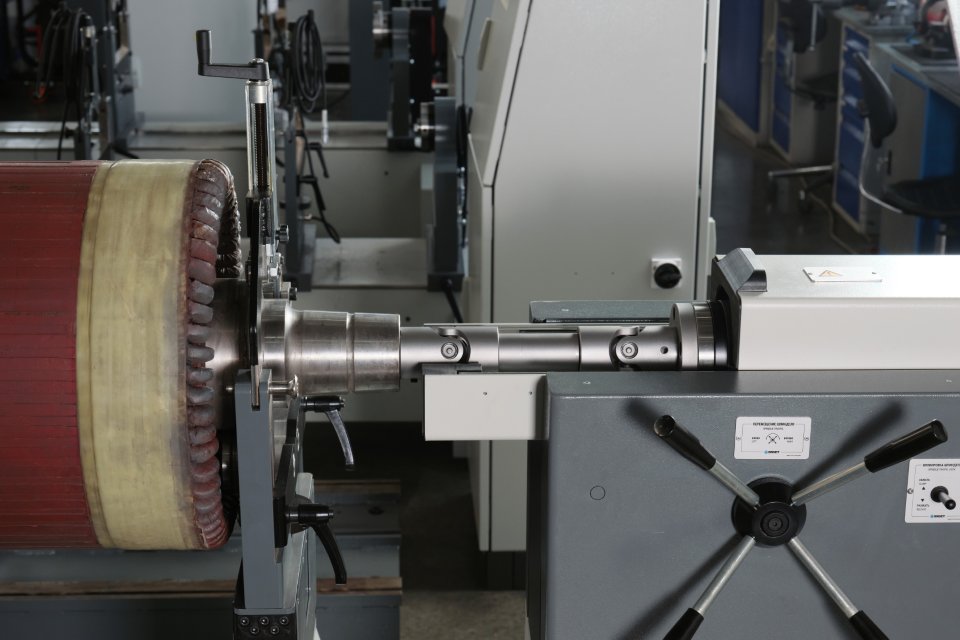

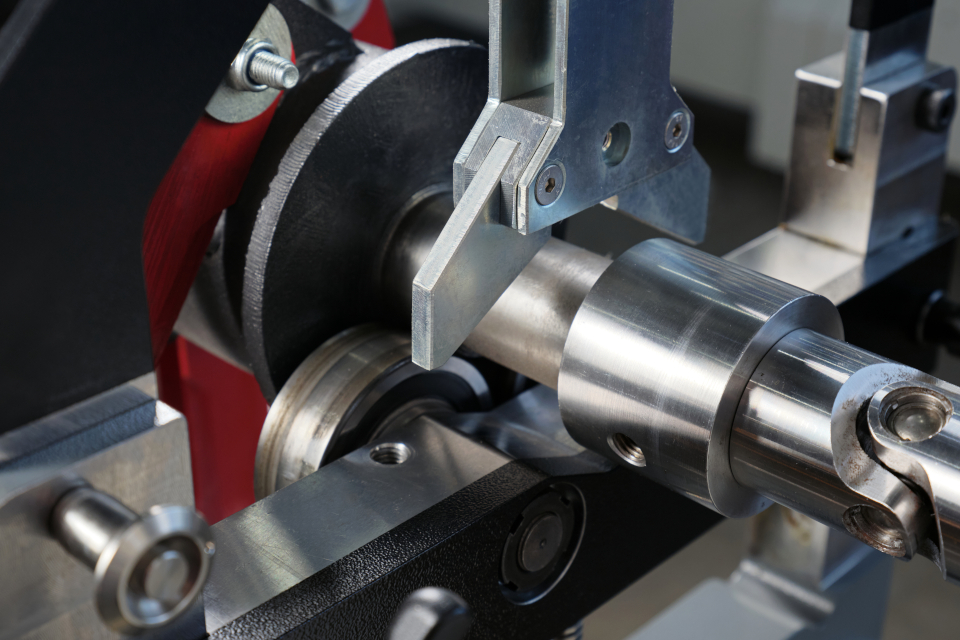

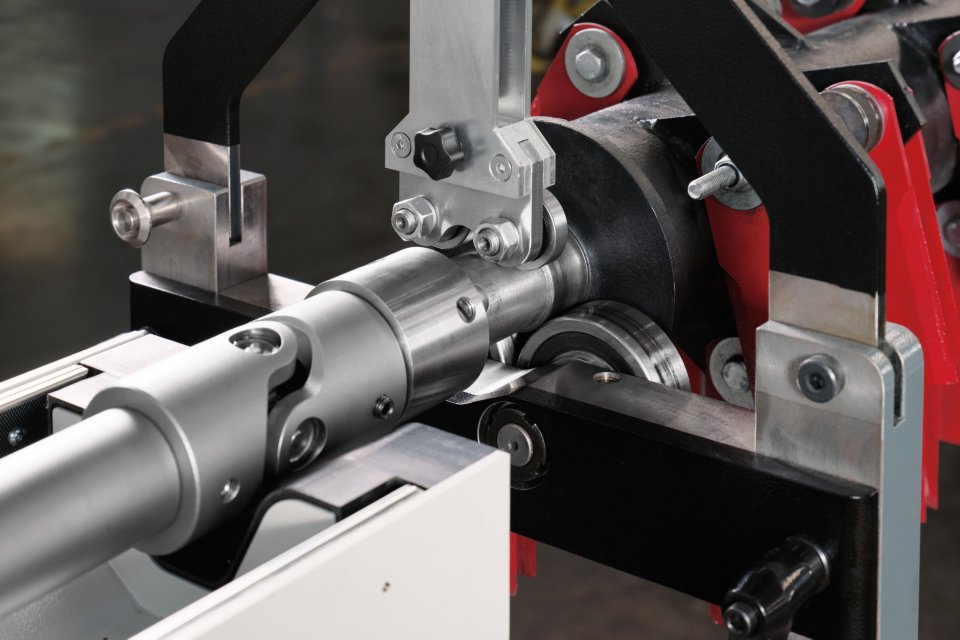

Drive type	Axial, drive spindle with cardan shaft
Minimum achievable residual specific imbalance	0.1 gmm/kg
Type of speed sensor	Inductive sensor
Diameter of trunnions of the balanced product	16 - 230 mm
Requirements for the pneumatic network	4 – 6 bar
