Code |
АМШС.92323474 |
Model |
20000 |

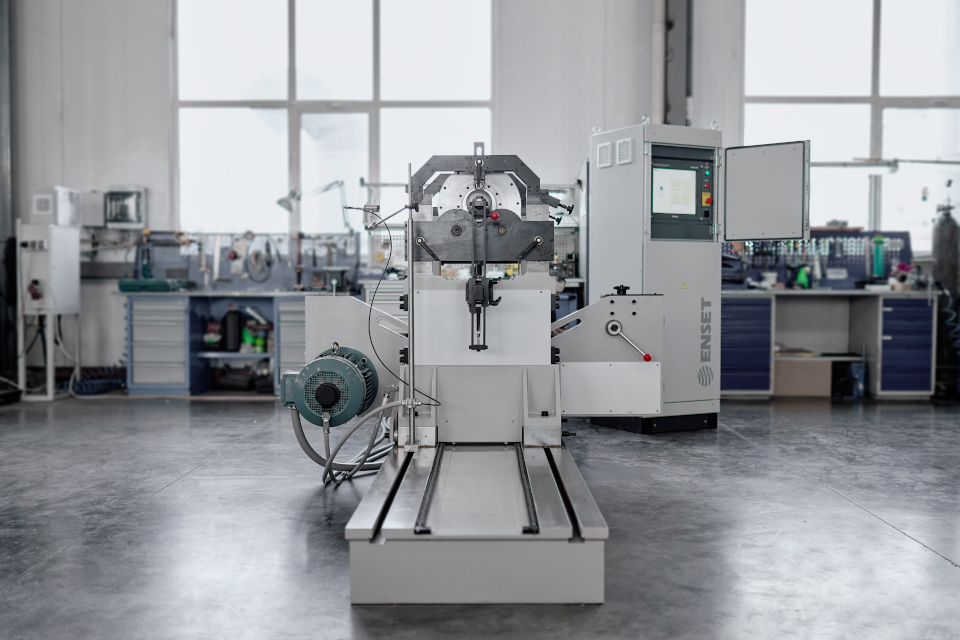

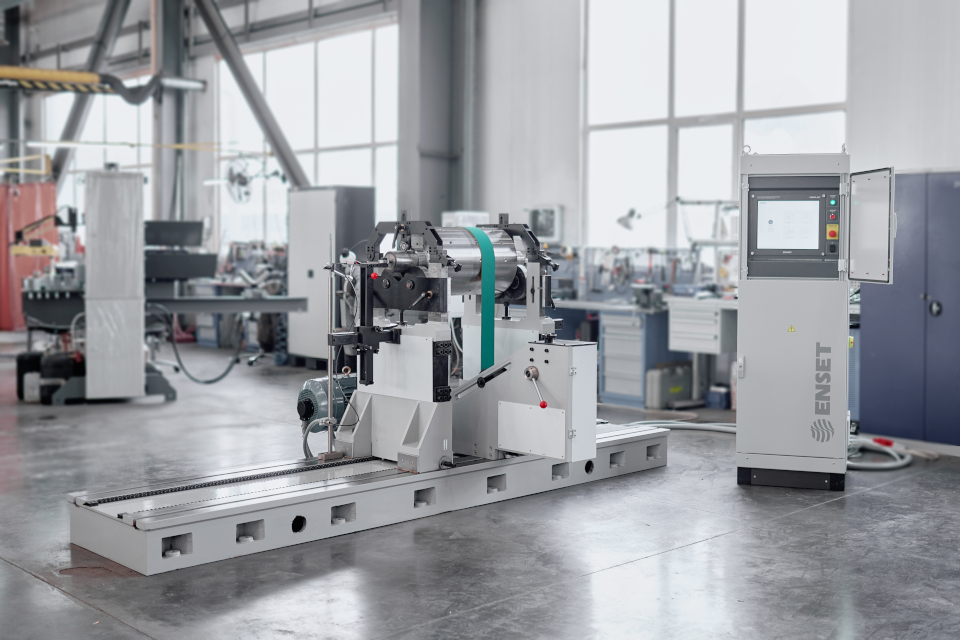

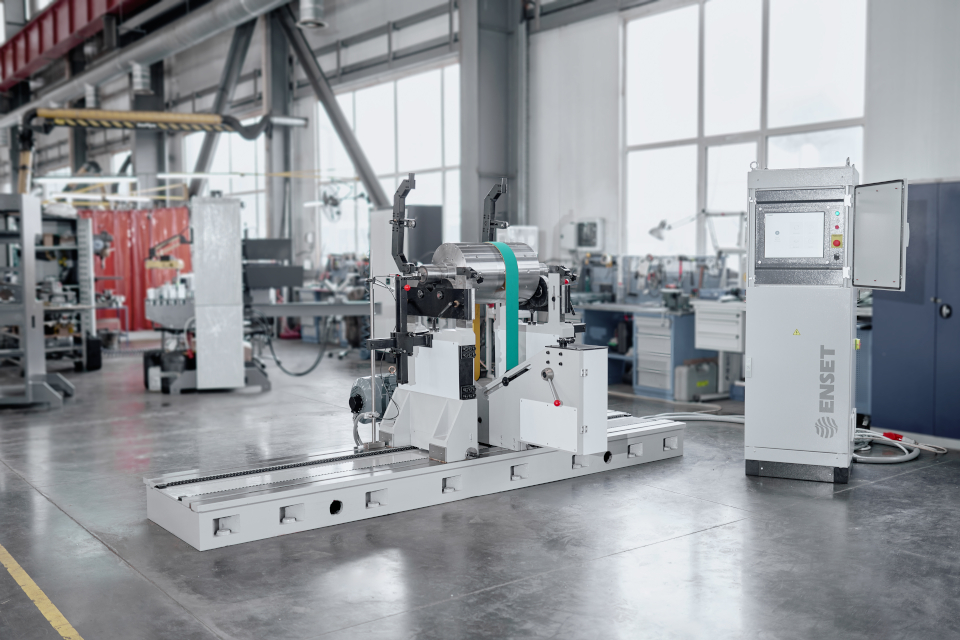

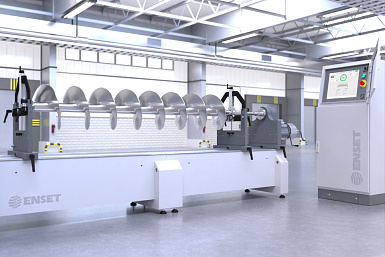

Type of equipment |
Horizontal hard-bearing balancing machine |
Purpose |
Universal, for inter-support, cantilever and double-cantilever rotors |
Control system |
Vibration balancing measuring system VIBROLAB, with color touch display |

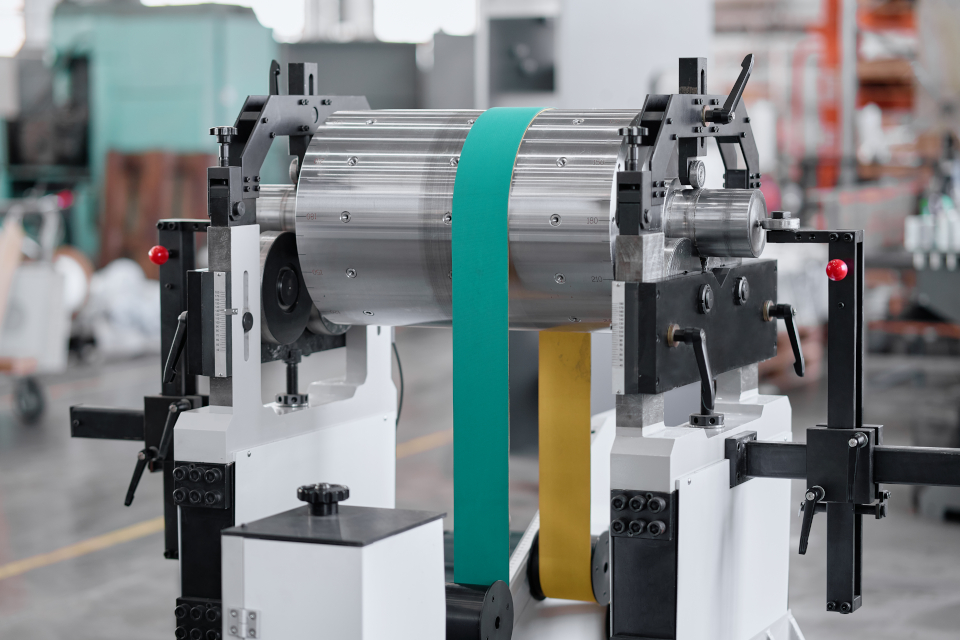

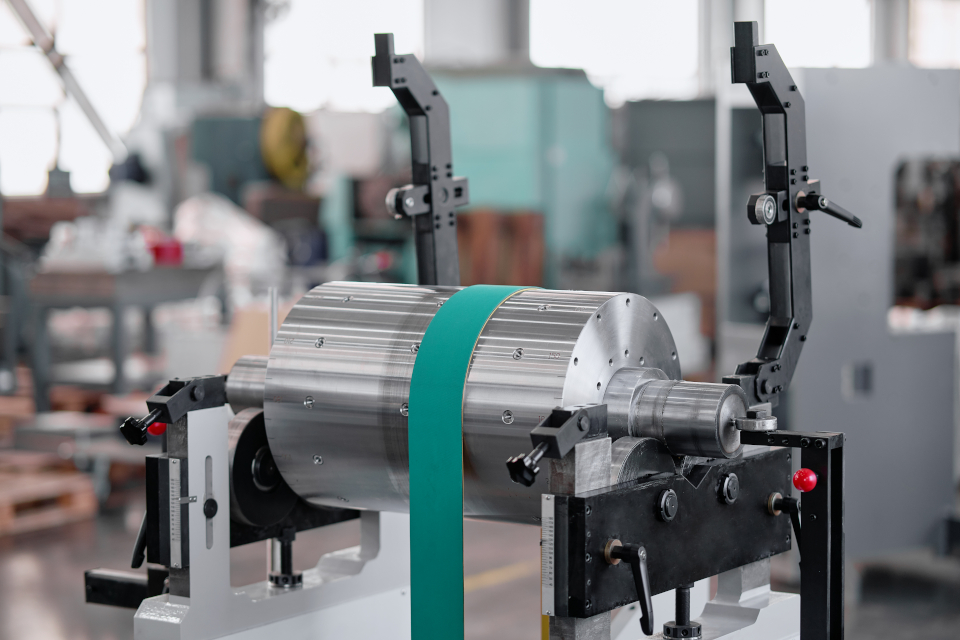

Rotor type drive |
Belt |
Belt tension |
Manual |

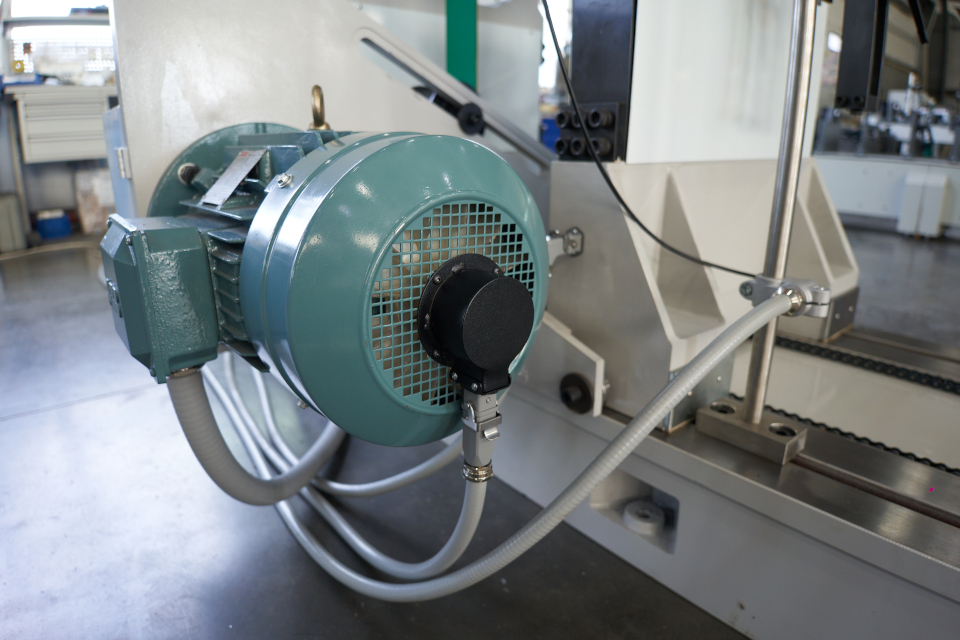

Engine type and its characteristics |
Variable frequency asynchronous, 1500 rpm, 30 kW |

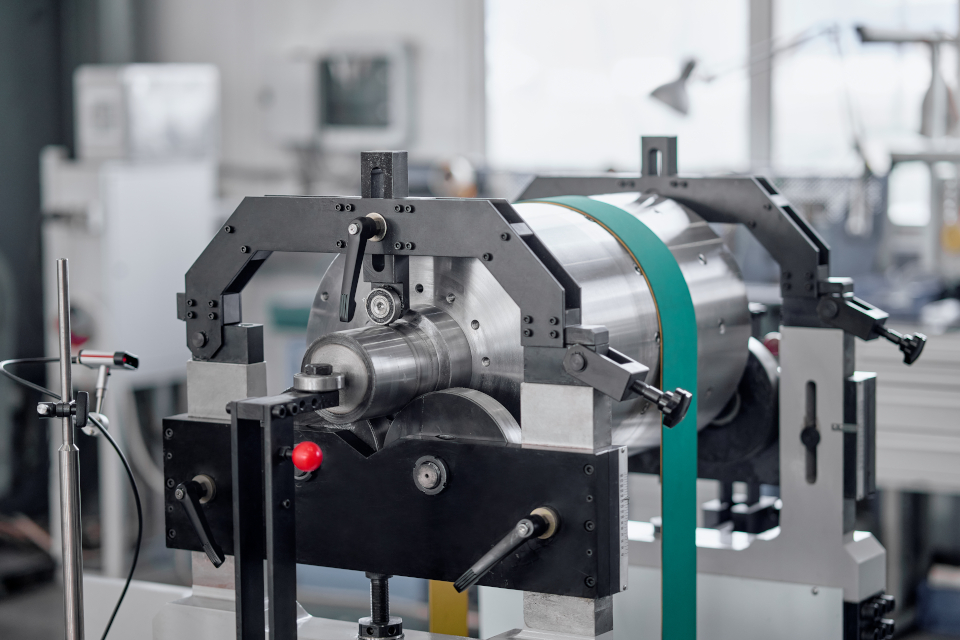

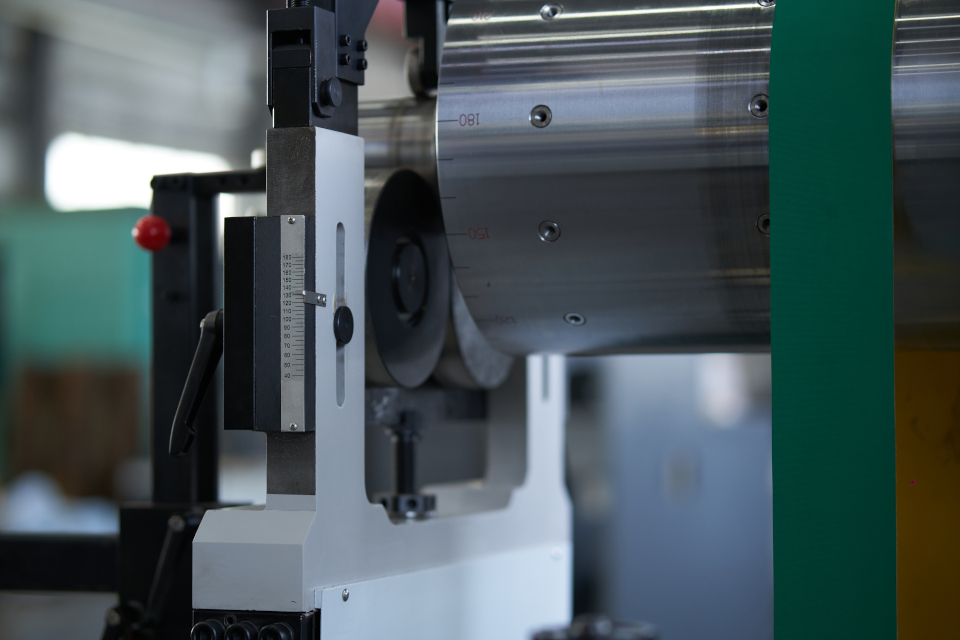

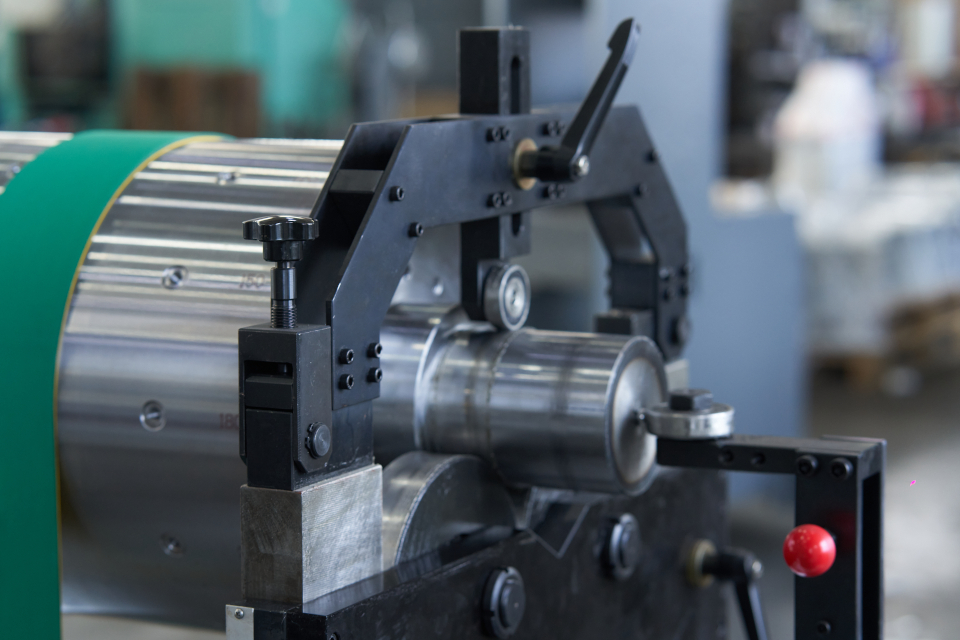

Number and type of supports |
2 supports, height adjustable; with different roller or prismatic blocks on request |
Rotor weight |
up to 20,000 kg |
Maximum load on 1 support |
12000 kg |
Maximum product diameter |
2400 mm (3000 mm) |
Maximum diameter of the product above the belt drive |
1500 mm |
Product length |
350-3600 mm, between the centers of the support journals |
Diameter of rotor jourals |
40 – 180 / 180 – 400 mm |
Minimum achievable residual specific imbalance emar |
0.1 gmm/kg |
URR Unbalance reduction ratio |
95 % |
Rotation frequency of the product during balancing n |
30 – 6,000 rpm |
Accuracy of measuring the rotation frequency of the product |
± (1+0,0025·n) |
Accuracy of measuring the angular position of the product |
± 0,01º |
Power supply |
3 phases, 380 V, 50 Hz, 50 A, protective grounding is mandatory |
Turning the product to the correction position |
Manual (Automatic) |
Holding the product in the adjustment position |
Option |
Vibration sensors |
Piezoelectric force sensors |
Number of vibration measurement channels |
2 |
Type of speed and phase sensor |
Laser keyphasor |
Angular position sensor of the product |
Incremental encoder |
Protecting electronics from dust and moisture |
IP54 |
Anchoring to the base or foundation |
Anchoring to a concrete floor at least 160 mm thick or a special foundation |
Structural features of the frame |
High-strength cast iron frame with T-slots and sliding guides |
Length of frame section |
4000 mm (6000 mm) |
Dimensions (L x W x H) |
4000 × 1200 × 1850 mm |
Electic cabinet dimensions (L x W x H) |
600 x 600 x 1962 mm |
Equipment weight (net) |
4900 kg |
Climatic performance according to GOST 15150 |
Operation: UHL 4.2 (temperature from + 10 to + 35 ºC, relative air humidity up to 80%). Storage and transportation: 1L (temperature from + 5 to + 40 ºC, relative air humidity up to 80%) |
Warranty period |
60 months |
|
|
|
|
